Enerdrive 40A AC & DC RV80 DIY Installation Kit
SKU: K-RV-80-KIT Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description

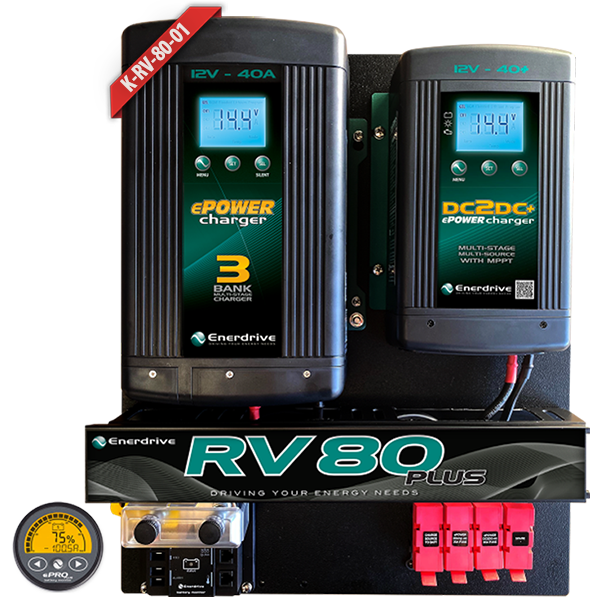

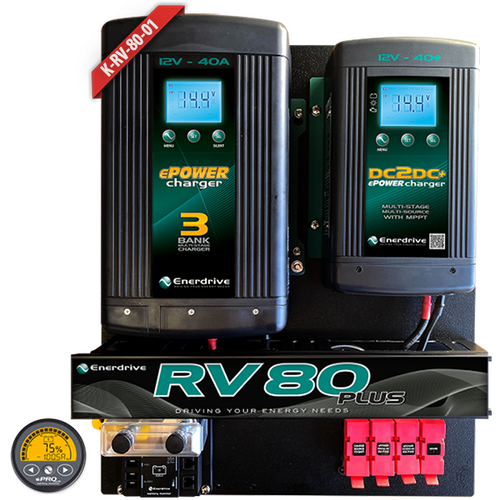

Enerdrive 40A AC & DC RV80 DIY Installation Kit
Introducing Enerdrives RV Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more.
Enerdrive have created many different layouts to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. You can choose kits ranging from 20A AC & 40A DC chargers through to 40A AC & DC units with monitoring and Low Battery Cutout.
These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All RV boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.
Enerdrive also have you covered from a service and support angle with the RV Installation kits. Designed, constructed and pre-wired by Enerdrive, we know exactly the layout and wiring of your kit so any fault finding or support can be given quickly and concisely.
EXPERT TIP: One or two AGM Board Cable Kits are common accessories suitable for the Enerdrive 40A AC & DC RV80 DIY Installation Kit. Thickness, length and quantity will depend on installation type. Please check cable description for details. All the accessories are available in the Accessory List above as optional extras.
| RV80 Kit Includeds: | K-RV080 | K-RV080-01 | K-RV080-02 | K-RV080-03 |

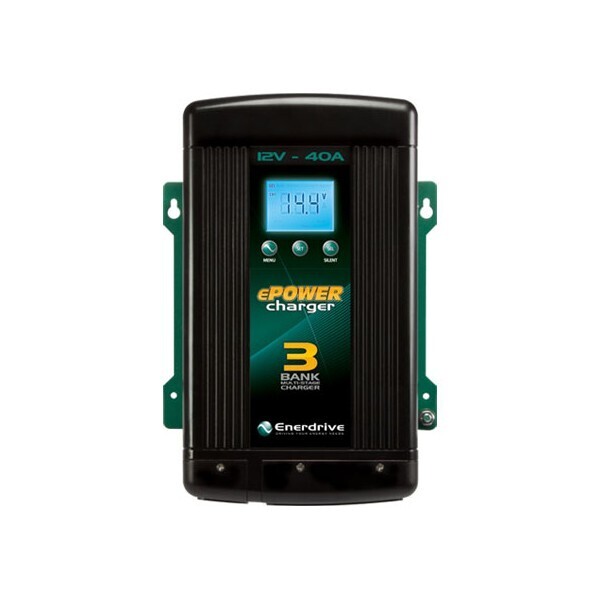

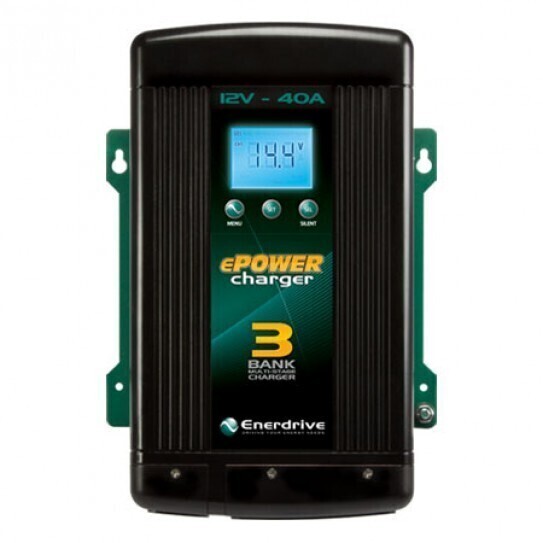

| ePOWER AC 40Amp 230v Charger | * | * | * | * |

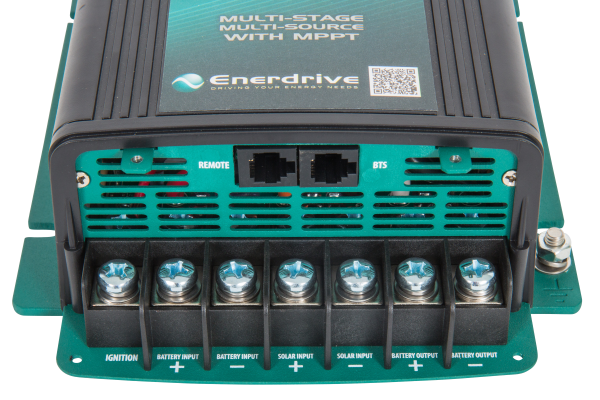

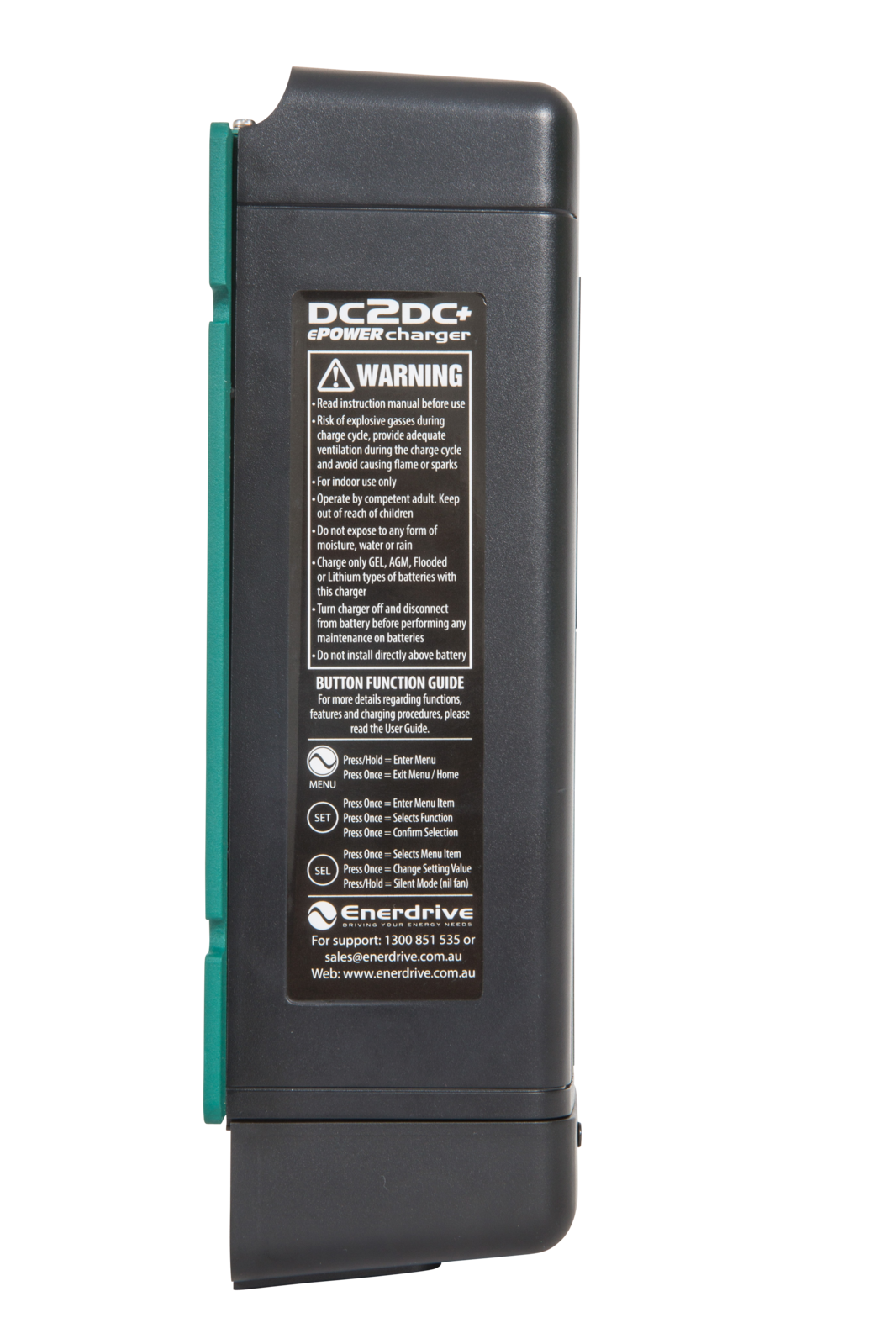

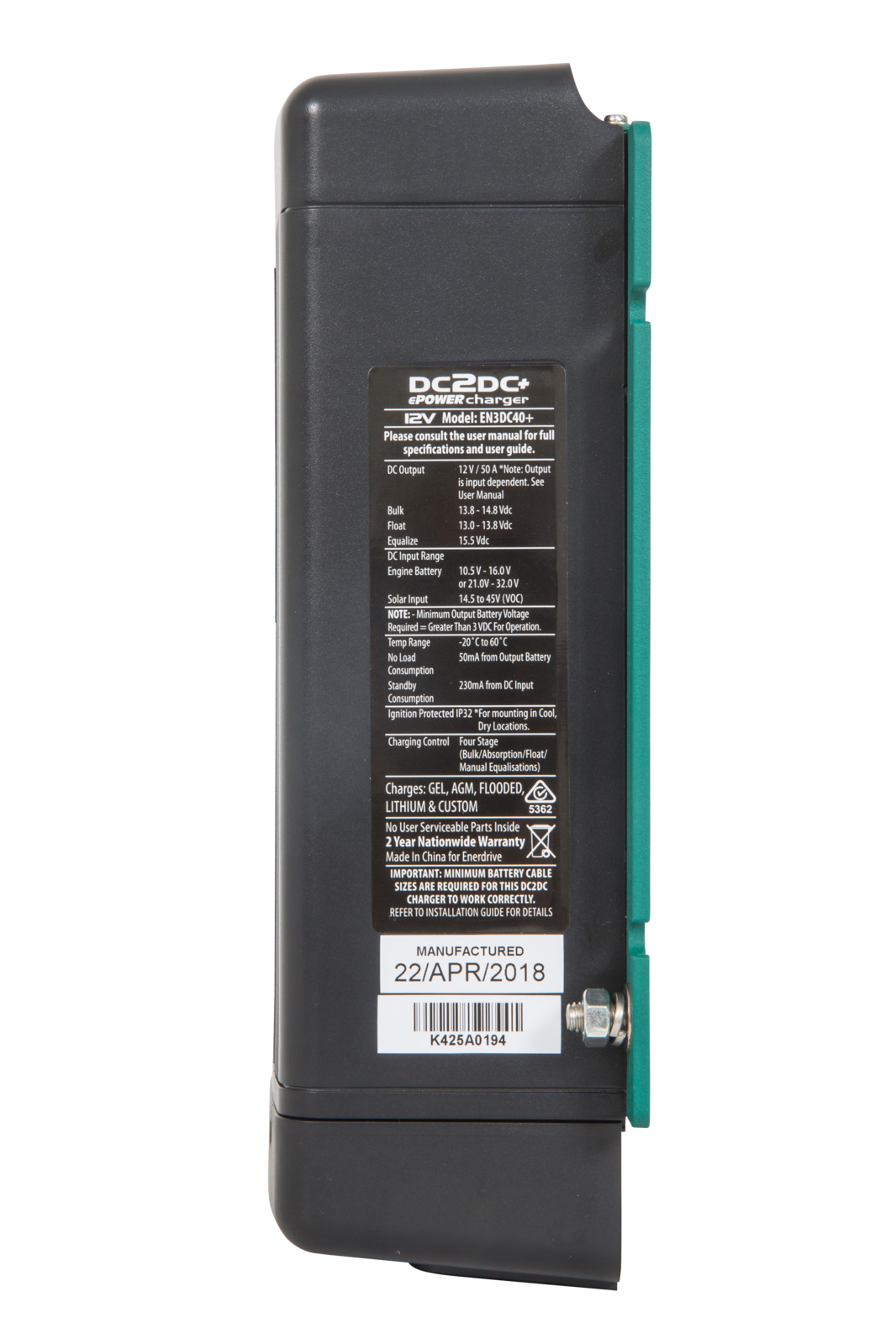

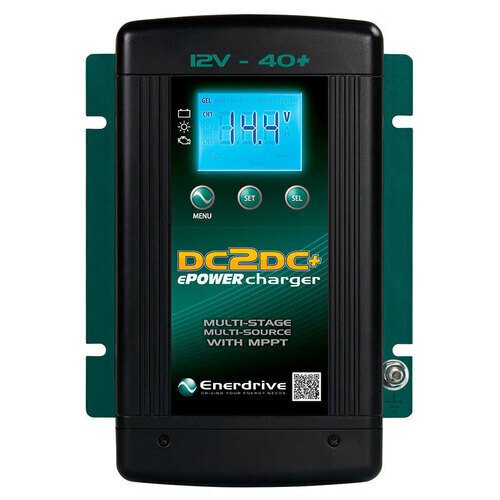

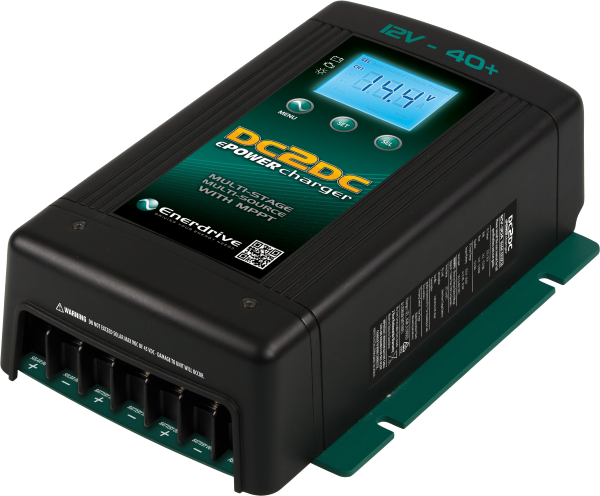

| ePOWER DC2DC 40+ Charger (Vehicle/Solar) | * | * | * | * |

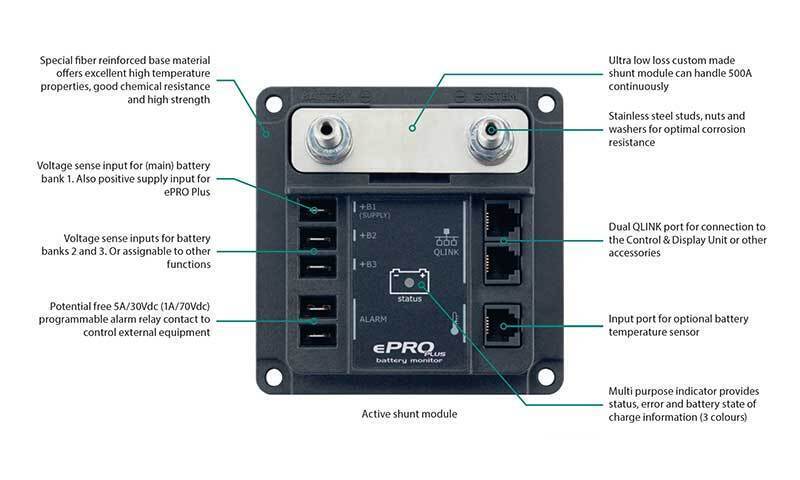

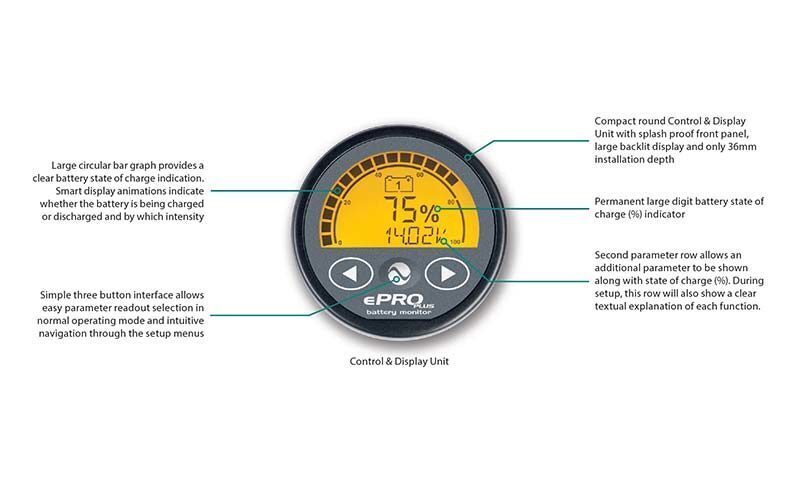

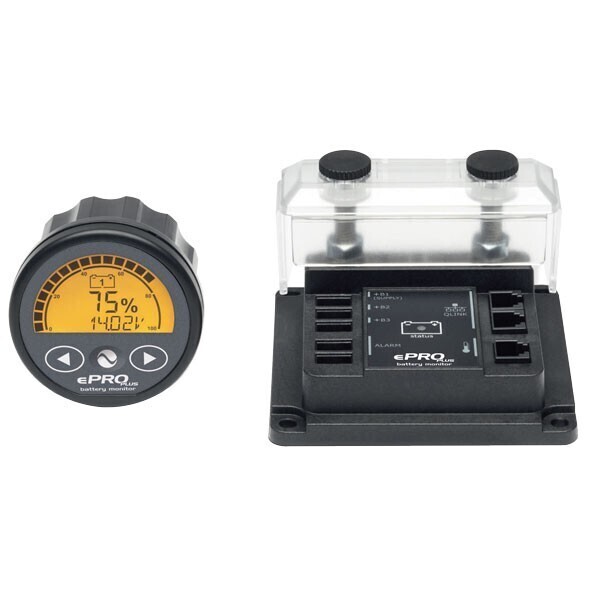

| ePRO Plus 500A Battery Monitor with Remote Display, with Audible & Visual Alarm | * | * | * | |
| ePOWER AC Charger 50A Output Fuse Connection | * | * | * | * |
| ePOWER DC2DC 60A Output Fuse Connection | * | * | * | * |
| 50A Load Output Fuse Connection | * | * | * | * |
| 8 Circuit "Wedge" Fuse Block | * | |||
| Low Battery Cutout (Programmed in ePRO Plus via Users Data Input) |
* | |||
| 12mm Black Plastic Mounting Board. Water & Rot Resistance | * | * | * | * |
| Dimensions (L x W x D) mm | 480 x 400 x 100 | 480 x 400 x 100 | 480 x 400 x 100 | 480 x 400 x 100 |
| (*) Indicates Standard Fitment | ||||
Wiring Diagram for RV80:
Wiring Diagram for RV80-01:
Wiring Diagram for RV80-02:
Wiring Diagram for RV80-03:
Specifications
SKU K-RV-80-KIT
Brand Enerdrive
GTIN 9342616000816
Product Category Power Systems
Voltage 12V
DC Charger Output Current Rating (Amps) 40
AC Charger Output Current Rating (Amps) 40
Dimensions 480x400x100mm
Charger Voltage 12V
NOTE: see full product specifications & further product info in the Description section on this page.
