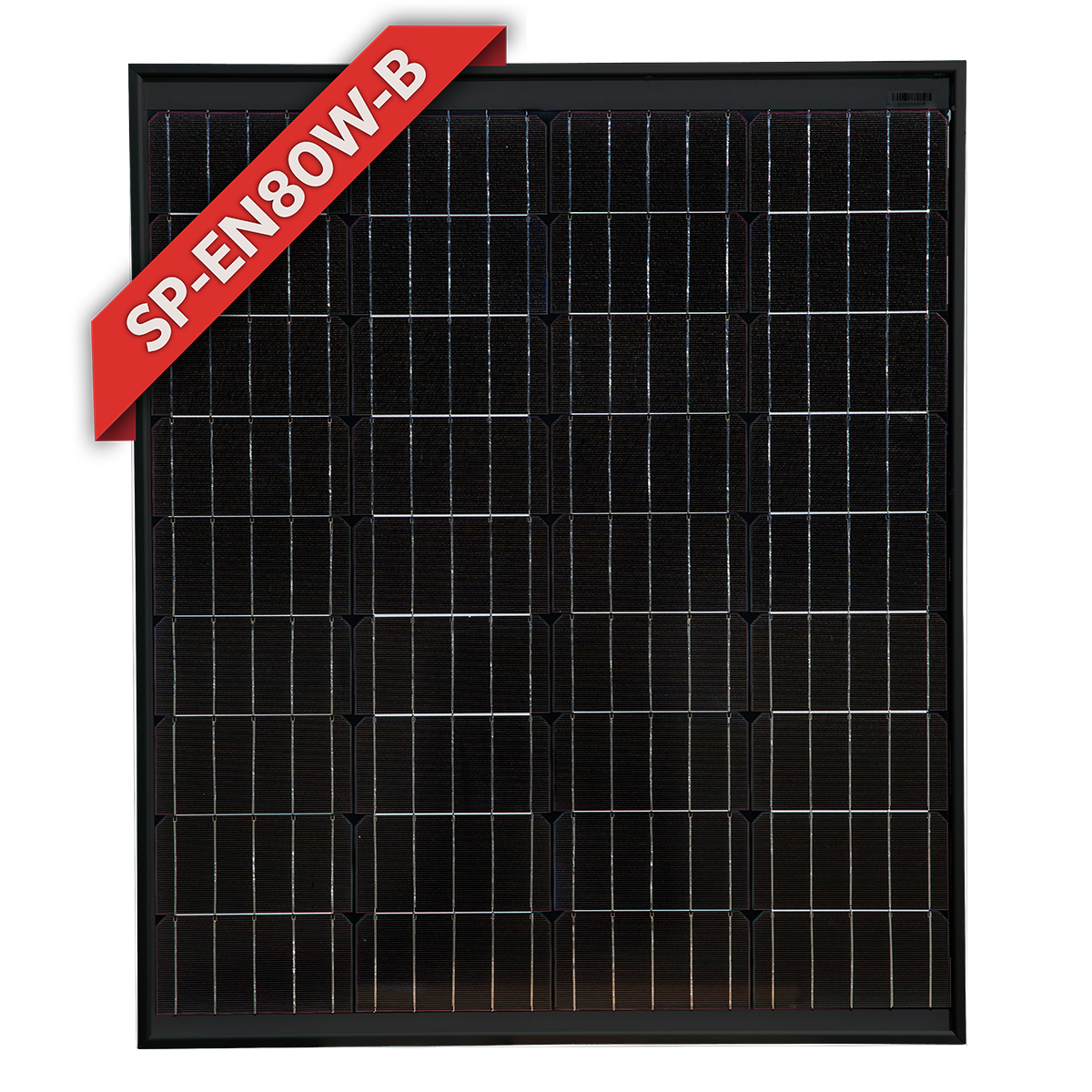

Enerdrive 80W Fixed Solar Panel, Black
SKU: SP-EN80W-B Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Enerdrive 80W Fixed Solar Panel, Black
780 x 676 x 35mm
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Features
- High Conversion Efficiency. Module efficiency up to 15.17% achieved through advanced cell technology and manufacturing capabilities
- Positive Tolerance. Positive tolerance of up to -1%+~3% delivers higher output reliability
- High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant
- Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage
- Extended Wind and Snow. Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal)
- Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors
Some Basic Tips:
- Keep your panel in direct sunlight as much as possible
- Secure your Folding Solar Kit from theft around your work or campsite
- Protect and store your portable folding kit in the most secure place you can to prevent accidental breakage
Specifications:
- Max Power Pm(W) 80
- Power Tolerance -1% ~ + 3%
- Max Power Voltage Vm(V) 17.99
- Max Power Current Im(A) 4.45
- Open Circuit Voltage Voc(V) 22.19
- Short Circuit Current Isc(A) 4.85
- Max System Voltage (VDC) 1000
- Dimensions (mm) 780 x 660 x 35
- Weight (kg) 7.9
- Test Conditions 1000W/m² , AM1.5 , 25°C
.png)
Specifications
SKU SP-EN80W-B
Brand Enerdrive
Product Category Solar Panels
Watts (W) 80
Solar Panel Cell Type Monocrystalline
Solar Panel Type Fixed Solar Panels
-Weight 7.9 Kg
Dimensions 780 x 676 x 35mm
Frame Colour Black
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Does this panel have any connectors on the cables?
Yes, it will have MC4 connectors.
-
How long are the cables coming from the junction box?
The cable length will be 600mm.
