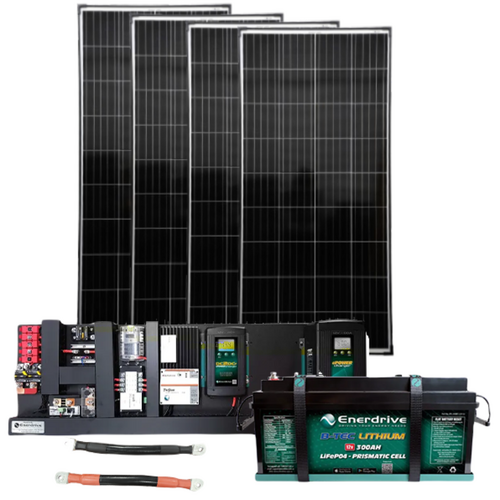

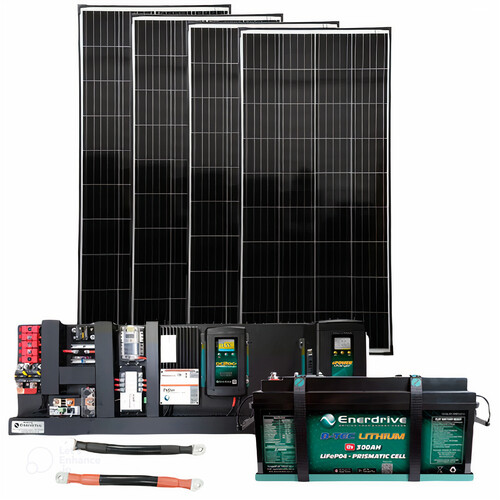

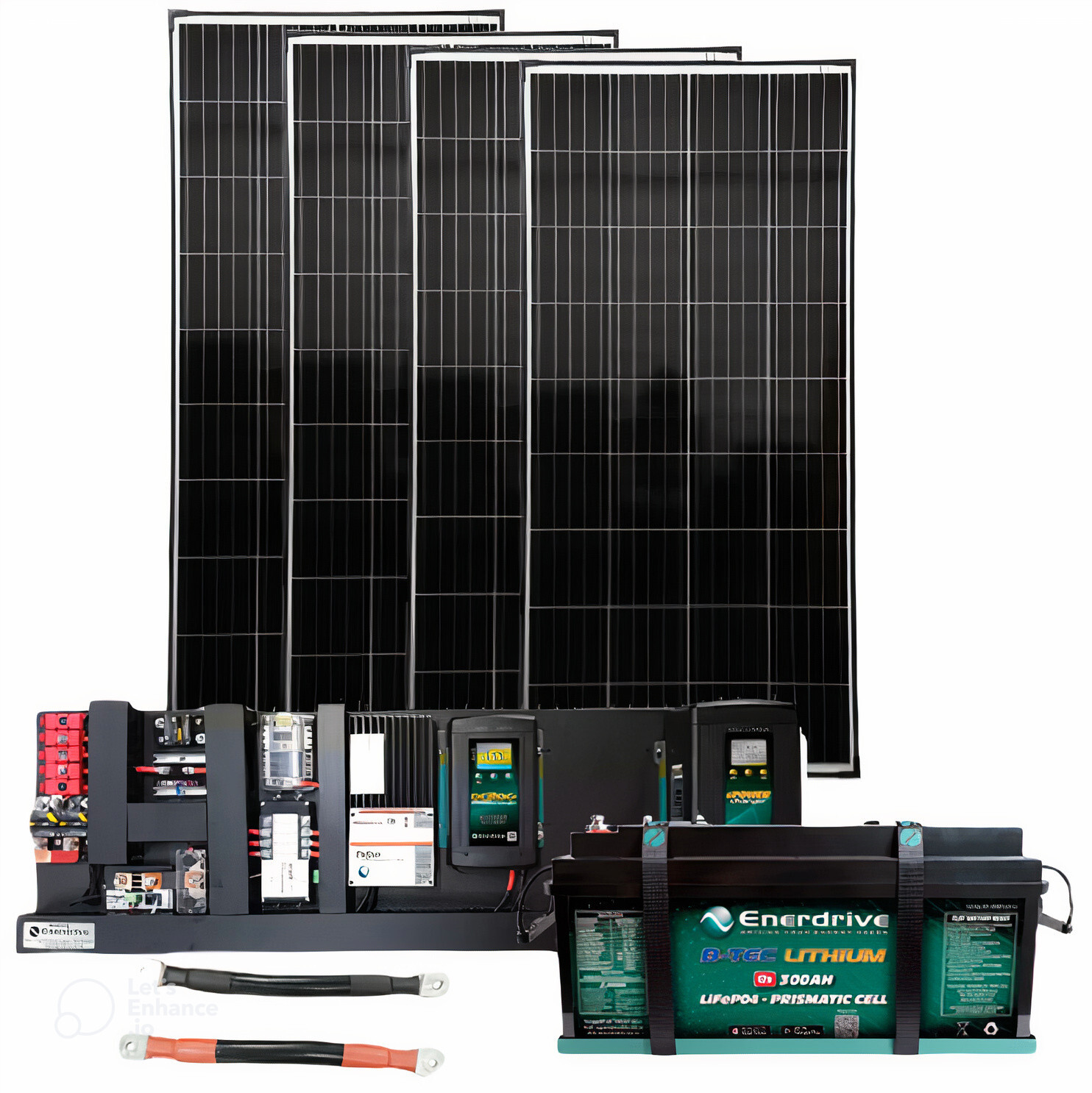

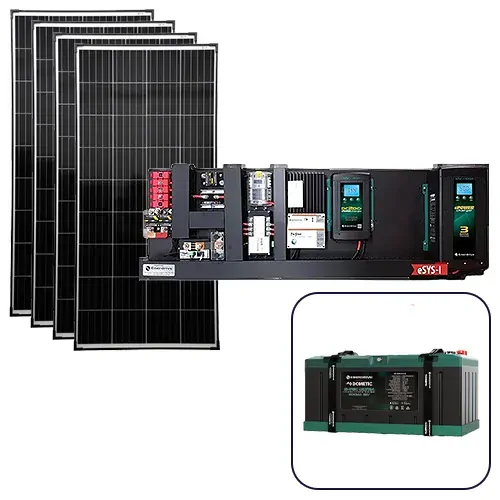

Enerdrive ADU Kit, ESYSTEM-I Board, 1 X 300Ah BTEC & 4 X 190W Black Solar Panels

Description

Enerdrive ADU Kit

Options:

• ESYSTEM-I Board, 1 x 300Ah BTEC Lithium Battery and 4 x 190W Black Solar Panels
• ESYSTEM-I Board, 2 x 300Ah BTEC Lithium Battery, 1 x Battery Parallel Cable Kit and 4 x 190W Black Solar Panels
• ESYSTEM-I Board, 3 x 300Ah BTEC Lithium Battery, 2 x Battery Parallel Cable Kit and 4 x 190W Black Solar Panels

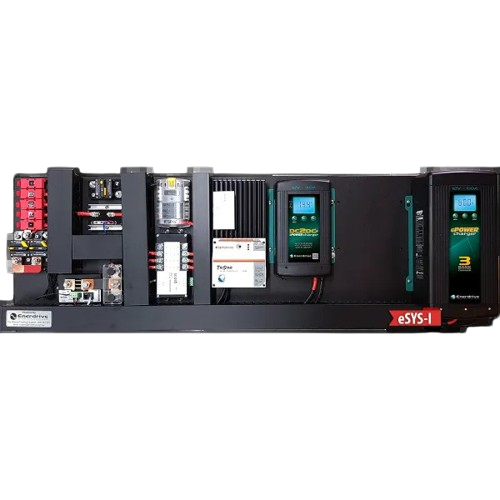

Enerdrive eSYSTEM-I 60A AC and DC DIY Installation Kit with Morningstar TriStar 45Amp Solar Controller & Simarine Battery Monitor

Pack Includes:

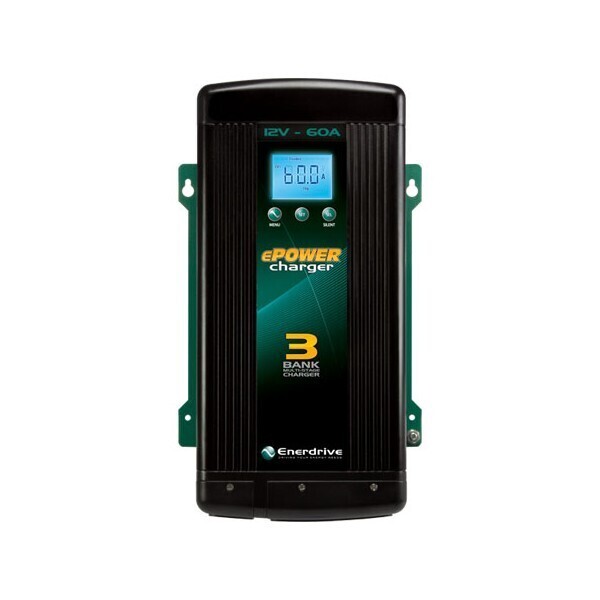

• Enerdrive ePOWER 12V 60A Battery Charger - EN31260

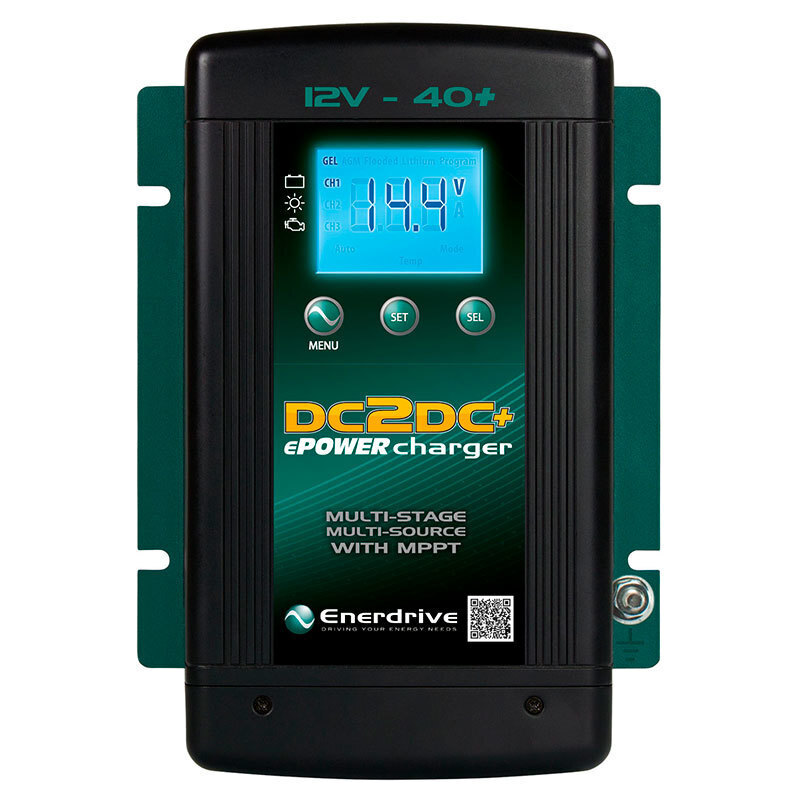

• Enerdrive ePOWER 12V 40A DC to DC Battery Charger - EN3DC40

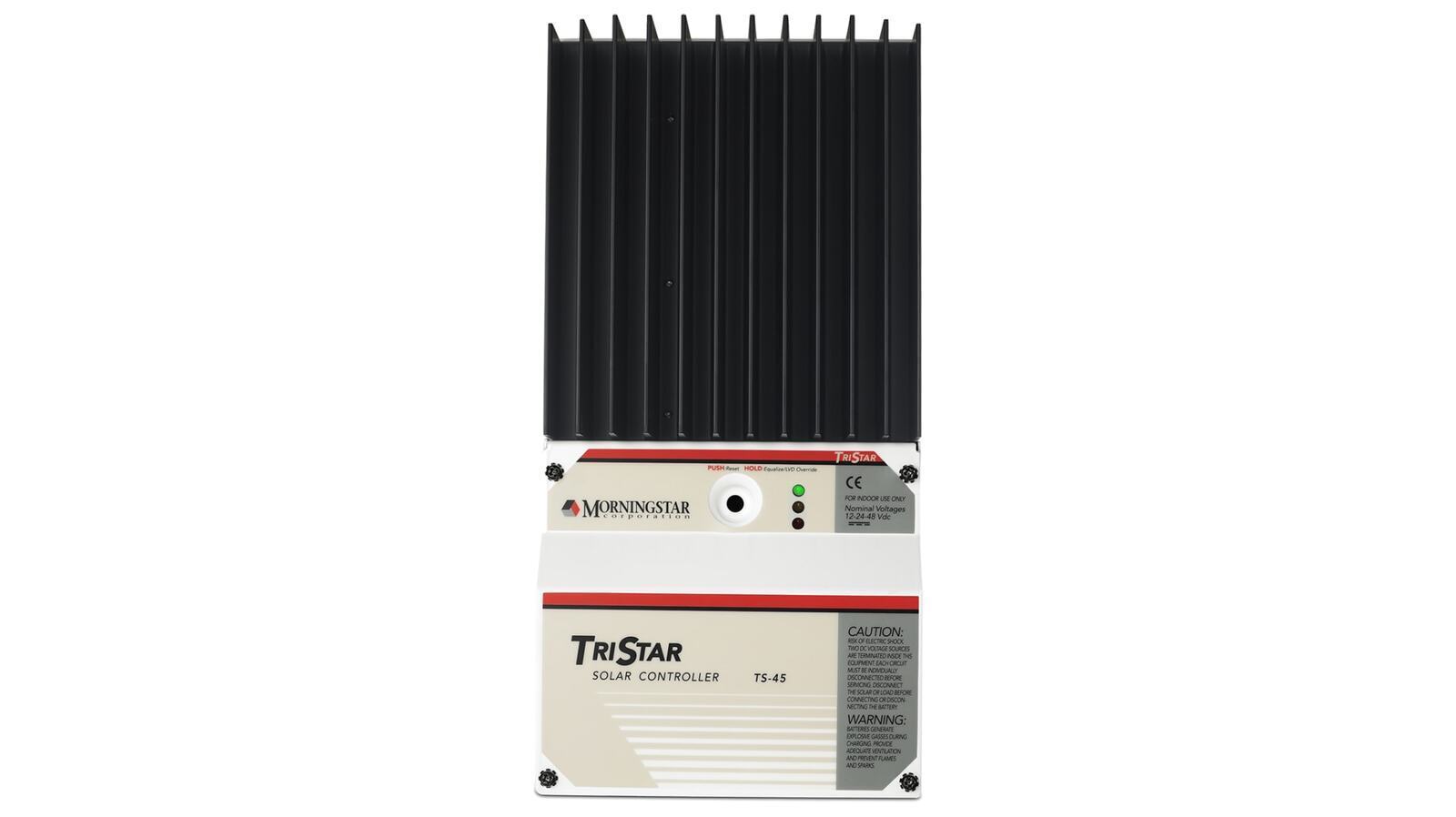

• Morningstar TriStar 45 Amp Solar Controller - SR-TS-45-ED

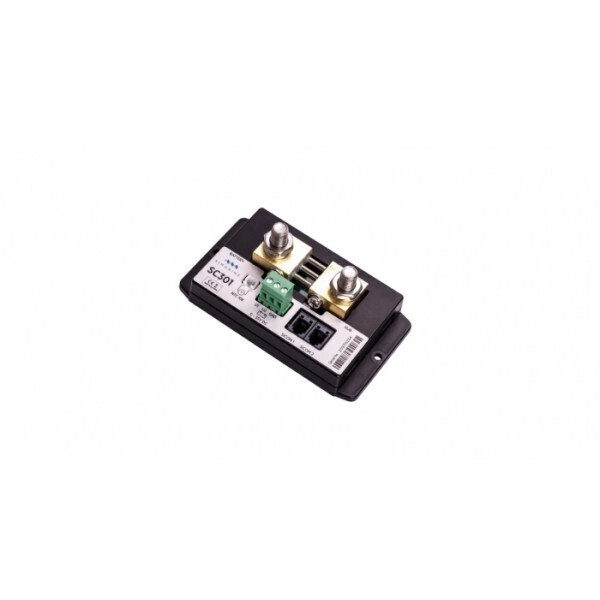

• Simarine by Enerdrive Battery Shunt 300A 2 x Volt 1 Resist - SI-SC301

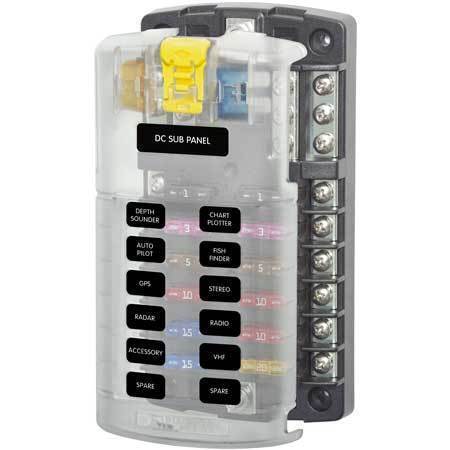

• Blue Sea ST Blade Fuse Block – 12 Circuits with Negative Bus and Cover - BS-5026B

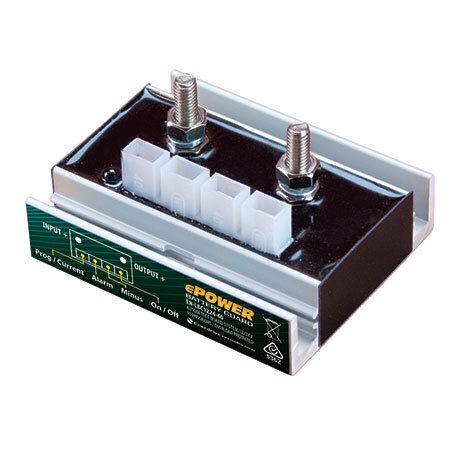

• Enerdrive ePOWER 12/24V 40A IP66 Smart Battery Guard - EN-LBC1224-40
• Fuse holders
• Circuit Breakers

Note: If this product is being used for Lithium, please contact us before placing the order. This product needs to be programmed before it is able to be used for Lithium so a special order needs to be placed



NOTE: This model was previously known as K-AGM-Board-I, now called eSYS-I.

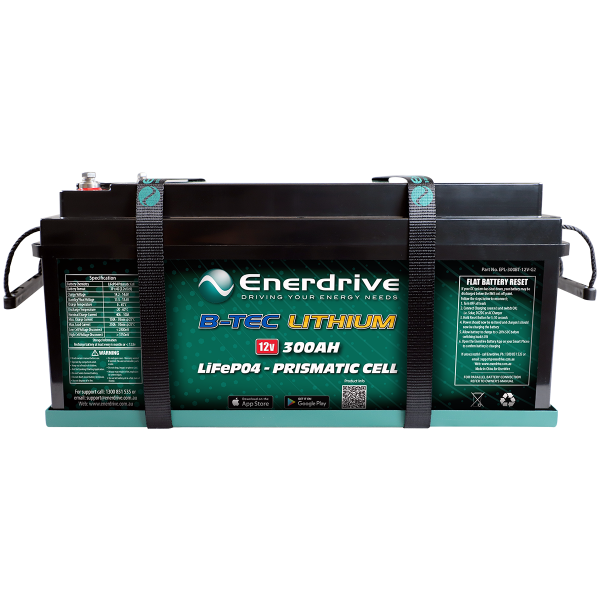

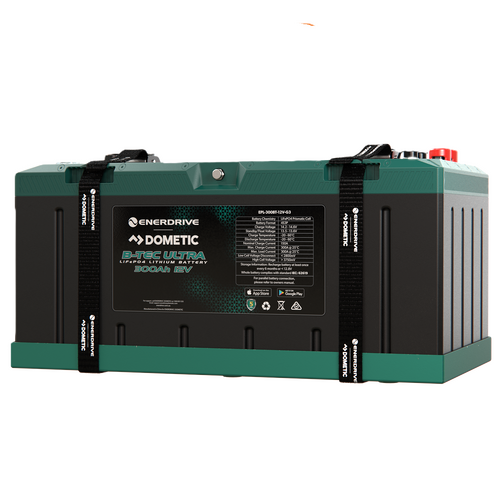

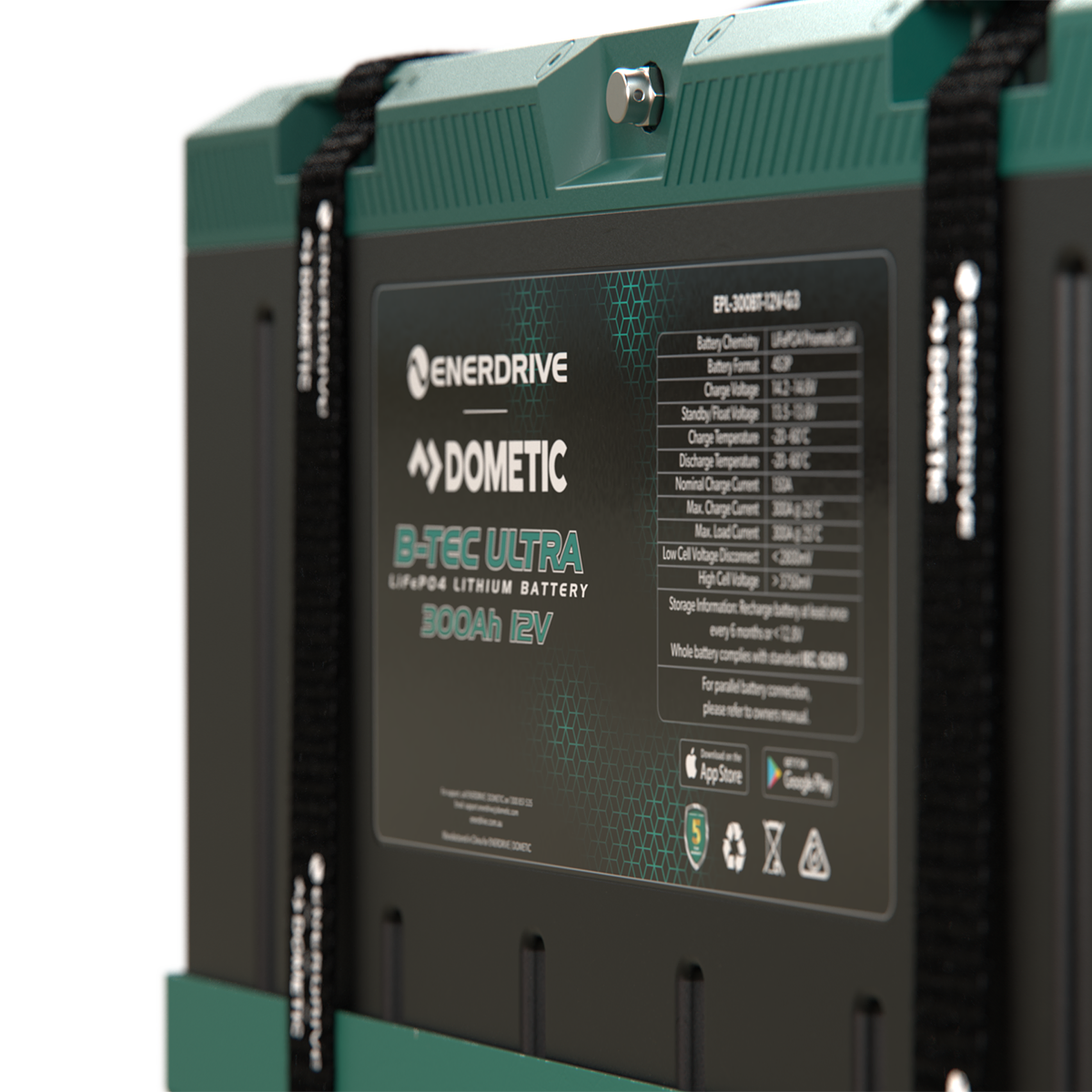

Enerdrive ePOWER B-TEC 300Ah Lithium Battery

Available in 12v 300Ah capacity, the Enerdrive B-TEC G2 lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

Key Features:

• New design BMS
• Max discharge current 250A (15mins) - 200A continuous
• Max charge current 190A (30mins)
• Can be connected in parallel (up to 4 batteries)
• Built in flat battery reset button
• Includes mounting tray and 2 straps
• Communication ports (RS485) for future integration
• 5 year warranty & lifetime tech support

Smart Phone Monitoring System
The Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

• Battery Capacity
• Battery Voltage
• Battery Current (Amps)
• Battery State of Charge (SOC)
• Battery State of Health (SOH)
• Battery Status
• Individual Cell Voltage
• Battery Temperature
• Battery Cycles
• Battery Alarms
• Battery Event Information

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size & Weight Savings

Lithium v AGM Capacities:

• 100Ah Lithium = 160Ah AGM
• 125Ah Lithium = 200Ah AGM
• 200Ah Lithium G2 = 320Ah AGM
• 300Ah Lithium G2 = 480Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The Enerdrive B-TEC G2 battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

The New Generation 2 B-TEC

So, How does the New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery measure up against it original predecessor? Let’s have a look.
Dimension     Original     Generation 2

Length	519mm	521mm
Width	273mm	280mm
Height	222mm	253mm

Also included for free is a metal battery tray and hold down strap to complete the installation process.

The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.

The new G2 also includes a RS485 communications port located on the top of the battery. This port allows for integration onto other CanBus systems for data monitoring and recording.

The New Enerdrive Generation 2 (G2) B-TEC 300Ah Lithium Battery now comes with a 5 year warranty, giving you peace of mind that this product will keep you covered.

With over 8 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.

With over 4000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.

Please Note: The B-TEC battery is capable to be paralleled to a second B-TEC battery of the same size. For maximum performance and lifespan of your B-TEC battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

The G2 300Ah battery is able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

If you are requiring a battery system larger than the Enerdrive B-TEC G2 battery, please look at the Enerdrive Pro Series Power Pack Systems which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.

Specifications:

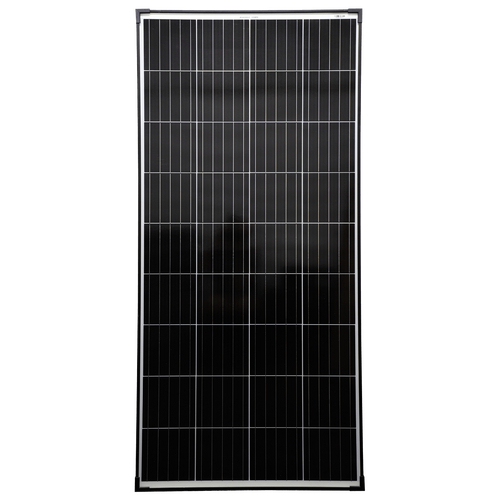

Enerdrive 190W Mono Crystalline Fixed Solar Panel, Black

1500 x 680 x 35 mm



Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.



Some Basic Tips:

1. Keep your panel in direct sunlight as much as possible
2. Secure your Folding Solar Kit from theft around your work or campsite
3. Protect and store your portable folding kit in the most secure place you can to prevent accidental breakage



Specifications:

• Maximum Power(Pmax): 190W
• Optimum Operating Voltage(Vmp): 19.80V
• Optimum Operating Current(Imp): 9.10A
• Open Circuit Voltage(Voc): 24.10V
• Short Circuit Current(Isc): 9.85A
• Module Efficiency: 17.86%
• Operating Module Temperature: 40oC to +85oC
• Maximum System Voltage: 1000V DC (IEC)
• Power Tolerance: 0~+5W
•  STC: lrradiance 1000 W/m2, module temperature 25oC, AM=1.5; Best in Class AAA solar simulator (IEC 60904-9) used

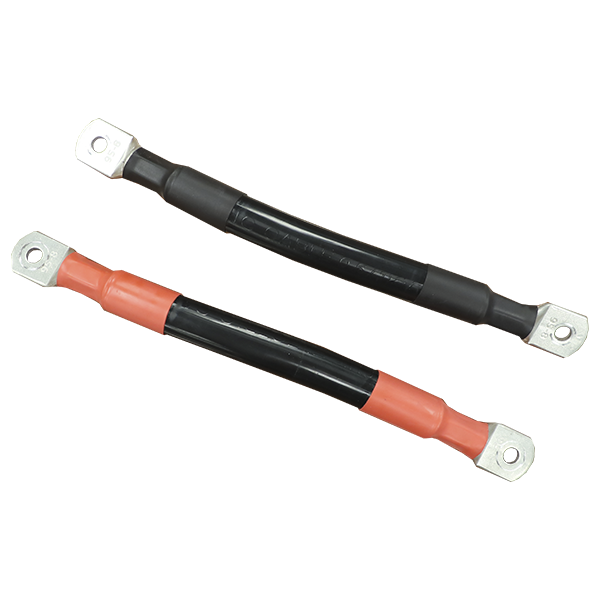

Enerdrive 95mm2 x 300mm Battery Parallel Cable Kit, Positive & Negative, to suit 300Ah Batteries

Enerdrive Parallel cable kit to parallel connect 2 x Enerdrive 300Ah batteries together.



*Please Note: This ePOWER B-TEC lithium battery is capable to be paralleled to a second ePOWER B-TEC lithium battery. For maximum performance and lifespan of your lithium battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.
