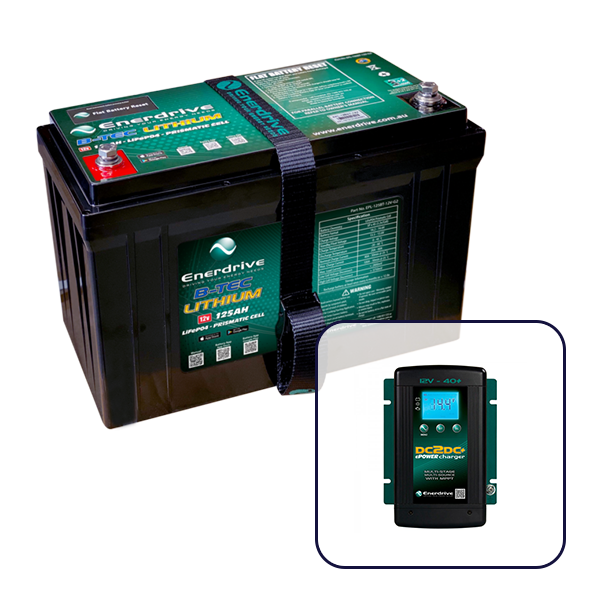

Enerdrive B-TEC 125Ah Lithium Battery & 40A DC2DC Charger Bundle

Specifications

SKU K-125-1

Brand Enerdrive

GTIN 9342616020708

Product Category Battery Bundle

Battery Voltage 12V

Amp Hours (Ah) 125

Battery Length (mm) 318

Battery Width (mm) 165

Battery Height (mm) 232

Battery Weight (kg) 15.5

Voltage 12V

DC Charger Output Current Rating (Amps) 40

Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles

Battery Charge Temperature 0°C to 45°C

Normal Charge Voltage CV/CC 14.20 ̴ 14.60V

Standby (Float) Voltage 13.50 ̴ 13.80V

Maximum Charge Current 60A @ 25°C for 30mins

Recommended Charge Current for Max Life 20~60A

Battery Discharge Temperature -20 ̴ 60°C

Battery Output Voltage Range 11.00 ̴ 14.60V

Maximum Discharge Current 100A @ 25˚C ±5˚C for 30 mins

Pulse Discharge Current 450A for 1.0s

Discharge Cut-off Voltage ≤11.20V

Over-Charge Protection Per Cell 3.90V ± 0.03V

Over-Charge Release Per Cell 3.60V ± 0.05V

Over-Charge Release Method Discharge below release voltage

Over-discharge Protection Per Cell 2.80V ± 0.05V

Over-discharge Release Per Cell 3.20V ± 0.05V

Over-discharge Release Method Apply Charge/Voltage ≥12.8V

Battery Manual Reset Button Yes

Discharge Over Current 110A for 30s – 450A for 1s

Protection Reset Time Approx 10s Auto Release

Over Current Release Method Disconnect Load

Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C

Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C

Short Circuit Protection Auto release after 5s

Case Construction Hi Impact ABS Plastic

Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH

Dimensions 242 x 172 x 74 mm (DC Charger)

NOTE: see full product specifications & further product info in the Description section on this page.

Q & A

---

• What is the difference between an Enerdrive B-Tec Battery and an Enerdrive eLITE Battery?

  Enerdrive's B-Tec range has been a market leader in RV lithium batteries for many years. The B-Tec battery models have Bluetooth technology which allows you to monitor the battery performance from your smartphone. The B-Tec range is also accessible meaning that it can be serviced to maintain the longevity and performance of the battery.

  The eLITE series was released by Enerdrive in 2020 and is designed as an "entry level" lithium battery for the customer who wants to get into the lithium market without having to spend as much. The eLITE 100Ah battery is a stripped back version of the ever popular 100Ah B-TEC Lithium battery but, without all the bells and whistles. The eLITE still delivers the high quality performance that you would expect from Enerdrive and still carries a 5 year warranty, it is just a simpler offering at a lower price.

  Note: The eLITE battery is capable to be paralleled to a second eLITE battery of the same size. For maximum performance and lifespan of your eLITE battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

  The eLITE 100Ah battery is able to accept a maximum inverter capacity of 1000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

  If you are requiring a battery system larger than eLITE, please look at the ePOWER B-TEC battery range or the Enerdrive Pro Series Power Pack Systems of which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.

• What size battery do I need for my caravan?

  Great question! Your deep cycle battery for your caravan will be a minimum of 100 Amp Hours (Ah).

  The average size for a Caravan is 200Ah. Usually, 2 x 100Ah connected in Parallel. However, if your budget allows to upgrade to a Lithium battery you can get a lot more power for the size of the battery. For example, a 200Ah lithium battery can be equivalent to up to 360 Ah of an AGM battery.

  To work out exactly what size you require you need to first look at the load you are planning on drawing. The load should be calculated in Amps per hour, or Amp Hours (Ah). Batteries are rated in Amp Hours (Ah) as well.

  So, if you are drawing a 50Ah per day, a 100Ah AGM battery can provide power for about 1 day as you do not want to draw more than 50% from your battery. However, it is not always easy to find what each appliance draws. Some popular examples are following:

  • 150L 12V Fridge = 2.5 Amps per hour (2.5Ah) - runs for 24 hours a day
  • 12V Water Pump = 3.5 Amps per hour (3.5Ah) - only runs for 1 hour a day
  • Phone Charger = 0.5 Amps per hour (0.5Ah) - Maybe 4 hours per day
  • 12V Fan = 4 Amps per hour (4Ah) - Maybe 4 hours per day

  Then you will need to factor in how much charge you are putting in Daily. The charge comes in the way of Solar and in car charging via a DC to DC charger.

  Ideally you want enough charge input per day to cover the load drawn, then enough battery storage to last 2 - 3 days without charge.

• What is best - AGM or lithium battery?

  The answer is simple. Lithium is a better product than AGM.

  Lithium is lighter, more compact, and powerful, it will also last longer.

  However, a lithium battery will cost more, because it is a highly sort after product. Almost everything that has a battery nowadays will have a lithium battery. Mobile phone, Electric Car, Electric Bike and Skateboard just to name a few.

  There are situations where you can get away with an AGM battery. If you only need about 100ah (most 4 x 4 set ups), you can purchase 1 x 100ah battery and a battery box and away you go.

  However, once you start getting into the larger amperages (200+) it really makes more sense to turn to lithium.

• How do I charge my caravan battery?

  There are three ways to charge your caravan Battery. Either:

  • AC to DC - This is using a traditional battery charger that plugs into mains power.
  • DC to DC - This is a battery charger connected between the start battery of your tow vehicle and the Caravan Battery. This will charge the battery whilst driving.
  • Solar - Solar panels on your roof can be connected to a solar charge controller then to your Caravan Battery.
• How much solar do I need to keep my caravan battery charged?

  Ideally, you want use as much solar as you can fit on the roof. Extra portable solar panels are also good idea if you want to park your van in the shade and run a portable panel from a lead in the sun - please see our solar range here.

  Solar is cheap relative to the rest of your system, and it provides so much of your power when you are camping off grid.

  However, the solar required depends on the load. Please feel free to contact our team for any specific questions on your battery - 1800 787 278!
