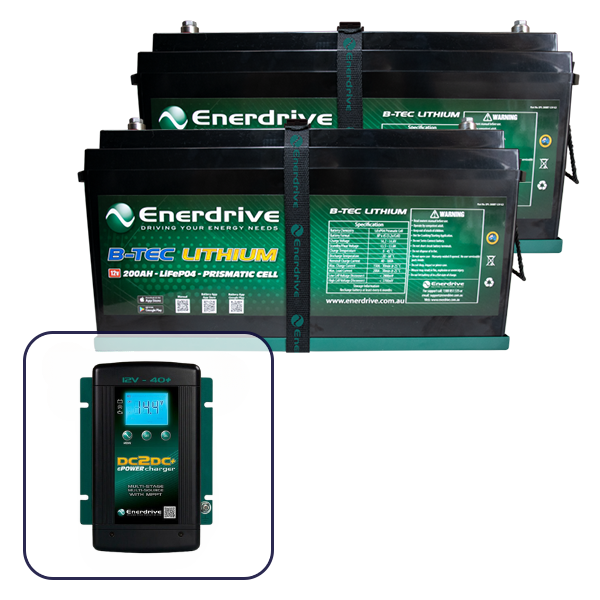

Enerdrive B-TEC 2 x 200Ah Lithium Battery, 40A DC2DC Bundle

Specifications

SKU K-400-14

Brand Enerdrive

Product Category Battery Bundle

Battery Voltage 12V

Amp Hours (Ah) 400

Battery Length (mm) 505

Battery Width (mm) 172.5

Battery Height (mm) 265

Battery Weight (kg) 25

Voltage 12V

Output Current Rating (Amps) 40

Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles

Battery Charge Temperature 0°C to 45°C

Normal Charge Voltage CV/CC 14.20 ̴ 14.60V

Standby (Float) Voltage 13.50 ̴ 13.80V

Maximum Charge Current 150A @ 25°C for 30mins

Recommended Charge Current for Max Life 40~100A

Battery Discharge Temperature -20 ̴ 60°C

Battery Output Voltage Range 11.00 ̴ 14.60V

Maximum Discharge Current 200A @ 25˚C ±5˚C for 30 mins

Pulse Discharge Current 450A for 1.0s

Discharge Cut-off Voltage ≤11.20V

Over-Charge Protection Per Cell 3.90V ± 0.03V

Over-Charge Release Per Cell 3.60V ± 0.05V

Over-Charge Release Method Discharge below release voltage

Over-discharge Protection Per Cell 2.80V ± 0.05V

Over-discharge Release Per Cell 3.20V ± 0.05V

Over-discharge Release Method Apply Charge/Voltage ≥12.8V

Battery Manual Reset Button Yes

Discharge Over Current 220A for 30s – 450A for 1s

Protection Reset Time Approx 10s Auto Release

Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C

Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C

Short Circuit Protection Auto release after 5s

Case Construction Hi Impact ABS Plastic

Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH

-Weight 51.85 kg

Dimensions (lxwxh) 242 x 172 x 74mm (DCDC Charger)

NOTE see full product specifications & further product info in the Description section on this page.

NOTE: see full product specifications & further product info in the Description section on this page.

Q & A

---

• What size battery do I need for my caravan?

  Great question! Your deep cycle battery for your caravan will be a minimum of 100 Amp Hours (Ah).

  The average size for a Caravan is 200Ah. Usually, 2 x 100Ah connected in Parallel. However, if your budget allows to upgrade to a Lithium battery you can get a lot more power for the size of the battery. For example, a 200Ah lithium battery can be equivalent to up to 360 Ah of an AGM battery.

  To work out exactly what size you require you need to first look at the load you are planning on drawing. The load should be calculated in Amps per hour, or Amp Hours (Ah). Batteries are rated in Amp Hours (Ah) as well.

  So, if you are drawing a 50Ah per day, a 100Ah AGM battery can provide power for about 1 day as you do not want to draw more than 50% from your battery. However, it is not always easy to find what each appliance draws. Some popular examples are following:

  • 150L 12V Fridge = 2.5 Amps per hour (2.5Ah) - runs for 24 hours a day
  • 12V Water Pump = 3.5 Amps per hour (3.5Ah) - only runs for 1 hour a day
  • Phone Charger = 0.5 Amps per hour (0.5Ah) - Maybe 4 hours per day
  • 12V Fan = 4 Amps per hour (4Ah) - Maybe 4 hours per day

  Then you will need to factor in how much charge you are putting in Daily. The charge comes in the way of Solar and in car charging via a DC to DC charger.

  Ideally you want enough charge input per day to cover the load drawn, then enough battery storage to last 2 - 3 days without charge.

• What is best - AGM or lithium battery?

  The answer is simple. Lithium is a better product than AGM.

  Lithium is lighter, more compact, and powerful, it will also last longer.

  However, a lithium battery will cost more, because it is a highly sort after product. Almost everything that has a battery nowadays will have a lithium battery. Mobile phone, Electric Car, Electric Bike and Skateboard just to name a few.

  There are situations where you can get away with an AGM battery. If you only need about 100ah (most 4 x 4 set ups), you can purchase 1 x 100ah battery and a battery box and away you go.

  However, once you start getting into the larger amperages (200+) it really makes more sense to turn to lithium.

• How do I charge my caravan battery?

  There are three ways to charge your caravan Battery. Either:

  • AC to DC - This is using a traditional battery charger that plugs into mains power.
  • DC to DC - This is a battery charger connected between the start battery of your tow vehicle and the Caravan Battery. This will charge the battery whilst driving.
  • Solar - Solar panels on your roof can be connected to a solar charge controller then to your Caravan Battery.
• How much solar do I need to keep my caravan battery charged?

  Ideally, you want use as much solar as you can fit on the roof. Extra portable solar panels are also good idea if you want to park your van in the shade and run a portable panel from a lead in the sun - please see our solar range here.

  Solar is cheap relative to the rest of your system, and it provides so much of your power when you are camping off grid.

  However, the solar required depends on the load. Please feel free to contact our team for any specific questions on your battery - 1800 787 278!

• Why is the Enerdrive 200Ah so much more expensive than the 100Ah?

  Firstly, the 200Ah manages to hold more current in a smaller and lighter package. The 200Ah also is the B-Tec range, which has built in Bluetooth capabilities. The 200ah also has benefits in being able to power higher draw products, as it has a higher discharge rating.

• How many cells are in the Enerdrive 200Ah Btec Battery?

  There are 32 (8x 4) Prismatic Cells in the 200Ah Btech Battery.

• What size generator should I use for charging a battery?

  The below generators are the minimum recommend sizes based on an AVR generator:

  • 800VA 2KVA
  • 1200VA 2.5KVA
  • 1600VA 3KVA
  • 3000VA 5KVA
  • 5000VA 8KVA

  If your generator is smaller than the recommended size for your inverter/charger, you will definitely need to adjust the settings on the inverter/charger and reduce the AC input current limit, and/or a DC charge current limit to prevent overloading the generator. If you do want an inverter based generator get one that is at least 30% larger than required than an equivalent AVR based model to help prevent overloads.

• Can these chargers take solar input?

  No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.

• How can I remotely monitor and control my devices?

  You need a GX device to get remote monitoring. We recommend the Cerbo GX and an RJ45 UTP cable to connect it to the inverter. You can hardwire an ethernet connection to the unit, or connect it to a Wifi signal.
