Enerdrive B-TEC 24V 100Ah Lithium Battery & 30A Industrial Battery Charger Bundle
SKU: K-100-01 Learn More»
Description

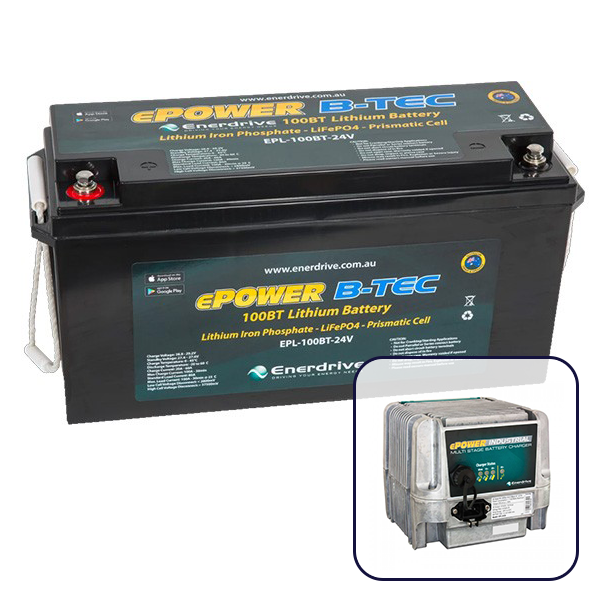

Enerdrive B-TEC 24V 100Ah Lithium Battery & 30A Industrial Battery Charger Bundle
Included in bundle:

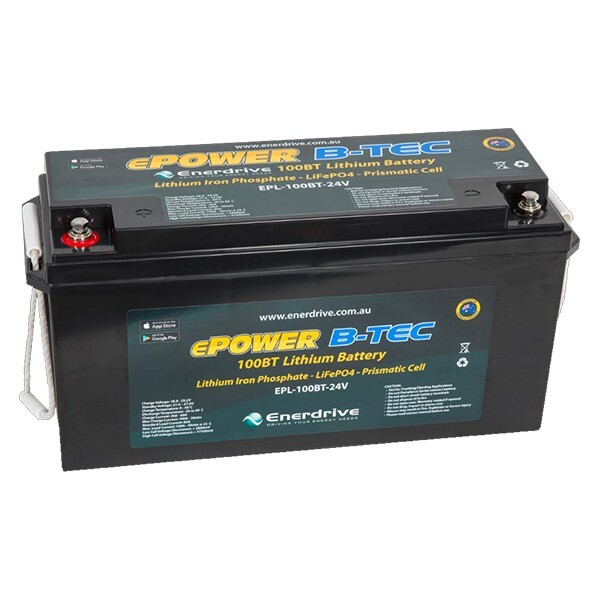

- Enerdrive B-TEC 24V 100Ah Lithium Battery - EPL-100BT-24V

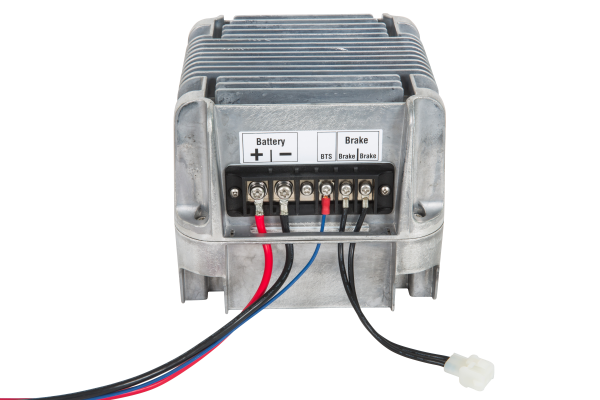

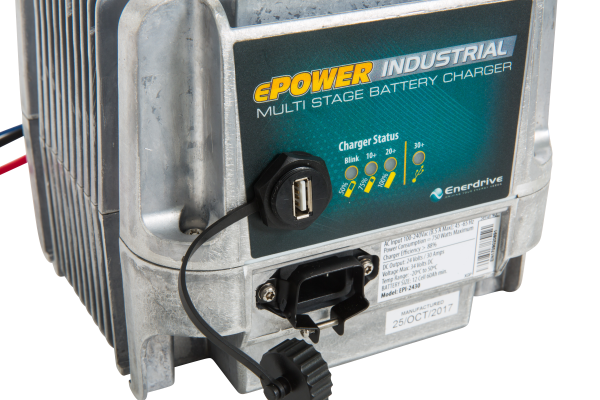

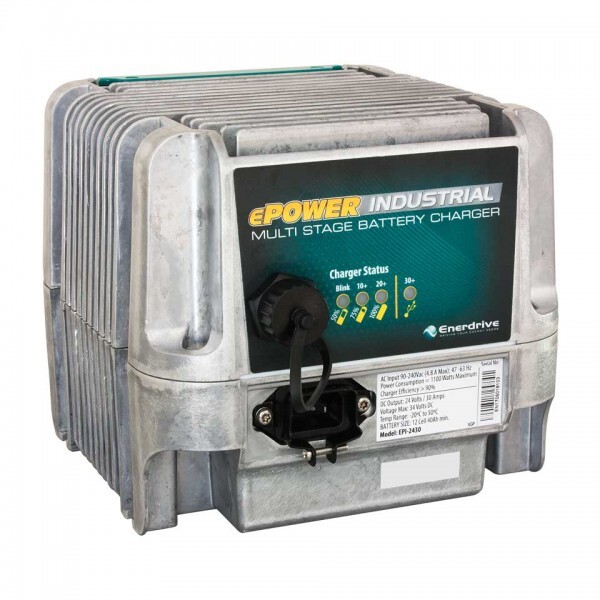

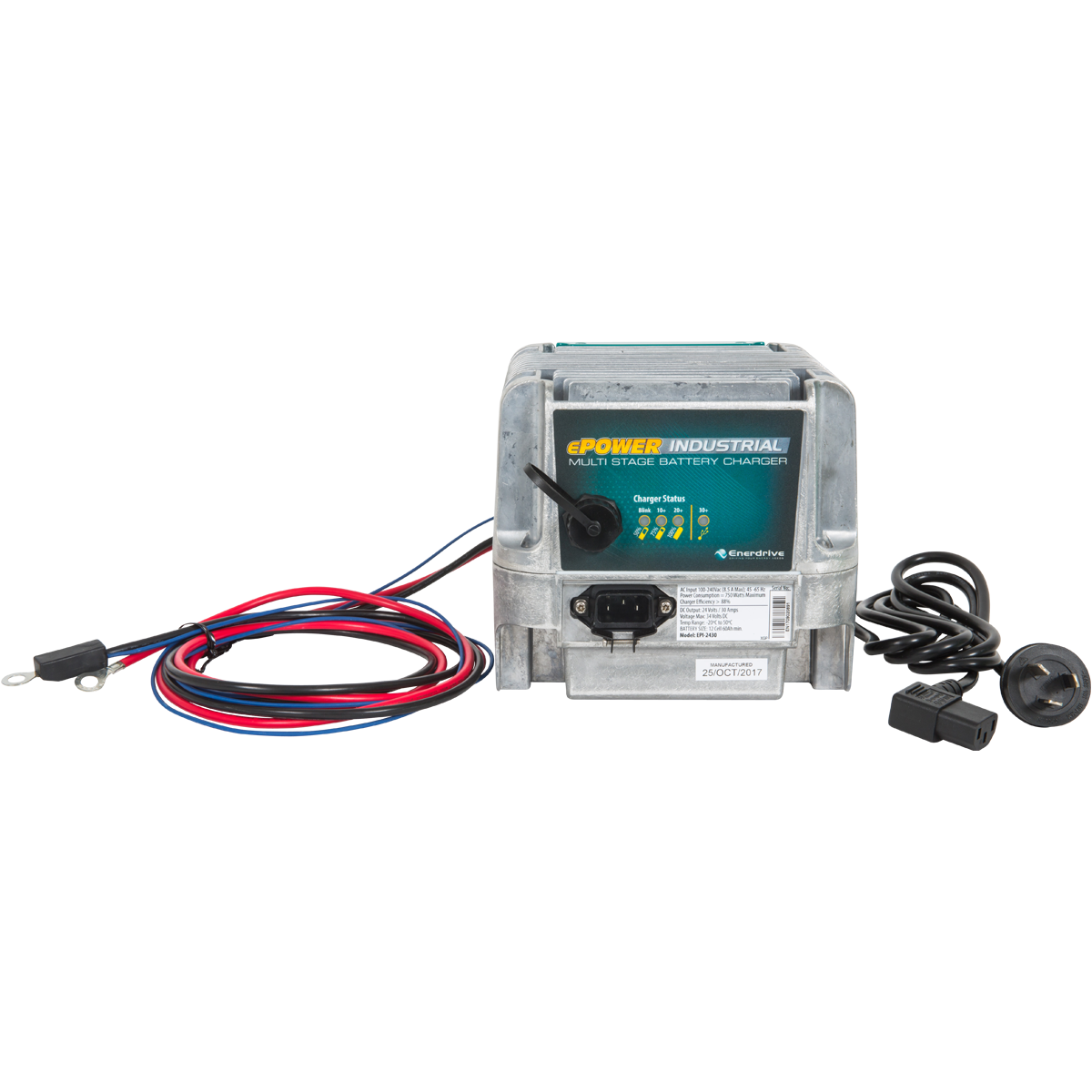

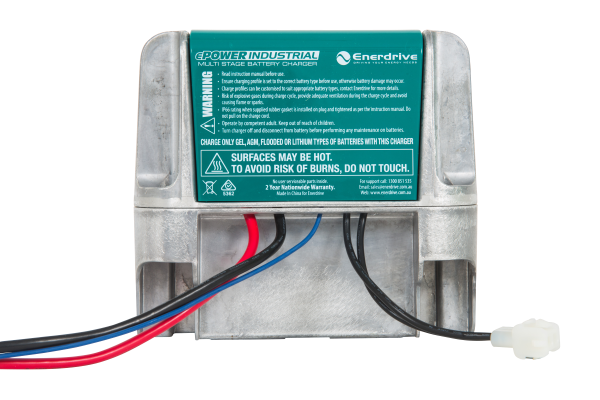

- Enerdrive 24V 30A Industrial Battery Charger - EPI-2430
To effectively manage your power system with an Enerdrive B-TEC 24V 100Ah battery and a 30A battery charger, it's important to understand what each item does and why you would choose this bundle:
- B-TEC 24V 100Ah Lithium Battery: This serves as the cornerstone of your energy storage system, with a 100 ampere-hour capacity. It is the source of electrical energy for powering your appliances and devices, regardless of whether your application is an RV, boat, or another off-grid setup.
- 30A AC Charger: The AC charger is used for recharging the battery when you have access to an AC power source, such as when your vehicle or setup is connected to shore power or an external generator. This charger converts AC power into DC power and delivers up to 30 amps to recharge the battery.
Specifications:
- Amp Hours (Ah) 100.0
- Battery Voltage 24V
- Charger Mode Output Voltage 38V (Battery Charger)
- Selectable Battery Type AGM, Flooded, GEL (12 Cell, 40Ah Min) (Battery Charger)
- AC Input Frequency Range 50-60 Hz (Battery Charger)
- Storage Temperature Range -40° to 70° C (Battery Charger)
- Operating Temperature Range -30° to 50° C (Battery Charger)
- Nominal Voltage 25.6V (Battery)
- Nominal Capacity 100Ah (Battery)
- Cycle Life (DOD - 80% under controlled conditions) ≥ 2000 Cycles (Battery)
- Battery Charge Temperature 0 ̴ 45°C (Battery)
- Normal Charge Voltage CC/CV* 28.80 Ì´ 29.20V (Battery)
- Standby (Float) Voltage 27.00 - 27.60V (Battery)
- Maximum Charge Current 50A @ 25°C for 30mins (Battery) | MAX Power 850W, 8.5A @100V – 4.25A @230V (Battery Charger)
- Recommended Charge Current for Maximum Life ≤ 33A (Battery)
- Battery Discharge Temperature -20 ̴ 60°C (Battery)
- Battery Output Voltage Range 22.00 - 29.20V (Battery)
- Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins (Battery)
- Pulse Dicharge Current 450A for 1.0s (Battery)
- Discharge Cut-off Voltage ≤ 22.40V (Battery)
Please Note: This model used to be called K-100-24V-AC30-BUNDLE, it is now called K-100-01
*Note: As stipulated by the manufacturer Enerdrive, failure to charge the Enerdrive Lithium Battery range with an Enerdrive or Redarc Lithium Profile battery charger will void Enerdrive manufacturer warranty.
Specifications
SKU K-100-01
Brand Enerdrive
GTIN 9342616020593
Product Category Battery Bundle
Battery Voltage 24V
Amp Hours (Ah) 100
Battery Length (mm) 485
Battery Width (mm) 170
Battery Height (mm) 245
Battery Weight (kg) 25
Voltage 24V
Output Current Rating (Amps) 30
-Weight 29.6 kg
Dimensions (lxwxh) 207 x 180 x 160mm (Charger)
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
I am looking at an Enerdrive lithium battery to install in my Camper - does it need to be installed in a ventilated area?
You don't need to worry about the area being especially ventilated as the batteries do not vent. In terms of other install tips:
- Keep the battery upright, do not mount it on its side.
- Enerdrive recommends keep the battery in a cool dry area to improve longevity.
-
What size battery do I need for my caravan?
Great question! Your deep cycle battery for your caravan will be a minimum of 100 Amp Hours (Ah).
The average size for a Caravan is 200Ah. Usually, 2 x 100Ah connected in Parallel. However, if your budget allows to upgrade to a Lithium battery you can get a lot more power for the size of the battery. For example, a 200Ah lithium battery can be equivalent to up to 360 Ah of an AGM battery.
To work out exactly what size you require you need to first look at the load you are planning on drawing. The load should be calculated in Amps per hour, or Amp Hours (Ah). Batteries are rated in Amp Hours (Ah) as well.
So, if you are drawing a 50Ah per day, a 100Ah AGM battery can provide power for about 1 day as you do not want to draw more than 50% from your battery. However, it is not always easy to find what each appliance draws. Some popular examples are following:
- 150L 12V Fridge = 2.5 Amps per hour (2.5Ah) - runs for 24 hours a day
- 12V Water Pump = 3.5 Amps per hour (3.5Ah) - only runs for 1 hour a day
- Phone Charger = 0.5 Amps per hour (0.5Ah) - Maybe 4 hours per day
- 12V Fan = 4 Amps per hour (4Ah) - Maybe 4 hours per day
Then you will need to factor in how much charge you are putting in Daily. The charge comes in the way of Solar and in car charging via a DC to DC charger.
Ideally you want enough charge input per day to cover the load drawn, then enough battery storage to last 2 - 3 days without charge.
-
What is best - AGM or lithium battery?
The answer is simple. Lithium is a better product than AGM.
Lithium is lighter, more compact, and powerful, it will also last longer.
However, a lithium battery will cost more, because it is a highly sort after product. Almost everything that has a battery nowadays will have a lithium battery. Mobile phone, Electric Car, Electric Bike and Skateboard just to name a few.
There are situations where you can get away with an AGM battery. If you only need about 100ah (most 4 x 4 set ups), you can purchase 1 x 100ah battery and a battery box and away you go.
However, once you start getting into the larger amperages (200+) it really makes more sense to turn to lithium.
-
How do I charge my caravan battery?
There are three ways to charge your caravan Battery. Either:
- AC to DC - This is using a traditional battery charger that plugs into mains power.
- DC to DC - This is a battery charger connected between the start battery of your tow vehicle and the Caravan Battery. This will charge the battery whilst driving.
- Solar - Solar panels on your roof can be connected to a solar charge controller then to your Caravan Battery.
-
How much solar do I need to keep my caravan battery charged?
Ideally, you want use as much solar as you can fit on the roof. Extra portable solar panels are also good idea if you want to park your van in the shade and run a portable panel from a lead in the sun - please see our solar range here.
Solar is cheap relative to the rest of your system, and it provides so much of your power when you are camping off grid.
However, the solar required depends on the load. Please feel free to contact our team for any specific questions on your battery - 1800 787 278!
