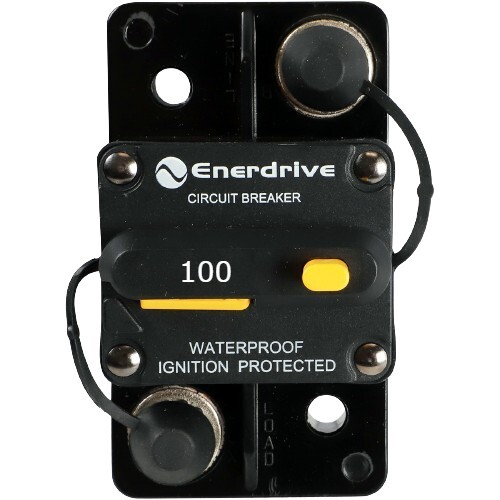

Enerdrive EN-RCB100S Surface Mount Breakers Parallel 3/8 Stud - 100amp

SKU: EN-RCB100S Learn More»
Enerdrive EN-RCB100S Surface Mount Breakers Parallel 3/8 Stud - 100amp
Free Shipping
$62
In Stock1-2 Days Dispatch

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Description

Enerdrive EN-RCB100S Surface Mount Breakers Parallel 3/8 Stud - 100amp



Features:

  • Visible reset lever shows an open condition
  • Ignition protected - Meets SAE J1171. Safe for installation aboard gasoline-powered boats
  • Weather Resistant IP67
  • Combines switching and circuit breaker functions into one unit
  • "Trip Free" - cannot be held closed after trip



Specifications:

  • Maximum Voltage: 48V DC
  • Circuit Breaker Class: Type III – switchable/manual reset – trip free
  • Circuit Breaker Type: Single Pole Thermally Responsive Bi-metal Blade
  • Interrupt Capacity: 3000A @ 48V
  • Minimum Operating Temp: -32° C
  • Maximum Operating Temp: 82° C
  • Ignition Protected: Meets SAE J553, J1625, J1171, UL1550
  • Splash & Dust Proof: IP67
  • UL Rating: Housing is Thermal Plastic UL Rated, 94V0
  • Terminal Stud: 25-70A - M6 (accepts 1/4″ ring Terminal) | 80-250A - M10 (accepts 3/8″ ring Terminal)
  • Terminal Stud Torque: 50 in-lb (5.65 Nm)
  • Weight: 0.23 kg



For Panel



For Surface

Show More

Specifications

SKU EN-RCB100S

Brand Enerdrive

GTIN 9342616015575

Product Category Fuses and Breakers

Maximum Voltage 48V DC

Amps 100A

Operating temperature range -32°C to 82°C

Weight (kg) 0.23
