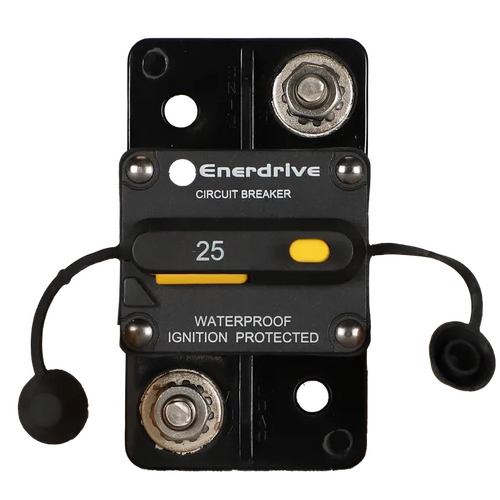

Enerdrive EN-RCB25S Surface Mount Breakers Parallel 5/16 Stud - 25amp
SKU: EN-RCB25S Learn More»
Free Shipping
Description
Enerdrive EN-RCB25S Surface Mount Breakers Parallel 5/16 Stud - 25amp
Features:
- Visible reset lever shows an open condition
- Ignition protected - Meets SAE J1171. Safe for installation aboard gasoline-powered boats
- Weather Resistant IP67
- Combines switching and circuit breaker functions into one unit
- "Trip Free" - cannot be held closed after trip
Specifications:
- Maximum Voltage: 48V DC
- Circuit Breaker Class: Type III – switchable/manual reset – trip free
- Circuit Breaker Type: Single Pole Thermally Responsive Bi-metal Blade
- Interrupt Capacity: 3000A @ 48V
- Minimum Operating Temp: -32° C
- Maximum Operating Temp: 82° C
- Ignition Protected: Meets SAE J553, J1625, J1171, UL1550
- Splash & Dust Proof: IP67
- UL Rating: Housing is Thermal Plastic UL Rated, 94V0
- Terminal Stud: 25-70A - M6 (accepts 1/4″ ring Terminal) | 80-250A - M10 (accepts 3/8″ ring Terminal)
- Terminal Stud Torque: 50 in-lb (5.65 Nm)
- Weight: 0.23 kg
For Panel
For Surface
Show More
Specifications
SKU EN-RCB25S
Brand Enerdrive
GTIN 9342616015681
Product Category Fuses and Breakers
Maximum Voltage 48V DC
Amps 25A
Weight (kg) 0.23
NOTE: see full product specifications & further product info in the Description section on this page.
