Enerdrive ePOWER 500W Pure Sine Wave Inverter with RCD+GPO
SKU: RCD-GPO-EP500W Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description

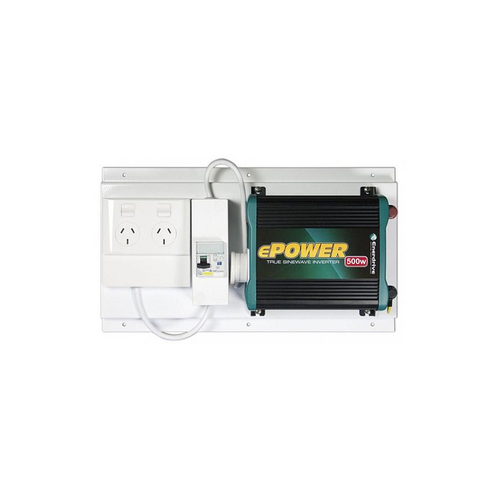

Enerdrive ePOWER 500W Pure Sine Wave Inverter with RCD+GPO
Think you might like AC power in more than one spot in the Vehicle? Enerdrive have thought of this too. By utilising a clever AC Plug & Play GPO system you can quickly and easily add extra AC power points by just plugging them in. All power points are Double Pole with the system incorporating a Type ‘A’ RCDBO with M.E.N Protection for safety and compliance in all permanently mounted mobile applications. Also available is the stand alone RCD/GPO arrangement for hardwired Inverters andCombi units like the Prosine, Magnasine and TBS. (190mm High x 178mm Wide)
These Inverter Packages are great for Professional Vehicles such as Telecommunications, Energy, Council, Emergency Vehicles and let’s not forget Recreation Vehicles like Caravans, Motorhomes, Camper Trailers and Marine applications.
“You have Safety Protection at home and now you can have it where ever you go.” Work sites have plenty of hazards such as vehicles, machinery and building materials lying amongst your tools and power leads. These items may be affected or damaged without you knowing and you don’t want to be shocked when you find out. Make sure you are electrically protected and go home safe.
Installation is quick and easy, requiring only 6 mounting screws for the plate and connection of the DC power. Your system is now ready to go.
Inverter Features:
- True sine wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life
- Audio alarm with warning/error codes to alert user to check inverter condition before unit shutdown
- Automatic shutdown protects overload, over temperature and low/high battery conditions
- High surge capacity for products that require more power to start (2 x constant)
- High efficiency conversion of battery available power to AC power
- Heavy duty DC battery stud connectors
- Includes 5V USB port
Specifications:
- Wattage 500 W
- DC Input Voltage 21.0– 31.0 VDC
- Warranty 5 Years
- Peak Power 1000W
- Output Voltage and Frequency 230 Vac / 50 Hz
- Output Wave 1 AC Outlet
- Input Voltage 25 VDC
- Over Voltage Protection 31.0 VDC
- Operating Temperature Range 0°C to 40°C
- Humidity 5-90% noncondensing
- AC Output Power : 500W , Current : 2.17A
- Output Wave Form True Sinewave
- No Load Battery Draw: <0.5 ADC
- Under Voltage Alarm 11.2 VDC
- Under Voltage Shutdown 21.0 VDC
- Under Voltage Shutdown Recovery 23.6 VDC
- Over Voltage Shutdown 31.0 VDC
- USB Socket Output 5V, 1A
- Storage Range (temp) -20°C to 60°C
- Operating Altitude Up to 3000 meters above sea level
- Dimensions: 225 x 410 x 115 mm (Mounted on board)
- Weight 1.73 kg
Specifications
SKU RCD-GPO-EP500W
Brand Enerdrive
GTIN 9342616024508
Product Category Power Inverters
Voltage 24V
Wattage (W) 500
Dimensions 177 x 200 x 90mm
Peak Power (W) 1000
Weight (kg) 1.73
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Can I run an inverter from AGM or Gel batteries?
The short answer is yes. People have been running 240V inverters from AGM batteries long before lithium was around. But people have traditionally used a lot lower AC current devices when caravan and camping than they do today.
Inverters were never intended to run air conditioners, microwaves , coffee machines and the like.....that is until lithium came into the RV market. For low current devices (under 600W) it is fine to connect an inverter to your AGM battery system. AGM batteries can put out low current for a long period of time. When you need to go near 1000W or more , then you should consider a lithium battery.
You can connect an inverter to AGM batteries but you need a lot larger size batteries than lithium (to cope with the high current). A general rule of thumb for AGM or GEL batteries is a 1000W inverter should be coupled with 2 x 120A batteries and a 2000W inverter will need 3 x 120Ah batteries.
Conversely, some 100Ah lithium batteries (Enerdrive, Invicta) can power a 1000W inverter and some 200Ah lithium batteries (Enerdrive) will power a 2000W inverter.
