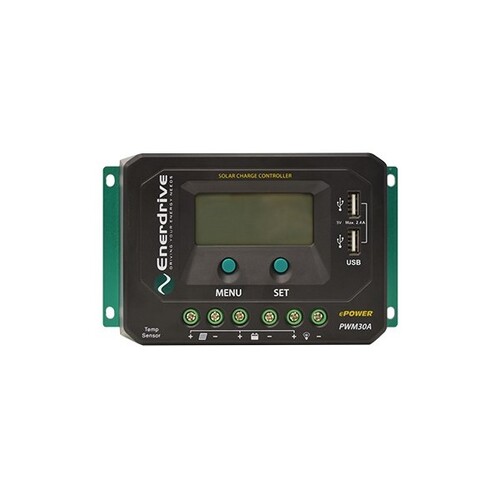

Enerdrive ePOWER PWM 30A Solar Charge Controller
SKU: EN43030 Learn More»
Description
Enerdrive ePOWER PWM 30A Solar Charge Controller
For maintenance free protection of your batteries and solar panels the controllers regulated output will prevent batteries overcharging.
Specifications:
- Amps 30.0
- Operating Temperature Range -25ËšC+55ËšC | -20ËšC+70ËšC (LCD)
- Humidity 95% N.C
- Output 5VDC/2.4A (USB, Total)
- Open Circuit Voltage 12V - 25 VOC / 24V - 50 VOC
- Enclosure Class IP30
- Nominal Voltage 12/24 VDC
- Charge Voltage Absorption Sealed 14.4V / Gel 14.2V / Flooded 14.6V
- Charge Voltage Float 13.8V (Sealed / Gel / Flooded)
- Input Voltage 9V - 32V
- Warranty 5 Years
Features:
- Informative backlight LCD display indicates solar charge input, charge/load output Volatage/Amps
- Selectable battery type Sealed, Flooded & Gel
- 2 x USB Outputs 2.4A
- Full output operation up to 55oC
- Temperature compensation
- High precision on voltage set point
- Wall mountable
- Protects battery from overcharge and discharge
- 12/24V auto detect
- Handles up to 30 Amps of Array Current
- Handles up to 450 Watts of solar power
- Maintenance free protection of your solar panel and batteries
- Maintains battery voltage
- Maintain 12/24V batteries in a fully charged state
Show More
Specifications
SKU EN43030
Brand Enerdrive
GTIN 9342616000342
Product Category Solar Charge Controllers
Voltage 12/24V
Input Voltage 9-32V DC
Dimensions 181x101x60mm
Charge Current (A) 30
NOTE: see full product specifications & further product info in the Description section on this page.
