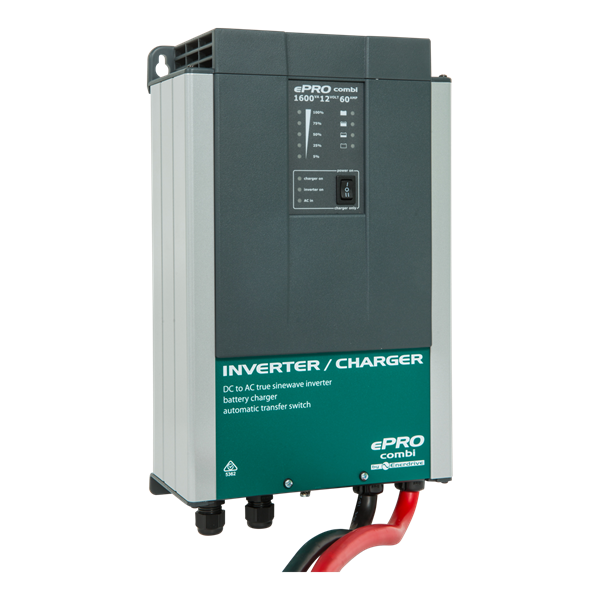

Enerdrive ePRO Inverter / Charger 1600W

Description

Enerdrive ePRO Inverter / Charger 1600W

351 x 210 x 114 mm

The Enerdrive ePRO Inverter / Charger 1600W acts as an uninterruptible AC power supply (UPS). In case of a grid/generator failure or disconnection, the ePRO Combi immediately stops charging the battery, releases the AC transfer switch and activates the inverter which takes over the supply to the connected loads. All this is achieved so fast, that even very critical loads like computers will continue to operate without any problems. In case the grid/generator is reconnected again and the voltage and frequency are within acceptable limits, the ePRO Combi activates the AC transfer switch and battery charger again, while deactivating the inverter. The connected loads are now supplied again by the grid/generator without any interruption. Available in 12v, 24v or 48v models and ranging in sizes from 1600-3500w inverter output and 35-120A charger output, the ePRO Combi has a unit to suit nearly any application.

Included:

• Universal Remote Control and Cable
• DC Connections, two wires, length 1.5 meters, 50 mm
• AC Connections, screw terminals

Features:

• AC Input Power Boost
• AC Input Current Limit
• Power Factor Corrected AC Input
• Intelligent 4-stage charge programs
• Fully programmable inverter
• Programmable alarm relay
• Freely assignable trigger input
• Temperature controlled fans
• Temperature compensated battery charging
• AC Input Power Boost
• AC Input Current Limit
• Alarm Output Relays

Specifications:

• Warranty 5 Years
• Output Current Rating (amps) 60.0
• Wattage 1600 W
• Power 1300 - 1600W continuous
• Peak Power
• Output Voltage and Frequency 230 Vac ± 2% / 50 Hz ± 0.05%
• Input Voltage 12V (± 3% tolerance)
• Output Wave Form True sinewave (THD < 5% 1 @ Pnom)
• Maximum Input AC Voltage 185 – 270 Vac / 45 – 65 Hz / PF > 0.95
• Charger Mode Charge Current 60 A (Max)
• No Load Battery Draw < 10 W (2.0 W)
• Weight 10.7 kg
