Enerdrive eSYSTEM-N 40A DC with Dual MPPT 12/24V 40A & ePRO+
SKU: ESYS-N Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description

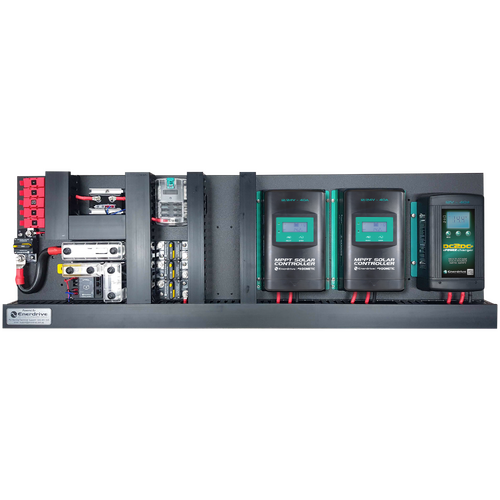

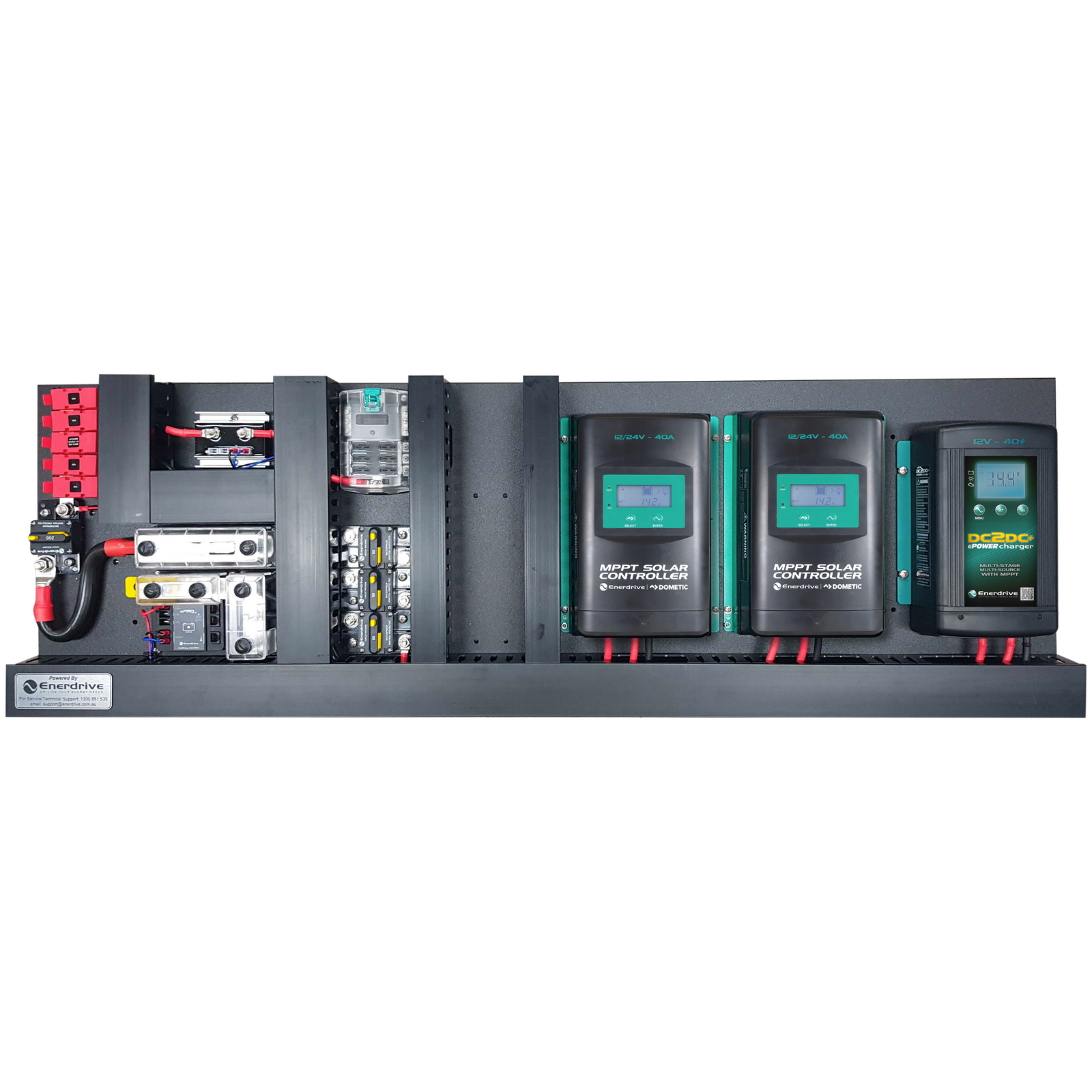

Enerdrive eSYSTEM-N 40A DC with Dual MPPT 12/24V 40A & Monitor
Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.
These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.
Options:
- Enerdrive ePRO PLUS Battery Monitor - EN55050 or Simarine Pico Display Panel Mount Black - SI-PICO-3, SI-SC303, SI-SCQ50
- Enerdrive Battery - No battery or 1 -2 x Enerdrive ePOWER B-TEC 300Ah Lithium Battery - EPL-300BT-12V-G2
- Enerdrive Inverter Charger - No Inverter Charger or 1 x Enerdrive ePRO Combi 3000W Inverter Charger - EPC-3000-12-KIT
Pack Includes:
- Enerdrive DC2DC Battery Charger - 12V 40A - EN3DC40+
- 2 x Enerdrive MPPT 12/24V 40A Solar Controller with Display - EN43540
- Enerdrive ePOWER 12/24V 40A IP66 Smart Battery Guard - EN-LBC1224-40
- Enerdrive Class-T Fuseholder 50V/225A-400A - DCM-5073850
- Blue Sea Fuse Class T 400A - BS-5121B
- Enerdrive 3 x M8 Busbar - DCM-5073160
- Enerdrive EN-RCB200 Surface Mount Resettable Breaker - 200amp - EN-RCB200
- Enerdrive EN-RCB60 Surface Mount Resettable Breaker - 60amp - EN-RCB60
- Enerdrive Modular Fuse Holder (Fuse Module) - I-LMI-F-M
- Modular Midi Bussbar 6 Position - I-B109-7046-6
- Fuse Block 6 Way with Neg Bar - EA-FB-08
- Fuse MIDI 30A, 50A, 60A - BS-5250B, BS-5252B, BS-5253B
- Slotted Duct 60 x 60 per Metre & Slotted Duct 40 x 60 per Metre - Black - SD 60X60 BLK & SD 40X60 BLK
- SDI Flex 95mm2 V90HT TCW Black (Double Insulated Tinned Copper) & SDI Flex 16mm2 V90HT TCW Black- ENC-95MM2 & ENC-16MM2
- Cable Lug Bell Mouth - 95mm2 (M10 Stud), 16mm2 (M6 Stud), 16mm2 (M8 Stud)- ENC-LUG-95-10, ENC-LUG-16-6, ENC-LUG-16-8
Click the left and right buttons to view the eSYSTEM Range
(✓) Indicates standard Fitment, (#) Indicates optional fitment
| Properties | eSYS-C | eSYS-D | eSYS-E | eSYS-F | eSYS-G | eSYS-H | eSYS-I | eSYS-J | eSYS-K | eSYS-L | eSYS-M | eSYS-N-EP-01 | eSYS-N-SI-01 | eSYS-O | eSYS-R-EP-01 | eSYS-R-SI-01 | eSYS-R-EP-02 | eSYS-R-SI-02 | eSYS-R-EP-03 | eSYS-R-SI-03 | eSYS-COMBI-EP-01 | eSYS-COMBI-SI-01 | eSYS-COMBI-EP-02 | eSYS-COMBI-SI-02 | eSYS-ICA-EP-02 | eSYS-ICA-SI-02 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AC 40Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||
| AC 60Amp 12V Charger | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||||
| AC 100Amp 12V Charger | ✓ | ✓ | ||||||||||||||||||||||||
| DC2DC 40Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓# | ✓# | ✓ | ✓ | ||
| DC2DC 30Amp 24V Charger | ✓✓ | ✓✓ | ||||||||||||||||||||||||
| Morningstar Tristar 45A Solar Controller | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||||
| Enerdrive MPPT 40A Solar Controller | ✓✓ | ✓✓ | ✓✓ | ✓ | ✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | |||||||||||
| ePRO+ 500A Battery Monitor | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine Pico LCD WIFI Monitoring Screen | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine SC303 300A Main Battery Shunt | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine SCQ25T Quad Shunt Tank Module | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| Simarine SCQ50 Quad Shunt Module | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||
| Simarine ST107 Tank Monitoring Module | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||
| Inverter Breaker 200A (Pre Wired Inverter Supply) | ✓ | ✓ | ✓ | # | ||||||||||||||||||||||
| Battery Restart Switch | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||
| 24hr Critical Load Distribution Fuse Block | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||
| Main Load Distribution Fuse Block | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| 2000W AC Transfer Inverter | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| 2600W AC Transfer Inverter | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| Dimensions | 1185W x 380H x 130Dmm | 600W x 490H x 100Dmm | 600W x 490H x 100Dmm | 1185W x 380H x 130Dmm | 790W x 380H x 100Dmm | 1195W x 380H x 111Dmm | 1195W x 380H x 111Dmm | 920W x 380H x 111Dmm | 490W x 600 H x 111D mm | 490W x 600 H x 111D mm | 600W x 350H x 111D mm | 1190W x 380H x 111D mm | 1190W x 380H x 111D mm | 600H x 520W x 111Dmm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 120D mm | 535W x 1195H x 120D mm |
Specifications
SKU ESYS-N
Brand Enerdrive
GTIN 9342616031469
Product Category Power Systems
Battery Voltage 12V
DC Charger Output Current Rating (Amps) 40
AC Charger Output Current Rating (Amps) 40
Input Voltage 12.5V DC
-Weight 23 Kg
Dimensions (LxWxD) 1185 x 380 x 130 mm
Humidity 5-95%, relative humidity non-condensing (AC to DC Battery Charger), 5-90% noncondensing (inverter)
Efficiency 95% (DC Charger), 82% (AC Charger)
NOTE: see full product specifications & further product info in the Description section on this page.
