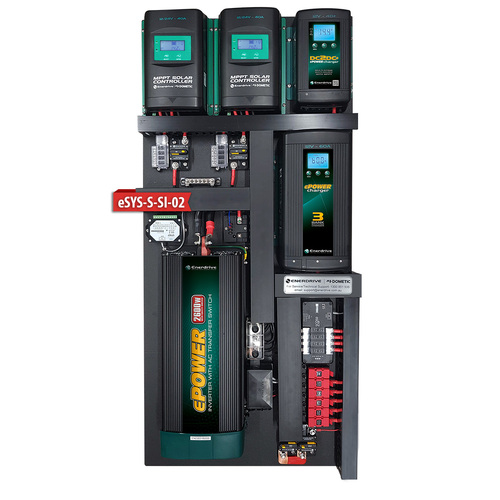

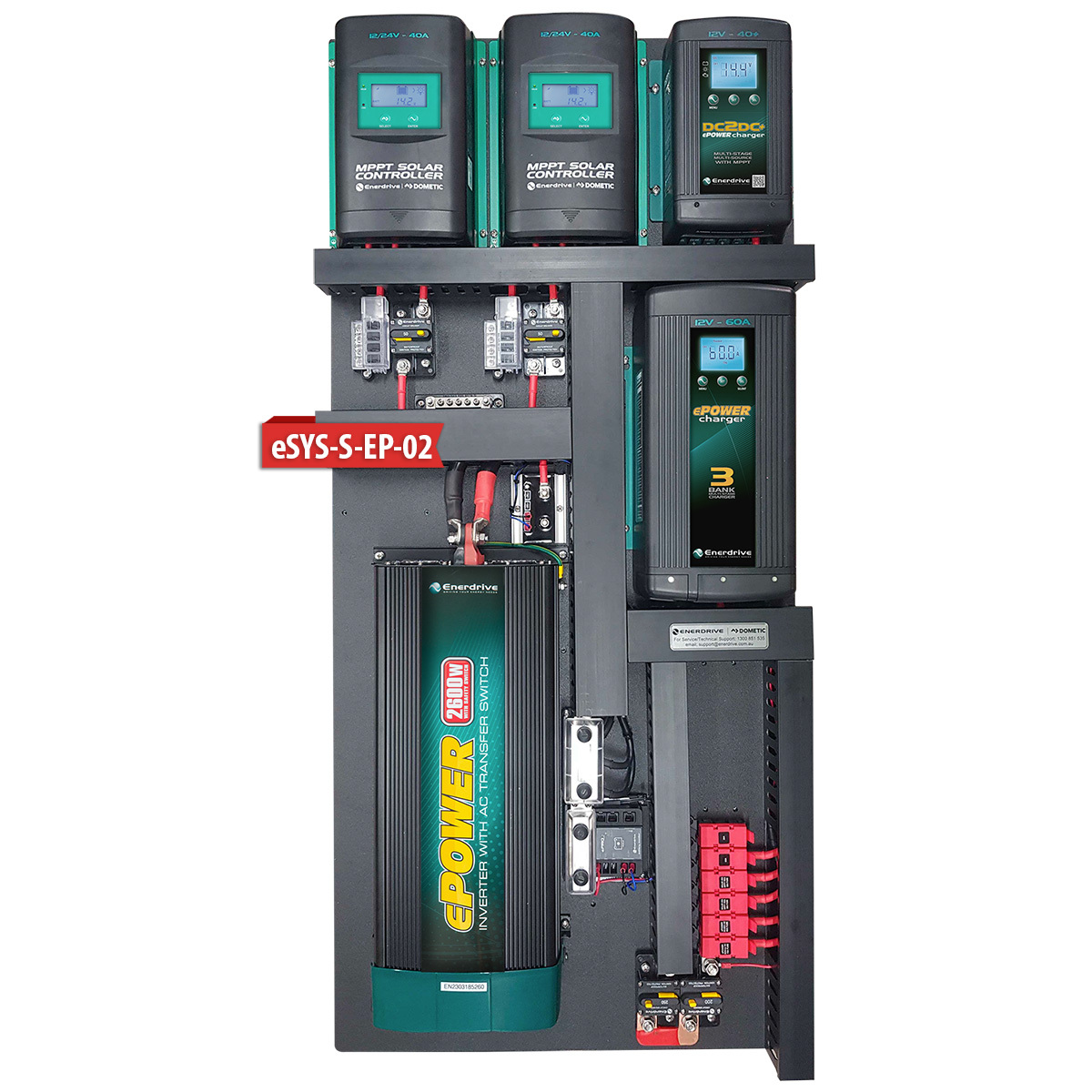

Enerdrive eSYSTEM-S 60A AC / 40A DC with 2 x Dual MPPT 12/24V 40A, 2600W Inverter & ePRO+ Monitor
SKU: ESYSTEM-S Learn More»
Description
Enerdrive eSYSTEM-S 60A AC / 40A DC with 2 x Dual MPPT 12/24V 40A, Inverter & Monitor
Bundle Includes:

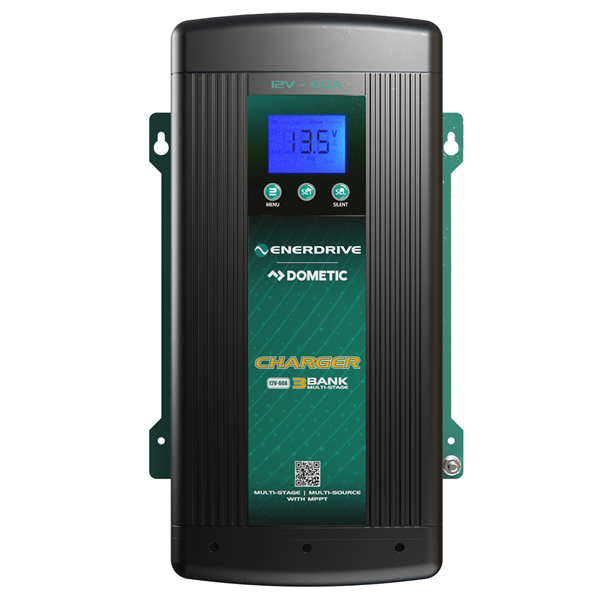

- 1 x Enerdrive ePOWER 60amp / 12v Smart Charger - Three Output, EN31260

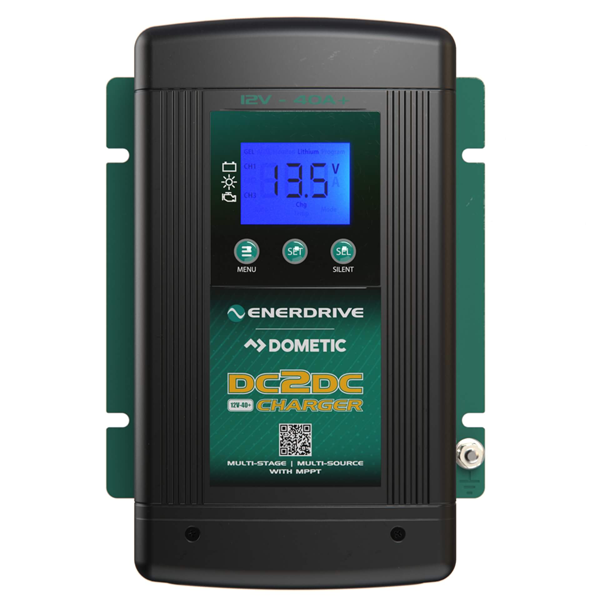

- 1 x Enerdrive DC2DC Battery Charger - 12V 40A, EN3DC40

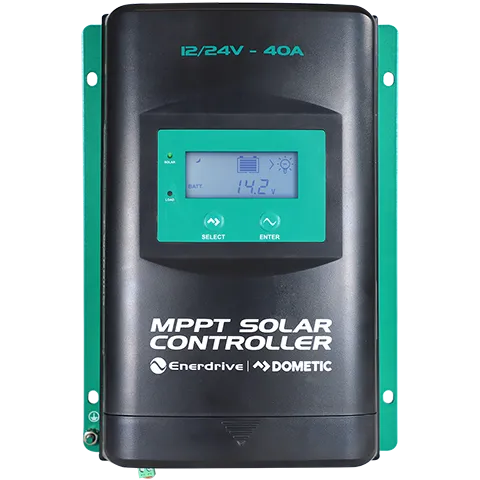

- 2 x Enerdrive MPPT 12/24V 40A Solar Controller with Display, EN43540

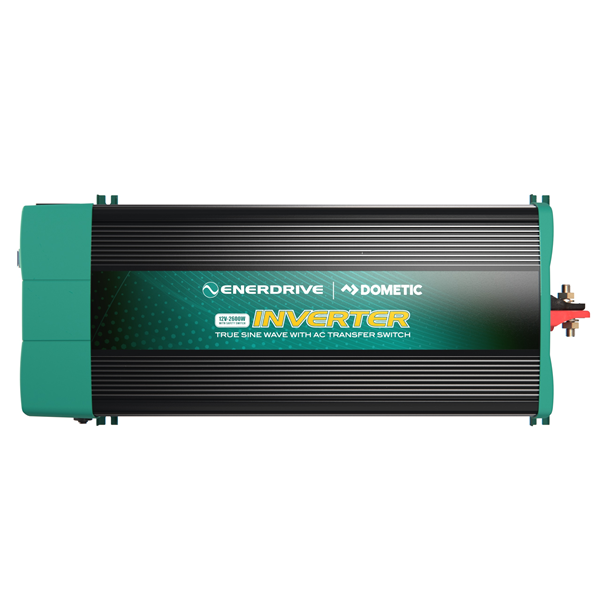

- 1 x Enerdrive ePOWER 2600W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch, EN1226S-X
Optional Battery Monitor:

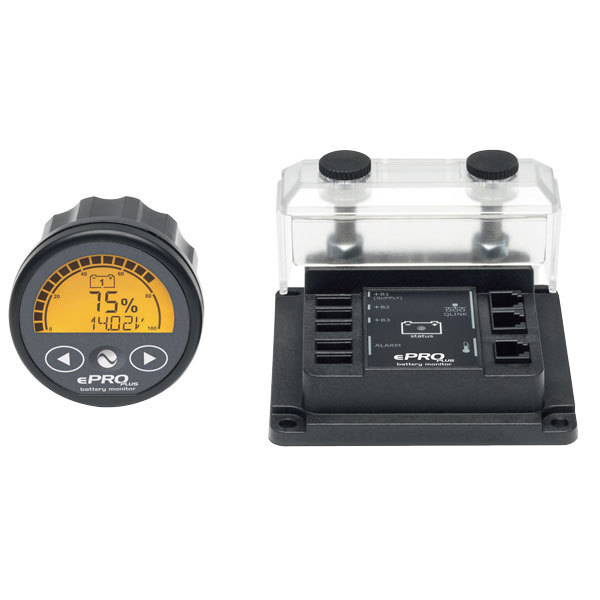

- ePRO Plus Battery Monitor, EN55050
- Simarine Battery Monitor, SI-SC303
Introducing Enerdrives eSYSTEM DIY Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.
These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.
Click the left and right buttons to view the eSYSTEM Range
(✓) Indicates standard Fitment, (#) Indicates optional fitment
| Properties | eSYS-C | eSYS-D | eSYS-E | eSYS-F | eSYS-G | eSYS-H | eSYS-I | eSYS-J | eSYS-K | eSYS-L | eSYS-M | eSYS-N-EP-01 | eSYS-N-SI-01 | eSYS-O | eSYS-R-EP-01 | eSYS-R-SI-01 | eSYS-R-EP-02 | eSYS-R-SI-02 | eSYS-R-EP-03 | eSYS-R-SI-03 | eSYS-COMBI-EP-01 | eSYS-COMBI-SI-01 | eSYS-COMBI-EP-02 | eSYS-COMBI-SI-02 | eSYS-ICA-EP-02 | eSYS-ICA-SI-02 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AC 40Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||
| AC 60Amp 12V Charger | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||||
| AC 100Amp 12V Charger | ✓ | ✓ | ||||||||||||||||||||||||
| DC2DC 40Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓# | ✓# | ✓ | ✓ | ||
| DC2DC 30Amp 24V Charger | ✓✓ | ✓✓ | ||||||||||||||||||||||||
| Morningstar Tristar 45A Solar Controller | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||||
| Enerdrive MPPT 40A Solar Controller | ✓✓ | ✓✓ | ✓✓ | ✓ | ✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | |||||||||||
| ePRO+ 500A Battery Monitor | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine Pico LCD WIFI Monitoring Screen | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine SC303 300A Main Battery Shunt | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine SCQ25T Quad Shunt Tank Module | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| Simarine SCQ50 Quad Shunt Module | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||
| Simarine ST107 Tank Monitoring Module | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||
| Inverter Breaker 200A (Pre Wired Inverter Supply) | ✓ | ✓ | ✓ | # | ||||||||||||||||||||||
| Battery Restart Switch | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||
| 24hr Critical Load Distribution Fuse Block | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||
| Main Load Distribution Fuse Block | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| 2000W AC Transfer Inverter | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| 2600W AC Transfer Inverter | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| Dimensions | 1185W x 380H x 130Dmm | 600W x 490H x 100Dmm | 600W x 490H x 100Dmm | 1185W x 380H x 130Dmm | 790W x 380H x 100Dmm | 1195W x 380H x 111Dmm | 1195W x 380H x 111Dmm | 920W x 380H x 111Dmm | 490W x 600 H x 111D mm | 490W x 600 H x 111D mm | 600W x 350H x 111D mm | 1190W x 380H x 111D mm | 1190W x 380H x 111D mm | 600H x 520W x 111Dmm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 120D mm | 535W x 1195H x 120D mm |
Specifications
SKU ESYSTEM-S
Brand Enerdrive
GTIN 9342616002193
Product Category Power Systems
Maximum Output (Watts) 2600
Dimensions (W x H x D) 1195 x 550 x 111mm
Charger Voltage 12/24V
NOTE: see full product specifications & further product info in the Description section on this page.
