Enerdrive Fuse Block Panel Mount 1 In 12 Out with LEDs
SKU: EA-FB-03 Learn More»
Description
Enerdrive Fuse Block Panel Mount 1 In 12 Out with LEDs
Features:
- Panel Mount 1 in - 12 out fuse block with rear connections.
- Suits ATO/ATC Blade Fuses
- 32V 50Amp Max - 20Amp Max per circuit
- Fuse blown LED’s for easy fault finding.
- Panel mount with rear connections and cover make this fuse block ideal for canopy installs.

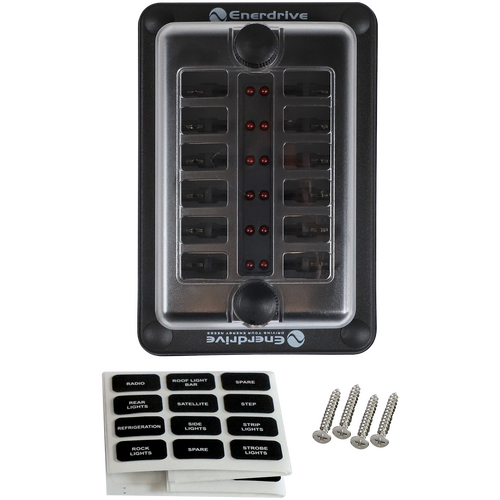

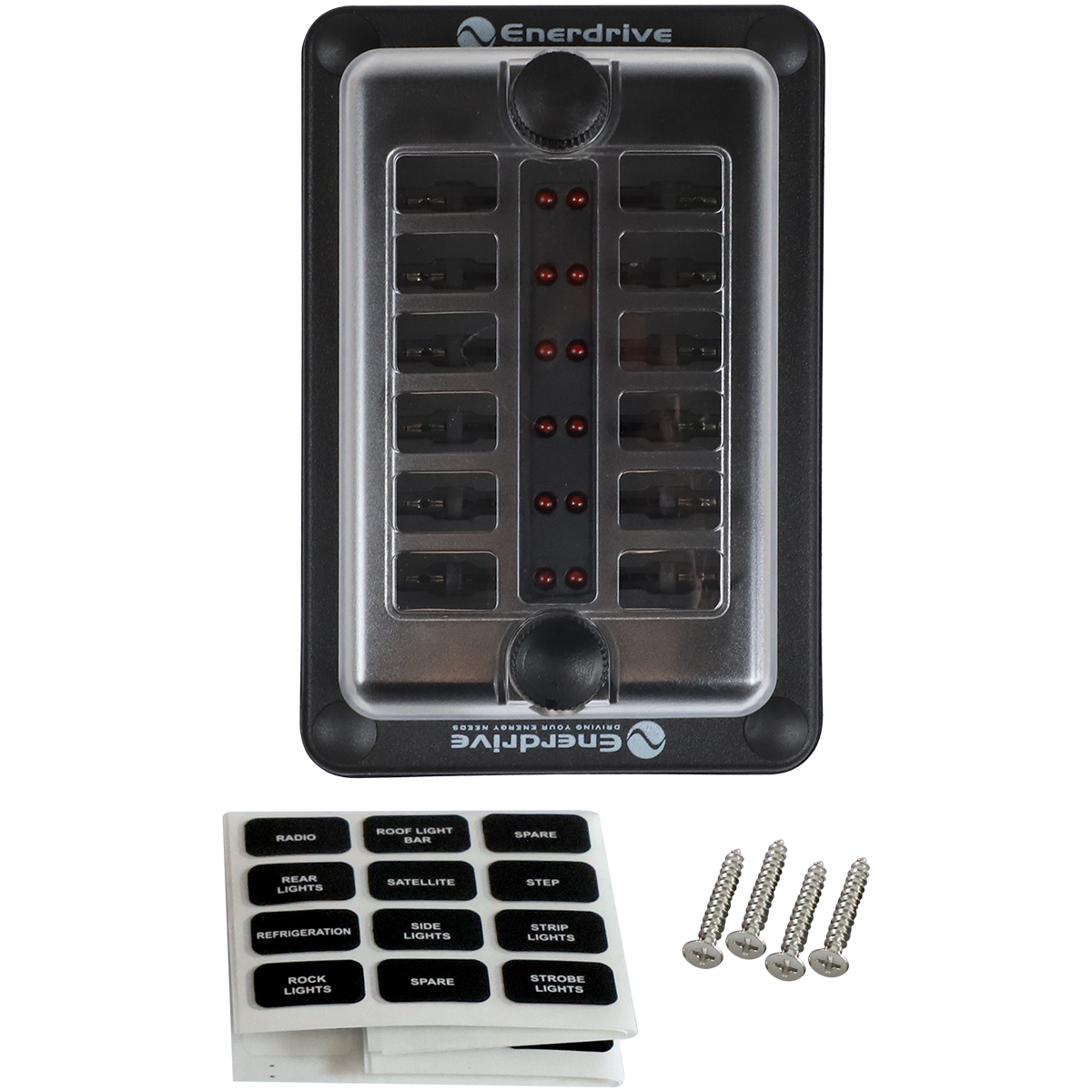

- Includes two label sets.
- Retail Packaging
Show More
Specifications
SKU EA-FB-03
Brand Enerdrive
GTIN 9342616027936
Product Category Fuses and Breakers
Maximum Voltage 32V DC
-Weight 0.23kg

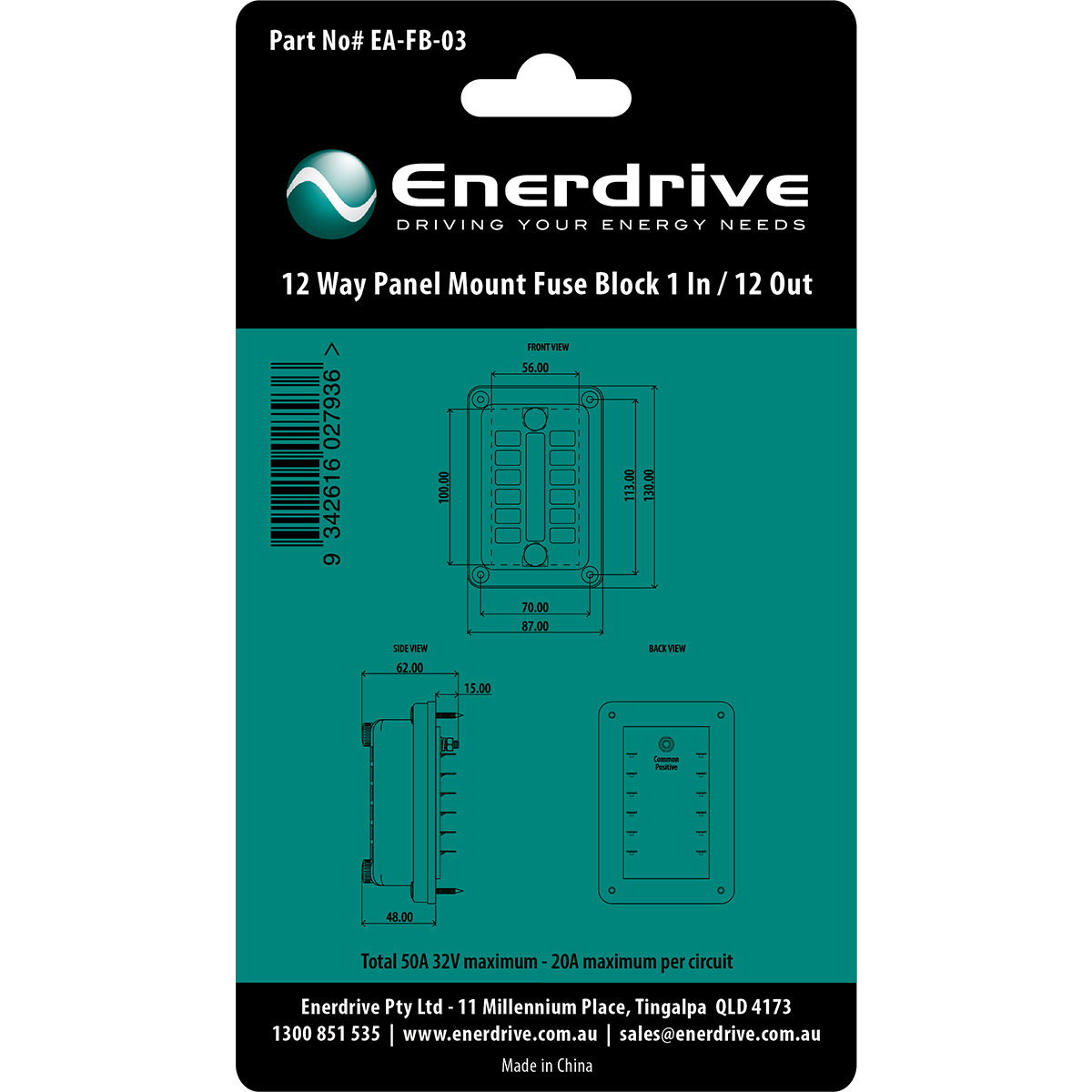

Dimensions 130mm x 87mm x 62mm
Maximum Amperage per circuit 20A
Maximum Amperage per block 100A
Mounting 8″ Screw [M4]

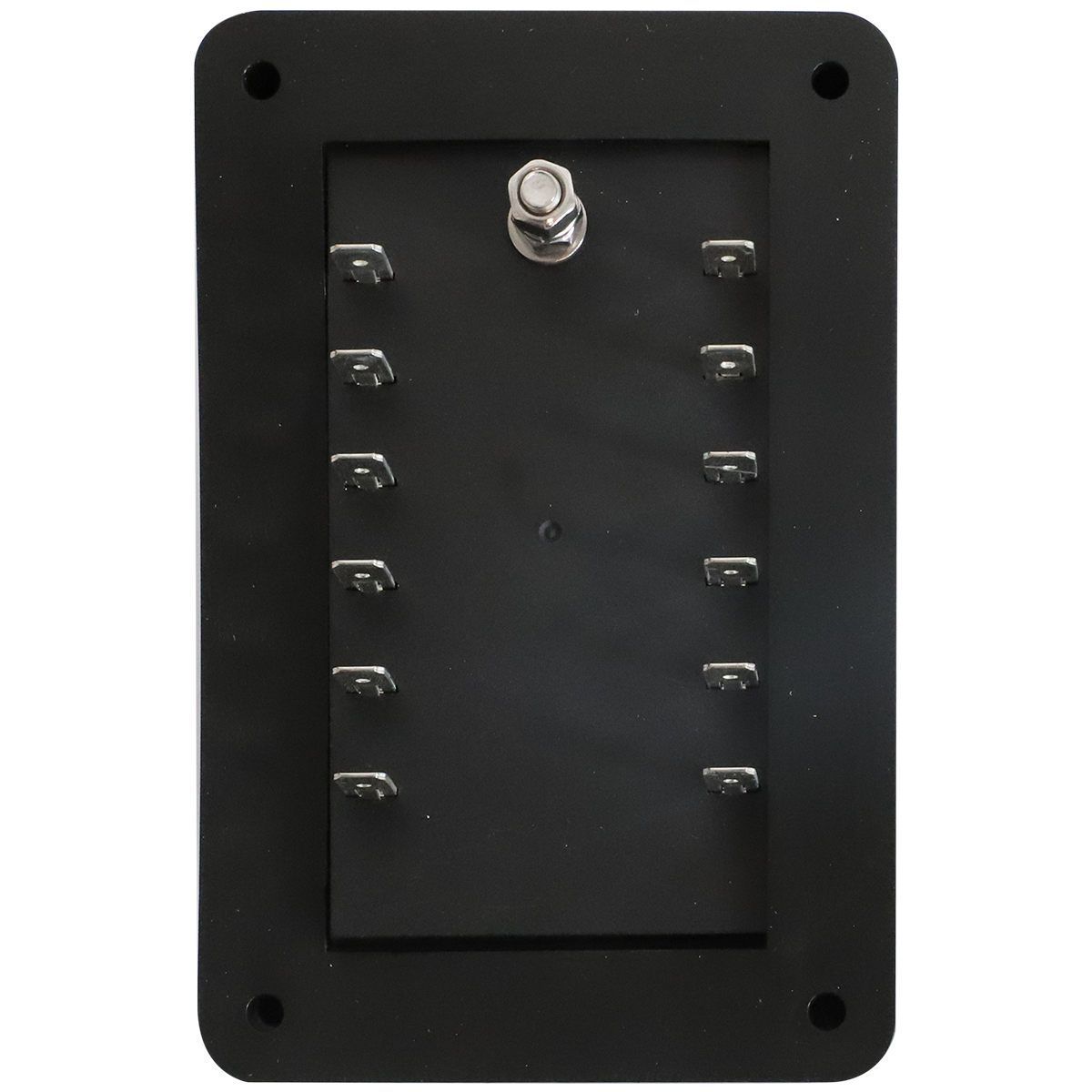

Positive Input #8-32 with Flat/Spring Washers
Positive Bus Output Spade Terminals
Recommended Torque 24 in-lb (2.71 N.m)
Circuits 12
NOTE: see full product specifications & further product info in the Description section on this page.
