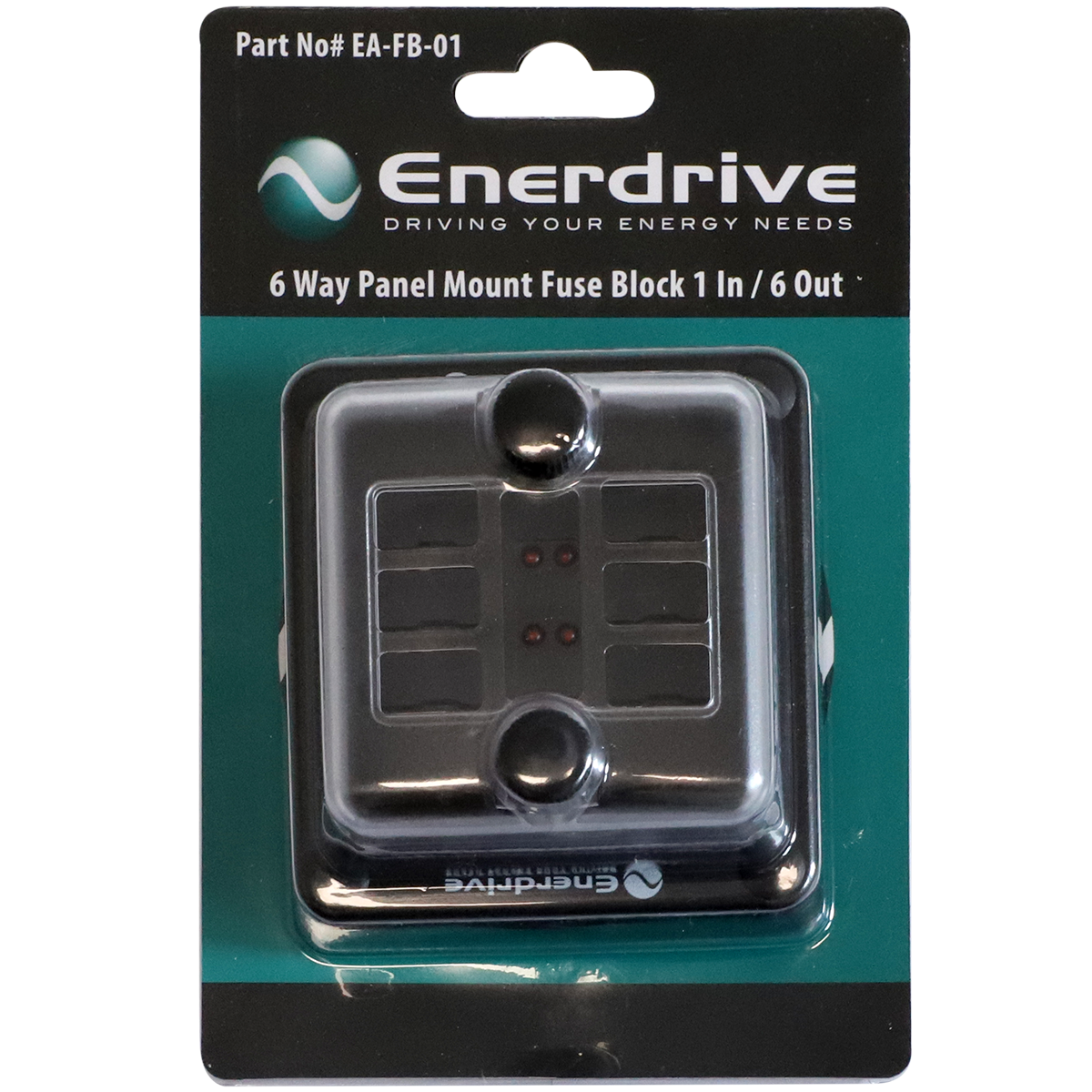

Enerdrive Fuse Block Panel Mount 1 In 6 Out with LEDs

SKU: EA-FB-01 Learn More»

CALCULATE SHIPPING:

Description

Enerdrive Fuse Block Panel Mount 1 In 6 Out with LEDs



Features:

  • Panel Mount 1 in - 6 out fuse block with rear connections.
  • Suits ATO/ATC Blade Fuses
  • 32V 50Amp Max - 20Amp Max per circuit
  • Fuse blown LED’s for easy fault finding.

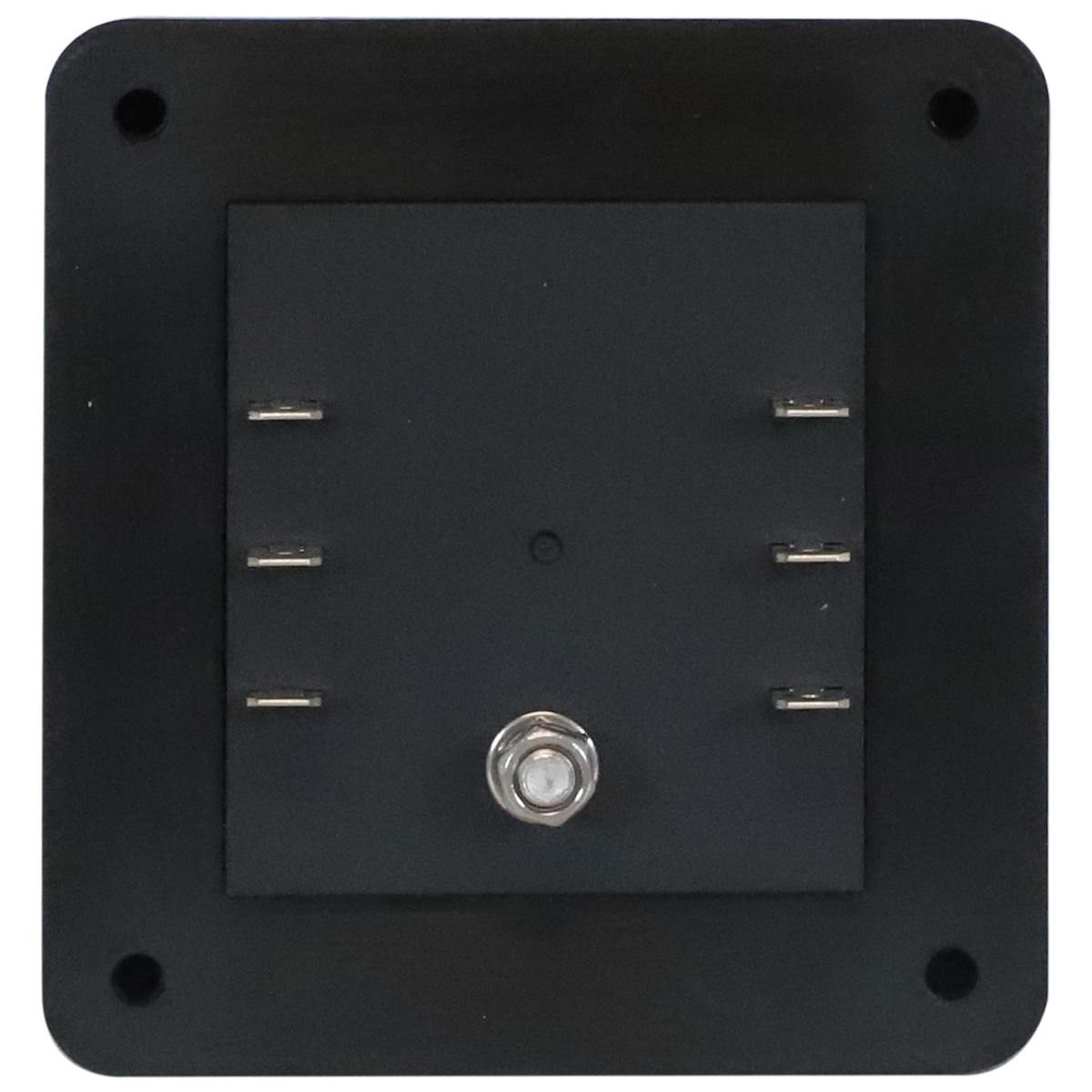

  • Panel mount with rear connections and cover make this fuse block ideal for canopy installs.

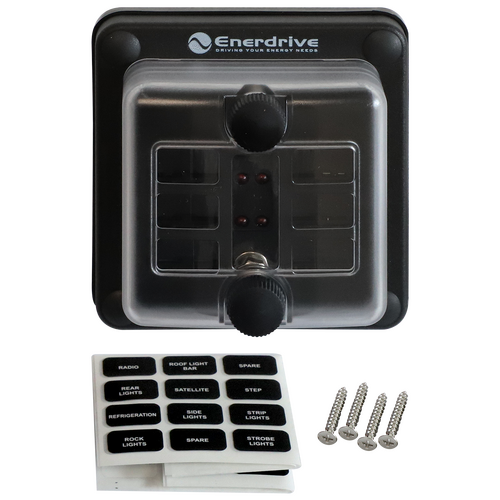

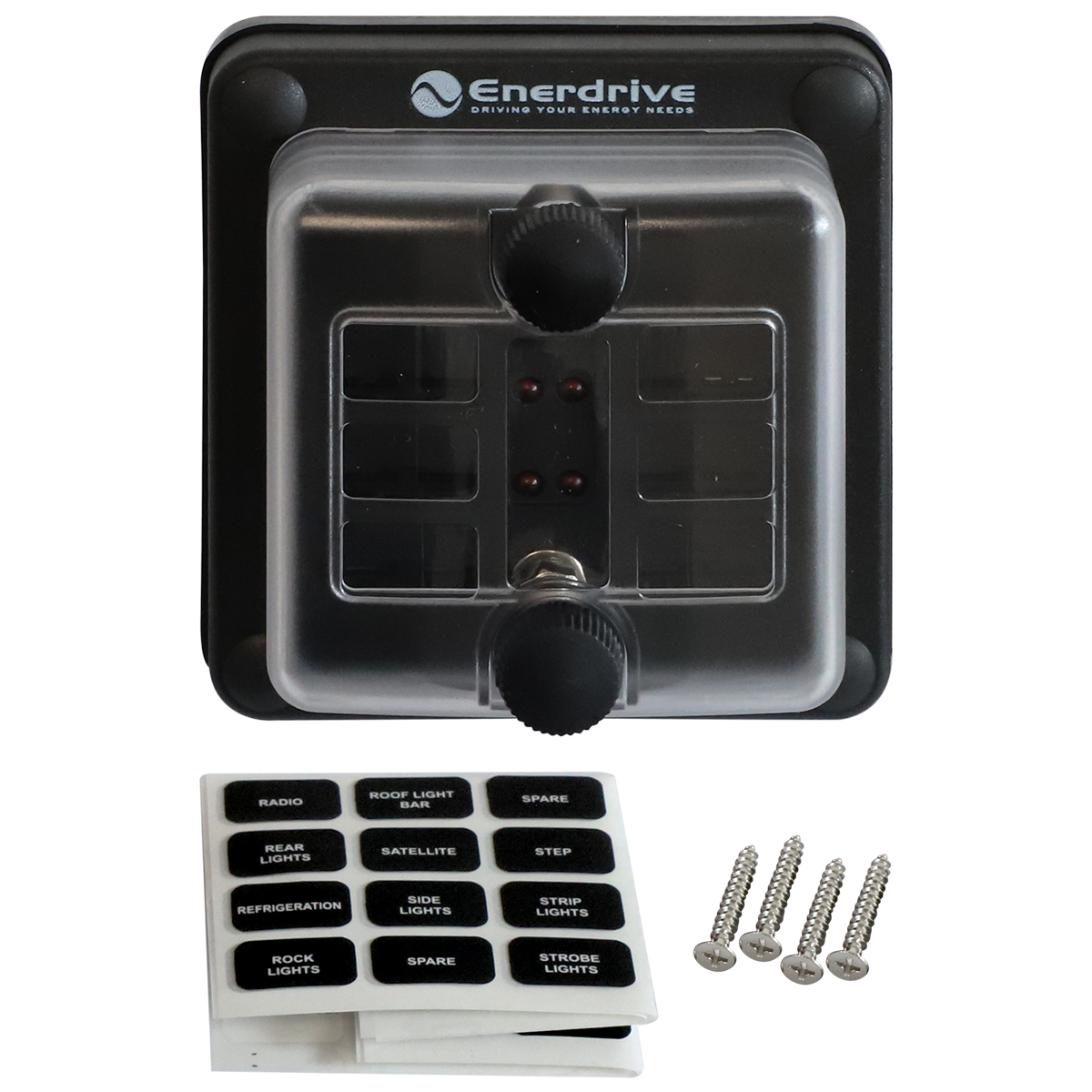

  • Includes two label sets.
  • Retail Packaging
Show More

Specifications

SKU EA-FB-01

Brand Enerdrive

GTIN 9342616027943

Product Category Fuses and Breakers

Maximum Voltage 32V DC

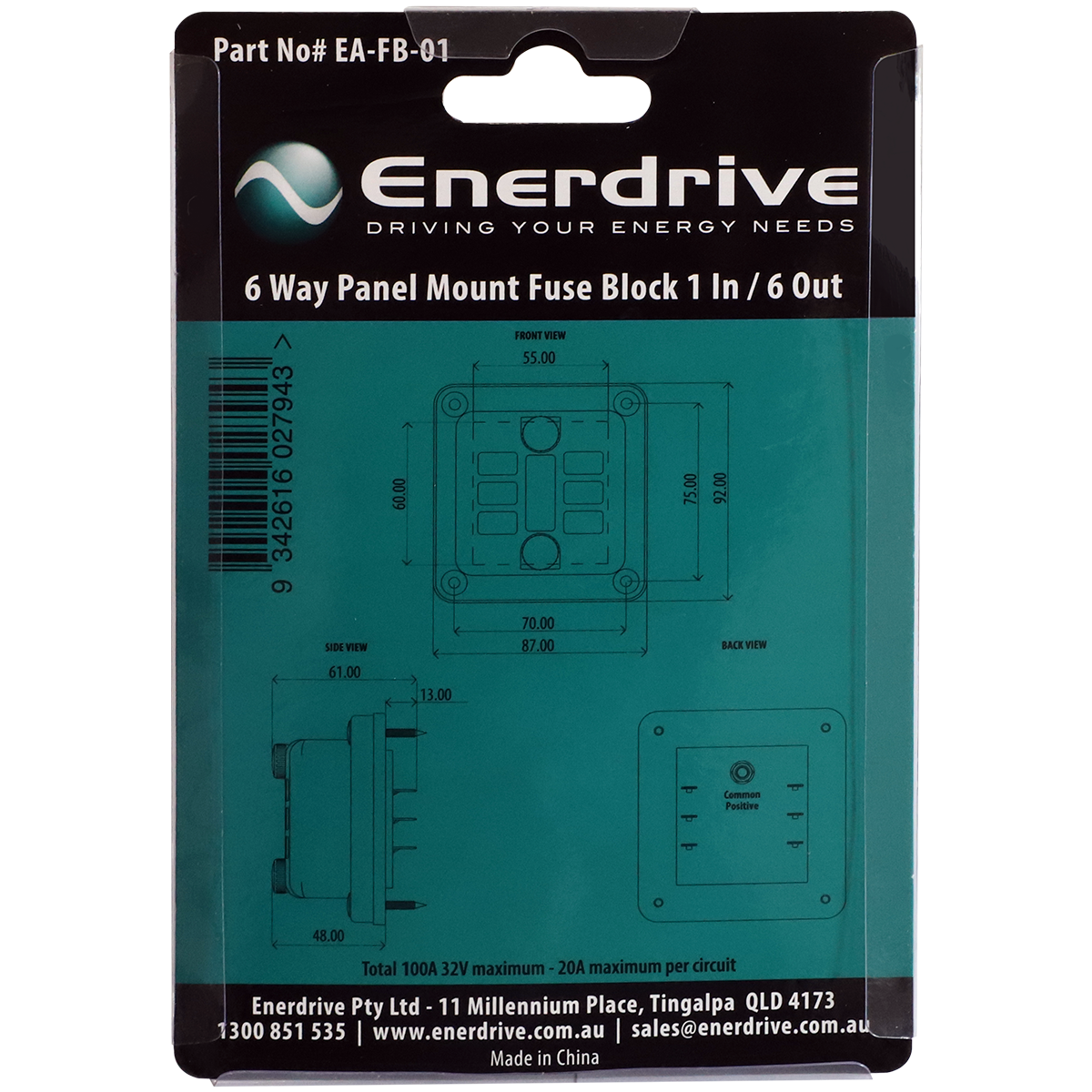

Dimensions 92mm x 87mm x 61mm

Maximum Amperage per circuit 20A

Maximum Amperage per block 100A

Mounting 8_ Screw [M4]

Positive Input #8-32 with Flat/Spring Washers

Positive Bus Output Spade Terminals

Recommended Torque 24 in-lb (2.71 N.m)

Circuits 6

Weight (kg) 0.17kg
