Enerdrive Fuse Block Panel Mount 6 In 6 Out with LEDs
SKU: EA-FB-02 Learn More»
Description
Enerdrive Fuse Block Panel Mount 6 In 6 Out with LEDs
Features:
- Panel Mount 6 in – 6 out fuse block with rear connections.
- Suits ATO/ATC Blade Fuses
- 32V 50Amp Max – 20Amp Max per circuit
- Fuse blown LED’s for easy fault finding.
- Panel mount with rear connections and cover make this fuse block ideal for canopy installs.

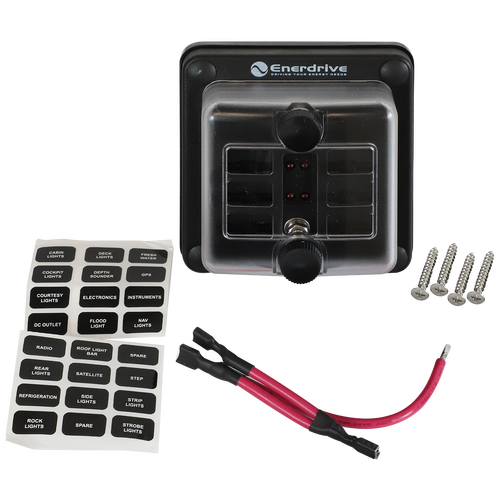

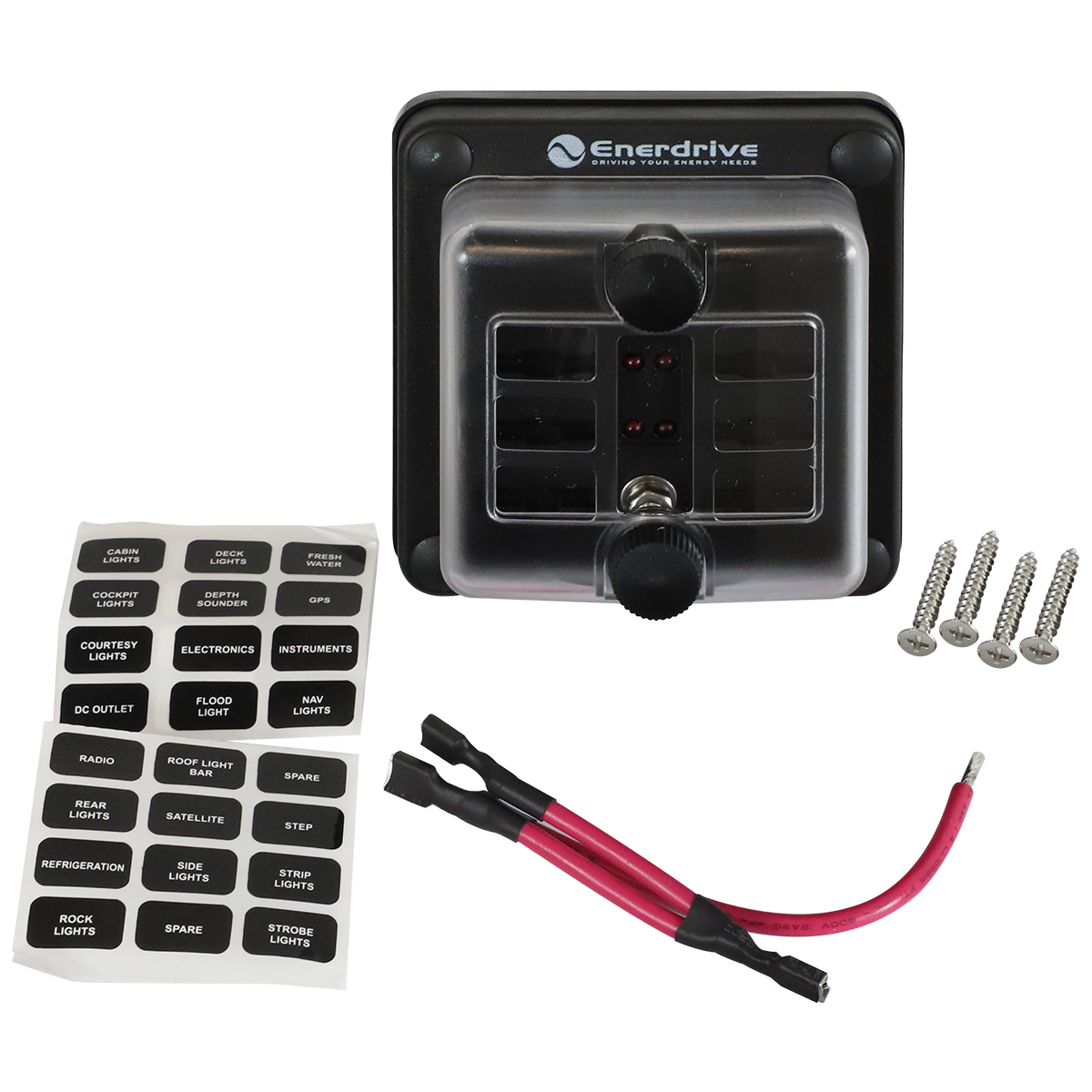

- Includes linking cable for grouping inputs together along with two label sets.
- Includes two label sets.
- Retail Packaging
Show More
Specifications
SKU EA-FB-02
Brand Enerdrive
GTIN 9342616027950
Product Category Fuses and Breakers
Maximum Voltage 32V DC
-Weight 0.18kg

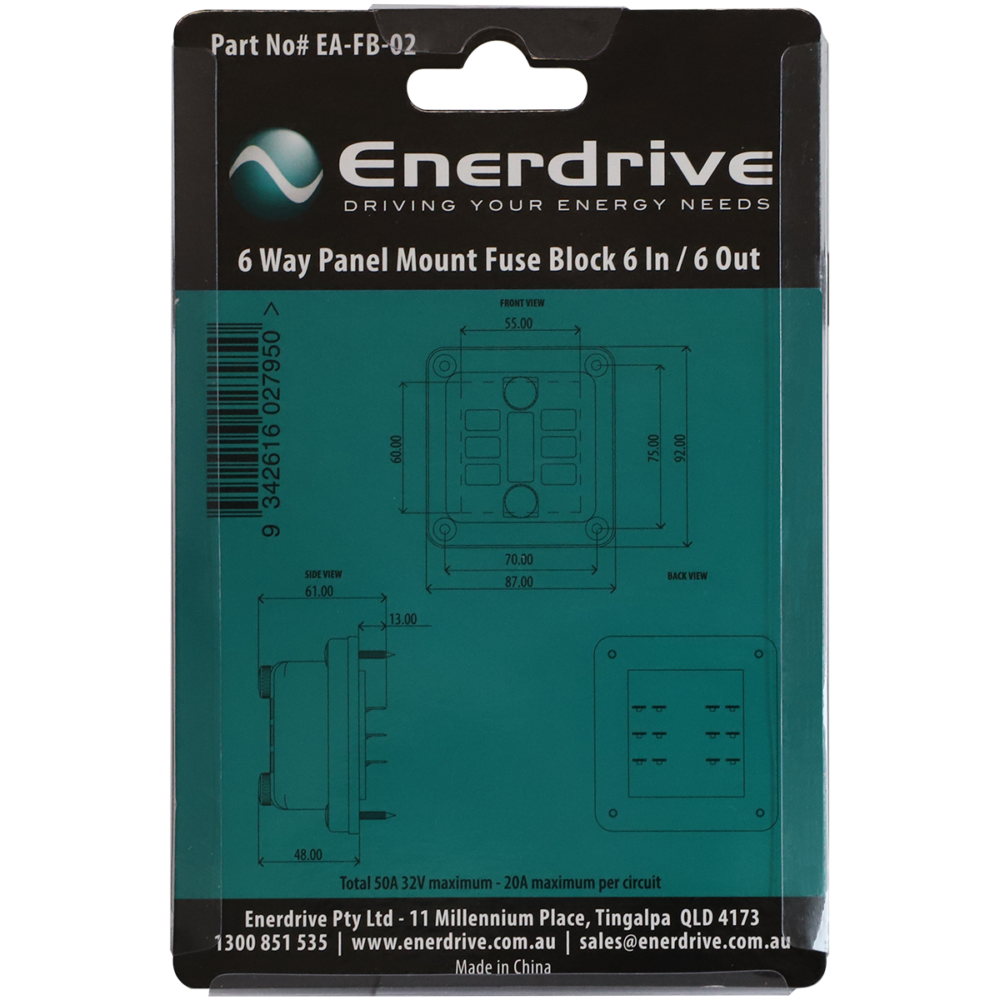

Dimensions 92mm x 87mm x 61mm
Maximum Amperage per circuit 20A
Maximum Amperage per block 100A
Mounting 8″ Screw [M4]

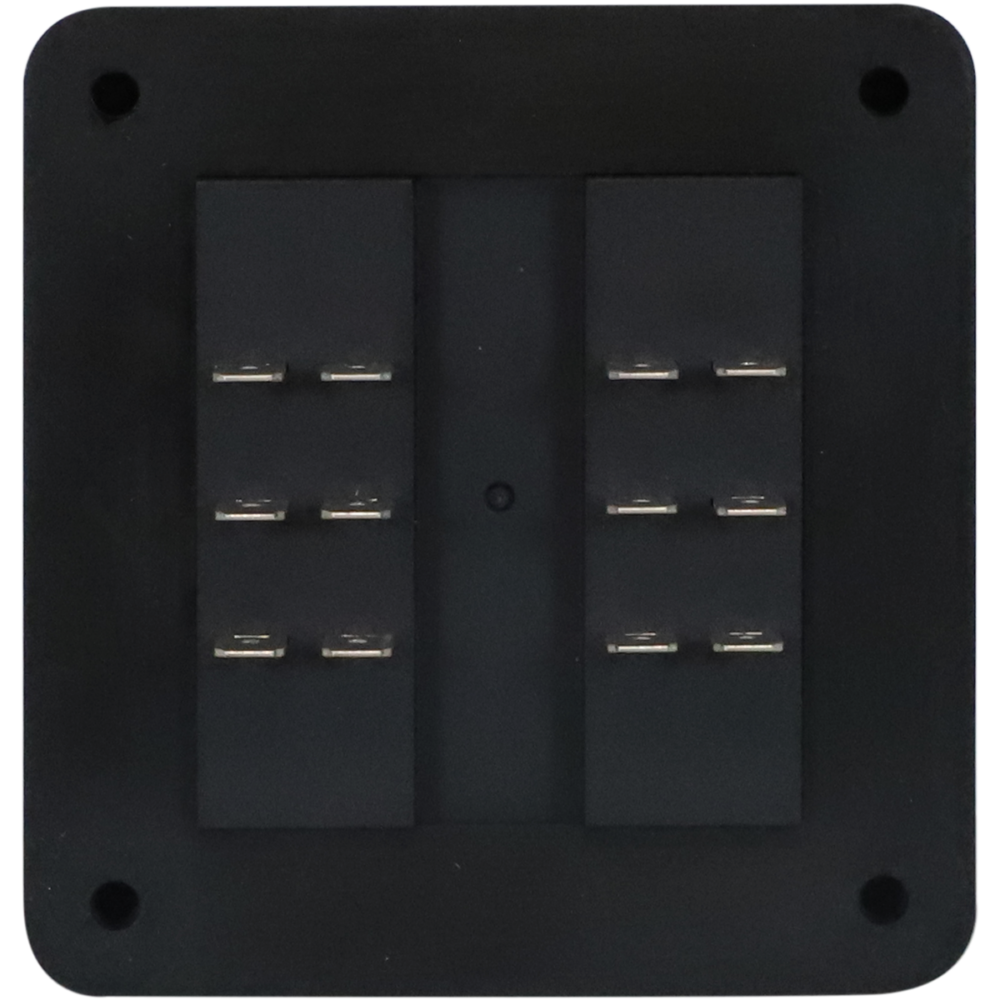

Positive Input Spade Terminals, Rear
Recommended Torque 24 in-lb (2.71 N.m)
Circuits 6
Positive Output Spade Terminals, Rear
NOTE: see full product specifications & further product info in the Description section on this page.
