Enerdrive Power Distribution Module, No monitor
SKU: EPDM Learn More»Description

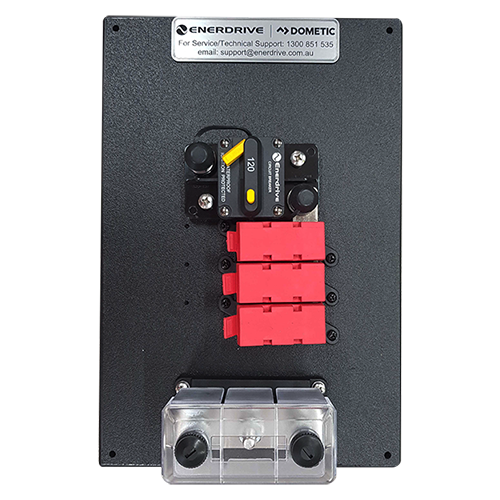

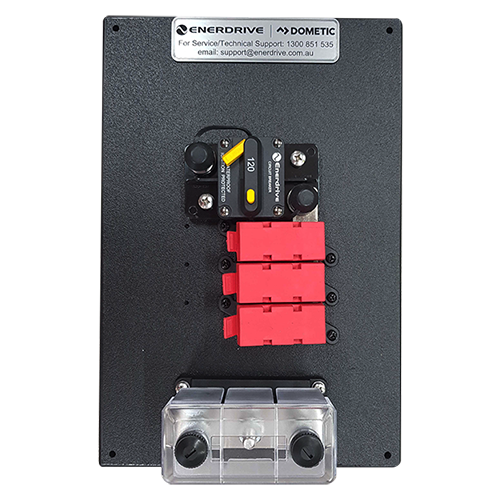

Enerdrive Power Distribution Module
Optional Battery Monitor:
- Enerdrive ePRO+ Battery Monitor - EN55050
- ​​​​​​Simarine Pico+ Display Panel Mount Black - SI-PICO-3 with SI-SC303 & SI-SCQ50
The Enerdrive Power Distribution Module is a DIY-friendly solution for managing all of your electrical loads in a single, central location. It features a main positive input with circuit breakers to protect your inverter (model dependent) and system loads, as well as midi and blade fuse holders for additional loads. A bus bar is also included for all of your negative connections.
The Power Distribution Module is available in three versions:
With ePRO+ Battery Monitor:
- Includes the ePRO+ Battery Monitor, which provides real-time information on your battery voltage, current, and state of charge.
- 2 circuit breakers: one for system and one for inverter loads up to 2600W
- 6 Midi Fuse Holders - For charging inputs and load dist
- Small load circuit for lighting etc
- 3 position negative bus bar for all negative connections
With Simarine Battery Monitor:
- Includes the more advanced Simarine Battery Monitor
- 6 Midi Fuse Holders - For charging inputs and load dist
- 2 circuit breakers: one for system and one for inverter loads up to 2600W
- The simarine SI-SCQ50 module - Can monitor individual loads up to 50A per circuit!

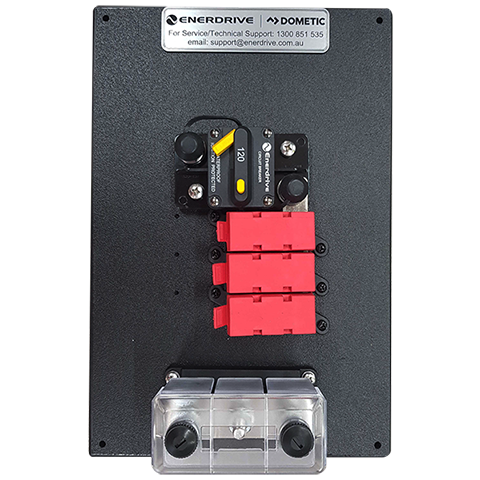

Without Battery Monitor:
- This model does not include a battery monitor
- 1 x 120A system load
- 3 Mide fuses
- A dual position common negative bus bar
No matter which model you choose, the Enerdrive Power Distribution Module is a great way to keep your electrical system organized and protected.
Benefits:
- Centralized power distribution
- Overload protection
- Easy installation
- DIY-friendly
Applications:
- RVs
- Campers
- Boats
- Off-grid systems
- Solar power systems
- Any other application where multiple electrical loads need to be managed
Specifications
SKU EPDM
Brand Enerdrive
GTIN 9342616029343
Product Category Power Systems
NOTE: see full product specifications & further product info in the Description section on this page.
