Enerdrive Ultimate Power Pack
SKU: K-ULT-01 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description

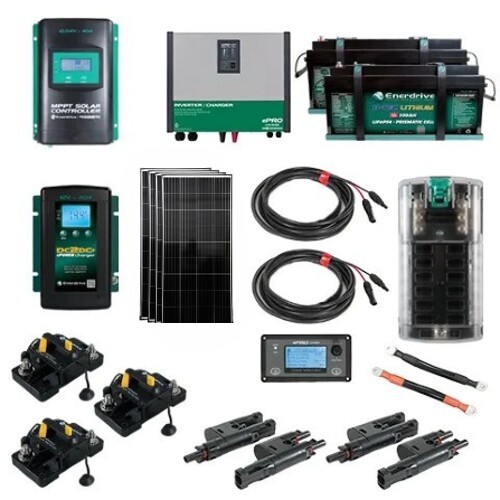

Enerdrive Ultimate Power Pack
Pack Includes:
- 2 x Enerdrive ePOWER B-TEC 300Ah Lithium Battery - 2 x EPL-300BT-12V-G2

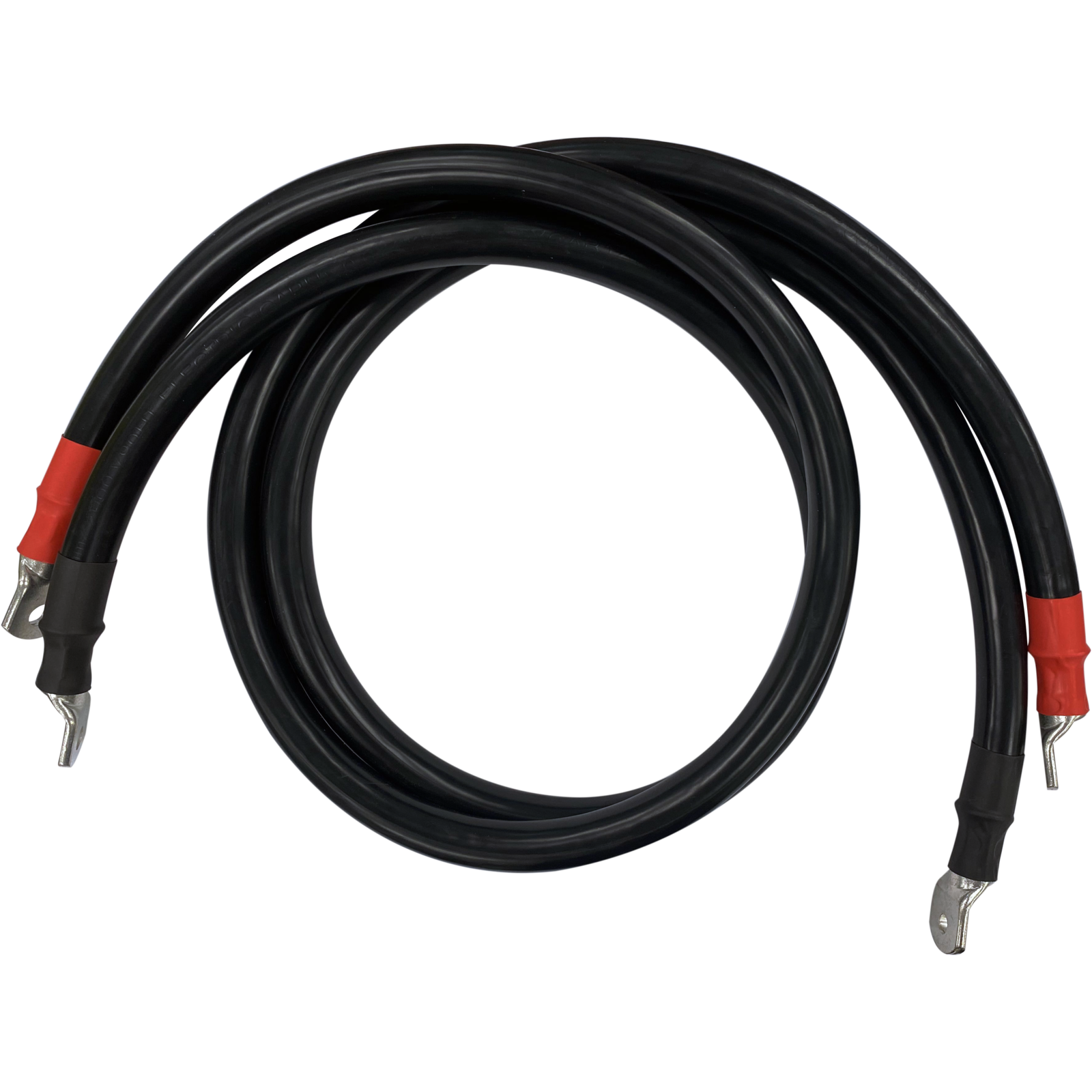

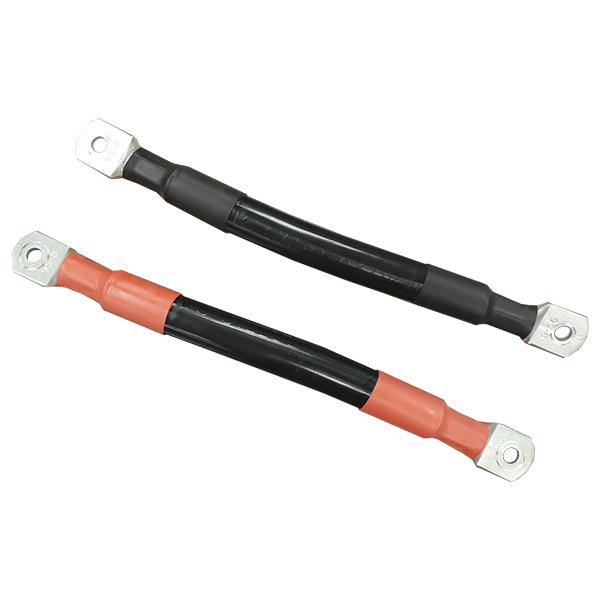

- Enerdrive 95mm 2 x 200mm Battery Parallel Cable Kit, Positive & Negative - ENC-KIT-PARALLEL-95
- Enerdrive DC2DC Battery Charger - 12V 40A - EN3DC40+
- Enerdrive ePRO Combi 3000W Inverter Charger with cable & remote - EPC-3000-12, 5095500, EN3000C
- Enerdrive MPPT 12/24V 40A Solar Controller with Display - EN43540
- 4 x Enerdrive 190W Mono Crystalline Fixed Solar Panel, Black - 4 x SP-EN190W-B

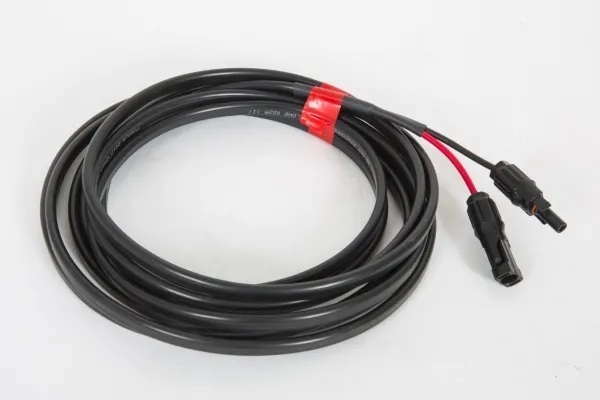

- 2 x Enerdrive 10m 6mm² Twin Solar Cable with EN4 Plugs - SP-SC10-6MM
- Enerdrive EN-RCB Surface Mount Resettable Breaker - 1 x 40amp - EN-RCB40, 1 x 60amp - EN-RCB60, 1 x70amp - EN-RCB70
- Enerdrive Fuse Box – 12 Circuit with Negative Bus and Cover - EA-FB-07

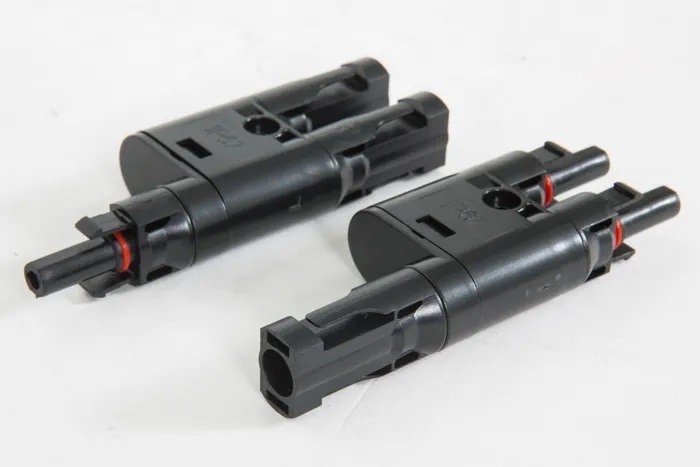

- 2 x Enerdrive Set of Quick Connect Solar Panels - 2 x SP-QC

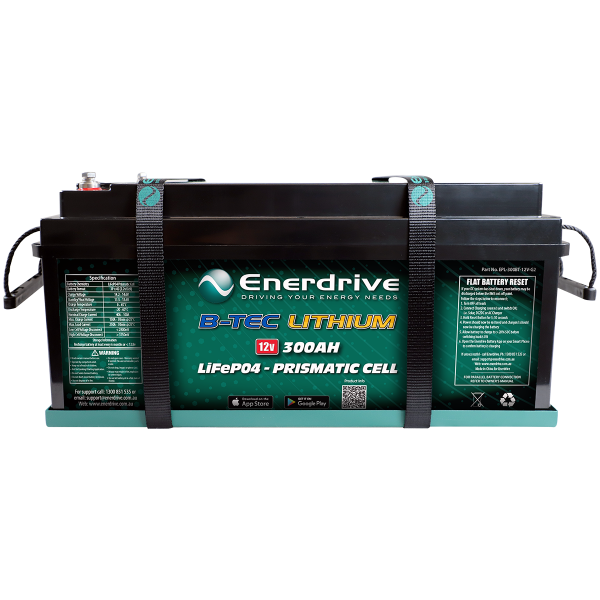

2 x Enerdrive ePOWER B-TEC 300Ah Lithium Battery
Available in 12v 300Ah capacity, the Enerdrive B-TEC G2 lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.
Key Features:
- New design BMS
- Max discharge current 250A (15mins) - 200A continuous
- Max charge current 190A (30mins)
- Can be connected in parallel (up to 4 batteries)
- Built in flat battery reset button
- Includes mounting tray and 2 straps
- Communication ports (RS485) for future integration
- 5 year warranty & lifetime tech support
Please Note; The G2 battery is capable to be paralleled to a second G2 battery. For maximum performance and lifespan of your G2 battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.
The G2 300Ah battery is able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.
If you are requiring a battery system larger than the Enerdrive B-TEC G2 battery, please look at the Enerdrive Pro Series Power Pack Systems which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.
*Please Note: This ePOWER B-TEC lithium battery is capable to be paralleled to a second ePOWER B-TEC lithium battery. For maximum performance and lifespan of your lithium battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.
Enerdrive DC2DC Battery Charger - 12V 40A
The Enerdrive 40amp DC2DC Battery Charger with combined Solar Regulator is designed to accept multiple voltage inputs allowing you to charge your batteries through your vehicles alternator or your caravans solar panels. This means you can take advantage of the vehicles alternator whilst moving and your solar panels while you are stationary. The Enerdrive ePOWER DC2DC+ Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller. With two inputs available, the main/house battery will be charged from either the engine while underway, or via the solar panels when stationary. The process to choose either engine or solar is fully automatic and both functions are controlled from within the unit itself without the need for external relays. Most other DC2DC chargers do not have this capability and a separate solar controller is needed.

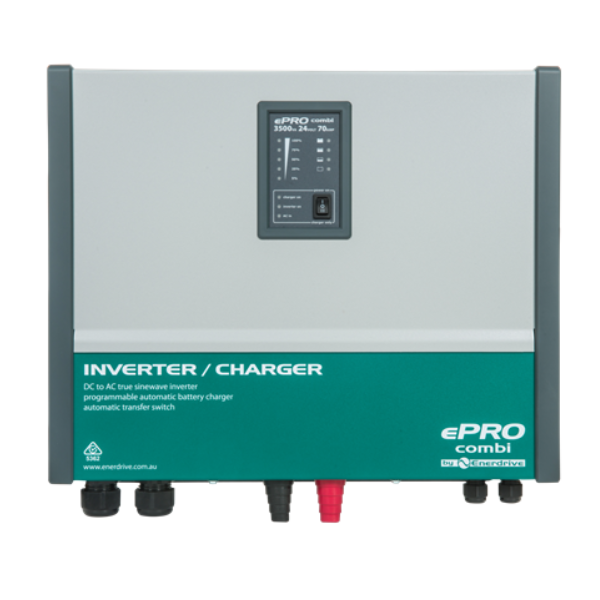

Enerdrive ePRO Combi 3000W Inverter Charger
The Enerdrive ePRO Combi inverter charger is designed to run high amp drawing appliances like your Caravan Air Conditioner from your battery system. The high output inverter can supply 2600w - 3200w of power which is ample to run most caravan appliances - even at the same time. The inbuilt charger will deliver up to 120amps per hour back into your batteries at the same time. It will act as an uninterruptible AC power supply (UPS) switching between 240v mains, generator or 12v battery supplied power without causing damage to delicate electronics like TV's and laptop computers. The benefit of having this unit as a combination is the convenience of easy installation and the space you will save when mounting into tight spaces like Caravans, Boats and RV's.

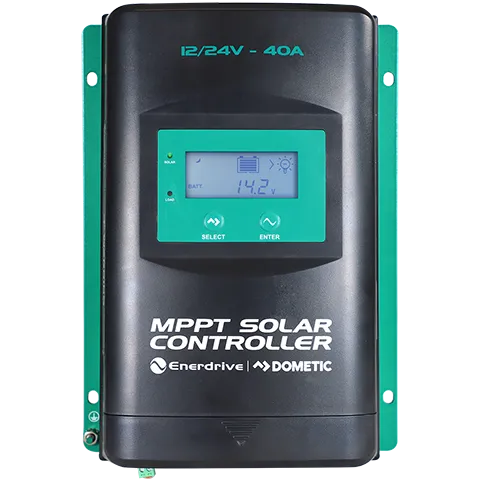

Enerdrive MPPT 12/24V 40A Solar Controller with Display
The Enerdrive MPPT Solar Controllers adopt the advanced MPPT control algorithm, it can minimize the maximum power point loss rate and loss time, quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method.
The Enerdrive MPPT Solar Controllers has self-adaptive three-stage charging mode based on digital control circuit, which can effectively prolong the lifespan of batteries and significantly improve the system performance. It also has comprehensive electronic protection for overcharge, over discharge, PV & battery reverse polarity. This controller can be widely used for RV, Marine, remote offgrid monitoring and many other applications.
IP33 Ingress protection and isolated RS485 design further improves the controller’s reliability and meet the different application requirements.

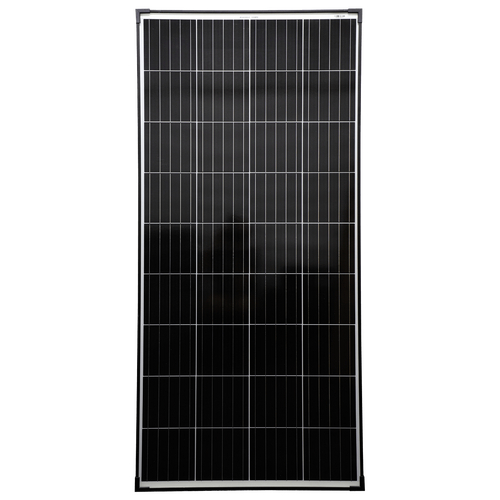

4x Enerdrive 190W Mono Crystalline Fixed Solar Panel, Black
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Some Basic Tips:
- Keep your panel in direct sunlight as much as possible
- Secure your Folding Solar Kit from theft around your work or campsite
- Protect and store your portable folding kit in the most secure place you can to prevent accidental breakage
.png)

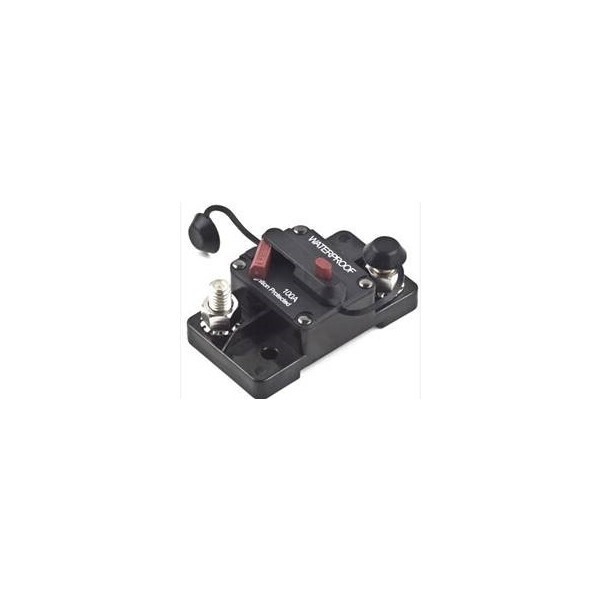

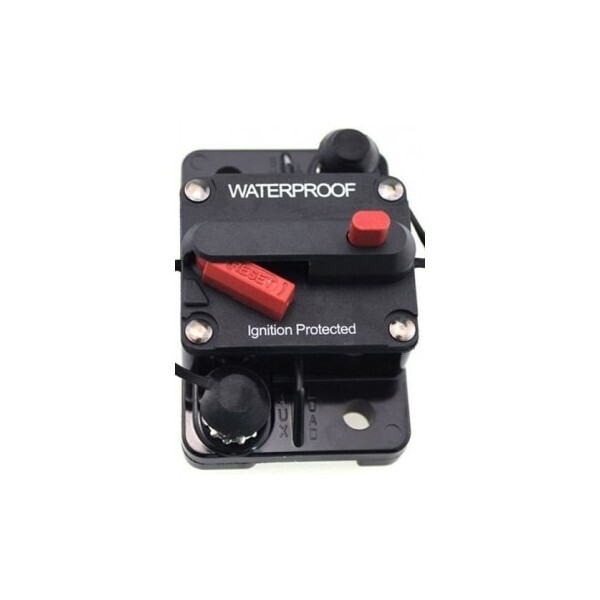

Enerdrive EN-RCB Surface Mount Resettable Breaker - 40amp, 60Amp & 70Amp
Enerdrive have released an affordable range of surface mount circuit breaker while keeping with the high quality that our customers have come to expect. Units between 25-70amp have 1/4” studs while the larger units 80—150amp have the larger 3/8” studs for Quality DC connections.
Specifications:
- Storage Temperature Range -34°C to 149°C
- Operating Temperature Range -32°C to 82°C
- Weight 0.1 kg
- Voltage Up to 48VDC
Specifications
SKU K-ULT-01
Brand Enerdrive
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 600
Battery Length (mm) 519
Battery Width (mm) 273
Battery Height (mm) 222
Battery Weight (kg) 75.4
Voltage 12V
Output Current Rating (Amps) 40
Wattage (W) 3000
Watts (W) 720
Solar Panel Cell Type Monocrystalline
Solar Panel Type Fixed Solar Panels
Dimensions (lxwxh) 242 x 172 x 74mm (DCDC Charger),370 x 431 x 132mm (Inverter)
Dimensions (wxhxd) 680 x 1482 x 35mm (1 Panel)
Charge Current (A) 40
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What size battery do I need for my caravan?
Great question! Your deep cycle battery for your caravan will be a minimum of 100 Amp Hours (Ah).
The average size for a Caravan is 200Ah. Usually, 2 x 100Ah connected in Parallel. However, if your budget allows to upgrade to a Lithium battery you can get a lot more power for the size of the battery. For example, a 200Ah lithium battery can be equivalent to up to 360 Ah of an AGM battery.
To work out exactly what size you require you need to first look at the load you are planning on drawing. The load should be calculated in Amps per hour, or Amp Hours (Ah). Batteries are rated in Amp Hours (Ah) as well.
So, if you are drawing a 50Ah per day, a 100Ah AGM battery can provide power for about 1 day as you do not want to draw more than 50% from your battery. However, it is not always easy to find what each appliance draws. Some popular examples are following:
- 150L 12V Fridge = 2.5 Amps per hour (2.5Ah) - runs for 24 hours a day
- 12V Water Pump = 3.5 Amps per hour (3.5Ah) - only runs for 1 hour a day
- Phone Charger = 0.5 Amps per hour (0.5Ah) - Maybe 4 hours per day
- 12V Fan = 4 Amps per hour (4Ah) - Maybe 4 hours per day
Then you will need to factor in how much charge you are putting in Daily. The charge comes in the way of Solar and in car charging via a DC to DC charger.
Ideally you want enough charge input per day to cover the load drawn, then enough battery storage to last 2 - 3 days without charge.
-
What is best - AGM or lithium battery?
The answer is simple. Lithium is a better product than AGM.
Lithium is lighter, more compact, and powerful, it will also last longer.
However, a lithium battery will cost more, because it is a highly sort after product. Almost everything that has a battery nowadays will have a lithium battery. Mobile phone, Electric Car, Electric Bike and Skateboard just to name a few.
There are situations where you can get away with an AGM battery. If you only need about 100ah (most 4 x 4 set ups), you can purchase 1 x 100ah battery and a battery box and away you go.
However, once you start getting into the larger amperages (200+) it really makes more sense to turn to lithium.
-
How do I charge my caravan battery?
There are three ways to charge your caravan Battery. Either:
- AC to DC - This is using a traditional battery charger that plugs into mains power.
- DC to DC - This is a battery charger connected between the start battery of your tow vehicle and the Caravan Battery. This will charge the battery whilst driving.
- Solar - Solar panels on your roof can be connected to a solar charge controller then to your Caravan Battery.
-
How much solar do I need to keep my caravan battery charged?
Ideally, you want use as much solar as you can fit on the roof. Extra portable solar panels are also good idea if you want to park your van in the shade and run a portable panel from a lead in the sun � please see our solar range here.
Solar is cheap relative to the rest of your system, and it provides so much of your power when you are camping off grid.
However, the solar required depends on the load. Please feel free to contact our team for any specific questions on your battery - 1800 787 278!
