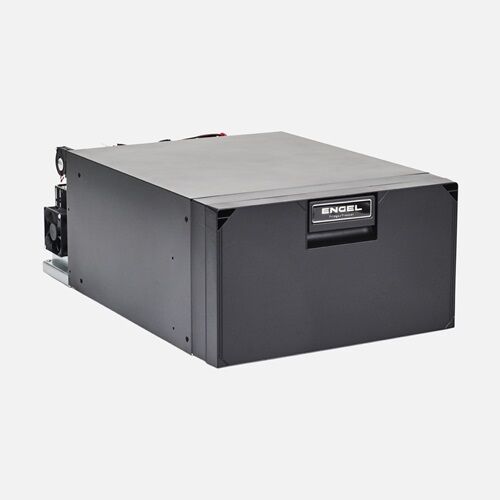

Engel 30 Litre Drawer Fridge
SKU: SB30F Learn More»Description
Engel 30 Litre Drawer Fridge
440 x 250 x 716 (External) 335 x 165 x 470 (Internal)
Install an SB30F Engel 30 Litre Drawer Fridge into your vehicle or boat for portable compact cooling on your adventure. This drawer fridge is the perfect solution for small spaces in 4WD's, caravans and boats. The Engel 30 Litre Drawer Fridge can approximately store 35 cans of soft drinks (or beer).
Included:
- Right angled brackets x 4
- Screws
Features:
- New Compact Sawafuji Swing Motor
- Steel Cabinet
- Solid Construction
- Stainless Steel Runners
- Internal LED light
- Built in Ventilation with dual fans
Specifications:
- Auto Switching 12 - 24 Volt DC
- Power Consumption 3.4A @ 12V / 1.7A @ 24V
- Total Capacity 30 Litres / Approximately 35 cans
- Fridge Voltage 12 / 24 V
- Weight 21.5kg
- Temperature Range +8 °C, -8 °C
- Compressor Sawafuji Swing Motor
- Insulation Refrigeration Grade PU Foam
- Product Material Metal Cabinet
- Colour Black
- Warranty 2 Years
NOTE: This models is now called SB30F, used to be called SB30G.
Note: Refer to the Product Manual / Installation Guide for installation instructions from the manufacturer. For optimal performance of RV compressor fridges, we recommend allowing a minimum of 10-20cm behind the fridge / cooling unit and have an extractor fan or install a bottom and top vent if possible, to force the warm air generated by the fridge to escape. As a rule: The more ventilation you have, the better.
Specifications
SKU SB30F
Brand Engel
GTIN 9334660023026
Product Category Drawer Fridges
Fridge Voltage 12 / 24 V
Total Capacity (L) 30
Fridge Width (mm) 440
Fridge Height (mm) 250
Fridge Depth (mm) 716
-Weight 21.5kg
Average Power Consumption 3.4A @ 12V / 1.7A @ 24V
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Will this fridge drain my car battery?
It all depends at which voltage level the fridge stops drawing power from your battery.
For example, the Dometic CD-30 will cut off at 10.4V. You can connect a draw fridge to your start battery, but you will need to be conscious of battery drain while the car is not running, and the start battery is not being charged. Therefore, we always recommend connecting a DC fridge of any type, to an auxiliary battery.
If you do intend to connect the draw fridge to your start battery, then it would be a good idea to invest in battery protection. Enerdrive have a range of Battery Guards in various Amp ratings. The battery guards can be programmed to disconnect the load (Fridge) at a pre-determined voltage.
-
When installing this fridge into our RV, how much space is required around the unit?
We would recommend a buffering around the perimeter of the fridge of at least 100mm when storing inside an enclosure. Many portable fridge manufacturers will recommend up to around 200mm of buffering gap specifically around the fridge's vents for optimal performance.
As always, please check the Product Manual for installation advice.
-
I’m wondering if this fridge, has a low voltage protection?
Hi, great question!
A compressor fridge as this draw fridge is, will not run if the battery voltage is too low. In this way, the fridge will not draw on the battery.
-
I’m looking for a draw fridge with auto select between 12V/24V, does this fridge have it?
Yes, this fridge has an auto select.
Reviews
Engle Drawer
By: Adam on13 October 2021
Love it, love it, love it. Great product that has performed better than expected and will be a useful part of our camping experience.
Engel draw fridge
By: Keith Allan on4 October 2021
Initial contact was smooth, prompt and courteous, package arrived on time and in good order. Couldn't wait to unwrap the carton and examine the drawer fridge, I was really pleased with my choice. I was initially steered towards an Engel, by a lot of my friends who have had many years of reliable service from their Engels, not just on formed tracks, but a few do really serious off road trips also. Kind regards, Keith Allan
Engel drawer
By: Steve on25 September 2020
Exactly what u expect from an Engel, easy install, had to move the compressor to the side works like a dream
