Engel 30 Litre Drawer Fridge, Right Mount Compressor
SKU: SB30F-R Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description

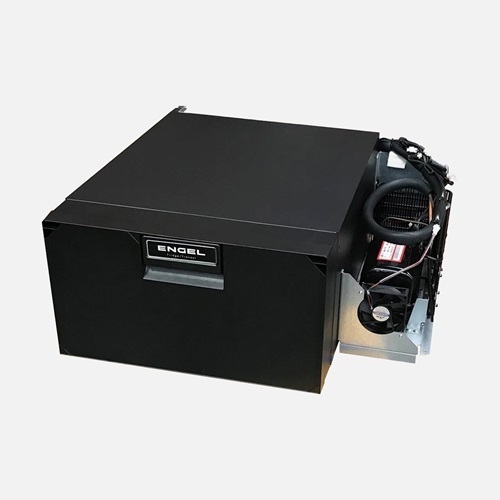

Engel 30 Litre Drawer Fridge, Right Mount Compressor
250 x 596 x 620mm
Install an SB30F-R Engel Drawer Fridge into your vehicle or boat for portable compact cooling on your adventure.
Features:
- New Compact Sawafuji Swing Motor
- Steel Cabinet
- Solid Construction
- Stainless Steel Runners
- Internal LED light
- Built in Ventilation with dual fans
Specifications:
- Power: 12V / 24V DC
- Power Consumption :3.4A @ 12V / 1.7A @ 24V
- Total Capacity: 30 Litres (35 x 375ml cans)
- Weight: 21.5 kg
- Internal Dimensions: H171mm W335mm D476mm (Drawer only)
- External Dimensions: SB30F-R (H250mm W596mm D620mm)
- Temperature Range: +8 °C, -8 °C
- Compressor: Sawafuji Swing Motor
- Insulation: Refrigeration Grade PU Foam
- Product Material: Metal Cabinet
- Colour: Black
- Warranty: 2 Year
NOTE: This models is now called SB30F-R, used to be called SB30G-R.
Note: Refer to the Product Manual / Installation Guide for installation instructions from the manufacturer. For optimal performance of RV compressor fridges, we recommend allowing a minimum of 10-20cm behind the fridge / cooling unit and have an extractor fan or install a bottom and top vent if possible, to force the warm air generated by the fridge to escape. As a rule: The more ventilation you have, the better.
Note: This fridge runs on 12 or 24 volt DC power. To run the fridge from 240 Volt AC mains power, you will need use a Power Adaptor. Also note, this model has the compressor on the right hand side.
Specifications
SKU SB30F-R
Brand Engel
GTIN 9334660005992
Product Category Drawer Fridges
Fridge Voltage 12 / 24 V
Total Capacity (L) 30
Fridge Width (mm) 596
Fridge Height (mm) 250
Fridge Depth (mm) 620
Average Power Consumption 3.4A @ 12V / 1.7A @ 24V
Weight (kg) 19
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Will this fridge drain my car battery?
It all depends at which voltage level the fridge stops drawing power from your battery.
For example, the Dometic CD-30 will cut off at 10.4V. You can connect a draw fridge to your start battery, but you will need to be conscious of battery drain while the car is not running, and the start battery is not being charged. Therefore, we always recommend connecting a DC fridge of any type, to an auxiliary battery.
If you do intend to connect the draw fridge to your start battery, then it would be a good idea to invest in battery protection. Enerdrive have a range of Battery Guards in various Amp ratings. The battery guards can be programmed to disconnect the load (Fridge) at a pre-determined voltage.
-
When installing this fridge into our RV, how much space is required around the unit?
We would recommend a buffering around the perimeter of the fridge of at least 100mm when storing inside an enclosure. Many portable fridge manufacturers will recommend up to around 200mm of buffering gap specifically around the fridge's vents for optimal performance.
As always, please check the Product Manual for installation advice.
-
I’m wondering if this fridge, has a low voltage protection?
Hi, great question!
A compressor fridge as this draw fridge is, will not run if the battery voltage is too low. In this way, the fridge will not draw on the battery.
-
I’m looking for a draw fridge with auto select between 12V/24V, does this fridge have it?
Yes, this fridge has an auto select.
