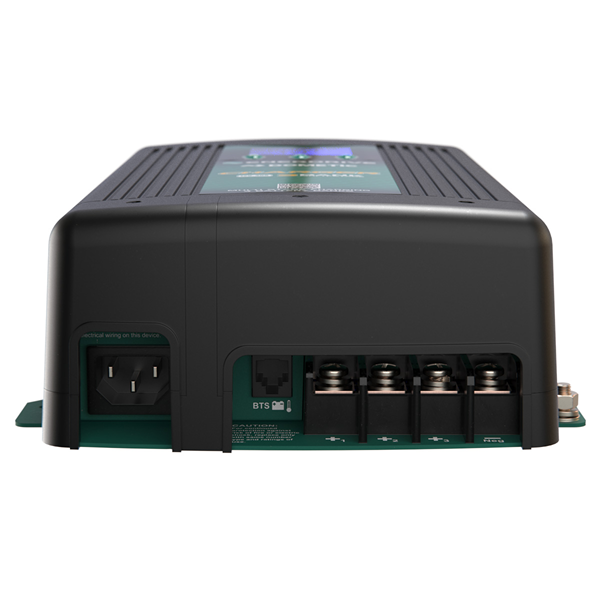

Enerdrive ePOWER 40A/12V AC Smart Charger - Three Output

Specifications

SKU EN31240

Brand Enerdrive

GTIN 9342616000250

Product Category Battery Chargers

Voltage 12V

Output Current Rating (Amps) 40

Standby (Float) Voltage 13.4 – 13.8 V

Storage Range (temp) -40° to 70° C

Standby Current < 2 mA

Operating Range (temp) -20°C to +60°C

Dimensions 295 x 206 x 86 (LxWxH) mm

Optional Accessories Remote Digital Display / Enerdrive Part Number EN3REM

Over Charge Yes, unit shutdown

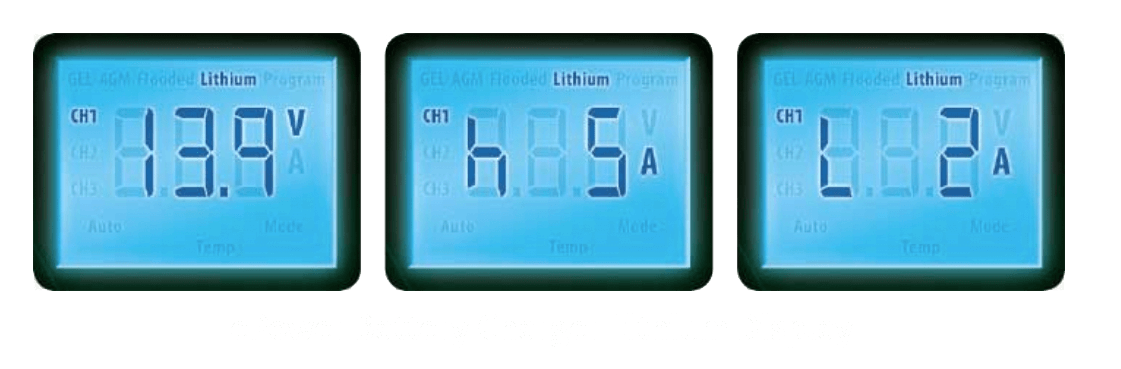

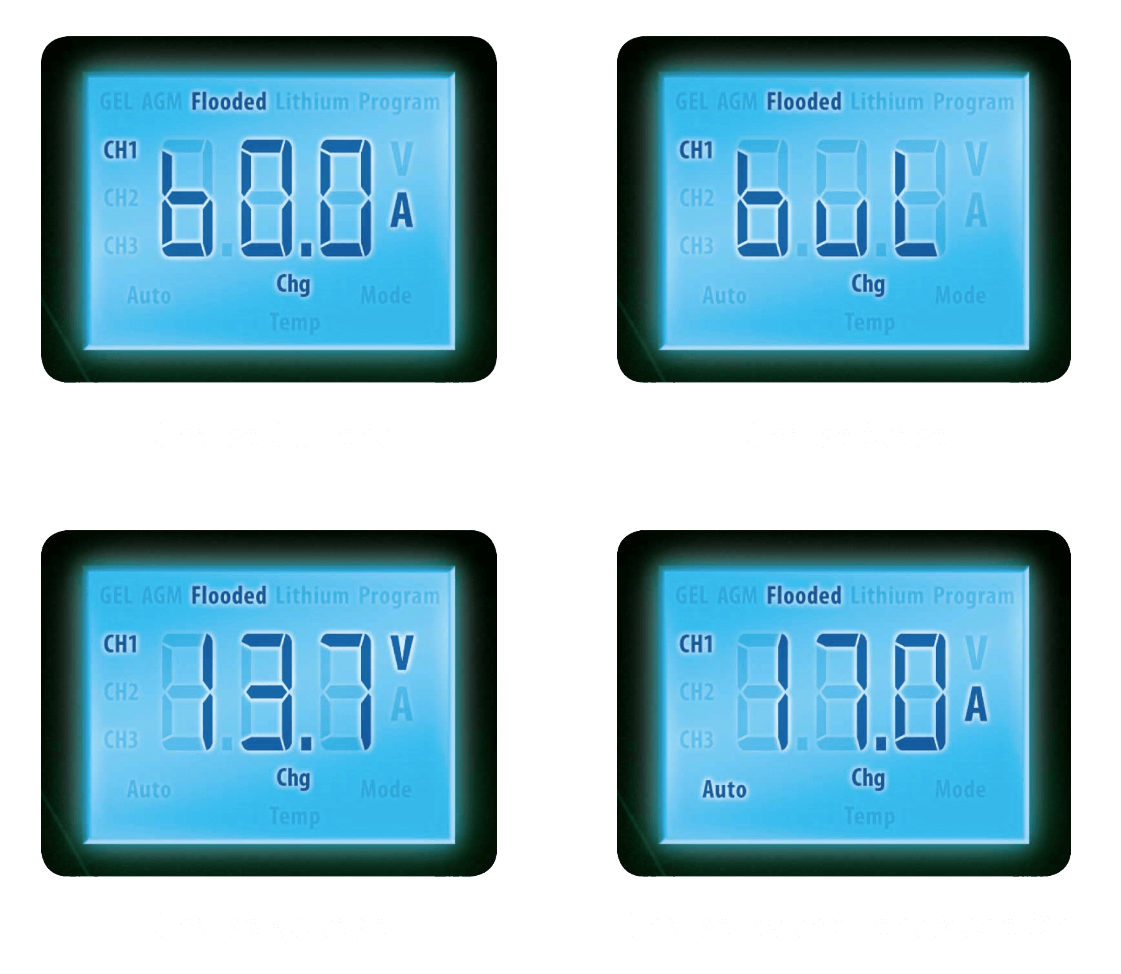

LCD Display Charging status, Battery Voltage, Output Current & Fault Codes

Charger Mode Output Voltage 14.2 – 15.5 V

Output Short Circuit Yes, (with user replaceable fuse/s)

Over Temperature Protection Yes, unit de-rated and shutdown

DC Output Ground Single Heavy Duty Common Ground Stud

Charger Voltage 12V

Protection category IP32

Weight (kg) 2.6

Model EN31240

Output System Voltage 12V

Selectable Battery Type Gel, AGM, Flooded, Lithium, Program

AC Input Connection IEC with Supplied 1.2M Power Lead

AC Input Operating Range 207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max)

Temperature Setting Hot, Normal, Cold (no sensor connected)

DC Output Connection Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread

Reverse Polarity Yes, (with user replaceable fuse/s)

DC Output Three (1 fully independent, 2 common with diode isolation)

Humidity 5-95%, relative humidity non-condensing

Power Consumption (DC 12V) 700W (Full Load)

AC Input Frequency Range 47 – 63 Hz

Regulatory Compliance Complies with AS/NZS 60335.2.29 Including Australian deviations

Charger Efficiency > 82%

Power Factor Correction Yes

Equalize 16V

Battery Temperator Sensor Port RJ12 (standard battery temp. sensor supplied)

AC Input Voltage 90 to 265 VAC

NOTE: see full product specifications & further product info in the Description section on this page.

Q & A

• Can the Enerdrive 40amp 240 volt charger be set to charge at 60amp from a generator?

  Hey, great question!

  The Enerdrive 40A Charger will not be able to bet set to charge at 60Amps. You will instead need the Enerdrive 60A Charger for that.

  This 60A charger can be used with an 2kVA Inverter Generator minimum for the 60Amps. If a lower generator is used, such as a 1kVA, you will need to adjust the charger to at least 40 Amps.

• How do you suggest allocating the 3 banks to a 3bank charger to two lithium banks and one lead-acid bank ?

  Hi- Only bank 1 can be set to a lithium charging profile. More information can be found from page 20 of the product user manual. Thanks

• I running an Enerdrive EN31240 ePower 12v/40Amp Charger in my Caravan. When connecting to 240v I am receiving A65 code message.I have searched manuals and operating guides but cannot find any explanation of the Error Message.Please advise

  Hi There,

  Please contact Enerdrive tech support on

  Phone: 1300 851 535

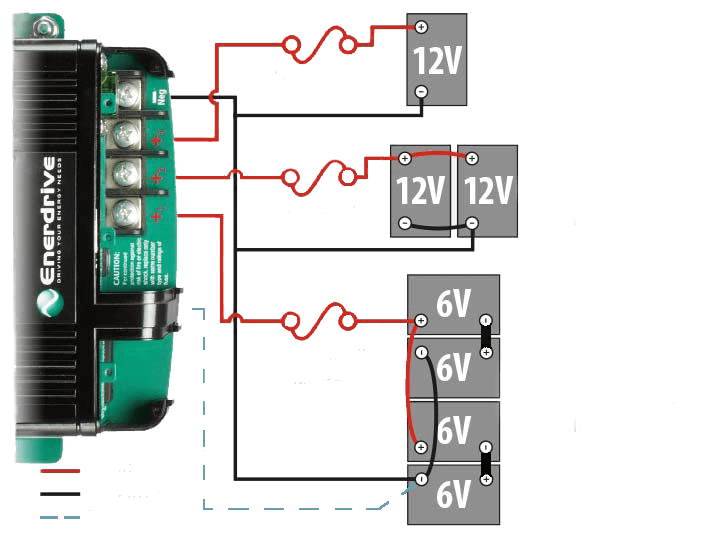

• If this charges to 3 banks of batteries, Does the unit come with the necessary cables to connect to 3 battery banks? or could you please provide a simple diagram of how this is done.

  HI There,

  The charger will not come with the cables to connect to three separate battery banks. These would need to be supplied at your end.

  For a simple diagram, please refer to page 20 of the user manual:

  https://www.mygenerator.com.au/assets/images/resource/pdf/Enerdrive_ePOWER_Battery_Charger_Manual.pdf

• Hi, Is the 40 amp enerdrive AC charger suitable fo mounting up side down. Thanks Merv.

  Hi There

  The unit should be mounted vertically (with the battery terminals facing downwards). This provides the best thermal performance and drip protection.

  The unit should NOT be mounted upside down.

• I want to use a generator to run an Enerdrive Battery Charger like this - what is the recommended size generator?

  Hi Tom – the most popular size generator to run a battery charger like the Enerdrive ePower series is a 1000 Watt generator, such as the Yamaha EF1000iS. It is lightweight, fuel efficient and very quiet.

  Note that the Enerdrive ePower 60Amp Charger model will draw a max 1050 Watts of power, in which case you might want to look at a 2000 Watt generator if you want to get the full power of of your 60Amp charger. Alternatively, the ePower charger series have a Current Control feature, which allows the user to adjust the current output - so for example you can dial back at 60Amp charger to still run off a 1000 Watt generator :)

  Many thanks.

• Is this charger able to charge a calcium battery, the specs only mention Gel, AGM, Flooded, Lithium

  Unfortunetely they don't have a Calcium charging profile. You would need to contact your calcium battery supplier and find out if they recommend one of the standard settings noted, ie Gel, AGM, Flooded or Lithium, and then set the chargers accordingly.
