Enerdrive ePRO Combi 3000W Inverter Charger

SKU: EPC-3000-12-KIT Learn More»
Enerdrive ePRO Combi 3000W Inverter Charger
Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories List:

$359

Description

Enerdrive ePRO Combi 3000W Inverter Charger



The Enerdrive ePRO Combi inverter charger is designed to run high amp drawing appliances like your Caravan Air Conditioner from your battery system.  The high output inverter can supply 2600w - 3200w of power which is ample to run most caravan appliances - even at the same time.  The inbuilt charger will deliver up to 120amps per hour back into your batteries at the same time. It will act as an uninterruptible AC power supply (UPS) switching between 240v mains, generator or 12v battery supplied power without causing damage to delicate electronics like TV's and laptop computers. The benefit of having this unit as a combination is the convenience of easy installation and the space you will save when mounting into tight spaces like Caravans, Boats and RV's.

Features:

  • AC Input Power Boost – The ePRO Combi is capable of temporarily assisting weak AC input sources when more power is needed than available (i.e. from small generators). This is beneficial when larger loads than both the generator or the inverter on their own could support; so let the ePRO Combi combine both of the AC sources for maximum load support capability.
  • AC Input Current Limit – For those times when you have limited AC supply (i.e. portable generators), you can set the ePRO Combi to only charge at a maximum rate.
  • Alarm Output Relays – Providing full configuration options for the alarm contacts PLUS convert external trigger commands into a number of ePRO Combi status changes.
  • Also available on the larger 2000-3500w Combi’s are two fully configurable 16A 230v alarm relay outputs for controlling large AC loads like air conditioning. Along with two unique trigger inputs, it gives the end user virtually unparalleled control of their Enerdrive ePRO “Power Station”.

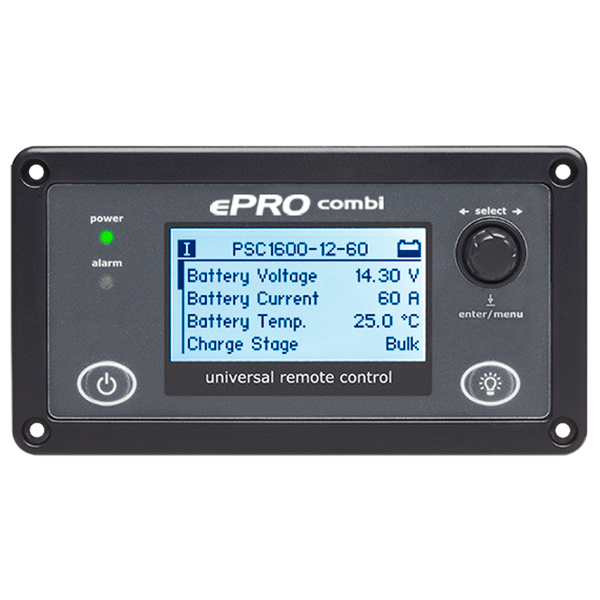

Universal Remote Control

The Universal Remote Control (URC) can be used to remotely readout all available parameters from your ePRO inverter/charger Combi, like charging current, output voltage, charge stage etc. It is also possible to put the Combi in standby mode or to wake it up again, besides being able to control the maximum charge current and the maximum AC input current. All information is shown on a clear white backlit graphical display. This kit comes with mounting screws and a 3 meter interface cable (standard cat5 patch cable). The URC automatically recognises to which type of equipment it is connected.



Model EPC 2000-12 EPC 3000-12 EPC 3500-24
Output power (1) Pnom 1800W 2600W 2800W
P10minutes 2100W 3200W 3800W
Psurge 4000W 5000W 6500W
Output voltage / frequency 230 Vac ± 2% / 50 Hz ± 0.05%
Output waveform 230 Vac ± 2% / 50 Hz ± 0.05%
Input voltage (± 3% tolerance): Nominal 12V 12V 24V
Range 10.5 (2) – 16 Vdc 10.5 (2) – 16 Vdc 21 (2) – 32 Vdc
Maximum efficiency 92% 92% 93%
No load power consumption (2) [ASB] <20 W [3.5 W] <20 W [3.5 W] <20 W [4.0 W]
Charger stage
AC input voltage 185 – 270 Vac / 45 – 65 Hz / PF > 0.95
Maximum continuous charging current (4) 80A 120A 70A
Standard charge voltage (bulk / float @ 25°C) 14.3V / 13.3V (programmable) 14.3V / 13.3V (programmable) 28.6V / 26.6V (programmable)
Charge algorithm IUoUoP, intelligent 4-stage, temperature compensated (programmable)
AC Transfer Switch
Maximum continuous current 30 Ams
Transfer time (typical) 0 ms (inverter to mains) / <5 ms (mains to inverter)
General
ePROLink enabled Yes
Protections high/low battery voltage, high temperature, overload, short circuit, high ripple voltage and low AC input voltage
DC connections M10 bolt terminals
AC connections Screw terminals
Enclosure body size 370 x 431 x 132mm
Total weight 18.5 Kg
Protection class / operating temp. / storage temp. IP21 / -20°C.. +50°C / -40°C.. +80°C (humidity max. 95% non-condensing)
Standards Complies with IEC 60335-2-29 including Australian deviations.
Note: Specifications subject to change without notice.
  1. Measured with resistive load at 25°C ambient. Power ratings are subject to a tolerance of 10% and are decreasing as temperature rises with a rate of approx. 1.2%/°C starting from 25°C. Pnom is a typical value, measured using battery capacities of 200 Ah @ 12 V and 100 Ah @ 24V
  2. Undervoltage limit is dynamic. This limit decreases with increasing load to compensate the voltage drop across cables and connections.
  3. Measured at nominal input voltage and 25°C.
  4. At high ambient temperatures, maximum output current shall be reduced automatically.



Dometic Harrier Brochures

Dometic Harrier Operation Manual

Show More

Specifications

SKU EPC-3000-12-KIT

Brand Enerdrive

GTIN 9342616017098

Product Category Power Inverter Chargers

Voltage 12V

Wattage (W) 3000

Input Voltage 12V DC

Dimensions 370 x 431 x 132mm

Peak Power (W) 5000

Weight (kg) 18.5


NOTE: see full product specifications & further product info in the section on this page.

Q & A


  • Can these chargers take solar input?

    No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
