Exotronic 120W Fixed Monocrystalline Solar Panel
SKU: Exo-SP-F3-120 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Exotronic 120W Fixed Monocrystalline Solar Panel

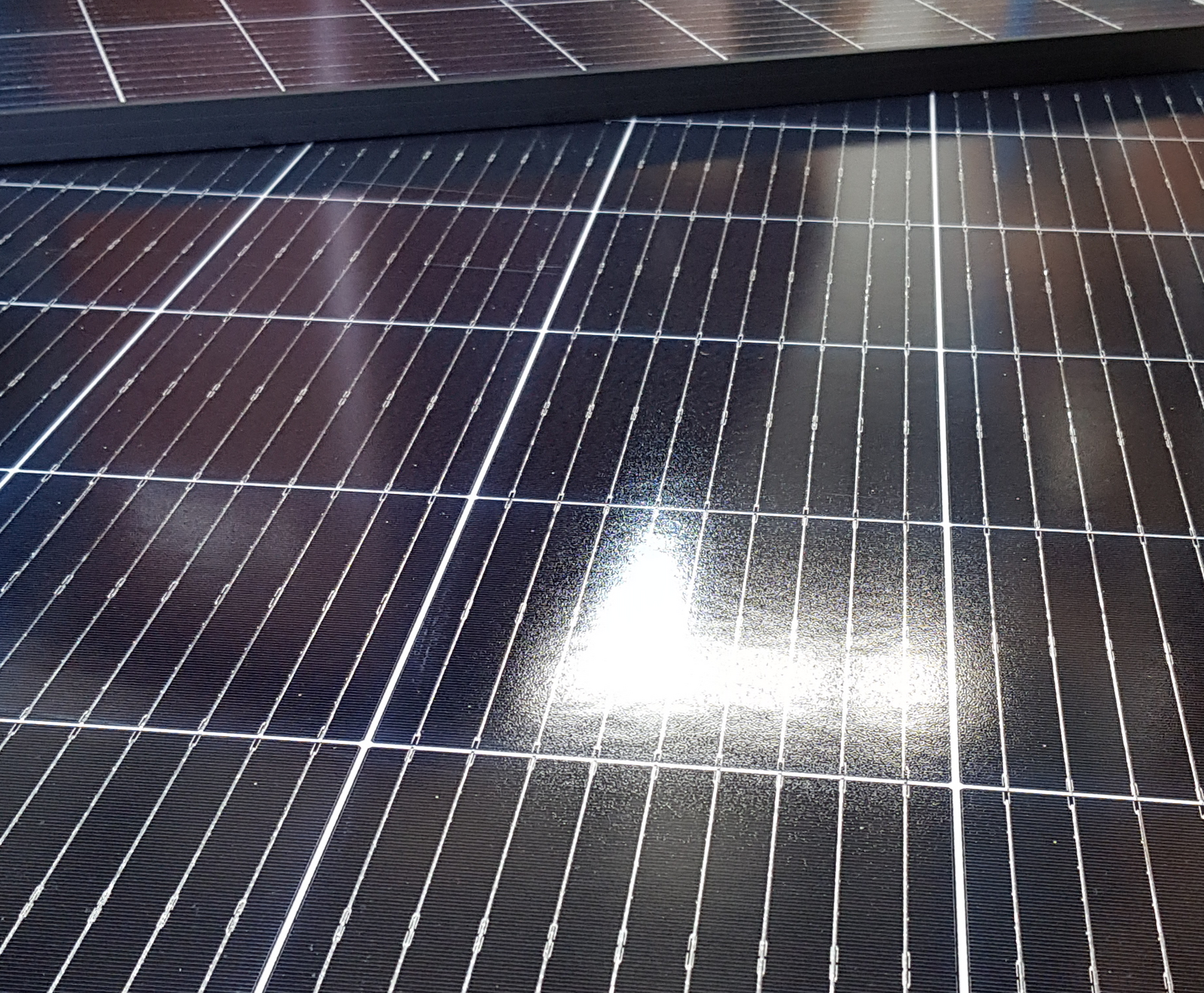

Using 23% efficient M6 monocrystalline passivated emitter rear contact (mono-PERC) square cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance.
PERC cells provide better performance in low light applications compared to traditional monocrystalline silicone designs as some of the light that passes through the cell is bounced back and converted into electricity.
The 9-wire busbar decreases the resistance of the module and carries current evenly over the whole surface of the cells to ensure that all there are minimal power losses within the module and significantly reduces uneven cell heating and hot spots.
The Exotronic range of panels has been designed so that all panels have closely matching votlages, therefore all sizes can be wired in parallel.
The anodised aluminium frame is further protected by a black protective coating and is only 25mm thick to assist a low-profile design and reduce the weight of the module while still giving good rigidity to protect the module from vibrational and torsional stresses. The tempered glass provides high resistance to impact damage. Low-iron high transmissivity glass is used to provide excellent low light performance.
- Salt mist and ammonia resistant
- Wind load resistant - 2400 Pascal
- Snow load resistant - 5400 Pascal
Specifications:
- Power: 120W
- Vmp (V): 19.6
- Imp (A): 6.13
- Voc (V): 23.2
- Isc(A): 6.89
- Module Efficiency (%): 19.9
- No. of Cells: 36 (3x12)
- Dimensions: 900mm x 670mm x 25mm
- Weight: 6.3kg
Temperature Ratings:
- NMOT : 47C +/-2C
- Temperature Coefficient of Pmax: -0.5%/C
- Temperature Coefficient of Voc: -0.4%/C
- Temperature Coefficient of Voc: 0.065%/C
Maximum Ratings:
- Operating Temperature: -40 - +85C
- Maximum System Voltage: 1000VDC
- Maximum Fuse Rated Current: 15A
Mechanical Characteristics:
- Front: 3.2mm Tempered Glass
- Frame: Black Anodized Aluminium Alloy
- Junction Box: IP65/IP67
- Connectors: MC4 Compatible
Specifications
SKU Exo-SP-F3-120
Brand Exotronic
Product Category Solar Panels
Watts (W) 120
Solar Panel Cell Type Monocrystalline
Solar Panel Type Fixed Solar Panels
-Weight 6.3 Kg
Dimensions 900 x 670 x 25mm
NOTE: see full product specifications & further product info in the Description section on this page.
