Exotronic 2 x 225W Solar Panel with Victron SmartSolar MPPT 100/30 Charge Controller & Wiring Kit

Description

Exotronic 2 x 225W Solar Panel with Victron SmartSolar MPPT 100/30 Charge Controller & Wiring Kit

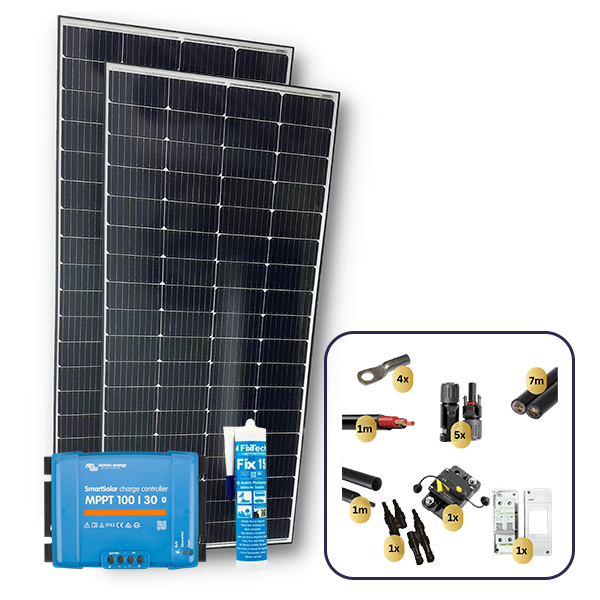

Pack Includes:

• 2 x Exotronic 225W Fixed Monocrystalline Solar Panel, Exo-SP-F4-225
• 2 x Adjustable Black Aluminium Solar Panel Bracket, Pack of 4, RP-FPM-01_Black
• 1 x FixTech Fix15 Adhesive Sealant 290ml Cartridge White, FixT-MSP15WH
• 1 x Victron SmartSolar MPPT 100/30 Charge Controller, SCC110030210

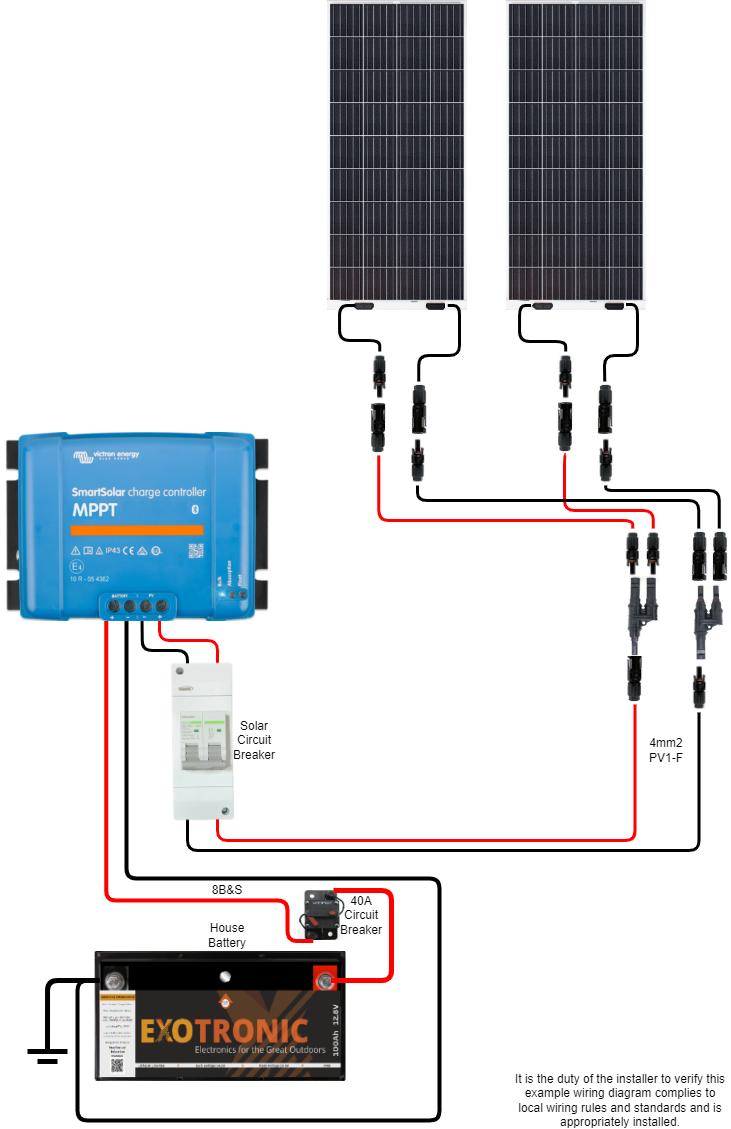

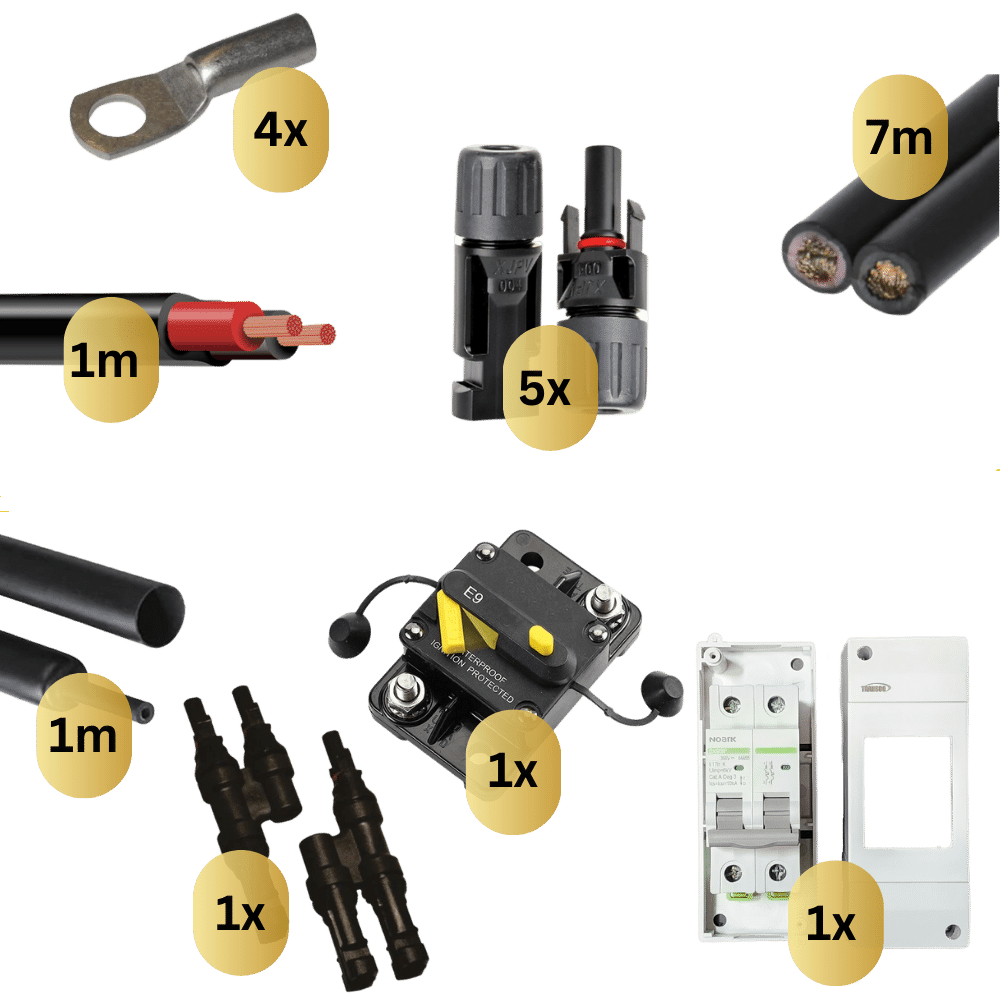

• Wiring Kit:
  • 5x MC4s
  • 1x ‘h’ Branch MC4
  • 7m 4mm2 PV1-F Solar Cable
  • 1m 8 B&S Twin Cable
  • 1x 40A Resettable Circuit Breaker
  • 2x M6 10mm Lugs
  • 2x M8 10mm Lugs
  • 1m 9-3 Black Heatshrink
  • 1x Noark Solar Circuit Breaker and 2 DIN Enclosure

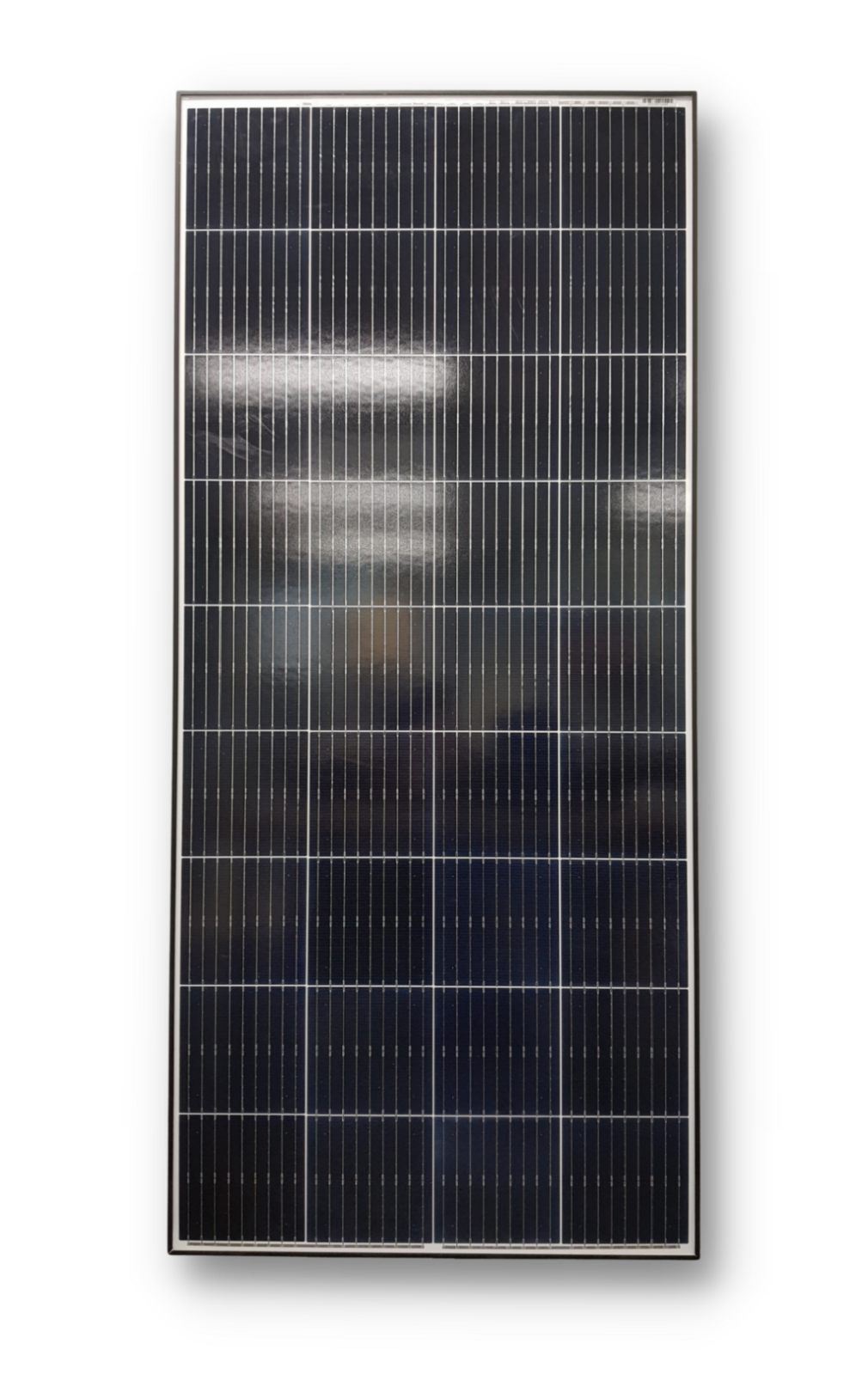

Exotronic 225W Fixed Monocrystalline Solar Panel



Using 23% efficient M6 monocrystalline passivated emitter rear contact (mono-PERC) square cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance.

PERC cells provide better performance in low light applications compared to traditional monocrystalline silicone designs as some of the light that passes through the cell is bounced back and converted into electricity.

The 9-wire busbar decreases the resistance of the module and carries current evenly over the whole surface of the cells to ensure that all there are minimal power losses within the module and significantly reduces uneven cell heating and hot spots.

The Exotronic range of panels has been designed so that all panels have closely matching votlages, therefore all sizes can be wired in parallel.

The anodised aluminium frame is further protected by a black protective coating and is only 25mm thick to assist a low-profile design and reduce the weight of the module while still giving good rigidity to protect the module from vibrational and torsional stresses.  The tempered glass provides high resistance to impact damage.  Low-iron high transmissivity glass is used to provide excellent low light performance.

• Salt mist  and ammonia resistant
• Wind load resistant - 2400 Pascal
• Snow load resistant - 5400 Pascal



Specifications:

• Power: 225W
• Vmp (V): 20.52
• Imp (A): 10.96
• Voc (V): 24.15
• Isc(A): 12.18
• Module Efficiency (%): 20.5
• No. of Cells: 72 ((2x18) x 2)
• Dimensions: 1570mm x 700mm x 25mm
• Weight: 11.2kg



Temperature Ratings:

• NMOT : 47C +/-2C
• Temperature Coefficient of Pmax: -0.5%/C
• Temperature Coefficient of Voc: -0.4%/C
• Temperature Coefficient of Voc: 0.065%/C


Maximum Ratings:

• Operating Temperature: -40 - +85C
• Maximum System Voltage: 1000VDC
• Maximum Fuse Rated Current: 15A


Mechanical Characteristics:

• Front: 3.2mm Tempered Glass
• Frame: Black Anodized Aluminium Alloy
• Junction Box: IP65/IP67
• Connectors: MC4 Compatible

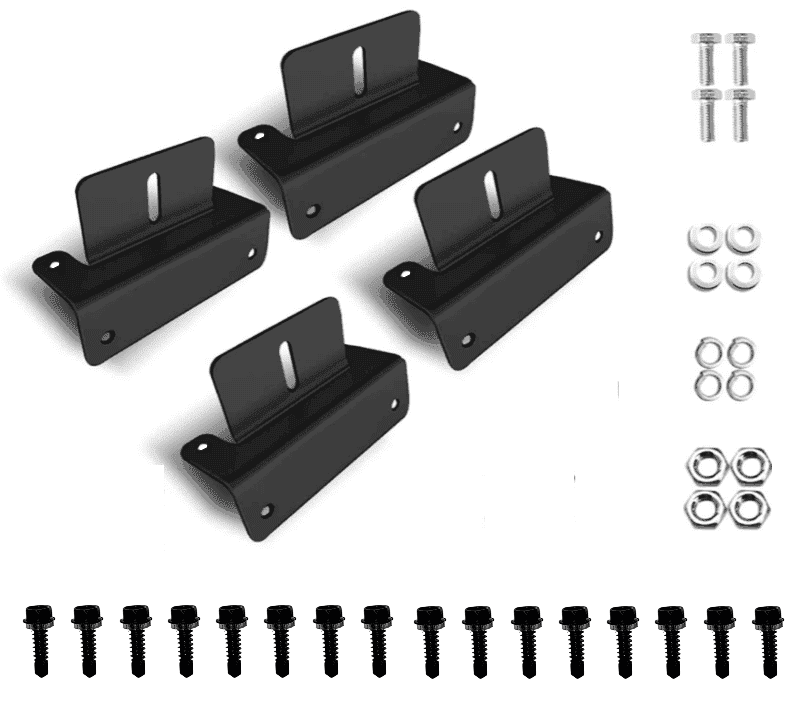

Adjustable Black Aluminium Solar Panel Bracket, Pack of 4



Strong but lightweight aluminium brackets including the screws and bolts are an excellent way of fixing your glass-fixed solar panels to your substrate.

Normal Mounting Method (it is the duty of the installer to ensure this method is appropriate for the panel and roof type):

• Attach brackets to solar panel
• Place panel on substrate and mark hole locations
• Pre-drill holes
• Clean bracket and substrate using iso-propyl alcohol until clean and dry
• Use an appropriate adhesive to cover completely underneath the bracket
• Screw bracket in place
• Cover base of bracket and tops of screws with adhesive

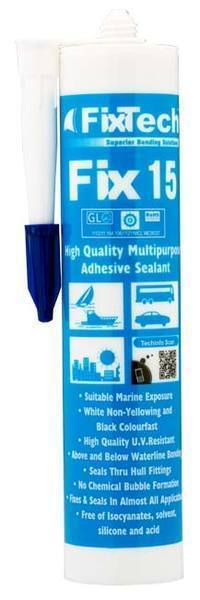

FixTech Fix15 Adhesive Sealant 290ml Cartridge White



Fixseal MSP15 is a high quality single component joint sealant with high adhesive strength. It is based on MS Polymer®, which is chemically neutral and fully elastic with excellent primerless bonding.  For use in low movement joints, adhesion and waterproofing in the construction, automotive, marine and aerospace industries where a strong bond and/or UV resistant flexible seal is required.

Features:

• High bond strength on a wide variety of substrates
• Non Yellowing white, and colourfast black
• High performance mechanical properties
• Flexible elastic rubber; movement accommodation up to 20%
• Assessed under criteria of NOHSC Australia and considered as non-toxic, Certificate No.2146
• No bubble formation within the sealant
• Primerless adhesion (except where capillary water pressure can occur)
• Easy to tool and finish
• Excellent extrudability and UV resistance
• Ecological advantages- free from isocyanates, solvents, halogens and acids
• Minimal health and safety considerations
• Can be wet on wet painted with all water based paints and many other systems*
• No staining of porous materials such as natural stone, granite, marble, etc.

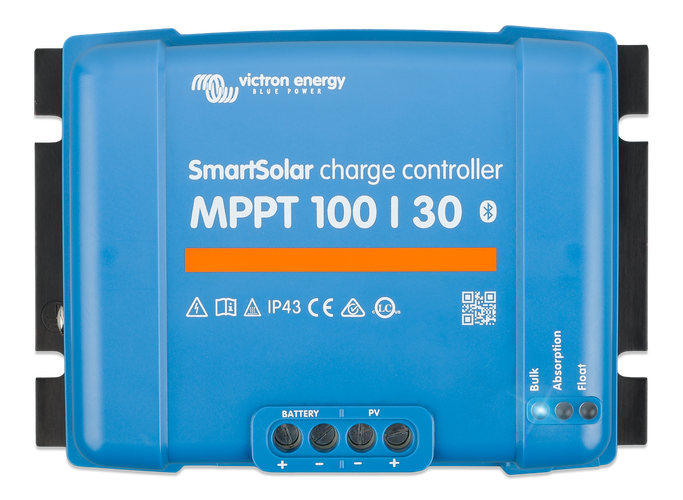

Victron SmartSolar MPPT 100/30 Charge Controller



Solar charge controller:

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.



MPPT: Ultra Fast Maximum Power Point Tracking:

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.



Remote Monitoring and Control:

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other devices via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.



Specifications:

• Battery voltage 12/24V Auto Select
• Rated charge current 30A
• Nominal PV power, 12V 1a,b) 440W
• Nominal PV power, 24V 1a,b) 880W
• Maximum PV open circuit voltage 100V
• Max. PV short circuit current 2) 35A
• Maximum efficiency 98%
• Self-consumption 12V: 30 mA 24V: 20 mA
• Charge voltage 'absorption' Default setting: 14.4V / 28.8V (adjustable)
• Charge voltage 'float' Default setting: 13.8V / 27.6V (adjustable)
• Charge algorithm multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Protection
  • PV reverse polarity
  • Output short circuit
  • Over-temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Colour Blue (RAL 5012)
• Power terminals 16 mm² / AWG6
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 1.3 kg
• Dimensions (d x w x h) 70 x 186 x 130 mm
