Exotronic 200W 24V Portable Folding Solar Panel with Victron SmartSolar MPPT 75/15 Charge Controller

Description

Exotronic 200W 24V Portable Folding Solar Panel with Victron SmartSolar MPPT 75/15 Charge Controller

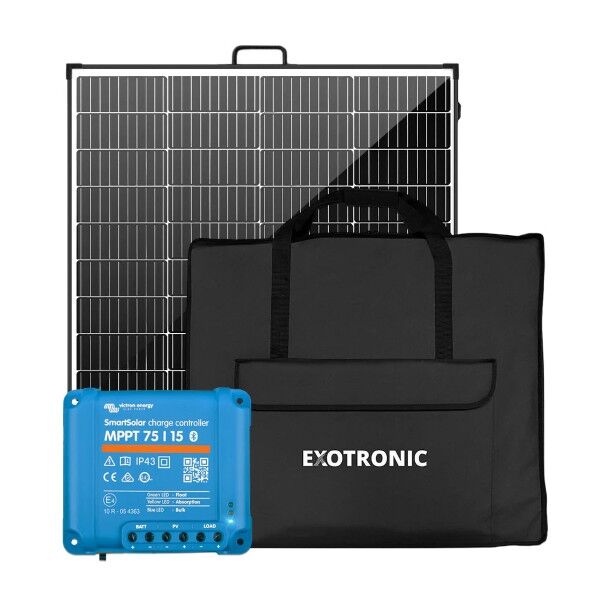

Pack Includes:

• Exotronic 200W 24V Portable Folding Solar Panel - Exo-FP-200-24V
• Victron SmartSolar MPPT 75/15 Charge Controller - SCC075015060R

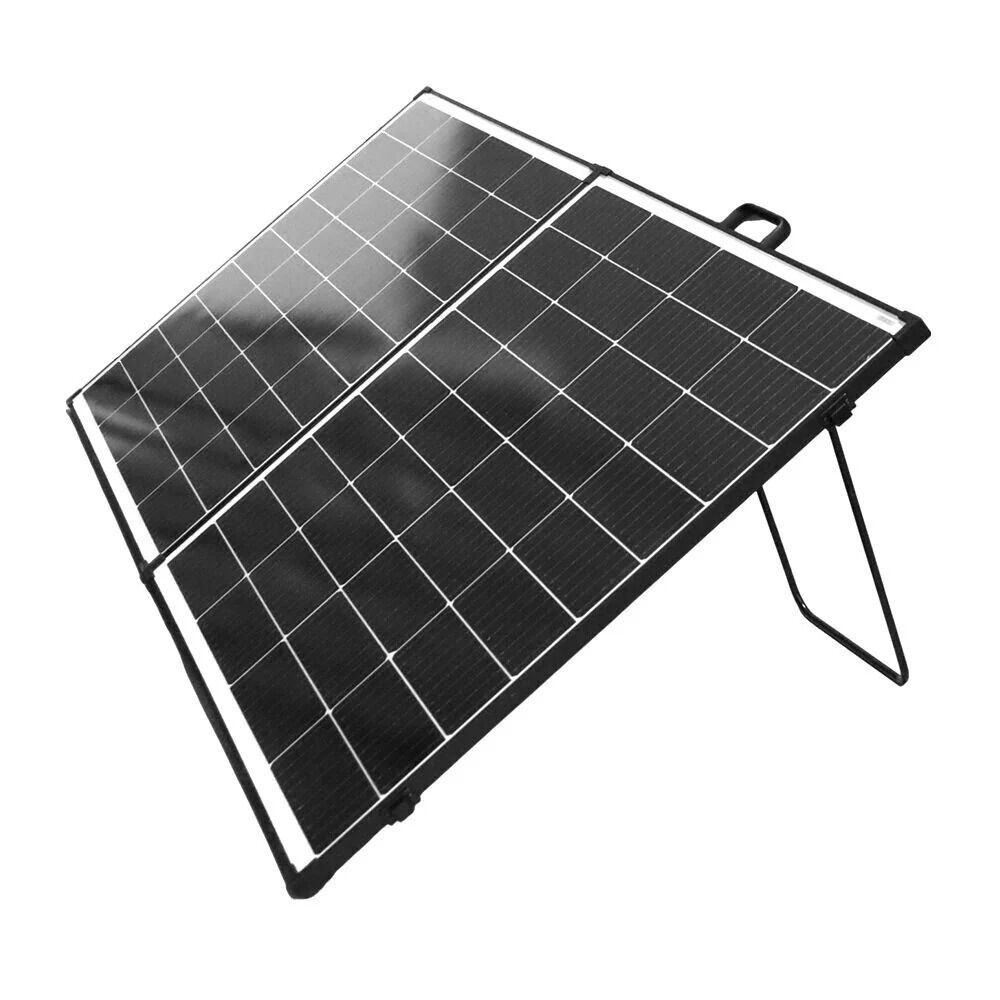

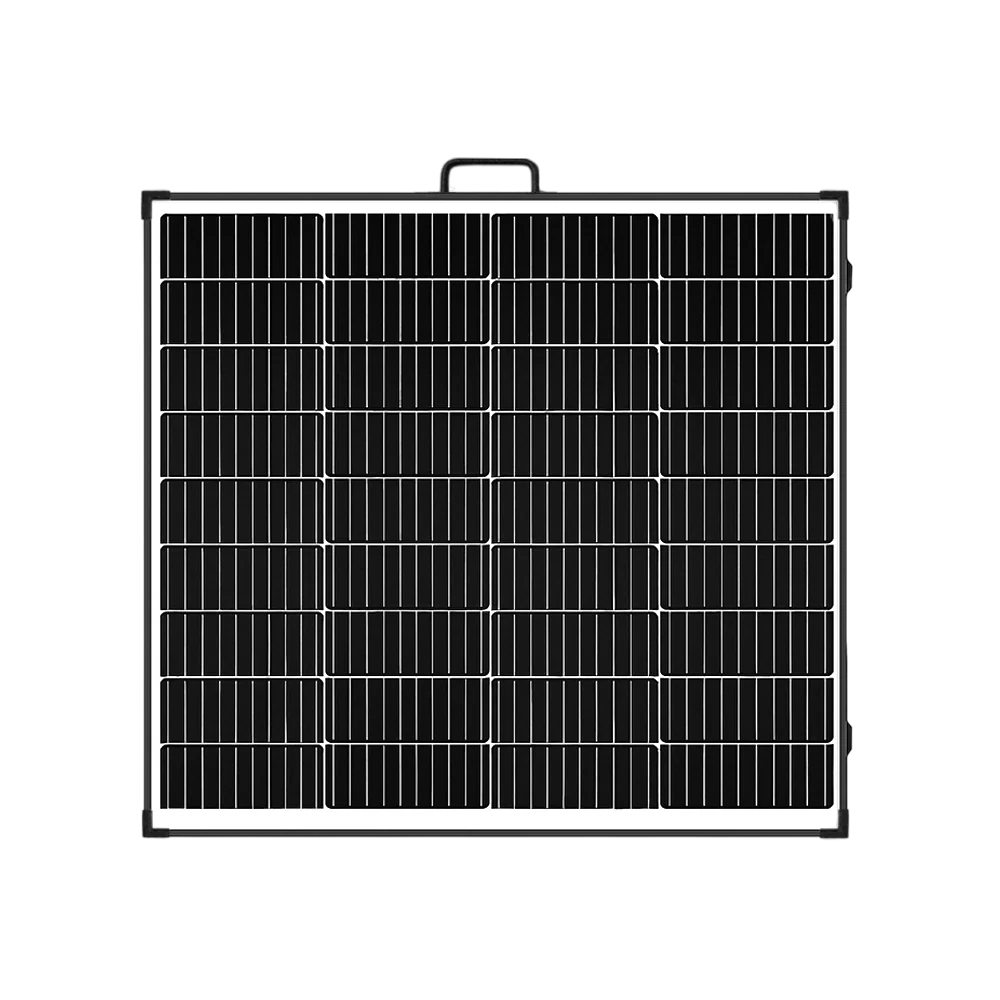

Exotronic 200W 24V Portable Folding Solar Panel

When camping, parking under shade, or need access to free power to charge your battery, Exotronic has you covered with a strong but small form-factor foldable glass solar panel solution.  The 200W briefcase is made up from two 100W solar modules using Trina half-cut 23% PERC monocrystalline solar cells with 9-wire busbars to maximise module efficiency.

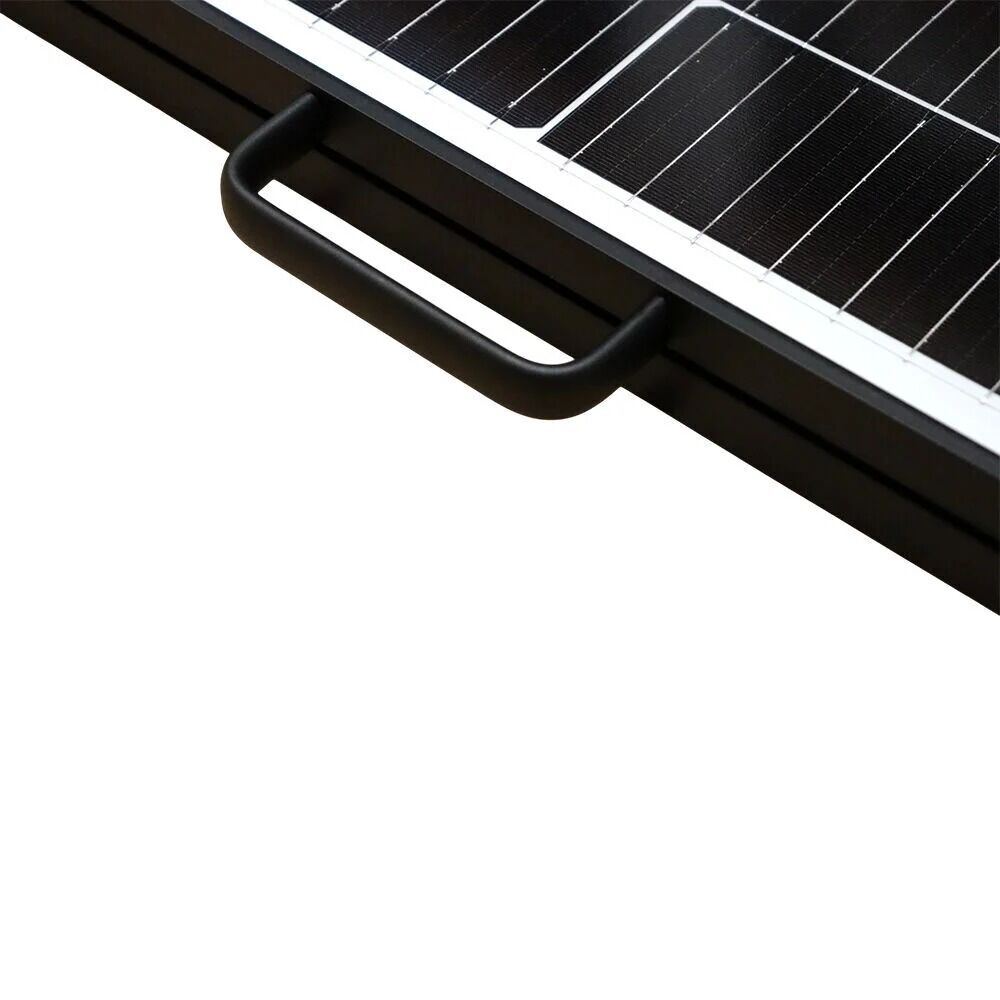

Easy Setup and Transport

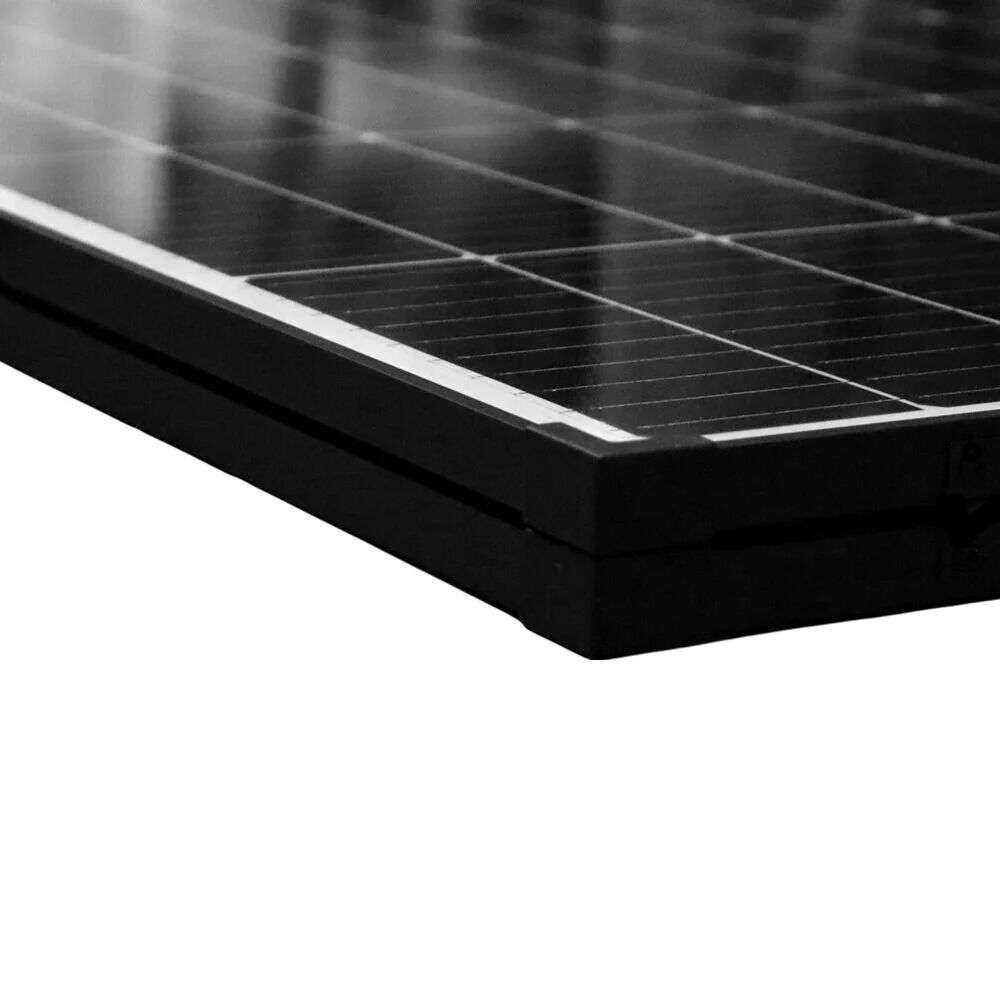

Weighing only 11.2kg, this panel can be manoeuvred with minimal effort. These modules include bumpers on the corners and fold-away legs,

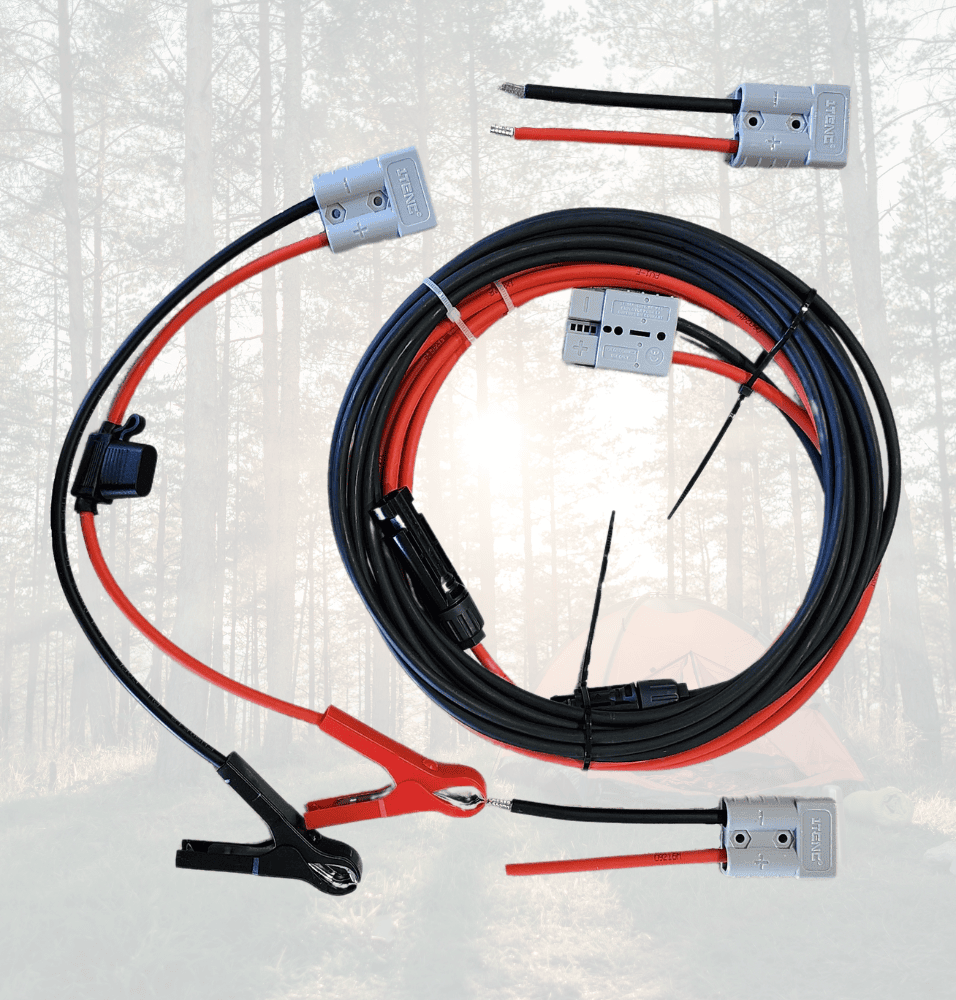

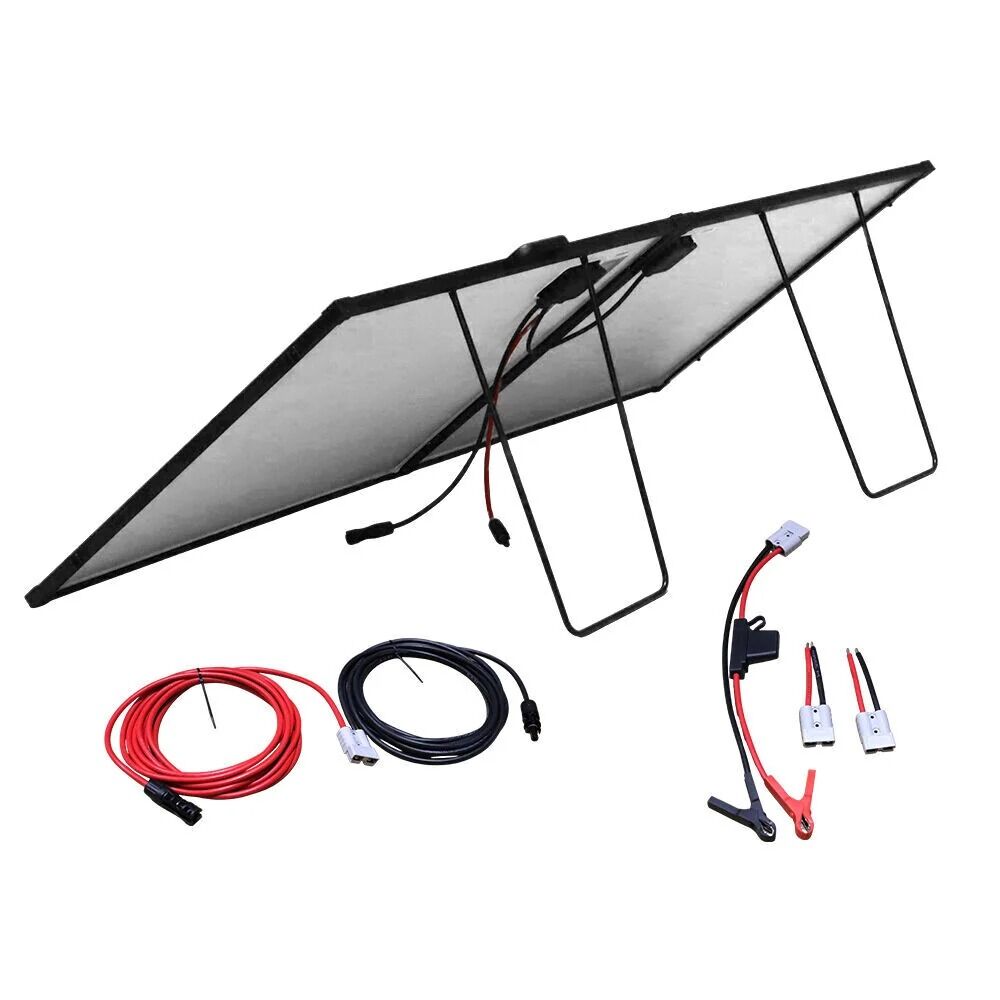

Premium Cable Set
Also included is an array of premium quality cables to suit any situation:

• 5m 4mm2 PV1-F heavy duty tinned copper (marine) MC4 to 50A grey Anderson cable between the solar panel and solar charge controller (this can be connected directly to your existing DC-DC charger solar input or solar controller) - do not connect the panel directly to a battery without a controller
• 2x 50A grey Anderson tails, to connect to your existing MPPT or PWM solar controller
• Alligator to 50A grey Anderson with 30A fuse (this can be used to jump start a lithium battery BMS or charge a starter battery when needed)

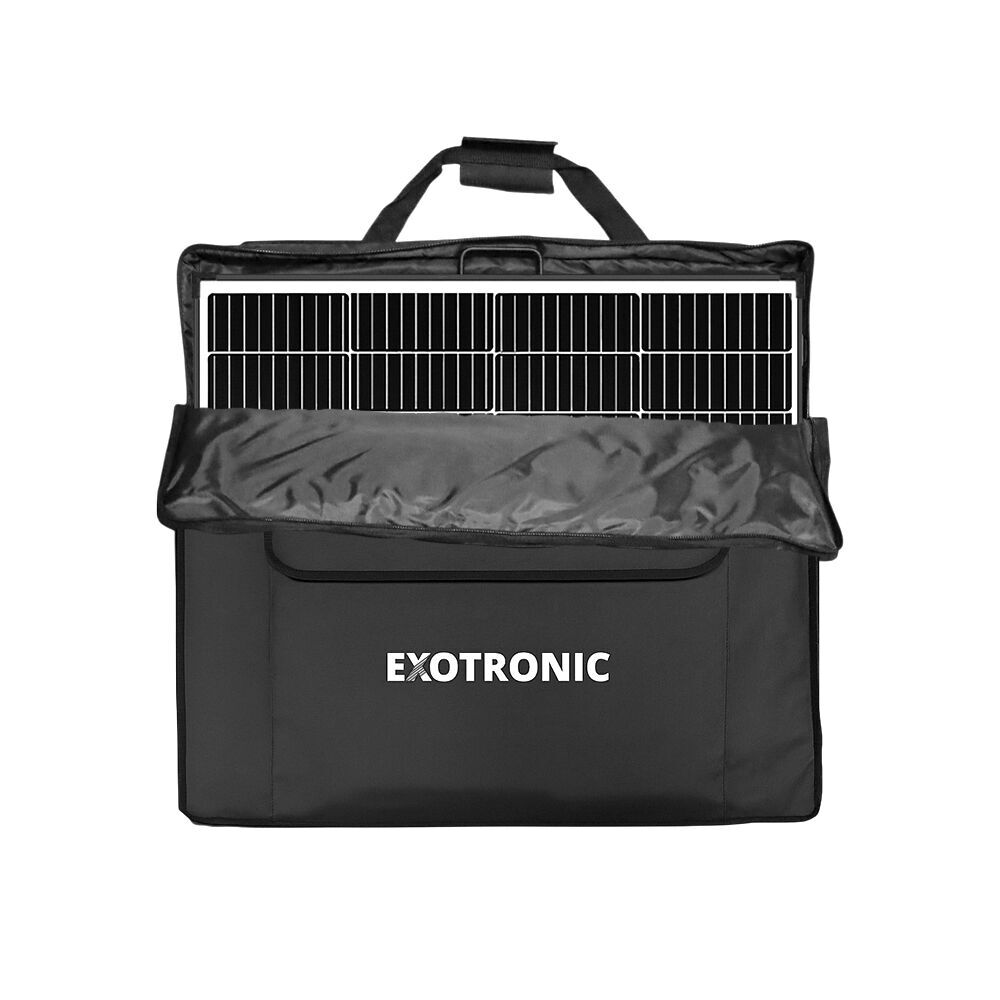

Protective Canvas Bag Included
The included padded canvas bag helps protect the solar module from scratches when stored away and includes a carry handle and pocket to store the cables and controller when not in use.

High-Efficiency Solar Power
Using 23% efficient Trina monocrystalline passivated emitter rear contact (mono-PERC) square cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance.

PERC cells provide better performance in low light applications compared to traditional monocrystalline silicone designs as some of the light that passes through the cell is bounced back and converted into electricity.

The 9-wire busbar decreases the resistance of the module and carries current evenly over the whole surface of the cells to ensure that all there are minimal power losses within the module and significantly reduces uneven cell heating and hot spots.

Specifications:

• Model: Exo-FP-200-24V
• Power (W): 200
• No. of Cells: 2x 36 (4x9)
• Dimensions (mm) Folded: 775 x 675 x 40mm
• Dimensions (mm) Unfolded: 775 x 1350 x 19mm
• Weight (kg): 11.2
• Vmp (V): 39.6
• Imp (A): 5.06
• Voc (V): 48.2
• Isc (A): 5.25
• Module Efficiency (%): 19.3
• NMOT: 41C +/-3C
• Temperature Coefficient of Pmax:-0.37%/C
• Temperature Coefficient of Voc: -0.29%/C
• Temperature Coefficient of Voc: 0.05%/C
• Operating Temperature: -40 - +85C
• Maximum System Voltage: 1000VDC
• Maximum Fuse Rated Current: 15A
• Front: 3.2mm Tempered Glass
• Frame: Black Anodized Aluminium Alloy
• Junction Box: IP65/IP67
• Connectors: MC4 Compatible

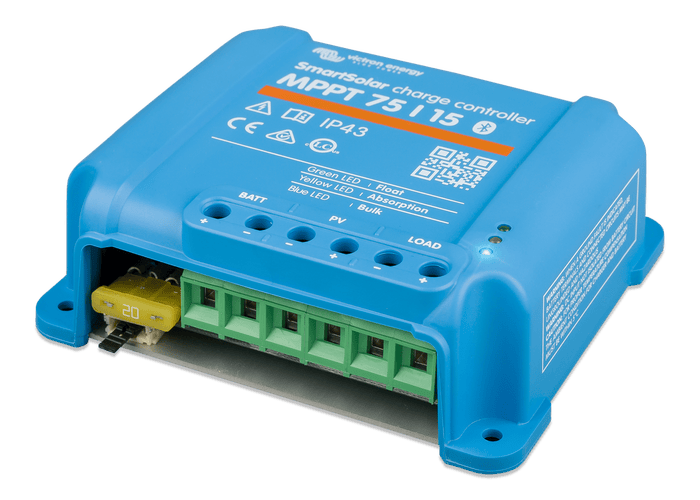

Victron SmartSolar MPPT 75/15 Charge Controller

Solar charge controller:

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

MPPT: Ultra Fast Maximum Power Point Tracking:

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

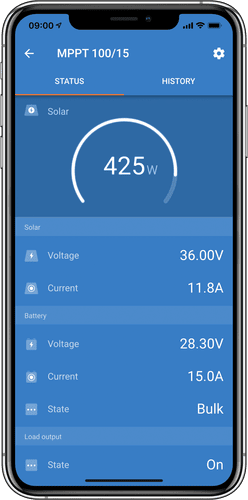

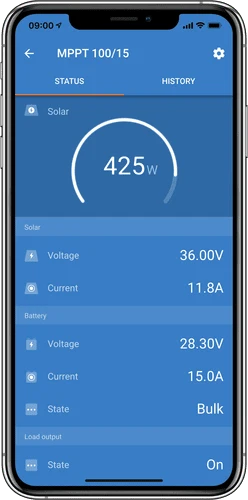

Remote Monitoring and Control:

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other devices via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

Load output:

The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.

Specifications:

• Battery voltage (auto-select) - 12/24V
• Rated charge current - 15A
• Nominal PV power, 12V 1a,b) - 220W
• Nominal PV power, 24V 1a,b)  -440W
• Max. PV short circuit current 2) - 15A
• Automatic load disconnect - Yes
• Max. PV open circuit voltage - 75V
• Peak efficiency - 98%
• Self-consumption - 12V: 25 mA 24V: 15 mA
• Charge voltage 'absorption' - 14,4V / 28,8V (adjustable)
• Charge voltage 'float' 13,8V / 27,6V (adjustable)
• Charge algorithm - multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Max. continuous load current - 15A
• Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
• Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
• Protection - Output short circuit / Over temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Colour Blue (RAL 5012)
• Power terminals 6 mm² / AWG10
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 0.5 kg
• Dimensions (d x w x h) - 40 x 113 x 100 mm
