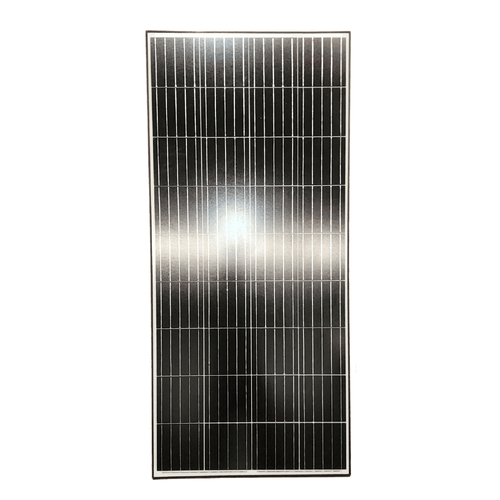

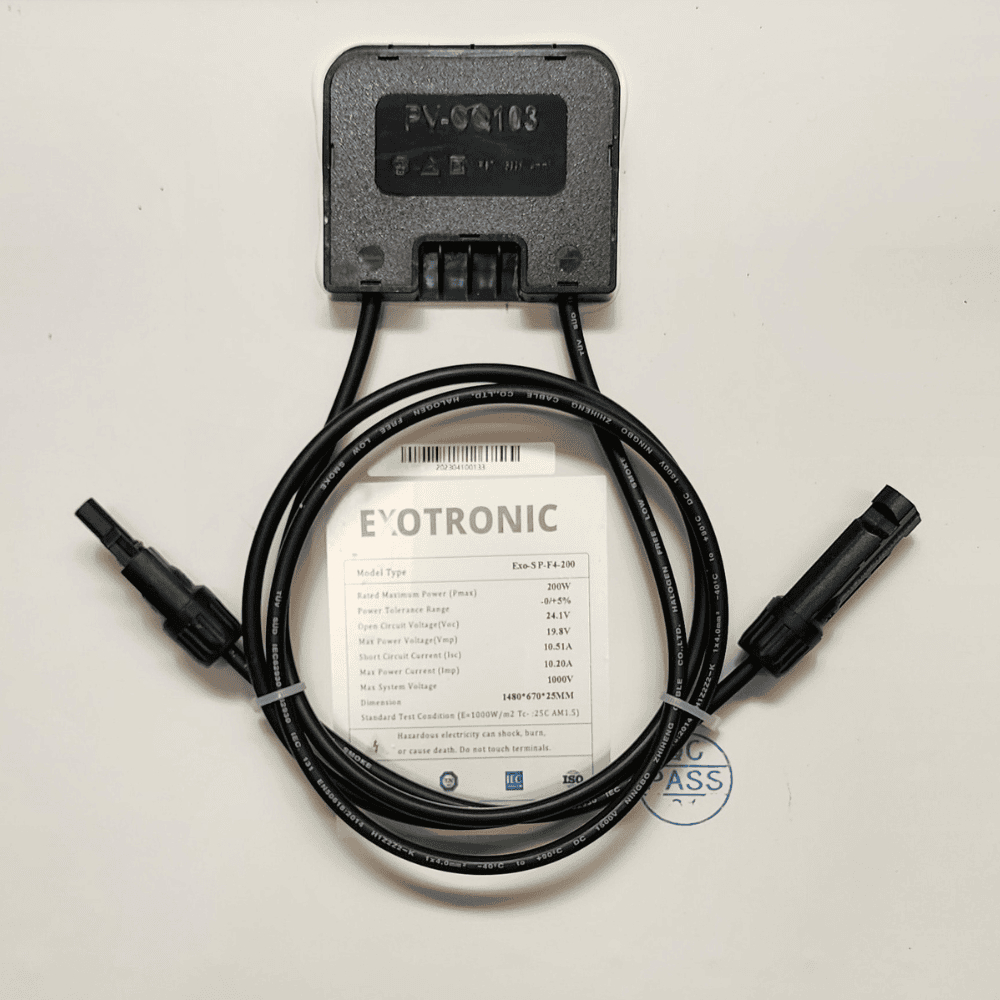

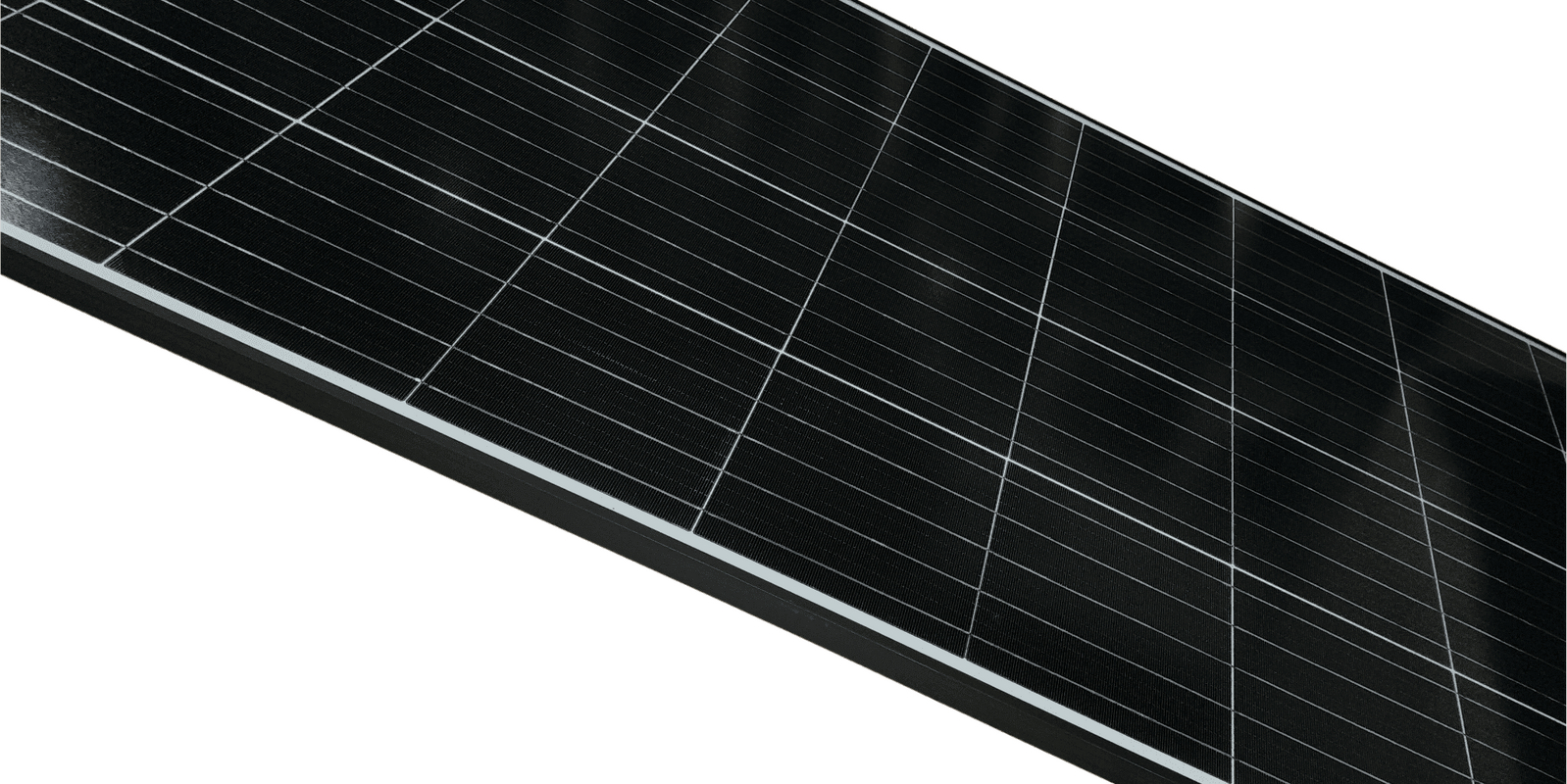

Exotronic 200W Fixed Monocrystalline Solar Panel

Adjustable Black Aluminium Solar Panel Bracket, Pack of 4

The ideal solution for securely fastening your glass-fixed solar panels. Constructed from robust yet lightweight aluminium, these brackets ensure a secure fit for your solar energy setup.

The solar panel brackets come complete with all necessary hardware for a seamless installation, including 4 stainless bolts, washers and nuts and 16 black tech screws.

The installation process for the solar panel mounting brackets is as follows:

1. Position the brackets to your solar panel.
2. Mark and pre-drill holes OR attach brackets using the bolts, if using bolts, skip step 3.
3. Attach brackets to the solar panel with the tech screws
4. Position the panel on the roof or other substrate and mark the locations for the holes.
5. Pre-drill the marked locations.
6. Clean both the bracket and substrate using iso-propyl alcohol until thoroughly clean and dry.
7. Apply an appropriate adhesive to completely cover the underside of the bracket.
8. Securely screw the bracket in place.
9. Optionally cover the base of the bracket and tops of screws with additional adhesive for a secure solar panel installation.

Cable Entry Cover - 2 Gland White Lightweight ABS

• IP66 waterproof
• ideal for marine and RV
• roof or wall mounting
• for all cable types 6mm to 12mm in diameter
• strong UV stable
• Hides entry holes and protects against leaks
• Low profile

Cable Entry Cover - 1 Gland White with 2 Cable Grommet Lightweight ABS

• IP66 waterproof when adhered with silicone
• ideal for marine and RV; roof or wall mounting
• for all cable types 6mm to 12mm in diameter
• strong UV stable
• Hides entry holes and protects against leaks
• low profile.

Includes both 1 and 2 rubber insert grommet so it can accomodate a single cable or two cables such as 4 or 6mm2 PV1-F.

Solar Cable PV1-F 6mm2 twin, thin sheath

These cables are developed according to PV1-F requirements and designed to meet the rigours of the outdoor application environment and provide long term durability and flexibility, combined with ease of installation.

• Outside diameter of each core 6mm
• Inner insulation: XLPE (Black, Red)
• Sheath insulation: XLPE (Crosslinked Polyethylene)
• Nominal voltage: U0 / U: 0,6 / 1 kV AC / max. 1.5 kV DC
• Test voltage according to EN 50395-6: 6,5 kV AC / 15 kV DC (5 min.)
• Rated current: 55 A (4.0 mm²), 70 A (6.0 mm²)
• Insulation resistance of the complete cable: ≥ 1000 MΩkm in accordance to EN 50395-8.2
• Ambient temperature:  –40°C ...+90°C
• Bending radius: Dynamic: >4 × OD

Constructed using fine stranded tinned copper conductors insulated with a temperatureresistant, halogen-free cross-linked copolymer compound and protected by an outer sheath of flame-retardant, abrasion and UV-resistant, halogen-free cross-linked co-polymer.

• Rated voltage AC 1000V, DC 1500V (max)
• Temperature range Ambient –40°C ...+90°C
• Approvals EN 50618 H1Z2Z2-K IEC 62930
• Minimum bending radius Flexing: 5 x cable diameter
• Fixed: 4 x cable diameter
• Marking Meter marked

Exotronic 2 to 1 'h' Branch MC4 Compatible Solar Connector Pair

Introducing the Exotronic 'h' Branch MC4 Solar Connector Pair, a pinnacle of innovation designed to streamline the connectivity and efficiency of your solar panel array. Engineered with precision and durability in mind, this connector pair is an essential component for anyone looking to optimize their solar energy system.

Key Features:

• Robust Contact Material: Each connector is crafted from high-quality copper and plated with tin, ensuring not only superior conductivity but also resistance to corrosion and environmental wear. This choice of materials guarantees a long-lasting and reliable connection for your solar panels.
• High Current Capacity: With a suitable current rating of 30A, the Exotronic 'h' Branch MC4 Solar Connector Pair is capable of handling the demanding power needs of modern solar panels, ensuring efficient energy transfer without compromise.
• Versatile Voltage Compatibility: Rated for 1000V according to TUV standards and 600V for UL, these connectors offer flexibility and safety in a wide range of solar installations, from off-grid setups to more extensive industrial arrays.
• Exceptional Durability: Tested at a voltage of 6KV (TUV 50Hz, 1min), and with a contact resistance of less than 0.5mΩ, these connectors are built to withstand rigorous conditions and maintain optimal performance through extreme temperature ranges from -40℃ to +85℃.
• Advanced Protection: Rated at IP 67, the Exotronic 'h' Branch MC4 Solar Connector Pair is fully protected against dust ingress and the effects of temporary water immersion, ensuring your connections stay secure and functional in all weather conditions.
• Safety and Compliance: Adhering to the highest safety standards, these connectors are classified under UL94-V0 for flame resistance and fall into Safety Class II, providing peace of mind through enhanced protection against electrical shocks and fires.
• Precision Engineered Pin Dimensions: With a pin size of Φ4mm, these connectors ensure a snug and secure fit, minimizing energy loss and maximizing the efficiency of your solar energy system.
• High-Quality Insulation Material: Utilizing PPO as the insulation material, these connectors not only offer excellent thermal and electrical insulation but also boast durability and resistance to UV, ensuring your solar setup remains operational for years to come.

The Exotronic 2 to 1 'h' Branch MC4 Solar Connector Pair is not just a component; it's a commitment to quality, efficiency, and safety in your solar energy projects. Whether you're setting up a new solar array or upgrading an existing system, these connectors provide the reliability and performance you need to harness the power of the sun effectively.

Exotronic 3 to 1 'h' Branch Joiner MC4 Compatible Connector Pair

Introducing the Exotronic '3 to 1' Branch Joiner MC4 Compatible Connector Pair, a revolutionary solution designed to seamlessly integrate three solar panels in parallel, enhancing your solar array's efficiency and power output. This connector pair is engineered for those who demand the utmost in quality, reliability, and environmental resilience for their solar installations.

Key Features:

• MC4 Compatibility: Designed to work flawlessly with all MC4 connectors, ensuring a secure and efficient connection for a wide range of solar panels.
• Parallel Connection Excellence: Easily connects three solar panels in parallel, optimizing your system's energy production by combining the power output of multiple panels into a single, efficient stream.
• Waterproof Durability: Constructed with high-quality materials, this connector pair boasts superior waterproofing capabilities, ensuring your connections remain dry and intact, even in the most challenging weather conditions.
• UV Stability: The Exotronic '3 to 1' Branch Joiner is UV stable, guaranteeing that it withstands prolonged exposure to sunlight without degrading, making it an ideal choice for outdoor solar applications.
• Robust Construction: Featuring insulation material made from PPO and contacts crafted from copper, tin-plated for enhanced conductivity and corrosion resistance, it's built to last.
• Optimal Performance: With a suitable current of 30A and rated voltages of 1000V (TUV) and 600V (UL), along with a test voltage of 6KV (TUV 50Hz, 1min), it's designed to handle high-power applications with ease.
• Exceptional Safety and Protection: Boasting a contact resistance of less than 0.5mΩ and an IP 67 degree of protection, it ensures safe and reliable operation. The temperature range of -40℃ to +85℃, along with a UL94-V0 flame class and Safety Class II, further underscores its suitability for rigorous environments.
• Precise Engineering: The pin dimensions of Φ4mm ensure a perfect fit with MC4 connectors, facilitating a straightforward and secure installation process.

The Exotronic '3 to 1' Branch Joiner MC4 Compatible Connector Pair is not just a component; it's a strategic enhancement to your solar power system, designed to maximize efficiency, ensure durability, and simplify the connectivity of multiple solar panels. Whether for residential, commercial, or industrial solar arrays, this connector pair stands as a testament to innovative engineering, offering a reliable solution for expanding your solar capabilities.

Exotronic 2 to 1 'Y' Branch MC4 Compatible Solar Connector Pair,

Introducing the Exotronic MC4 2-to-1 'Y' Branch Connector Pair, the pinnacle of precision engineering for solar array configurations. This compact, approximately 300mm end-to-end connector set is tailored to elevate your solar system’s capacity by seamlessly paralleling two solar panels into one output, thereby boosting efficiency and overall energy yield.

Key Features:

• MC4 Standard Integration: Seamlessly compatible with MC4 connectors, this pair ensures a robust and streamlined connection across a multitude of solar panels.
• Parallel Configuration Mastery: Expertly designed to link four solar panels, it centralizes energy flow into a singular robust conduit, optimizing your solar array’s output.
• All-Weather Resilience: With its premium waterproof construction, it promises unyielding performance amidst diverse climatic challenges.
• Sustained UV Resistance: Specially treated for UV stability, it resists solar degradation, affirming its longevity and performance in outdoor settings.
• Premium Construction: The PC/PA material provides outstanding insulation, while the copper contacts are tin-plated for optimal electrical conductivity and corrosion resistance.
• High-Performance Ratings: Accommodates a current of 30A and voltages up to 1000V (TUV) and 600V (UL), withstanding 6KV in TUV tests, making it ideal for high-powered applications.
• Enhanced Safety Features: A contact resistance of less than 0.5mΩ and an IP67 rating, combined with an extensive temperature tolerance from -40℃ to +85℃, ensures operation is both safe and dependable.
• Precision Fit: With Φ4mm pin dimensions, it guarantees an exact match with MC4 counterparts, simplifying installation while securing the connection.

The Exotronic MC4 2-to-1 'Y' Branch Connector Pair isn’t merely an accessory; it's a strategic upgrade for your solar installation. It’s crafted to augment efficiency, fortify durability, and streamline the expansion of your solar panel setup. It's an essential investment for those looking to push the boundaries of their off-grid, caravan, or industrial solar systems.

Exotronic 3 to 1 'Y' Branch Joiner MC4 Compatible Connector Pair

Introducing the Exotronic MC4 3-to-1 'Y' Branch Connector Pair, the pinnacle of precision engineering for solar array configurations. This compact, approximately 300mm end-to-end connector set is tailored to elevate your solar system’s capacity by seamlessly paralleling three solar panels into one output, thereby boosting efficiency and overall energy yield.

Key Features:

• MC4 Standard Integration: Seamlessly compatible with MC4 connectors, this pair ensures a robust and streamlined connection across a multitude of solar panels.
• Parallel Configuration Mastery: Expertly designed to link four solar panels, it centralizes energy flow into a singular robust conduit, optimizing your solar array’s output.
• All-Weather Resilience: With its premium waterproof construction, it promises unyielding performance amidst diverse climatic challenges.
• Sustained UV Resistance: Specially treated for UV stability, it resists solar degradation, affirming its longevity and performance in outdoor settings.
• Premium Construction: The PC/PA material provides outstanding insulation, while the copper contacts are tin-plated for optimal electrical conductivity and corrosion resistance.
• High-Performance Ratings: Accommodates a current of 30A and voltages up to 1000V (TUV) and 600V (UL), withstanding 6KV in TUV tests, making it ideal for high-powered applications.
• Enhanced Safety Features: A contact resistance of less than 0.5mΩ and an IP67 rating, combined with an extensive temperature tolerance from -40℃ to +85℃, ensures operation is both safe and dependable.
• Precision Fit: With Φ4mm pin dimensions, it guarantees an exact match with MC4 counterparts, simplifying installation while securing the connection.

The Exotronic MC4 3-to-1 'Y' Branch Connector Pair isn’t merely an accessory; it's a strategic upgrade for your solar installation. It’s crafted to augment efficiency, fortify durability, and streamline the expansion of your solar panel setup. It's an essential investment for those looking to push the boundaries of their off-grid, caravan, or industrial solar systems.

Exotronic 4 to 1 'Y' Branch Joiner MC4 Compatible Connector Pair

Introducing the Exotronic MC4 4-to-1 'Y' Branch Connector Pair, the pinnacle of precision engineering for solar array configurations. This compact, approximately 300mm end-to-end connector set is tailored to elevate your solar system’s capacity by seamlessly paralleling four solar panels into one output, thereby boosting efficiency and overall energy yield.

Key Features:

• MC4 Standard Integration: Seamlessly compatible with MC4 connectors, this pair ensures a robust and streamlined connection across a multitude of solar panels.
• Parallel Configuration Mastery: Expertly designed to link four solar panels, it centralizes energy flow into a singular robust conduit, optimizing your solar array’s output.
• All-Weather Resilience: With its premium waterproof construction, it promises unyielding performance amidst diverse climatic challenges.
• Sustained UV Resistance: Specially treated for UV stability, it resists solar degradation, affirming its longevity and performance in outdoor settings.
• Premium Construction: The PC/PA material provides outstanding insulation, while the copper contacts are tin-plated for optimal electrical conductivity and corrosion resistance.
• High-Performance Ratings: Accommodates a current of 30A and voltages up to 1000V (TUV) and 600V (UL), withstanding 6KV in TUV tests, making it ideal for high-powered applications.
• Enhanced Safety Features: A contact resistance of less than 0.5mΩ and an IP67 rating, combined with an extensive temperature tolerance from -40℃ to +85℃, ensures operation is both safe and dependable.
• Precision Fit: With Φ4mm pin dimensions, it guarantees an exact match with MC4 counterparts, simplifying installation while securing the connection.

The Exotronic MC4 4-to-1 'Y' Branch Connector Pair isn’t merely an accessory; it's a strategic upgrade for your solar installation. It’s crafted to augment efficiency, fortify durability, and streamline the expansion of your solar panel setup. It's an essential investment for those looking to push the boundaries of their off-grid, caravan, or industrial solar systems.
