Exotronic 20A Bluetooth MPPT Solar Charge Controller

SKU: Exo-TD2207 Learn More»
$139
$169
In Stock1-2 Days Dispatch

CALCULATE SHIPPING:

Description

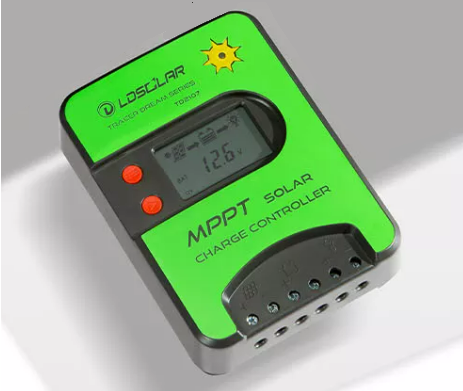

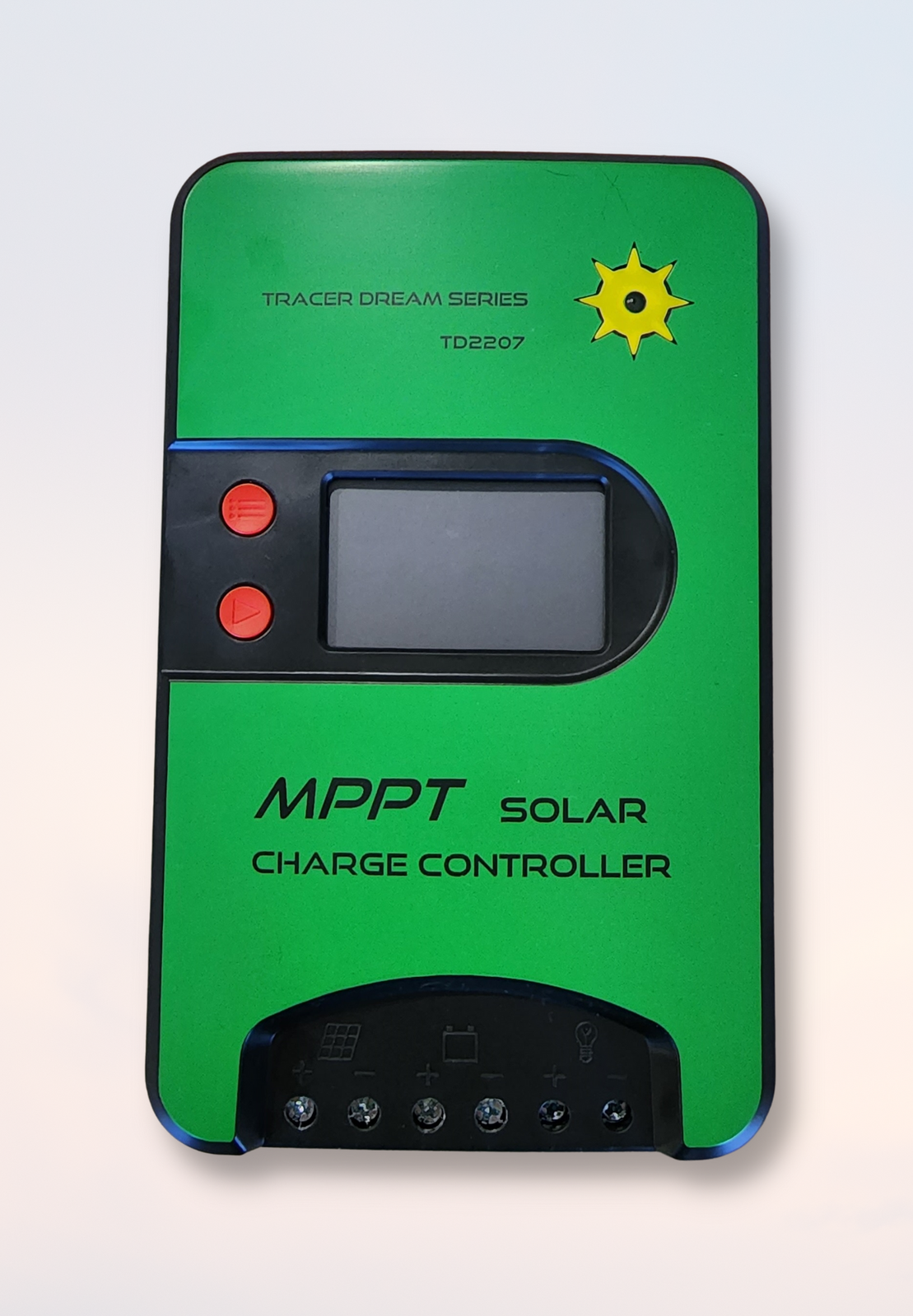

Exotronic 20A Bluetooth MPPT Solar Charge Controller

Tracer Dream 75V Bluetooth Series adopts MPPT technology. Using a 32 bit CPU, stability and speed can be guaranteed. Based on the synchronous rectifier technology, the transfer efficiency of circuit is increased up to 98.5% and the Pmax tracking accuracy up to 99.5%. So our MPPT can trace the accurate Pmax in the shortest time, even when the sunlight changes rapidly. It can perfectly handle extreme weather or weak sunlight.



  • Download the Bluetooth App on your Apple or Android â€“ or search LD iConnect. – Default password 1234
  • Advanced MPPT technology, fast and stable. Tracks the Maximum Power Point, the tracking accuracy is up to 99.5% efficient
  • Adopting Synchronous Rectifier Technology, significantly improving the transfer efficiency of circuit, up to 98.5% efficient
  • Accurately identifying and tracking the multi peak power point function PV array limited power input function, to ensure that the controller does not overload operation under any conditions
  • Wide range of Maximum Power Point of PV array, Maximum PV input Voltage 75V.
  • 12/24VDC system voltage automatic recognition
  • Humanized LCD display, dynamic display operation data and working state
  • Built-in operation log
  • Multi load control mode: Normal Mode, Sensor Mode and Timer
  • 3 stages charging mode with multiple chemistry modes: Sealed, Gel, Flooded, Lithium and many user adjustable settings (Default Lithium)
  • Temperature Compensation Function
  • Accumulation function of charging and discharging, actual time display power generation function
  • Fullest digital protection functions: Reverse connection, Overcharging, Over-discharging, Overvoltage, Overload, Short circuit and more



Specification:

  • Size (L x W x H): 195 x 123 x 46 mm
  • Charge and load current: 20A
  • Mounting hole size: 5mm
  • Weight: 0.82kg
  • Terminal scale: 10mm2/8AWG
Show More

Specifications

SKU Exo-TD2207

Brand Exotronic

Product Category Solar Charge Controllers

Voltage Option 8V-32V

Charge Current (A) 20
