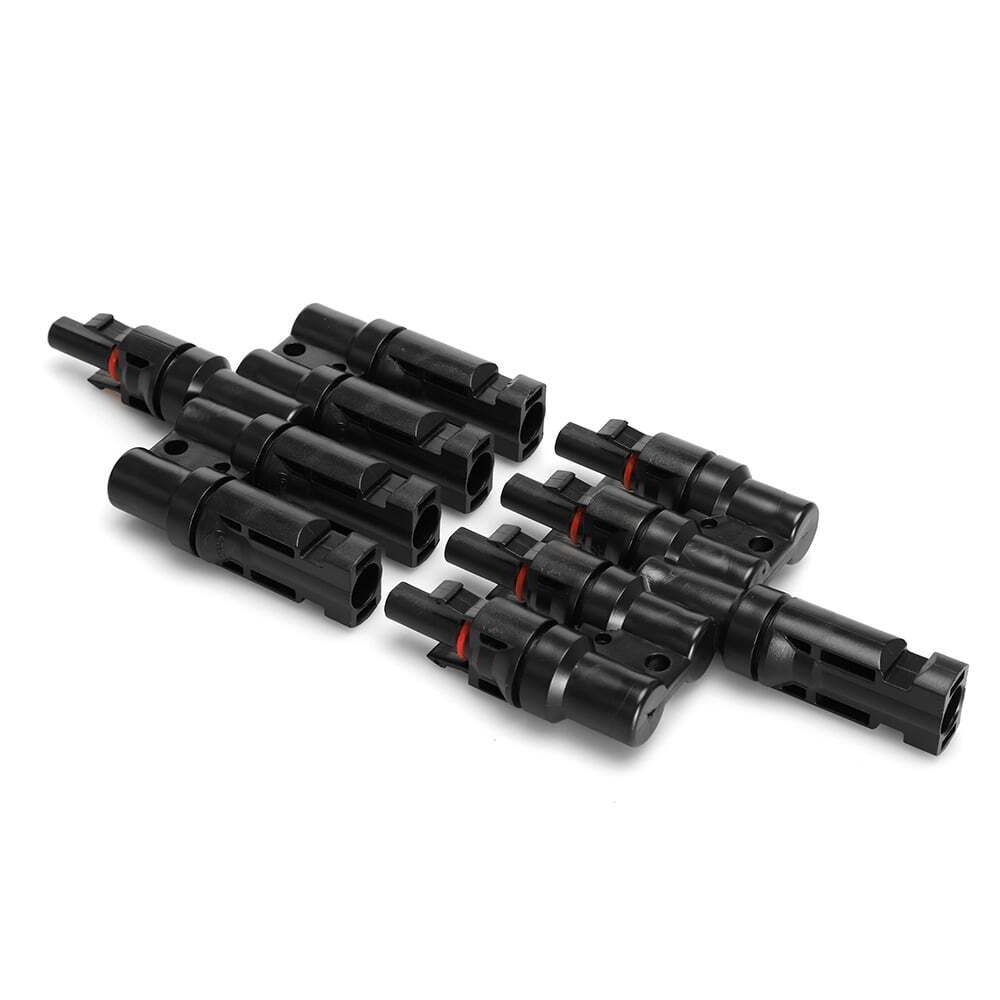

Exotronic 4 to 1 'h' Branch Joiner MC4 Compatible Connector Pair

Description

Exotronic 4 to 1 'h' Branch Joiner MC4 Compatible Connector Pair

Introducing the Exotronic '4 to 1' Branch Joiner MC4 Compatible Connector Pair, a revolutionary solution designed to seamlessly integrate four solar panels in parallel, enhancing your solar array's efficiency and power output. This connector pair is engineered for those who demand the utmost in quality, reliability, and environmental resilience for their solar installations.

Key Features:

• MC4 Compatibility: Designed to work flawlessly with all MC4 connectors, ensuring a secure and efficient connection for a wide range of solar panels.
• Parallel Connection Excellence: Easily connects three solar panels in parallel, optimizing your system's energy production by combining the power output of multiple panels into a single, efficient stream.
• Waterproof Durability: Constructed with high-quality materials, this connector pair boasts superior waterproofing capabilities, ensuring your connections remain dry and intact, even in the most challenging weather conditions.
• UV Stability: The Exotronic '4 to 1' Branch Joiner is UV stable, guaranteeing that it withstands prolonged exposure to sunlight without degrading, making it an ideal choice for outdoor solar applications.
• Robust Construction: Featuring insulation material made from PPO and contacts crafted from copper, tin-plated for enhanced conductivity and corrosion resistance, it's built to last.
• Optimal Performance: With a suitable current of 30A and rated voltages of 1000V (TUV) and 600V (UL), along with a test voltage of 6KV (TUV 50Hz, 1min), it's designed to handle high-power applications with ease.
• Exceptional Safety and Protection: Boasting a contact resistance of less than 0.5mΩ and an IP 67 degree of protection, it ensures safe and reliable operation. The temperature range of -40℃ to +85℃, along with a UL94-V0 flame class and Safety Class II, further underscores its suitability for rigorous environments.
• Precise Engineering: The pin dimensions of Φ4mm ensure a perfect fit with MC4 connectors, facilitating a straightforward and secure installation process.

The Exotronic '4 to 1' Branch Joiner MC4 Compatible Connector Pair is not just a component; it's a strategic enhancement to your solar power system, designed to maximize efficiency, ensure durability, and simplify the connectivity of multiple solar panels. Whether for residential, commercial, or industrial solar arrays, this connector pair stands as a testament to innovative engineering, offering a reliable solution for expanding your solar capabilities.

Specifications:

• Contact Material: Copper, Tin plated
• Suitable Current: 30A
• Rated Voltage: 1000V (TUV), 600V (UL)
• Test Voltage: 6KV (TUV 50Hz, 1min)
• Contact Resistance: <0.5mΩ
• Degree Of Protection: IP 67
• Temperature Range: -40℃ to +85℃
• Flame Class: UL94-V0
• Safety Class: Ⅱ
• Pin Dimensions: Φ4mm
• Insulation Material: PPO
