Exotronic MC4 Compatible Solar Connector Pair
SKU: Exo-MC4-1000V Learn More»![](/assets/thumbL/Exo-MC4-1000V.png?20240514121657)
![](/assets/alt_1/Exo-MC4-1000V.jpg?20240514121957)
![](/assets/alt_2/Exo-MC4-1000V.jpg?20240514121959)
![](/assets/alt_3/Exo-MC4-1000V.jpg?20240514122003)
![](/assets/alt_4/Exo-MC4-1000V.jpg?20240514122006)
![](/assets/alt_5/Exo-MC4-1000V.png?20240514122008)
Description

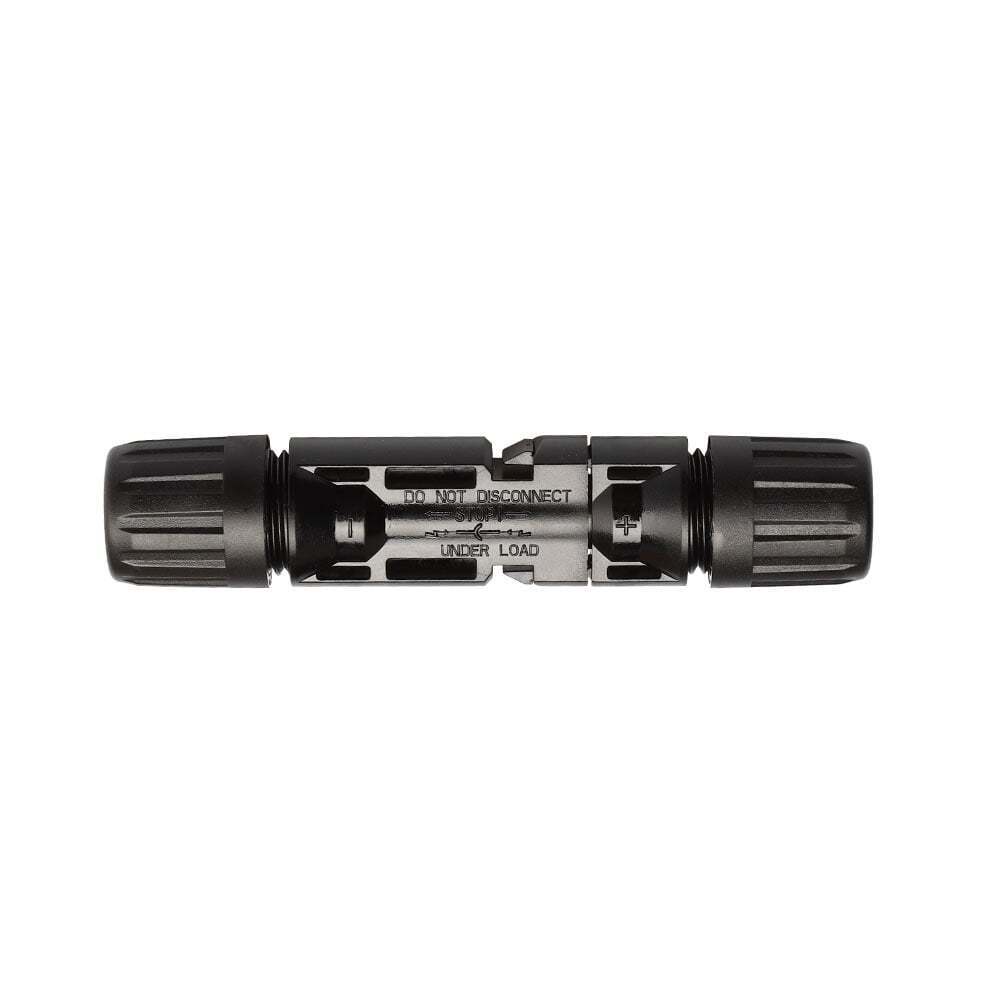

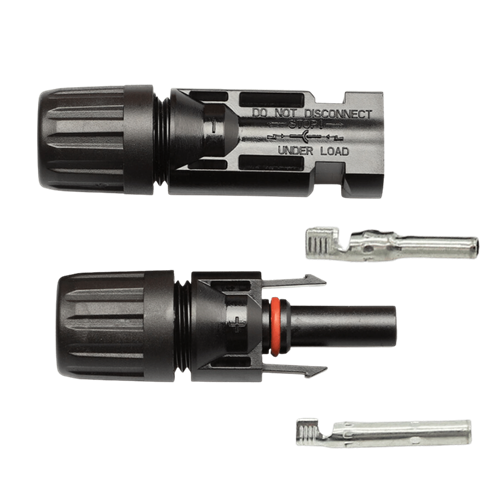

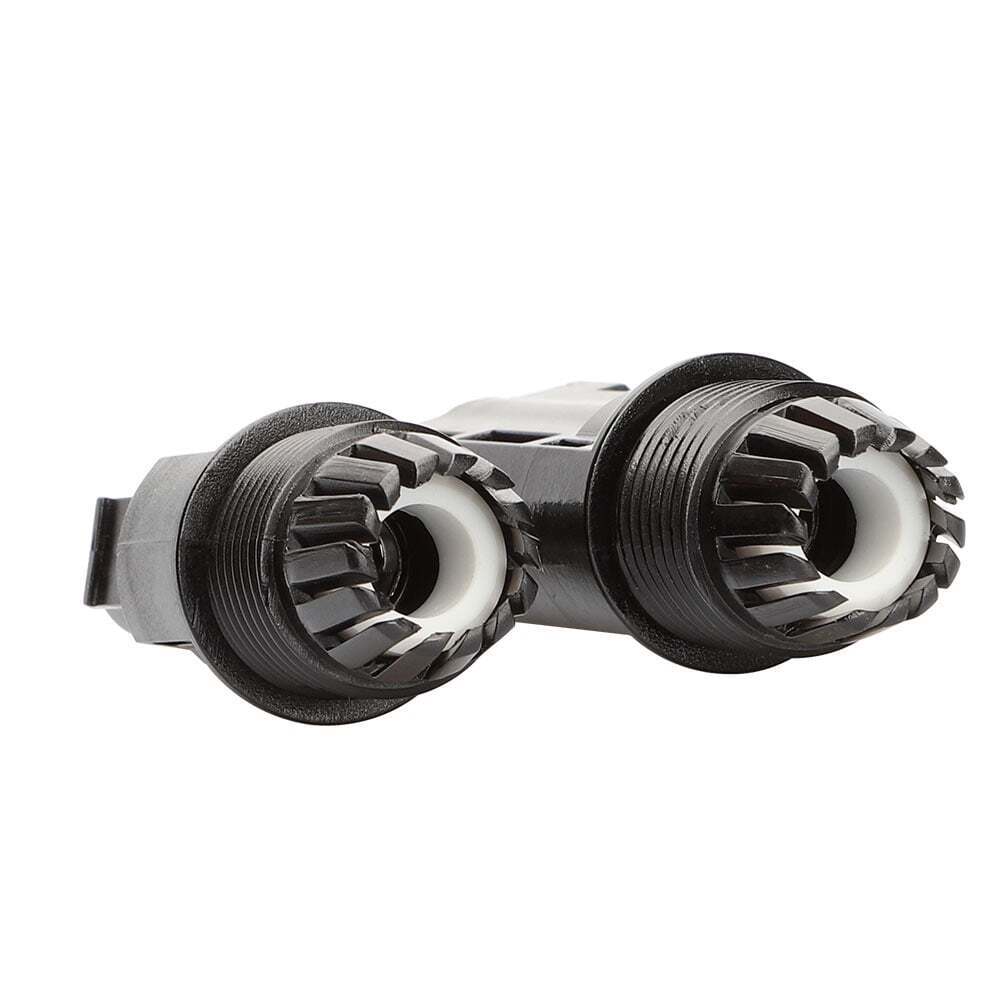

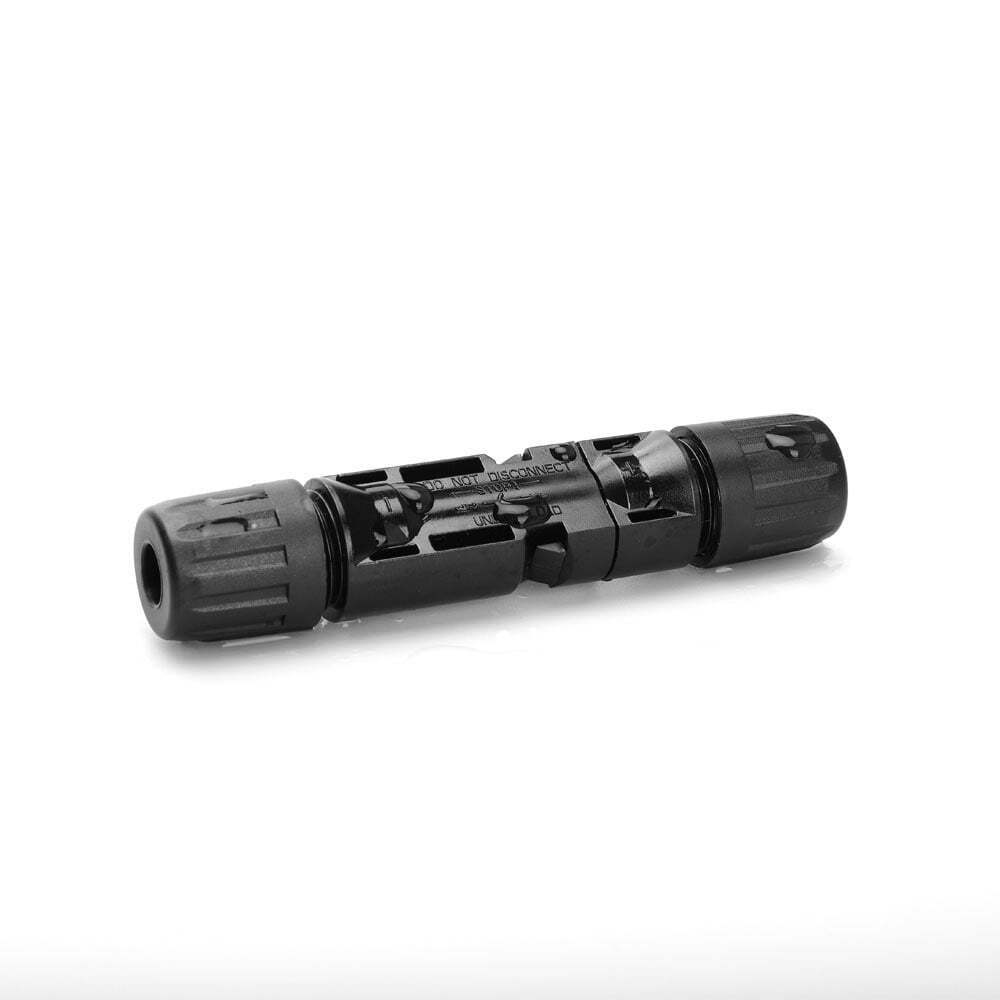

Exotronic MC4 Compatible Solar Connector Pair
Exotronic MC4 Compatible Connector Pair: The Ideal Choice for Solar Panel Connectivity
Introducing the Exotronic MC4 Compatible Solar Connector Pair – your reliable solution for secure and efficient solar panel connections. These connectors are expertly designed to meet the demands of any solar power system, from small RV setups to large-scale off-grid installations.
Weather-Resistant Design for Uninterrupted Power Supply
Featuring a robust IP67 waterproof and dustproof rating, these connectors ensure a consistent power flow even in harsh weather conditions. The high withstand voltage of DC 1000V makes them suitable for a variety of solar applications. Constructed with top-quality tinned copper, these connectors provide excellent conductivity and corrosion resistance.
Durable Materials for Long-Lasting Solar Connections
The use of PC/PPO as insulation material enhances durability, while the copper alloy with tin plating ensures a stable and long-lasting connection. The connectors operate efficiently within a wide temperature range of –40°C to +90°C, making them versatile for different climates.
Advanced Safety Features for Reliable Solar Installations
Safety and reliability are paramount with these connectors. They come with a snap-in locking system for secure attachment, have a low contact resistance of 0.5mΩ, and meet the UL94-V0 flame class standard. Rated for currents up to 30A, these connectors are compatible with a range of wire sizes, making them a flexible choice for your solar energy needs.
Choose the Exotronic MC4 Compatible Solar Connector Pair for a seamless solar experience, ensuring your panels are connected safely, efficiently, and reliably.
Specifications:
- Waterproof and Dustproof (Mated): IP67
- Waterproof and Dustproof (Unmated): IP2X
- Rated Voltage: 1000V DC (IEC)

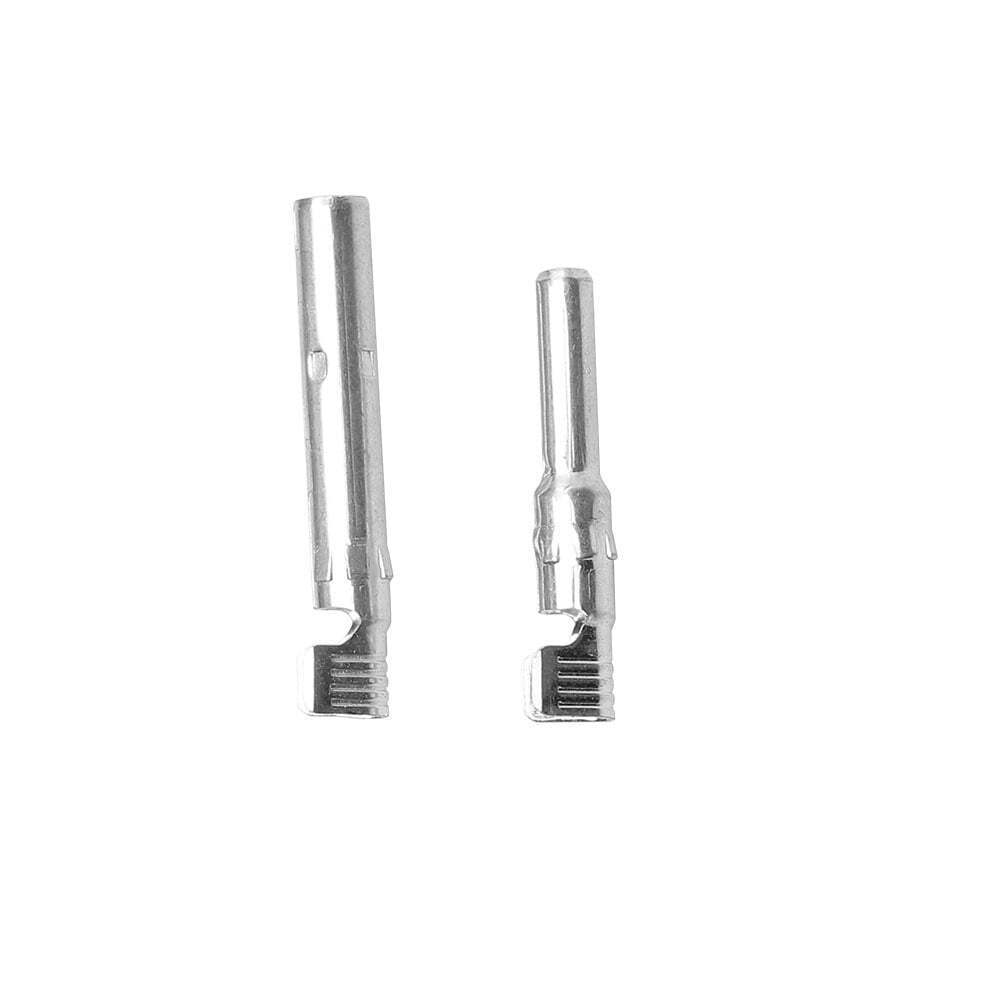

- Contact Material: Tinned Copper
- Insulation Material: PC/PPO
- Contact Material: Copper Alloy, Tin Plated
- Temperature Range: –40°C to +90°C (IEC)
- Upper Temperature Limit: +105°C (IEC)
- Degree of Protection (Mated): IP67
- Degree of Protection (Unmated): IP2X
- Flame Class: UL94-V0
- Locking System: Snap-in
- Contact Resistance of Plug Connectors: 0.5mΩ
- Safety Class: II
- Test Voltage: 6kV (50Hz, 1min)
- Salt Mist Spray Test, Severity Degree: 5 (according to IEC 60068-2-52)
- Rated Current: 17A (1.5mm²), 22A (2.5mm²; 14AWG), 30A (4mm², 6mm²; 12AWG, 10AWG)

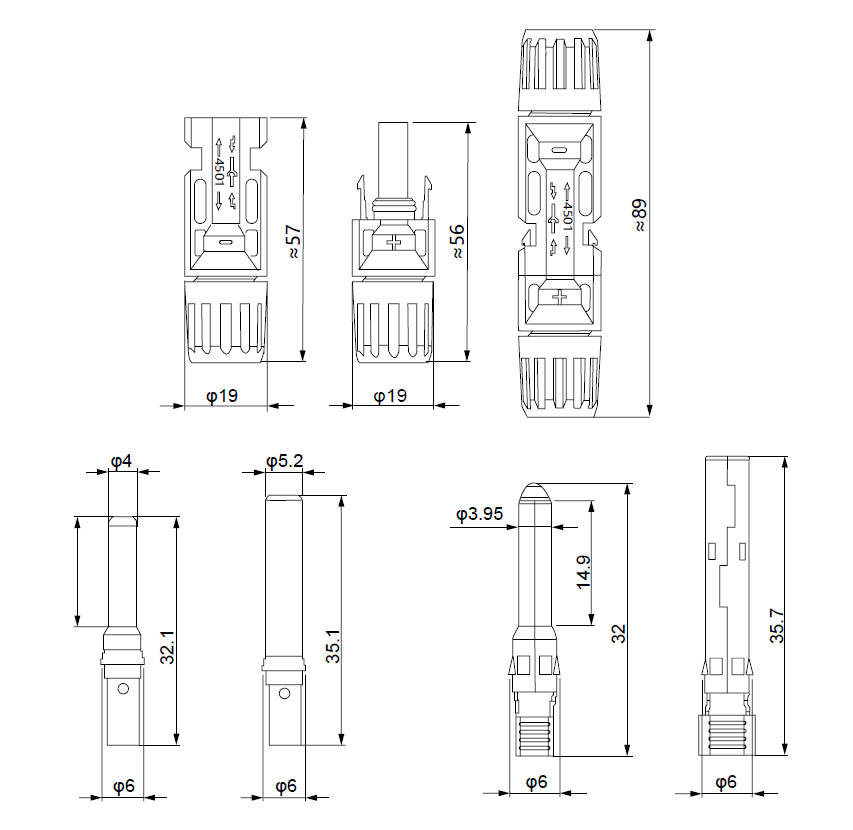

- Connector System: Ø 4 mm
Specifications
SKU Exo-MC4-1000V
Brand Exotronic
Product Category Electrical Accessories
NOTE: see full product specifications & further product info in the Description section on this page.
