Exotronic Qi-Enabled Heavy-Duty Battery Box

Description

Exotronic Qi-Enabled Heavy-Duty Battery Box

A Robust Portable Power Station Battery Box for Diverse Applications
Exotronic Heavy Duty Battery Box is ingeniously designed to house up to a 35kg AGM/Gel or Lithium battery with fitting dimensions. Fabricated from durable ABS, this portable power station can accommodate a battery measuring up to 340 mm L x 192 mm W x 240 mm H.

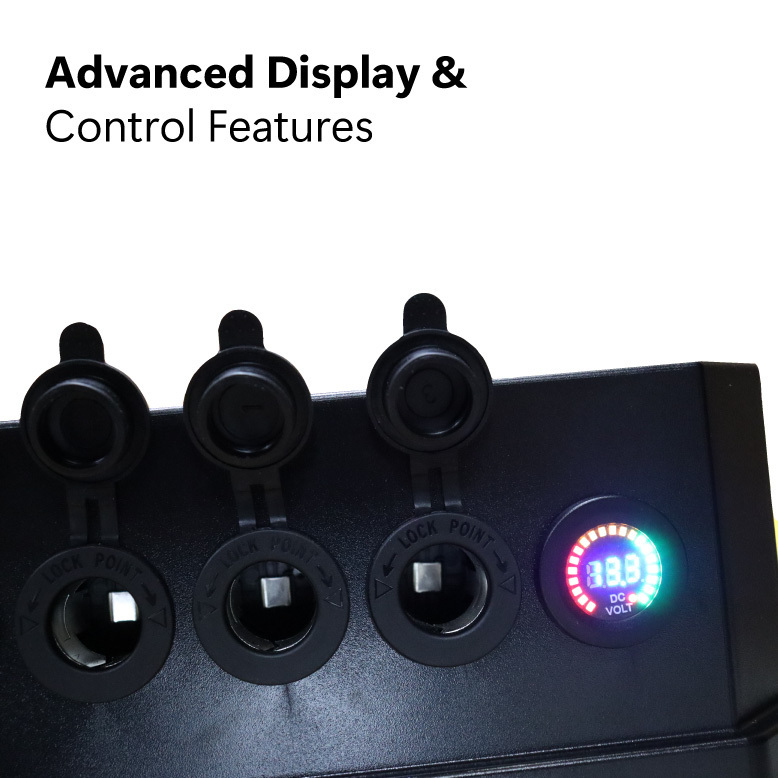

Advanced Display and Control Features
This heavy-duty battery box features a light-up display that converts battery voltage into a state-of-charge value, ideal for lead-acid battery types such as AGM as well as temperature. Please note, however, that this state-of-charge monitor may not accurately reflect the status of lithium batteries due to their distinct state-of-charge/voltage relationship. Therefore, using a lithium battery with Bluetooth and/or adding a Victron SmartShunt is recommended.

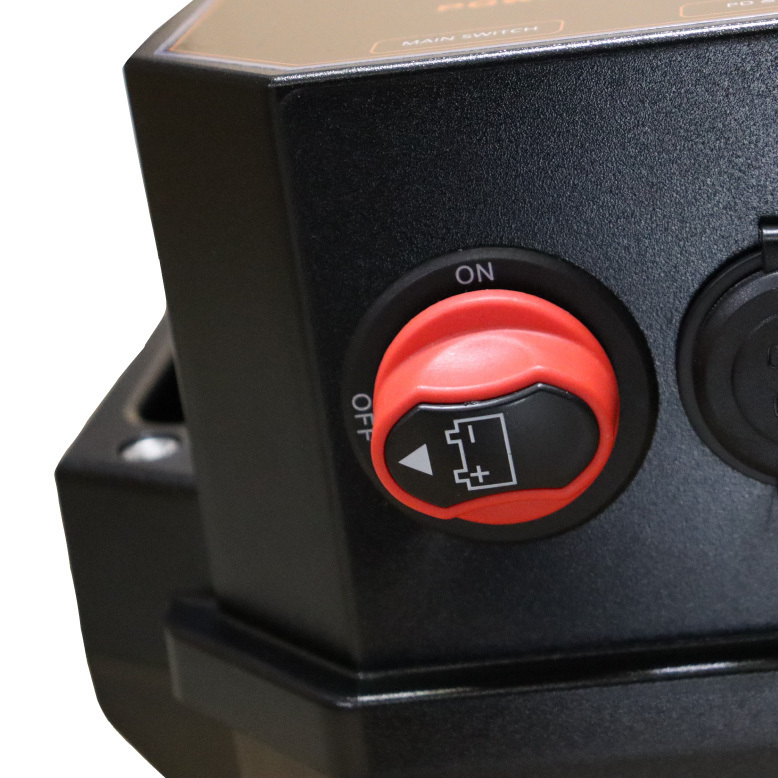

Effortlessly manage power with the provided ON/OFF switch with keyed/removeable button, designed to disconnect the battery during periods of inactivity. The box comes equipped with auto-resetting circuit breakers on the cigarette sockets and Anderson connectors. A 175A Anderson connector, wired directly to the battery, facilitates jump-starting functionality.

Multiple Outlets for Varied Applications
The battery box has been upgraded to include a total of 8x 50A Anderson plugs (4x flush mounted rear Andersons, 4x side Andersons), a 175A Anderson plug for jump-starting, 3x 12V cigarette sockets, 2x 2.1A & 1x 2.4A USB sockets, and 1x QC3 USB Port. These multiple outlets allow you to power various devices simultaneously.

Create Your Portable Power Station
Transform a conventional deep-cycle battery into a portable power station or establish a simple dual battery setup using a DC-DC charger or Voltage-Sensitive Relay (VSR) with our heavy-duty battery box. Charge the battery from various sources, including solar panels via a solar charge controller, by plugging it into one of the 50A Anderson-style ports. A large digital display ensures easy monitoring of the battery's charge status and voltage.

Features:

• Constructed from UL 94V-0 compliant fire-resistant ABS plastic.
• Equipped with a wide range of port types for versatile device connections.
• Effortless connection of a DC/DC charger or solar panel to charge the battery, or use a Voltage-Sensitive Relay (VSR).
• Ability to jump-start vehicles using the 175A Anderson (battery type must be suitable)
• All ports are recessed into the body for enhanced damage protection.
• Large digital display with temperature for easy monitoring of battery status.
• Allows for an effortless dual battery setup.

Note: Battery is not included.

Specifications:

• Maximum Battery Weight: 35kg
• Weight without Battery: 3.8kg
• Maximum Dimensions of Battery: 333mmL x 185mmW x 250mmH
• External Dimensions: 415mmL x 235mmW x 340mmH
• Material: UL 94V-0 compliant fire-resistant ABS plastic

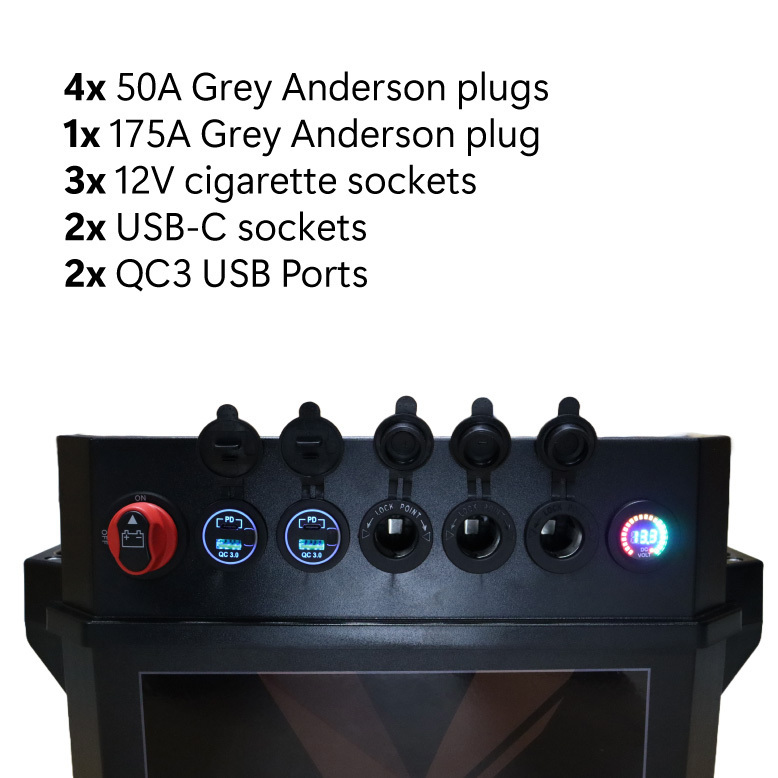

• Connections: 4x 50A Grey Anderson plugs, 1x 175A Grey Anderson plug, 3x 12V cigarette sockets, 2x USB-C sockets, 2x QC3 USB Port

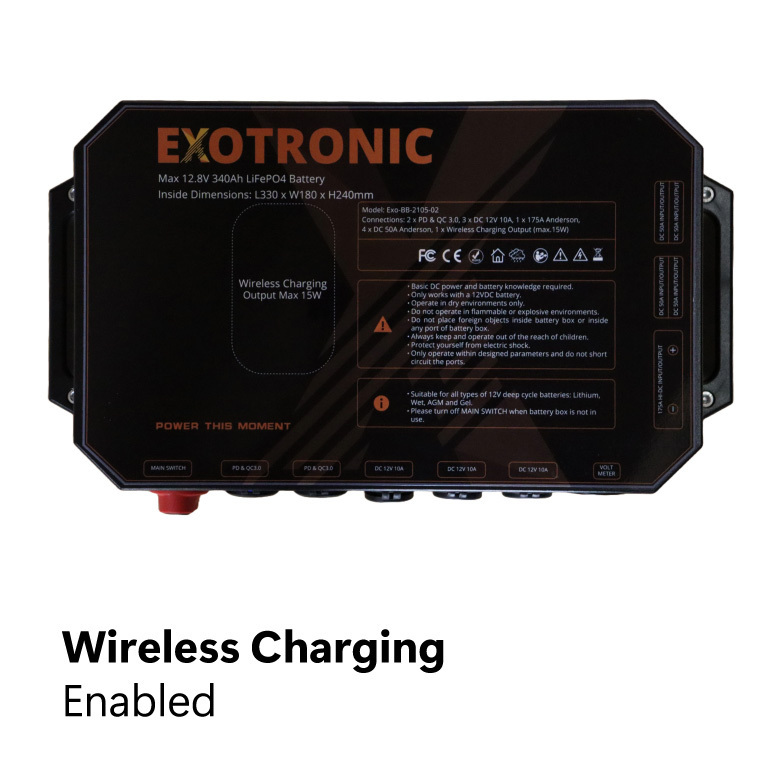

• Additional Features: ON/OFF switch, 2x auto-resetting circuit breakers, large digital voltage display, Qi wireless charging, battery and battery box tie down straps included.
