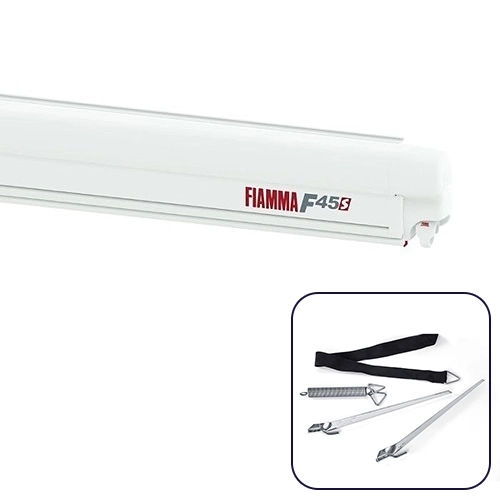

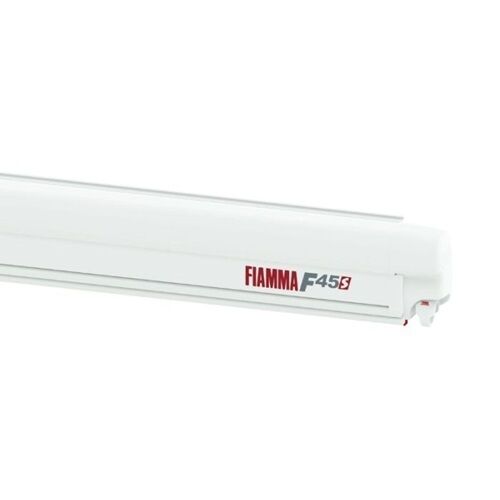

FIAMMA F45 S AWNING P/WH 3.0M ROYAL GREY

SKU: 044295 Learn More»

CALCULATE SHIPPING:

Accessories List:

$849

$849

Sold Out

Sold Out

Sold Out

$19

Click '+' to show more accessories

Description

Fiamma F45 Awning for your Caravan, Camper Trailer, Pop Top or RV



The easy-to-use and simple-to-install awning joins today's best technologies, service, and quality. The F45s awning is compact and functional, making it the best choice for your holidays! When not in use the F45s takes up little space while snuggly enclosed in its aluminium case. It is sturdy and safe to operate with an easy-to-hook winch loop. UV resistant, waterproof, washable, Privacy room option available.

The F45 S with 'Royal' vinyl is the latest release in the Fiamma F45 Awning Range. Using the latest technologies Fiamma has taken all the great features of the earlier models (F45 Ti, F45 i & F45Plus) and made them even better.

These easy-to-use awnings can be operated by a single person and allow you to double your living space in under a minute to make the most of the outdoors. Fully enclosed in a solid case when stowed and with no hardware running down the side of the vehicle these are great for use on Campervans, Motorhomes, or any vehicle with a vertically curved wall. From shade screens & sidewalls to a complete annex solution, Fiamma's incorporated design offers a range of options & accessories to customize your outdoor area.

Set Up. A detachable winder is used to extend the awning. Winding allows the front face of the sturdy case to extend horizontally, like a verandah - pulling the fabric out as it goes. When extended, you then unclip the telescopic legs from within the front face, and they are either pegged to the ground or clipped to the base of your RV with the included Lower

Leg Brackets. All awnings come complete with the Standard Bracket Kit which allows the awning to be attached to a vertical face on a Caravan/Motorhome/Gooseneck etc. If the awning is being attached to a curved surface or roof rack you will need to purchase a separate bracket kit OR make a mounting that will accept the Standard Brackets.



Features:

  • Durable Case - Powder-coated metal case adds a sleek look to your vehicle while providing extra protection when not in use.
  • 6mm Double Guide - Allows you to use multiple accessories like Screens, Lights, Storage Organiser's & Tie Down Kits.
  • Presto Fix - Enables instant realignment of the front bar on closing if needed.
  • One-Way Drive - This means a perfect close every time.
  • Dual Shock Absorber - Protect both your awning and vehicle.
  • Extra Strong Arms - Reinforced arms with 3.5mm cable provide a fabric tension of up to 32kg.
  • Anti-Scratch Canopies - With an anti-scratch coating on both sides of the canopy they are hardwearing and UV-resistant to stop fading.
  • Standard adapters (provided with the awning) and more than 90 personalized brackets enable the mounting on special
  • Double guide on the lead bar allowing the installation of two front pieces
  • Strong reinforced articulated arms with a double steel cable that allows you to maintain optimal fabric tension.



Specifications:

  • Color: Casing: Polar White, Awning; Royal Grey
  • Weight: 23kg
  • Dimensions: Awning length: 3.08m, Canopy Length: 2.92m, Extension: 2.5m, Shade Surface: 7.3m



Fiamma F45 S Awning Sizes

Use the table to determine which Fiamma F45 Awning is best for you:

Awning Model

Box / Case Length

Canopy Length

Canopy Extension

Shade Surface

Weight

F45 S - 190

1.85M

1.69M

1.0M

1.7m2

11.5kg

F45 S - 230

2.31M

2.14M

1.5M

3.2m2

16.5kg

F45 S - 260

2.63M

2.47M

2.0M

4.9m2

19.5kg

F45 S - 300

3.08M

2.92M

2.5M

7.3m2

23.0kg

F45 S - 350

3.48M

3.31M

2.5M

8.3m2

25.0kg

F45 S - 400

3.98M

3.81M

2.5M

9.5m2

27.0kg

F45 L - 450

4.52M

4.35M

2.5M

10.9m2

35.0kg

F45 L - 500

5.02M

4.85M

2.5M

12.0m2

39.0kg



Specifications

  • Includes: 1 x F45 Box Awning, Reinforced arms with twin cable, Folding crank handle, Duel shock absorber, Standard fitting brackets (suits a flat surface), Standard wall brackets for legs, and Hooks (for securing legs to ground).
  • Awning Operation: Manual
  • Mounting Type: Wall Mounted Awning
  • Canopy Colours Available: Royal Grey, Royal Blue, Evergreen, Bordeaux (Maroon), Sahara (Sandy Colour).
  • Canopy Finish: UV resistant, waterproof and washable Vinyl
  • Box Colour: Polar White
  • Box Finish: Aluminium
  • Box Dimensions: refer to above table
  • Canopy Dimensions: refer to above table
  • Canopy Extension: refer to above table
  • Weight: refer to above table
  • NOTE: There are adaptors available for a large range of campervans and small motorhomes to be able to correctly install these F45S awnings to your RV wall should you require it.  Simply phone us on 1800 RV PARTS (1800 787 278) to talk to one of our friendly team members or email us at: sales@carvanRVcamping.com







Show More

Specifications

SKU 044295

Brand Fiamma

GTIN 8004815351717

Product Category RV Awnings

Length 2.92M

Weight (kg) 23

Extension 2.5M

Product Type Wall mounted awning

Awning Colour Royal Grey


NOTE: see full product specifications & further product info in the section on this page.

Q & A


  • Does the Fiamma 45 awning come with mounting brackets?

    Yes the Fiamma F45 range of awnings come with standard straight wall mounted brackets.

  • Can I mount a Fiamma 45 on my Toyota Hiace

    This can be acheived although there are no standard brackets suited for the Hiace branded vehicles. Fiamma have some universal brackets available on the link here (insert link to F45 brackets)

  • If I want to add a motor to an Fiamma F45 awning what side does it go on?

    It would be installed on the right hand side when facing the caravan.
