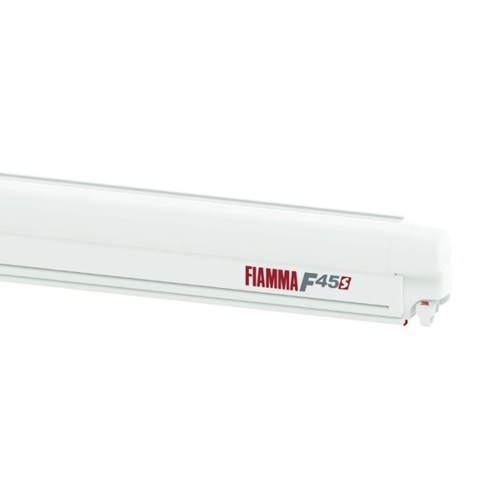

FIAMMA F45 S AWNING P/WH 3.5M BORDEAUX
SKU: 040144 Learn More»
Description
FIAMMA F45 S AWNING P/WH 3.5M BORDEAUX
The F45 S with 'Royal' vinyl is the latest release in the Fiamma F45 Awning Range. Using the latest technologies Fiamma have taken all the great features of the earlier models (F45 Ti, F45 i & F45Plus) and made them even better.

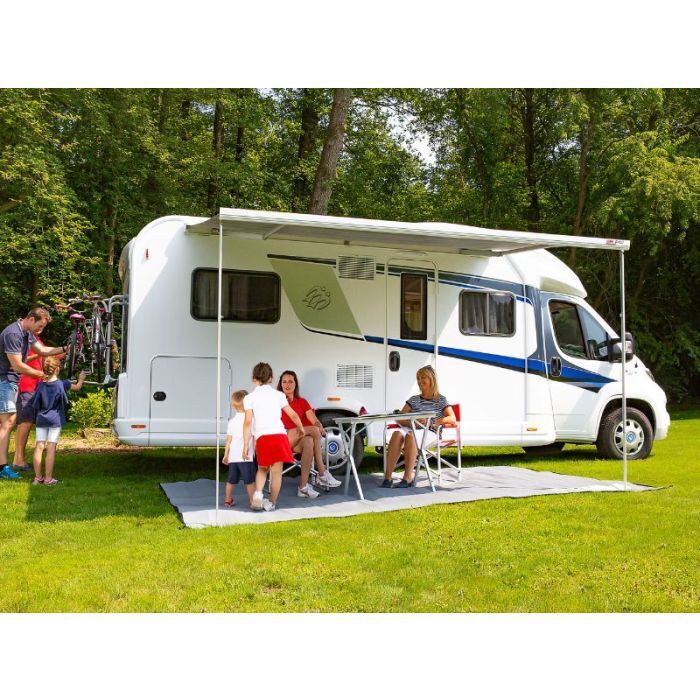

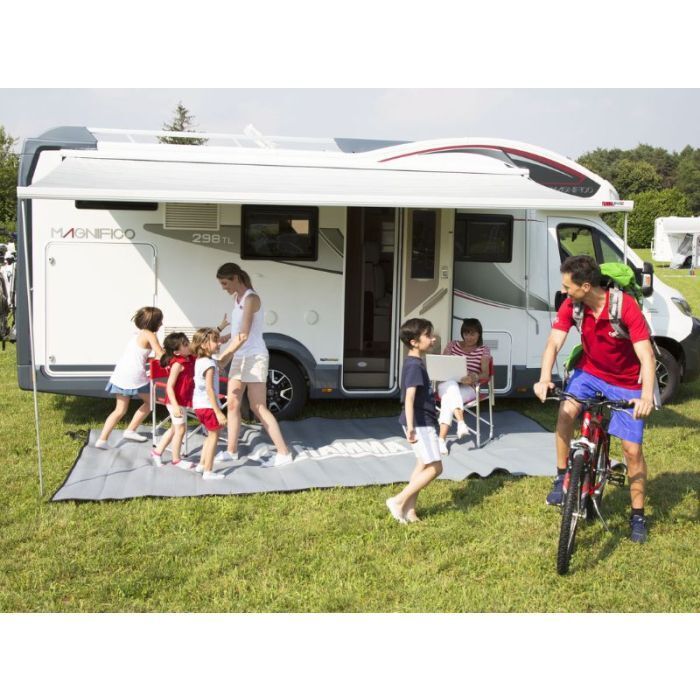

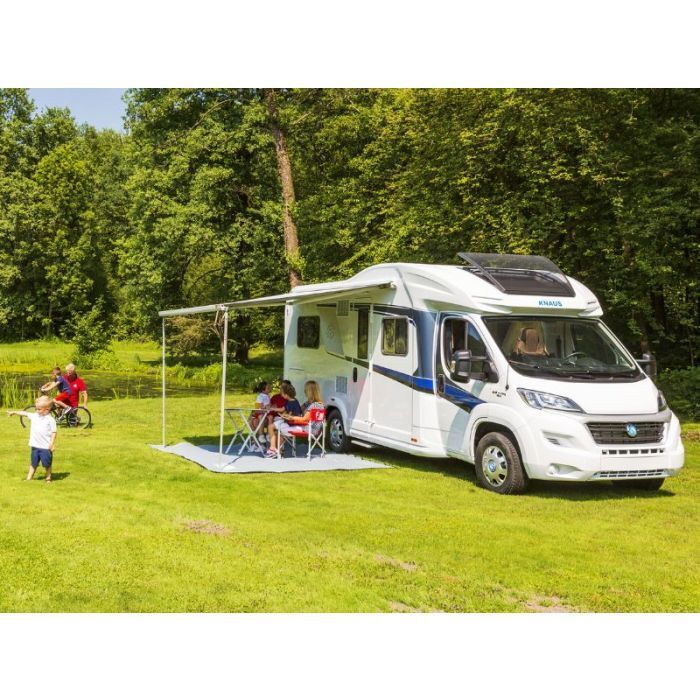

These easy to use awnings can be operated by a single person and allow you to double your living space in under a minute to make the most of the outdoors.Fully enclosed in a solid case when stowed and with no hardware running down the side of the vehicle these are great for use on Campervans, Motorhomes or any vehicle with a vertically curved wall.From shade screens & sidewalls to a complete annex solution, Fiamma's incorporated design offers a range of options & accessories to customize your outdoor area.
Set Up.

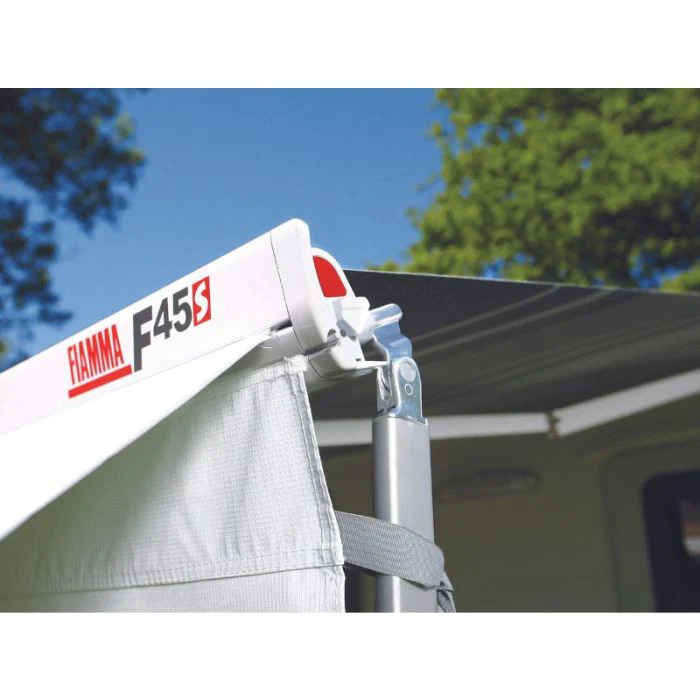

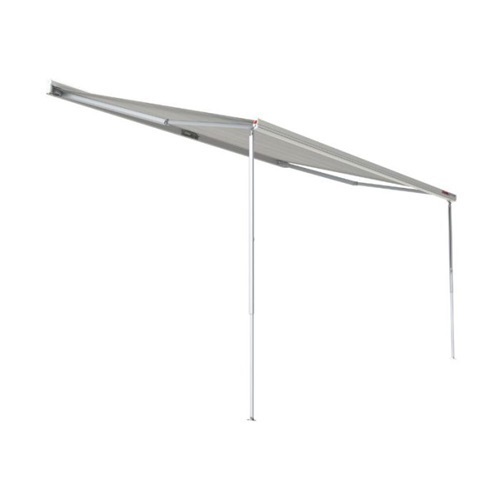

A detachable winder is used to extend the awning. Winding allows the front face of the sturdy case to extend horizontally, like a verandah - pulling the fabric out as it goes.When extended, you then unclip the telescopic legs from within the front face, and they are either pegged to the ground or clipped to base of your RV with the included Lower Leg Brackets.
All awnings come complete with the Standard Bracket Kit which allows the awning to be attached to a vertical face on a Caravan/Motorhome/Gooseneck etc. If the awning is being attached to a curved surface or roof rack you will need to purchasea separate bracket kit OR make a mounting that will accept the Standard Brackets. See section on BRACKETS for options.
Features:

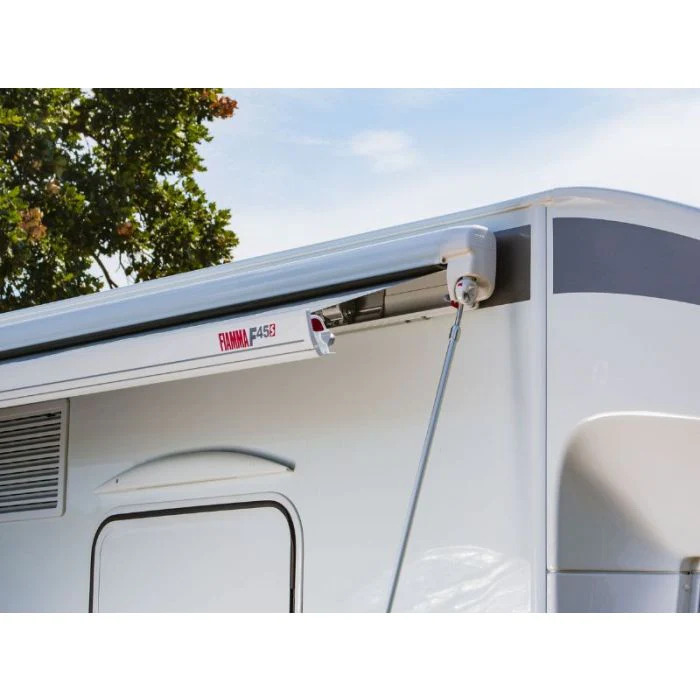

- Durable Case - Powder coated metal case adds a sleek look to your vehicle while providing extra protection when not in use.
- 6mm Double Guide - Allows you to use multiple accessories like Screens, Lights, Storage Organiser's & Tie Down Kits.
- Presto Fix - Enables instant realignment of front bar on closing if needed.
- One Way Drive - Means a perfect close every time.
- Dual Shock Absorber - Protect both your awning and vehicle.
- Extra Strong Arms - Reinforced arms with 3.5mm cable provide a fabric tension up to 32kg.
- Anti-Scratch Canopies - With an anti-scratch coating on both sides of the canopy they are hardwearing and UV-resistant to stop fading.

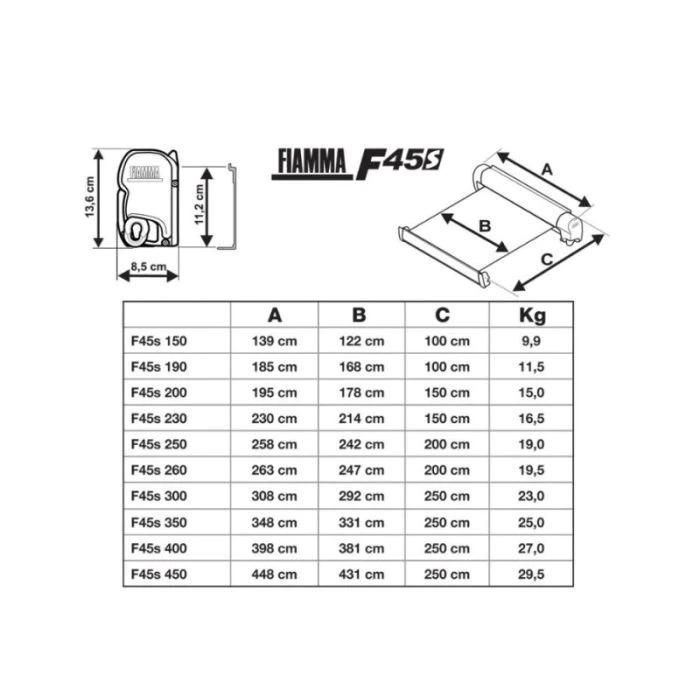

Fiamma F45 S Awning Sizes
Use the table to determine which Fiamma F45 Awning is best for you:
Awning Model |
Box / Case Length |
Canopy Length |
Canopy Extension |
Shade Surface |
Weight |
1.85M |
169M |
1.0M |
1.7m2 |
11.5kg |
|
2.31M |
214M |
1.5M |
3.2m2 |
16.5kg |
|
2.63M |
247M |
2.0M |
4.9m2 |
19.5kg |
|
3.08M |
2.92M |
2.5M |
7.3m2 |
23.0kg |
|
3.48M |
3.31M |
2.5M |
8.3m2 |
25.0kg |
|
3.98M |
3.81M |
2.5M |
9.5m2 |
27.0kg |
|
4.52M |
4.35M |
2.5M |
10.9m2 |
35.0kg |
|
5.02M |
4.85M |
2.5M |
12.0m2 |
39.0kg |
Specifications
- Color: Polar white Casing, Bordeaux Awning
- Weight: 25kg
- Dimensions: Awning Length: 3.48m, Canopy Length: 3.31m, Extension: 2.5M, Shade Surface: 8.3m
Specifications
SKU 040144
Brand Fiamma
GTIN 8004815286408
Product Category RV Awnings
Weight (kg) 25
Extension 2.5M
Product Type Wall mounted awning
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Does the Fiamma 45 awning come with mounting brackets?
Yes the Fiamma F45 range of awnings come with standard straight wall mounted brackets.
-
Can I mount a Fiamma 45 on my Toyota Hiace
This can be acheived although there are no standard brackets suited for the Hiace branded vehicles. Fiamma have some universal brackets available on the link here (insert link to F45 brackets)
-
If I want to add a motor to an Fiamma F45 awning what side does it go on?
It would be installed on the right hand side when facing the caravan.
