Fiamma F45 S Awning Polar White 4.0M Royal Blue
SKU: 044300 Learn More»Description
Fiamma F45 S Awning Polar White 4.0M Royal Blue
The Fiamma F45 Awnings Range are one of the top awnings on the market in terms of popularity, aesthetics, quality and value for money. Constantly updated and improved by world renowned Italian based Fiamma, these functional box awnings are both compact and sturdy.
The addition of two tracks to the lead bar means it is now easier than ever to set your outdoor RV space up with: an awning, a sunscreen, AND integrated LED lights. Further, the streamlined design takes up little space when packed away and is super quiet not only while travelling, but also when opening and closing.
F45 Series Awning is Suited for Wall Mounting. Check out the F65 Series for Roof Top Mounted Awnings
Easy to install on the wall of your caravan, campervan or motorhome, these awnings are simple to use and feature: an easy to hook winch loop, re-inforced leg knuckle, an auto lock feature, drip moulding, roller support (meaning a constantly tight canopy), two lead bar tracks, a generous shade area, AND a selection of brightly coloured superior quality vinyl visible on both sides of the canopy.
Fiamma F45 S Awning Sizes
Use the table to determine which Fiamma F45 Awning is best for you:
Awning Model |
Box / Case Length |
Canopy Length |
Canopy Extension |
Shade Surface |
Weight |
1.85M |
169M |
1.0M |
1.7m2 |
11.5kg |
|
2.31M |
214M |
1.5M |
3.2m2 |
16.5kg |
|
2.63M |
247M |
2.0M |
4.9m2 |
19.5kg |
|
3.08M |
2.92M |
2.5M |
7.3m2 |
23.0kg |
|
3.48M |
3.31M |
2.5M |
8.3m2 |
25.0kg |
|
3.98M |
3.81M |
2.5M |
9.5m2 |
27.0kg |
|
4.52M |
4.35M |
2.5M |
10.9m2 |
35.0kg |
|
5.02M |
4.85M |
2.5M |
12.0m2 |
39.0kg |
Specifications:
- Includes: 1 x F45 Box Awning, Reinforced arms with twin cable, Folding crank handle, Duel shock absorber, Standard fitting brackets (suits a flat surface), Standard wall brackets for legs, and Hooks (for securing legs to ground).
- Awning Operation: Manual
- Mounting Type: Wall Mounted Awning
- Canopy Colours Available: Royal Grey, Royal Blue, Evergreen, Bordeaux (Maroon), Sahara (Sandy Colour).
- Canopy Finish: UV resistant, waterproof and washable Vinyl
- Box Colour: Polar White
- Box Finish: Aluminium
- Box Dimensions: refer to above table
- Canopy Dimensions: refer to above table
- Canopy Extension: refer to above table
- Weight: refer to above table

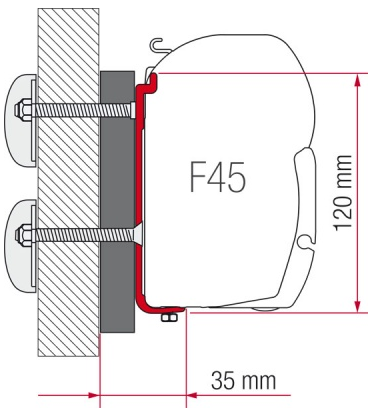

- NOTE: There are adaptors available for a large range of campervans and small motorhomes to be able to correctly install these F45S awnings to your RV wall should you require it. Simply phone us on 1800 RV PARTS (1800 787 278) to talk to one of our friendly team members or email us at: sales@carvanRVcamping.com
Specifications
SKU 044300
Brand Fiamma
GTIN 8004815351960
Product Category RV Awnings
Length 3.88M
Weight (kg) 27
Extension 2.5M
Product Type Wall mounted awning
Awning Colour Royal Blue
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Does the Fiamma 45 awning come with mounting brackets?
Yes the Fiamma F45 range of awnings come with standard straight wall mounted brackets.
-
Can I mount a Fiamma 45 on my Toyota Hiace
This can be acheived although there are no standard brackets suited for the Hiace branded vehicles. Fiamma have some universal brackets available on the link here (insert link to F45 brackets)
-
If I want to add a motor to an Fiamma F45 awning what side does it go on?
It would be installed on the right hand side when facing the caravan.
