Fiamma Kit Frame Ducato After 06

Description

Fiamma Kit Frame Ducato After 06

This rack will fit vans from 2006 onwards

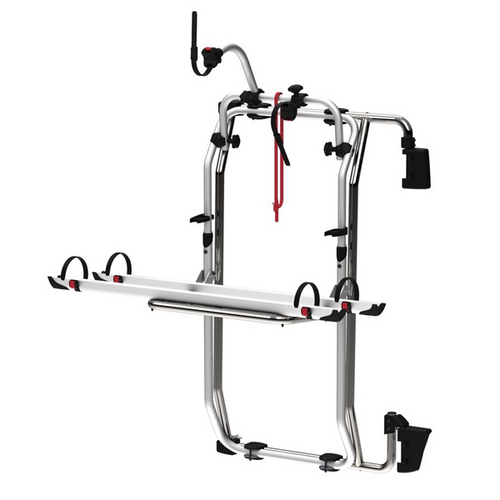

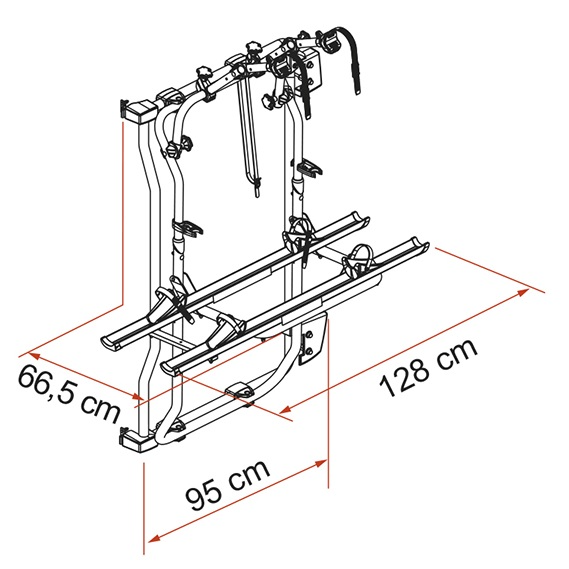

This new design bike rack from Fiamma has a stainless steel supporting structure and will carry up to three standard bikes (extra parts needed) or two e-bikes

The sturdy stainless steel frame is installed using the attachment points already fitted to the vehicle

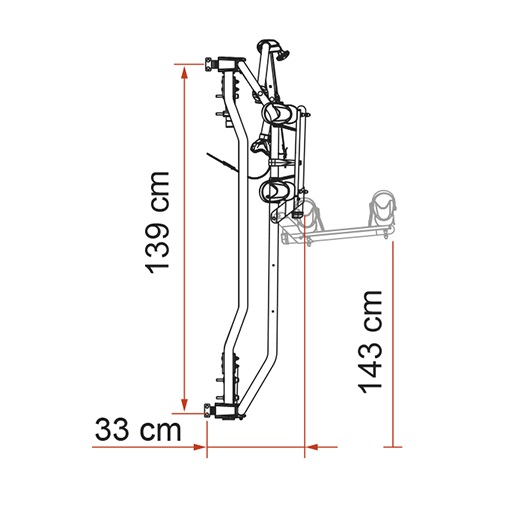

This version allows the lower frame to be mounted in three positions… standard, intermediate & lower and this can make loading the bikes easier

Please note that in the intermediate and lowered positions it is necessary to use a trailer board as the lights & number plate will be covered by the bikes

Not suitable for vehicles with 270° hinge system

The product can be installed on :

• standard original vehicles (not modified)
• camper vans with a rear window with a protrusion of less than 9 mm
• camper vans with a rear window with a protrusion of more than 9 mm and distance from the edges of the tailgate greater than 100 mm

Supplied with :

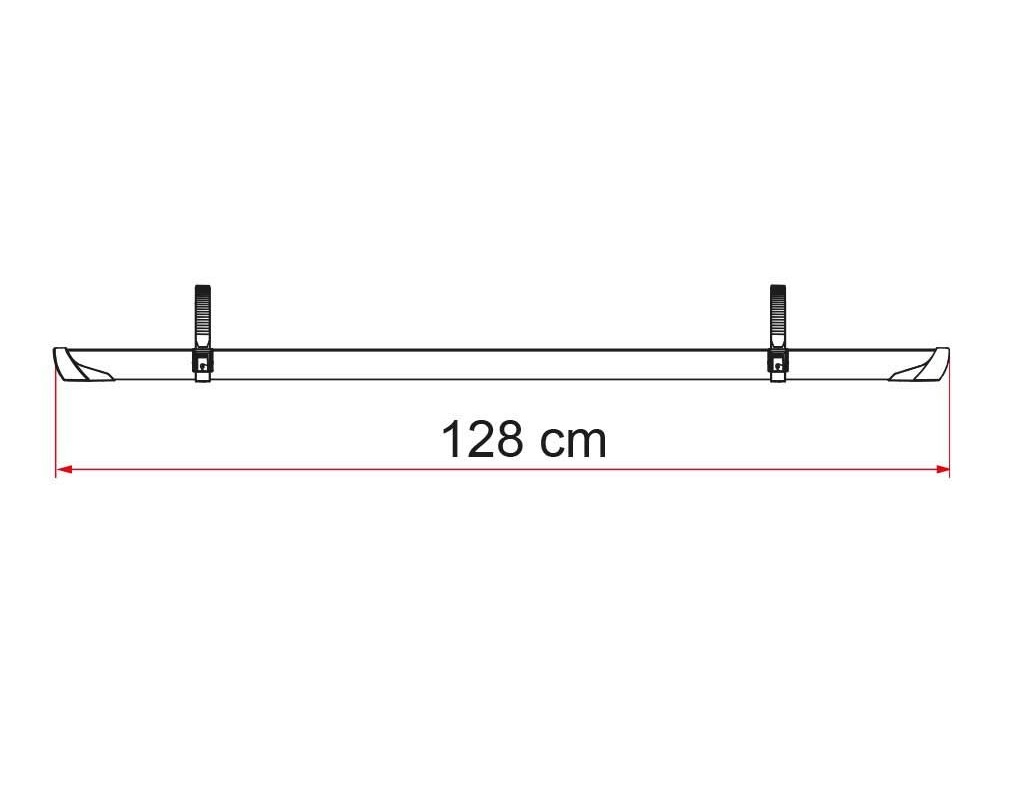

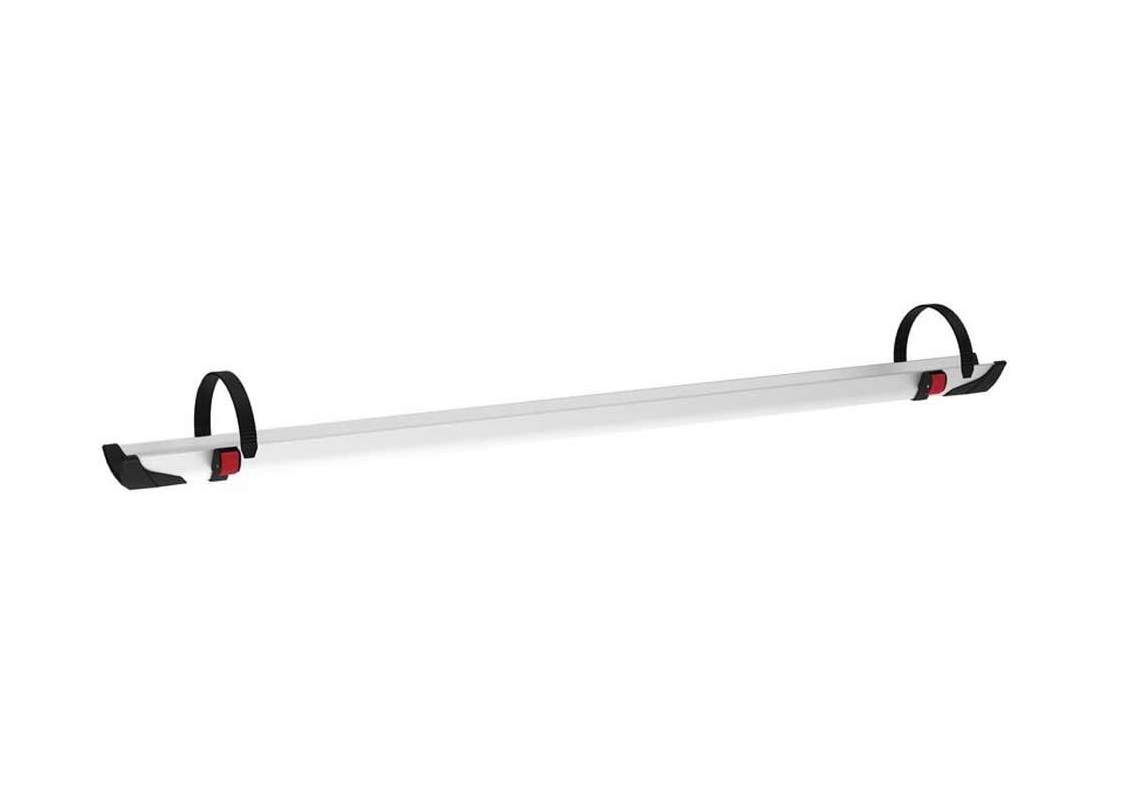

• 2 x Rail Plus

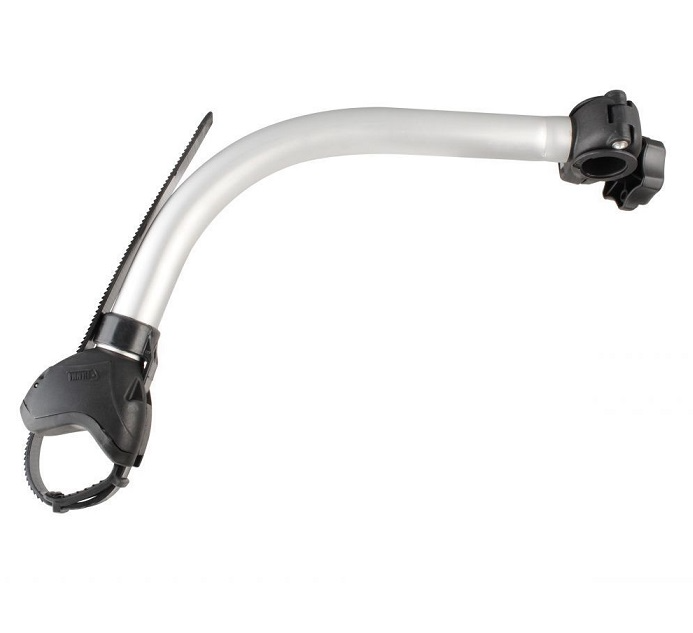

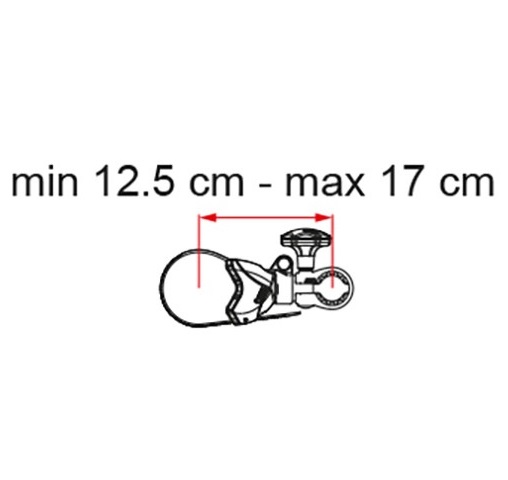

• 1 x Bike-Block Pro 1

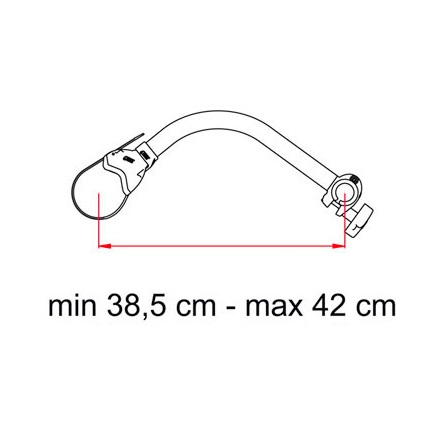

• 1 x Bike Block Pro 3
• 1 x Rack Holder
• 1 x Security Strip
• 1 x Fitting instructions

This rack will hold a maximum load of 50 kgs
