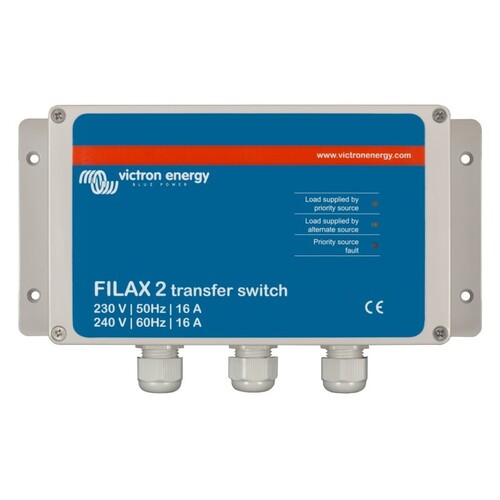

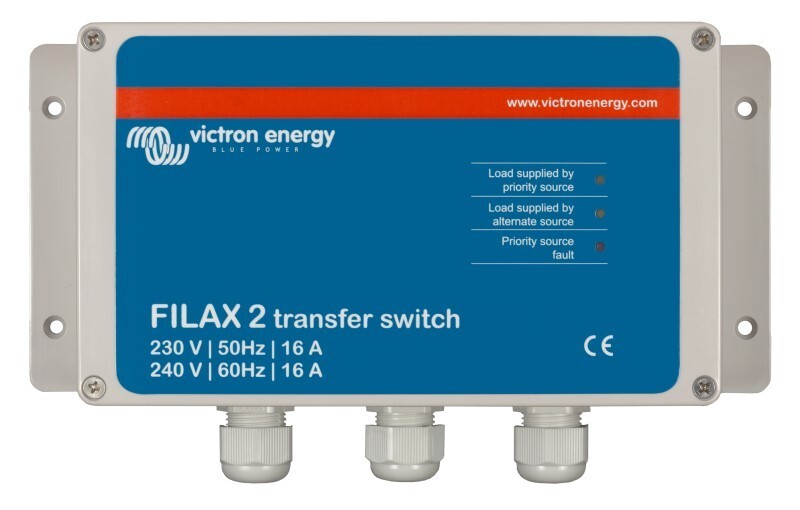

Victron Filax-2 110V/50Hz-120V/60Hz

Description

Victron Filax-2 110V/50Hz-120V/60Hz

The Filax has been designed to switch sensitive loads, such as computers or modern entertainment equipment from one AC source to another. The priority source typically is the mains, a generator or shore power. The alternate source typically is an inverter. With its switching time of less than 20 milliseconds, sensitive loads will continue to operate without disruption. The Filax is not intended to supply high power household equipment like washing machines or electric motors.

Specifications:

• Maximum current 16A
• Maximum load transfer time and reverse transfer time 16ms
• Reverse switching delay (seconds) 30s
• Operating temperature range -20 to +50°C
• Humidity (non-condensing) Max 95%
• Weight 0,8kg
• Dimensions 120 x 255 x 75mm

Features:

Filax 2: the ultra-fast transfer switch

The Filax has been designed to switch critical or sensitive loads, such as computers, industrial controls or modern entertainment equipment from one AC source to another. The priority source typically is the mains, a generator or shore power. The alternate source typically is an inverter. With its switching time of less than 20 milliseconds sensitive loads will continue to operate without disruption. The Filax is not intended to supply high power household equipment like washing machines, or electric motors.

Open transition transfer

The Filax is an open transition (break before make) transfer switch. The maximum load transfer time is 16ms. The load is normally supplied by the priority source, and is transferred to the alternate source if:

• The voltage of the priority source drops below the threshold value.
• The frequency of the priority source drops below the low frequency threshold value, or increases beyond the high frequency threshold value. Reverse transfer from the alternate source to the priority source is initiated when the priority source has operated within the voltage and frequency reverse switching limits during 30s.
