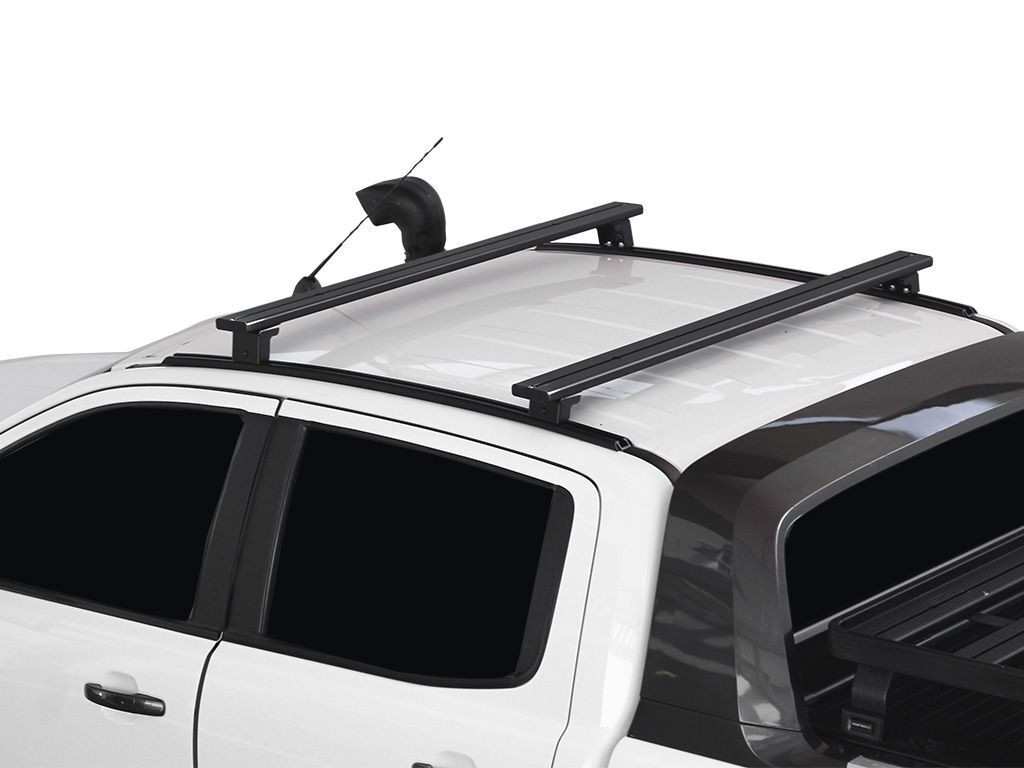

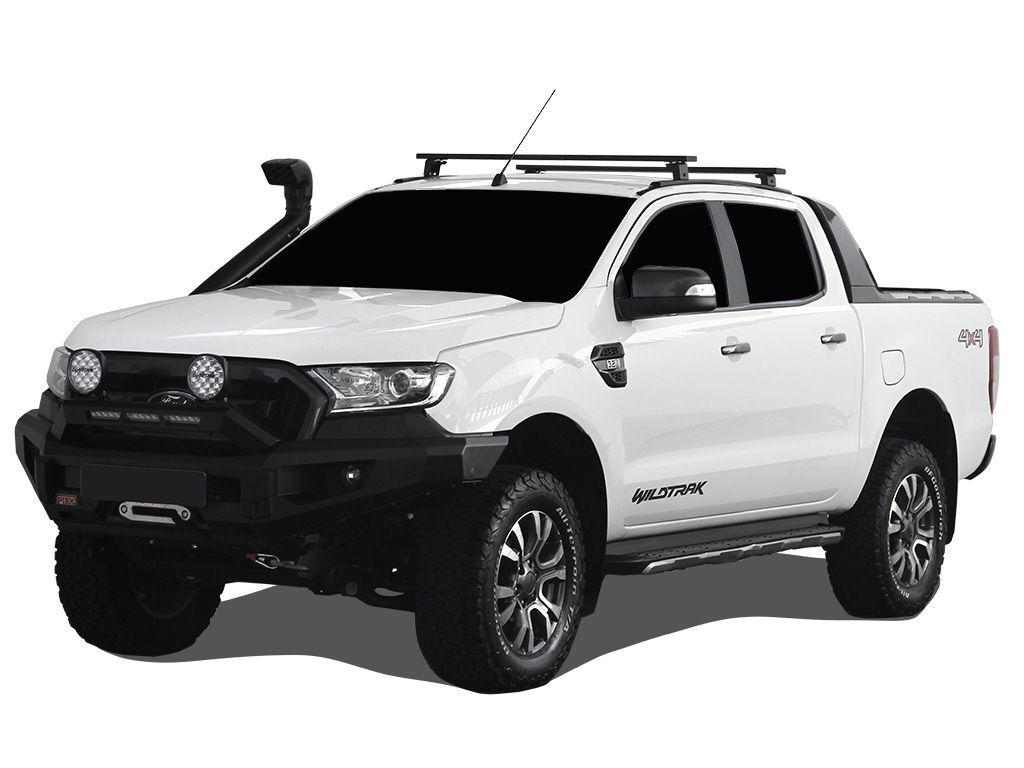

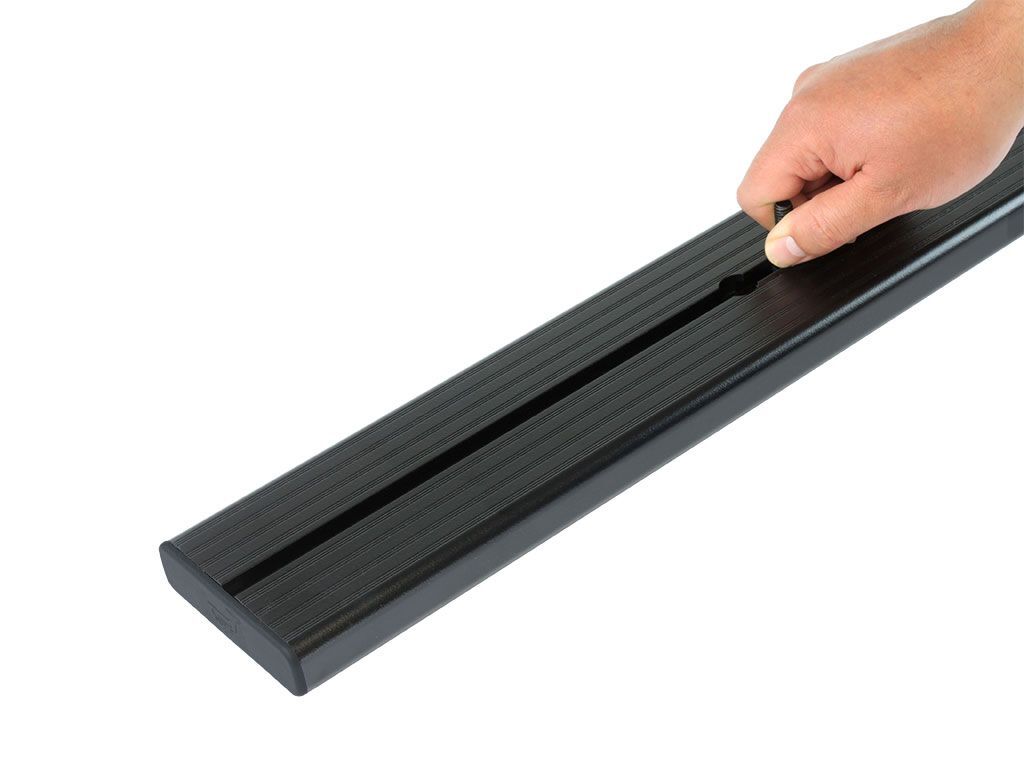

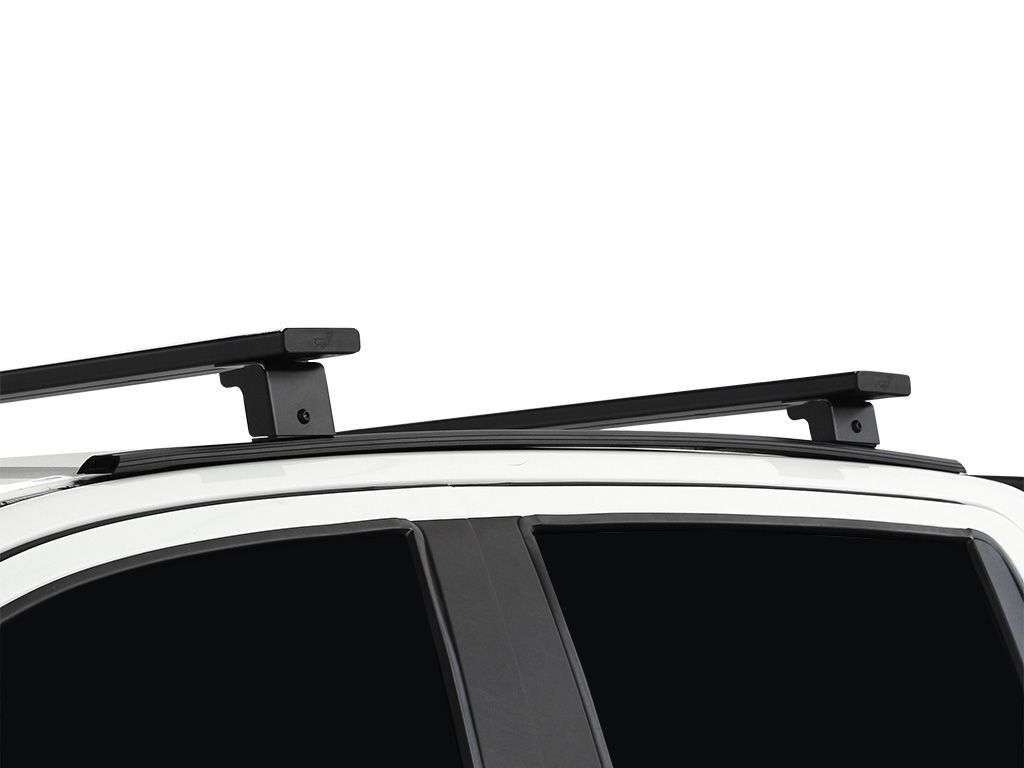

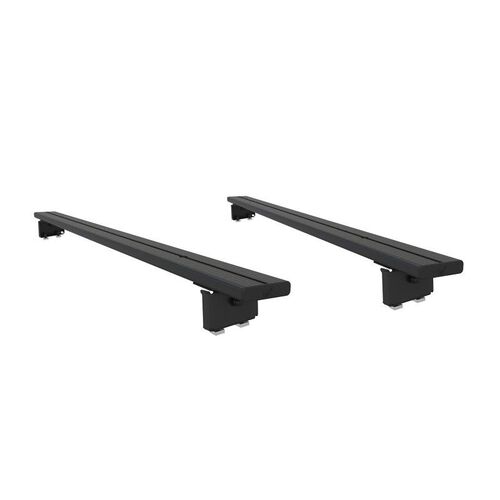

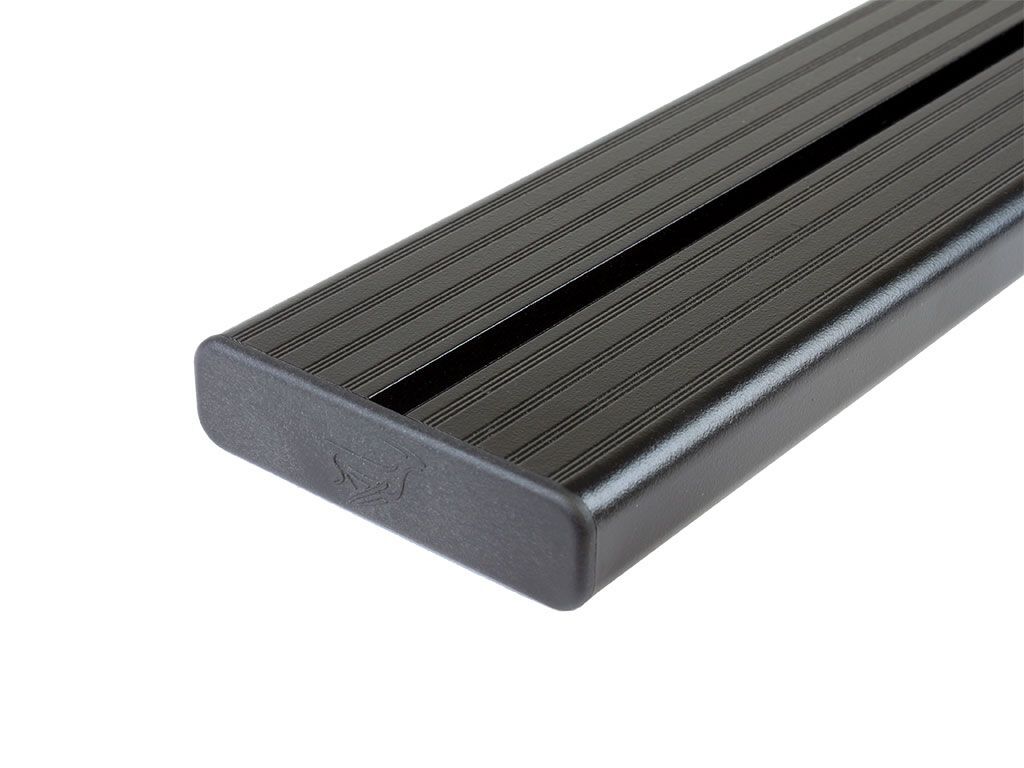

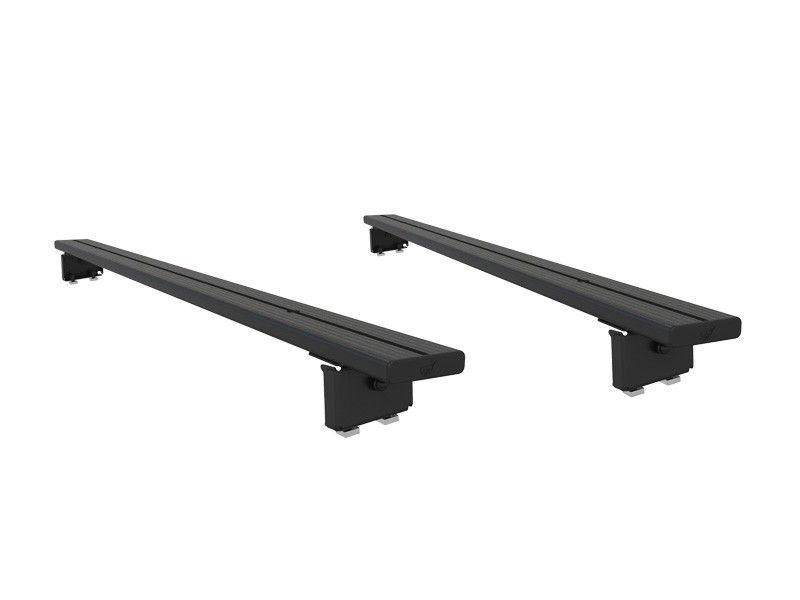

Ford/Mazda T6/T7 (2012-2022) Load Bar Kit / Track AND Feet - by Front Runner

Black Tie Down Rings / Eye Nuts - by Front Runner

• The must have item to experience the full potential of the Front Runner Rack.
• These easy to use tie down rings quickly and easily mount to a Front Runner Rack via the t-slots on the top, the bottom, and the side rails of the rack.
• No tools required. Just hand tighten.
• Slide these around anywhere on the rack for an endless supply of tie down points.
• Perfect for use with the Front Runner Stratchit or any style tie down strap.
• Mount unusual loads securely to a Rack for hassle free/rattle free travels where a specific mounting accessory is not available.
• Of all the accessories for the Front Runner Slimline II Roof Rack this is THE must have.
• Sold in pairs.

Consists of:

• M8 Eye Nut x 2 M8 Nylon Washer x 2
• M8 Hex Bolt x 2

Specifications:

• Materials used: Made from galvanized steel supplied with bolt& plastic washer
• Product Dimensions: L 90mm (3.54") x W 40mm (1.57") x H 20mm (0.78")
• Weight: 0.12kg (0.26lbs)

Ratcheting Spade/Shovel & Paddle Mount - by Front Runner

• Mount a spade/shovel or similar gear up and out of the way on the side of a Front Runner Roof Rack.
• These brackets install along the Slimline II Roof Rack Tray side rails in minutes. No drilling required.
• Can accommodate most shovel sizes and is adjustable to fit gear 1/2" (12mm) to 2" (50mm) in diameter

Consists of:

• 2x Spade/Shovel Bracket
• 2x Ratchet buckle
• 2x Ladder Strap
• 1x Nut and bolt kit

Specifications:

• Materials used: 1.8mm (0.07") Black powder coated 3CR12 stainless steel.
• Product Dimensions: L 120mm (4.72") x W 90mm (3.54") x H 65mm (2.55")
• Weight : 0.6kg (1.322lbs)

Recovery Device & Gear Holding Side Brackets - by Front Runner

• These off-road tough brackets securely mount MAXTRAX, TRED Pro and other similar hole spacing recovery devices to the side profile of a Front Runner Slimline II Rack.
• Also use for mounting the Pro Ski, Snowboard & Fishing Rod Carrier .
• Adjustable in height and angle to compliment various vehicle profiles.
• Includes 2 types of bolts for holding either 1 or 2 pairs of MAXTRAX/TRED Pro.
• Built to mount to the side profiles of a Slimline II roof rack but are also compatible with the original Slimline rack.
• Finished with the same durable, weather resistant black powder coating as the Slimline II Rack.
• The included bolts can be substituted with the MAXTRAX Mounting Pin Set (sold separately) to lock MAXTRAX in place.

NOTE: Pro Ski, Snowboard & Fishing Rod Carrier not included.

Consists of:

• 2 x Adjustable Brackets
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used:
  • Black powder coated 3CR12 stainless steel
  • Stainless steel fasteners
• Product Dimensions: 313mm (12.3") L x 65mm (2.6") W x 178mm (7") H (Per Single Bracket)
• Between Stud Mounting Dimensions:
  • 230mm Inner hole centers
  • 270mm Outer hole centers
• Weight: 4.4kg (9.7lbs) (Per Pair)

Adjustable Rack Cargo Chocks - by Front Runner

• These chocks wedge against and secure the corners or sides of your gear to prevent movement and rattling.
• Adjustable along the slats to resize and fit a variety of gear like the Wolf Pack, Cub Pack, Typhoon Bag, Expander Camping Chair, and water tanks.
• Secures to your rack using Eye Nuts and supplied hardware.
• Eye Nuts create lashing points to secure cargo using Stratchits*

*Note: Purchase Wolf Packs, Cub Packs, Stratchits etc. separately.

Consists of:

• 4 x Rack Cargo Chocks
• 4 x Eye Nuts
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used: Black powder coated 3CR12 stainless steel
• Product Dimensions: 100mm (3.9") L x 82mm (3.2") W x 42mm (1.7") H (Per Bracket)
• Weight: 1.04kg (Per Set of 4)

Gas/Propane Bottle Holder - by Front Runner

• Perfect for portable cooking stoves, geyser/water heaters, heaters and lamps.
• Rack brackets securely hold your gas/propane bottle on your rack.
• 2 latches feature a safety catch to prevent any movement and are lockable with a for added safety.
• The removable collar is placed over the cylinder valve collar and latched on the rack brackets.
• The collar rods are adjustable to suit various bottle heights.

Consists of:

• 1 x Pair of Rack Brackets
• 1 x LPG Cylinder Bracket
• Installation Hardware
• Fitting Instruction

Materials used:

• Black powder coated 3CR12 stainless steel
• Stainless steel safety latches

Special Notes:

• Cylinder dimension guidelines:
• Max Cylinder Height: 12.6" (320mm)
• Max Cylinder Diameter: 11" (280mm)
• Max Top Collar Diameter: 6.7" (170mm)
• Max Weight: 22lb (10kg)

Single Jerry Can Holder - by Front Runner

• The adjustable stainless steel latch with safety catch holds your Jerry Can firmly in place over a lifetime of off-road abuse.
• For use with 20l / 5.3 gallon NATO/Wedco style military cans.
• This strap covers the Jerry can cap. Add your own padlock or Rack Accessory Lock / Small and you'll never have to worry about stolen fuel while on the road.
• Made of black powder coated stainless steel and designed to easily bolt to the Front Runner Roof Racks using the flat slotted slats in the rack.

Note: Not suitable for Scepter style containers.

Consists of:

• 1 x Strap Assembly
• 1 x Base
• 1 x Catch
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used: Black powder coated 3CR12 stainless steel
• Product Dimensions: 513mm (20.2") L x 165mm (6.5") W x 370mm (14.6") H
• Weight: 2.4kg (5.3lbs)

Rack Accessory Lock / Small - by Front Runner

• No keys needed.
• Easily set your own combo.
• Locks Front Runner Rack accessories for holding gear like Tables, Water Tanks, Hi-Lift Jacks, Axes, Wolf Packs and more.
• Works with Hi-Lift Jack Bracket, Water Tank Locking Tap, Axe Bracket, Cub Pack Rack Bracket , Wolf Pack Rack Bracket, Lockable Strap For Water Cap / 42L.
• Stainless steel rubber coated cable and corrosion resistant tumbler for years of worry-free security.

*Note: Rack accessories are sold separately.

Consists of: 1 x 3-Digit Combination Cable Lock

Specifications:

• Materials used:
  • Casing: Zinc Alloy
  • Inner Core: Zinc Alloy
  • Cable: Stainless steel wire with PVC coating
• Product Dimensions: 87mm (3.4") L x 30mm (1.2") W x 39mm (1.5") H
• Cable Length: 100mm (3.9")
• Cable Width: 2.8mm (0.1")
• Weight: 30g (17oz)

Spare Wheel Clamp / Low Profile - by Front Runner

This Front Runner Spare Wheel Clamp is designed to hold your spare wheel to a Front Runner Roof Rack or Front Runner Load Bar set.

Mounts across 2 slats and can handle mostly any size wheel.

Specifically mounts a raised dish rim with the hollow side facing up.

Tightens down to the back side of the wheel to protect your wheel finish, and can accommodate even the deepest offsets.

Consists of:

• 1x Rack Bracket
• 1x Clamp Bracket
• 1x Mounting Hardware

Specifications:

• Materials used: Black powder-coated 3CR12 stainless steel
• Product Dimensions: 263mm (10.4") L x 55mm (2.2") W x 242mm (9.5") H
• Weight: 1.5kg (3.3lbs)

Pro Stainless Steel Camp Table Kit - by Front Runner

A complete camp table and table storing solution. Effortlessly take a previously cumbersome luxury item on any vehicle based adventure.

Pro Stainless Steel Camp Table - by Front Runner:

• The extruded aluminum frame nests into the storage brackets and is secured with the table latch eliminating any excessive noise.
• A durable stainless steel table top ensures a hygienic surface for the preparation and serving of meals.
• The table frame and legs are powder-coated black with the same durable, corrosion resistant coating as the Front Runner Slimline II Roof Rack.
• The Legs easily unfold and with the open-and-lock mechanism are kept firmly in place.
• Rounded glass filled nylon corners prevent any accidental knicks or damage and provide a grip point when removing the table from under your roof rack.

Under-Rack Table Brackets - by Front Runner:

• A no-noise and secure storage solution designed specifically for the Pro Stainless Steel Camp Table.
• The brackets can be mounted both parallel and perpendicular to the roof rack's slats giving the options to access to the table from the side or rear of the vehicle.
• Easy installation.
• Made of 3CR12 stainless steel and is black powder-coated in the same durable and corrosion resistant coating as the Front Runner Slimline II roof rack.

Under-Rack Table Slides Latch - by Front Runner:

• Keeps the Pro Stainless Steel Camp Table securely stored in the Under-Rack Table Brackets - by Front Runner.
• Secured to the top of the Slimline II roof rack using the T-slot and clamps over the lip of the table to keep it in place.
• A rubber insert prevents rattling and damage to the table.
• Spring loaded for ease of use.
• Lockable for added security.
• Made of 3CR12 stainless steel and is black powder-coated in the same durable and corrosion resistant coating as the Front Runner Slimline II roof rack.

NOTE: A min clearance of 65mm (2.5") between the underside of the rack and the crown of the roof is required for fitment of a Front Runner Table Kit.

Consists of:

• 1 x Table
• 1 x Storage Slides
• 1 x Latch

Table:

• Materials used: Black powder coated Aluminium, 3CR12 1.2mm Stainless Steel
• Product Dimensions:
  • 750mm (29.5") W x 1130mm (44.5") L x 32mm (1.3") H
  • Height when opened: 730mm (28.7")
• Weight:  11.82kg (26.1lbs)

Table Slide:

• Materials used: Black powder coated 3CR12 Stainless Steel
• Product Dimensions: 881mm (34.7") L x 187mm (7.4") W x 46mm (1.8") H
• Weight: 2.4kg (5.3lbs)

Table Latch:

• Materials used:
  • Black powder coated 3CR12 Stainless Steel
  • PVC Grommet
• Product Dimensions: 91mm (3.6") L x 51.7mm (2") W x 47mm (1.9") H
• Weight: 191g (6.7oz)
• Full Kit Dimensions: 1130mm (44.5") L x 775mm (30.5") W x 55mm (2.2") H
• Full Kit Weight: 15.2kg (33.5lbs)

TABLE CARE:

• Keep your table clean and sparkling with these easy care instructions.
• Add a small amount of dish soap to a damp soft cloth.
• Wipe the table along the grain of your tabletop.
• Dry excess moisture with a dry towel.
• Quickly add polish by dabbing on a small amount of mineral or
• baby oil, wiping with the grain of the stainless steel.

Tap Extension Bracket - by Front Runner

• Installs to the side profile of your Slimline II roof rack.
• Swings out 90 degrees from the side of the rack, allowing your water tap to clear the side of your vehicle.
• The spring pin locks the extension bracket in a closed or opened position.
• Features a shower head holder.
• Used best with Hose Kit For Tap Extension Bracket .

Consists of:

• 1 x Tap Extension Bracket
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used: Black powder coated 3CR12 stainless steel
• Product Dimensions: 315mm (12.4") L x 187mm (7.4") W x 73mm (2.9") H
• Weight: 1.3kg (2.9lbs)

Stratchits - by Front Runner

Cinch down loads simply and effectively so you don't have to worry about gear rattling loose on bumpy roads.

• Adjustable from 22” (560mm) to 63” (1524mm) and with an additional 8” (203mm) when fully stretched.
• Won’t damage your expensive gear like surfboards through over tightening.
• Stratchits absorb tension like a stretchy ratchet strap.
• Quick and efficient. Simply secure the ends and hand tighten the strap.
• Fastens to, and around, just about anything.
• Perfect for Front Runner Racks and accessories, but work with all roof rack systems.
• Many uses! Secure: Wolf Pack, Cub Pack and other cases (Pelican, Zargas, Alu-box, etc.) to any roof rack.
• Secure: Surfboards, SUP, bicycles, firewood, chairs, etc.
• Keep your rack clean and organized with the cinching hook and loop strap that neatly stows away excess strap length.
• Sold in pairs.

HOW TO USE:
Hook to the Front Runner Roof Rack Tie Down Ring or loop around the slats or side profiles and fasten the Stratchit to itself.

You can even remove the carabiner and loop the Stratchit through itself - to fasten around any roof rack rail, railing, pole, bumper, tire carrier.... etc.

WARNINGS:

• Please read and follow all these warnings carefully -- failure to do so could result in cargo damage and could cause injury.
• Do not over tighten. Use only hand leverage.
• Never stand in the direct path of the Stratchit when tensioning to prevent the risk of injury should the strap become detached.
• Loads settle. Check Stratchit after first 10 miles of driving and each 50 miles thereafter.
• User to evaluate working load and requirements. DO NOT use to support human weight under any circumstance.
• Check the Stratchit regularly for signs of deterioration or damage.
• To ensure longevity, please remove the Stratchit from the sun and weather elements when not in use.
• Make sure that the points of attachment to the vehicle or trailer are of sufficient strength to withstand the maximum loading that will be produced during use.
• Take additional care if securing large objects that may be subject to aerodynamic lifting forces caused by bumps. Always use the appropriate number of straps and drive at reduced speeds to minimize the effects of these forces.

Specifications:

• Sold in PAIRS
• Adjustable from 22" (560mm) to 63" (1524mm) from the hook end of the carabiners. With up to an additional 8” of length when stretched.
• Working Load Rating 220 lbs (100kg)

Spare Tire Mount Braai/BBQ Grate - by Front Runner

This ingenious, stainless steel cooking grate, stores over your spare wheel and takes up virtually no space.

• Laser cut 3CR12 stainless steel grill on aluminum legs.
• Grill and griddle sections for campfire cooking options.
• Hooks over a spare wheel (secure with Spare Wheel Step, Strap Ratchet 4M Endless or wheel cover - not included).
• Fits 29” to 35” tyres (740mm to 890mm).

Please Note: This Spare Tire Mount Braai/BBQ Grate is designed to be used for cooking purposes over coals and not used over high flames.

Specifications:

• Material used:
  • Grill: Laser-cut 3CR12 stainless steel
  • Legs and spacers: Die Cast Aluminium
• Overall Set-up Dimensions: 210mm (8.5") H x 790mm (31.1") to 950mm (37.4") in Diameter
• Grill top Diameter / Cooking Surface: 600mm (23.6") Diameter
• Fits: 29" to 35" tyres
• Weight: 4.5kg (9.9lbs)
