Giantz 12V 75Ah AGM Deep Cycle Battery with Battery Box, Max 1400 Cycles
SKU: BAT-DX-C-75 Learn More»
Description
Giantz 12V 75Ah AGM Deep Cycle Battery with Battery Box, Max 1400 Cycles
From a powerful battery to a formidable power station. That is what our GIANTZ Deep Cycle Battery and Battery Box combo can do. On its own, the 75Ah 12V battery features an incredible cycle life of up to 1400 cycles. What you get is a longer, consistent and more drawn out charge all the time. And with its advanced AGM technology, the battery enables better electrolyte absorption, cyclic stability and frequent charging without affecting performance. The bolt-down terminals also allow for a more reliable experience, and not least, the high oxygen-recombination efficiency results in superior deep discharge recovery. And not to be outdone, the battery box easily fits the battery and together, they can power up a host of 12V devices including camping lights and portable fridges with its cigarette lighter socket as well as mobile phones and tablets with the two USB ports. The box itself can be charged using solar panels or any power source with its quick-connect Anderson plugs. Better still, the box comes pre-wired, so all you need to do is connect to the deep cycle battery terminals and it is good to go. More power to you. That is definitely true with the GIANTZ deep cycle battery and battery box.
Features:
- 75Ah battery:
- Greater cycle life
- Max. cycle life of 1400 cycles
- Industry-leading build life
- Higher sulfation resistance
- Longer storage life
- Maintenance-free
- Superior deep discharge recovery
- Better low temperature performance
- High oxygen-recombination efficiency

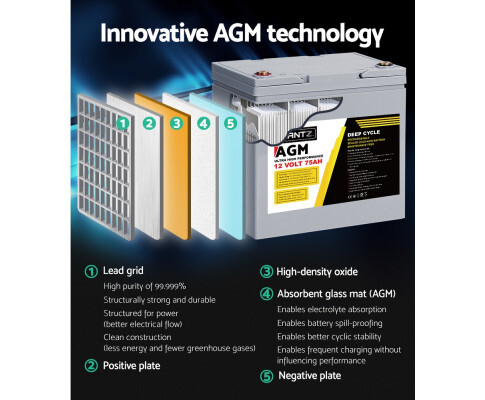

- Advanced AGM technology
- Spill-proof, leak-proof and non-gassing
- Bolt-down terminals
- Convenient carry handle

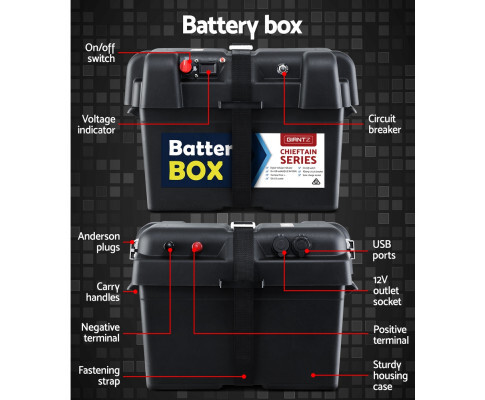

- Battery box:
- Protective and portable
- User-friendly
- Digital voltage indicator
- 10A resettable circuit breaker
- Two USB ports
- Cigarette lighter socket
- Anderson plugs
- Positive and negative terminals
- Sturdy housing
- Heavy-duty carry handles
- Tie down strap
Specifications:

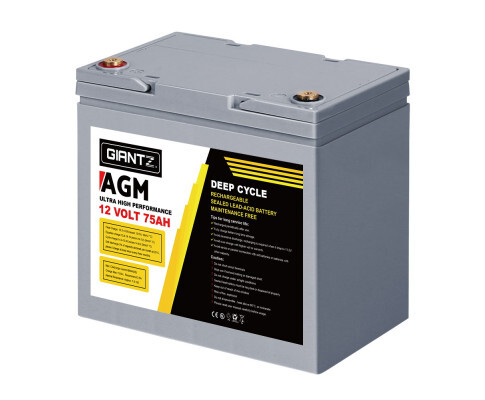

- 75Ah battery:

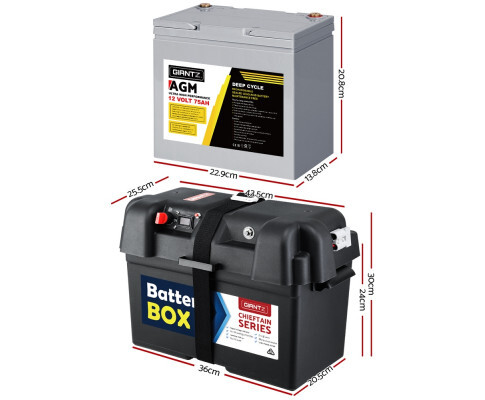

- Overall dimensions: 22.9cm x 13.8cm x 20.8cm
- Approx. weight: 15.5kg
- Container material: ABS
- Terminals: Bolt-down
- Nominal voltage: 12V
- Rated capacity (10-hour rate): 75Ah

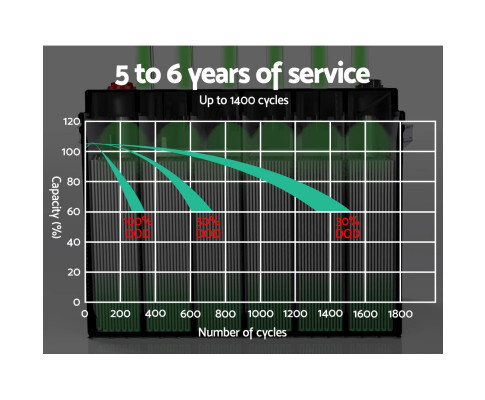

- Maximum cycle lIfe: 1400 cycles (@30% DOD)
- Internal resistance: Approx. 7.6mΩ
- Maximum discharge current: 660A (5s)
- Maximum charge current: 13.8A
- Operating temperature ranges:
- Discharge: -15°C to 50°C
- Charge: -20°C to 50°C
- Storage: -20°C to 50°C
- Capacity affected by temperature: 40°C = 102% | 25°C = 100% | 0°C = 85% | -15°C = 65%
- Float charge: 13.5 to 13.8V
- Equalise charge: 13.8 to 14.1V
- Cycle charge: 14.4 to 15.0V
- Self-discharge 3% of capacity declined per month at 25℃
- Battery box:
- Overall dimensions: 43.5cm x 25.5cm x 30cm
- Inner dimensions: 36cm x 20.5cm x 24cm
Package Contents:
- 1 x Deep cycle battery
- 1 x Battery box
- 1 x User instructions
Specifications
SKU BAT-DX-C-75
Brand GIANTZ
GTIN 9355720024203
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 75
Battery Length (mm) 229
Battery Width (mm) 138
Battery Height (mm) 208
Battery Weight (kg) 15.5
Dimensions (lxwxh) 435 x 255 x 30mm
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What size battery do I need for my caravan?
Great question! Your deep cycle battery for your caravan will be a minimum of 100 Amp Hours (Ah).
The average size for a Caravan is 200Ah. Usually, 2 x 100Ah connected in Parallel. However, if your budget allows to upgrade to a Lithium battery you can get a lot more power for the size of the battery. For example, a 200Ah lithium battery can be equivalent to up to 360 Ah of an AGM battery.
To work out exactly what size you require you need to first look at the load you are planning on drawing. The load should be calculated in Amps per hour, or Amp Hours (Ah). Batteries are rated in Amp Hours (Ah) as well.
So, if you are drawing a 50Ah per day, a 100Ah AGM battery can provide power for about 1 day as you do not want to draw more than 50% from your battery. However, it is not always easy to find what each appliance draws. Some popular examples are following:
- 150L 12V Fridge = 2.5 Amps per hour (2.5Ah) - runs for 24 hours a day
- 12V Water Pump = 3.5 Amps per hour (3.5Ah) - only runs for 1 hour a day
- Phone Charger = 0.5 Amps per hour (0.5Ah) - Maybe 4 hours per day
- 12V Fan = 4 Amps per hour (4Ah) - Maybe 4 hours per day
Then you will need to factor in how much charge you are putting in Daily. The charge comes in the way of Solar and in car charging via a DC to DC charger.
Ideally you want enough charge input per day to cover the load drawn, then enough battery storage to last 2 - 3 days without charge.
-
What is best - AGM or lithium battery?
The answer is simple. Lithium is a better product than AGM.
Lithium is lighter, more compact, and powerful, it will also last longer.
However, a lithium battery will cost more, because it is a highly sort after product. Almost everything that has a battery nowadays will have a lithium battery. Mobile phone, Electric Car, Electric Bike and Skateboard just to name a few.
There are situations where you can get away with an AGM battery. If you only need about 100ah (most 4 x 4 set ups), you can purchase 1 x 100ah battery and a battery box and away you go.
However, once you start getting into the larger amperages (200+) it really makes more sense to turn to lithium.
-
How do I charge my caravan battery?
There are three ways to charge your caravan Battery. Either:
- AC to DC - This is using a traditional battery charger that plugs into mains power.
- DC to DC - This is a battery charger connected between the start battery of your tow vehicle and the Caravan Battery. This will charge the battery whilst driving.
- Solar - Solar panels on your roof can be connected to a solar charge controller then to your Caravan Battery.
-
How much solar do I need to keep my caravan battery charged?
Ideally, you want use as much solar as you can fit on the roof. Extra portable solar panels are also good idea if you want to park your van in the shade and run a portable panel from a lead in the sun - please see our solar range here.
Solar is cheap relative to the rest of your system, and it provides so much of your power when you are camping off grid.
However, the solar required depends on the load. Please feel free to contact our team for any specific questions on your battery - 1800 787 278!
