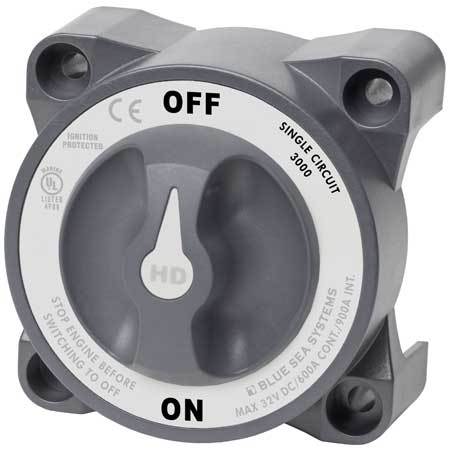

Blue Sea HD-Series Heavy Duty On-Off Battery Switch
SKU: BS-3000B Learn More»![](/assets/thumbL/BS-3000B.jpg?20210309063940)
Description
HD-Series Heavy Duty On-Off Battery Switch
Switches a single battery to a single load group.
HD-Series Heavy Duty On-Off Battery Switch
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm²) battery cables
Specifications
- Switch Type: Single Circuit ON-OFF
- Color: Grey
- Switch Positions: 2
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 32V DC
- Terminal Stud Torque: 220 in-lb (24.86 Nm)
- Continuous Rating: 600A
- Intermittent Rating: 900A (5 min)
- Cranking Rating 10 Sec: 2750A
- Cranking Rating 1 min: 1325A
- Battery Inputs: 1
- Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
- Cable Quantity to Meet Ratings: Two Cables
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Mounting Holes: Accept 1/4″ (M6) Screw
- Terminal Stud Size: 1/2″ – 16 (M12)
- Weight: 0.59 kg
Specifications
SKU BS-3000B
Brand Blue Sea
Product Category Electrical Accessories
NOTE: see full product specifications & further product info in the Description section on this page.
