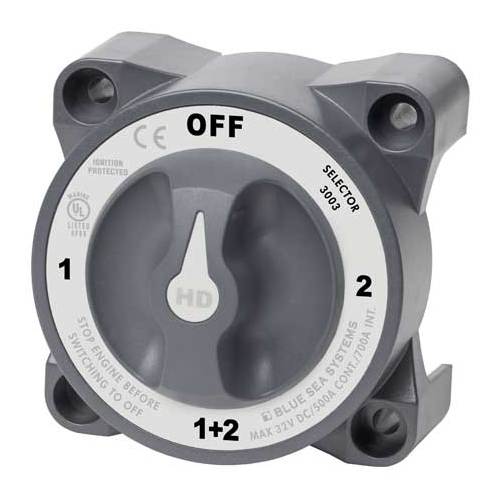

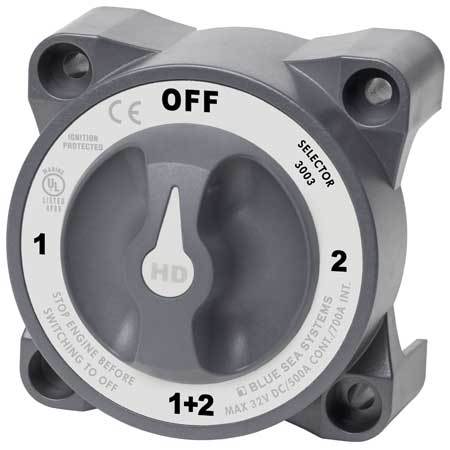

Blue Sea HD-Series Heavy Duty Selector Battery Switch with AFD
SKU: BS-3003B Learn More»
Description
HD-Series Heavy Duty Selector Battery Switch with AFD
Switches isolated battery banks to all loads or combines battery banks to all loads.
HD-Series Heavy Duty Selector Battery Switch with AFD
- Includes AFD (Alternator Field Disconnect)
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm²) battery cables
Specifications
- Switch Type: Single Circuit ON-OFF
- Color: Grey
- Switch Positions: 2
- Battery Combine: No
- Alternator Field Disconnect: Yes
- Maximum Voltage: 32V DC
- Terminal Stud Torque: 220 in-lb (24.86 Nm)
- Continuous Rating: 600A
- Intermittent Rating: 900A (5 min)
- Cranking Rating 10 Sec: 2750A
- Cranking Rating 1 min: 1325A
- Battery Inputs: 1
- Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
- Cable Quantity to Meet Ratings: Two Cables
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Mounting Holes: Accept 1/4″ (M6) Screw
- Terminal Stud Size: 1/2″ – 16 (M12)
- Weight: 0.59 kg
Show More
Specifications
SKU BS-3003B
Brand Blue Sea
GTIN 9342616006139
Product Category Electrical Accessories
NOTE: see full product specifications & further product info in the Description section on this page.
Reviews
Be The First To Review This Product!
Help other CARAVANRVCAMPING users shop smarter by writing reviews for products you have purchased.
Warranty
Warranty Period: 5 Years
Warranty Details: Please CLICK HERE for Warranty Information on this product
