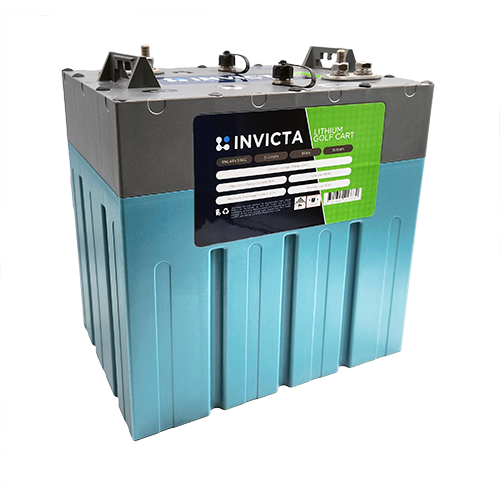

Invicta 48V 30Ah Lithium Golf Cart Battery

Description

Invicta 48V 30Ah Lithium Golf Cart Battery

Remove your old lead batteries, upgrade to an Invicta 48V Lithium Golf Cart system, and start enjoying the benefits of lithium today. Invicta Lithium utilises inherently safe LiFePO4 cells, BMS protections and provides quicker charging time, faster acceleration, easier braking, and overall more efficiency.

No more water kits are needed! Invicta Lithium requires no maintenance and comes with a 5-year full replacement warranty. Simply charge and go. And with up to 36 holes off a single charge, you’ll be confident you’ll get around the course, even if your handicap isn’t great.

Easy To Install

Invicta Lithium Golf Cart Batteries are available with a variety of conversion kits for your cart, this includes Club Car, Yamaha, E-Z-GO, ECAR golf carts, and many more. Simply remove your old lead batteries and replace them with an Invicta Lithium Golf Cart system using the supplied instructions. Packages can also include an Invicta Lithium Charger that matches your battery’s voltage to ensure your batteries are operating at their peak.

Also available is a monitoring kit, wired or wireless. You can use the free Invicta Bluetooth App or wired loom and gauge that connects via a CAN bus port for accurate monitoring of the battery’s state of charge and diagnostics.

Available accessories (sold separately or as a package)

• Matching Invicta Lithium Charger
• Conversion plug for your golf cart
• Monitoring device (wired or wireless)

** For Club Car models older than 2014, you will need to complete a bypass of the on-board computer (OBC)

Integrated Protections

Integrated into the Invicta Lithium Golf Cart battery is a number of protections to ensure your battery is running smoothly and safely. This includes a Battery Management System with automatic over charge/discharge protection, over temperature protection and short circuit protection. An isolation switch which is useful for when you plan to store you cart long periods of time. This switch ensures self-discharge is kept to a minimum, protecting the battery from excessive over-discharge which can cause damage. CAN bus linking for safe management when in a parallel configuration and an IP67 rating that protects the battery from water and dust ingress.

Features:

• Easy To Follow Instructions
• Conversion Kits For Popular Models
• Bluetooth or Wired Monitoring
• IP67 Rated
• Safe LiFePO4 Technology
• BMS Protections
• Improved Cart Efficiency
• Faster Acceleration
• Faster Recharge
• Maintenance Free
• 5-year Full Replacement Warranty
• Get Up To 36 Holes From One Charge*
• CAN Bus Supported
• Isolation Switch To Limit Self-Discharge
• Safety Certified

Specifications:

• Rated voltage: 51.2V
• Rated capacity: 30AH
• Communication: CAN/RS485
• Standard Charging voltage: 55.2V~57.6V
• Dimensions:  260 x 180 x 272mm
• Weight: 15.5KG
• Max continuous charging current: 30A
• Working temperature Charger ：0℃-45℃
• Standard charging current 10A Discharge：-20℃-65℃
• Maximum continuous discharge current: 60A
• Short circuit protection: 500A/366ms@close battery
• Peak discharge current / time1: 65A/30S
• Peak discharge current / time2: 100A/10S
• Self discharge rate:<3%/month
• Cycle life: 6000times@80%DOD 25℃
• Discharge cut-off voltage: 44.8V
• Shell material ABS+PC /UL94-V0
• IP Grade: IP67
• Pack certification: UL2271/CE/UN38.3/Class 9
• Series and parallel connection: Max.10pcs battery parallel , series is not allowed.
• Cell certification: UL1642/UL2580/UN38.3
