Invicta Touchscreen Xero Battery Monitor
SKU: SNLXMTSOC Learn More»
Description

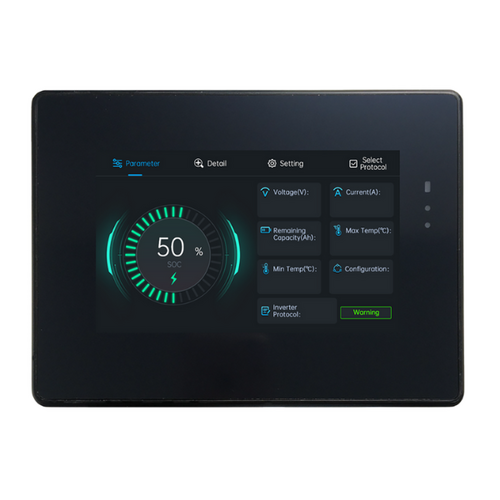

Invicta Touchscreen Xero Battery Monitor
Invicta Interface is a specialised indicating instrument designed for use with Invicta Xero batteries. Based on RS485 communication, it provides detailed information on battery status, including voltage, current, remaining capacity, temperature, and configuration settings. Unlike traditional setups that require a connection to the diverter, Invicta Interface can be directly linked to the battery using a simple wiring harness. This streamlined connection method not only reduces the cost of the wiring harness but also significantly speeds up the installation process. This device can also help end-users comply with lithium marine standards.
Features:
- Wired touchscreen interface for Invicta Xero batteries (SNLX)
- CAN/RS485/RS232 communication
- IP65 water and dust-resistant front with rubber gasket separator
- Directly connectable to Invicta Xero batteries or via the Invicta I-Hub.
- Features a 5.0-inch IPS LCD screen with 800×480 pixel resolution and 262K true-colour display.
- Equipped with a high-reliability capacitive touch panel.
- Includes a built-in speaker, LED lamp, and photosensitive sensor.
- Housed in a protective shell with anti-UV properties and conformal coating.
- Emits an audible alarm when specified alarm, protection, or low SOC conditions are detected.
- Helps You Comply With Lithium Marine Standards AS/NZS 3004.2 (2014)
Specifications
SKU SNLXMTSOC
Brand Invicta
Product Category Battery Monitors
Operating Temperature -20 - 70°C
Screen Size (inch) 5
Resolution 800 x 480
Internal Dimensions 106 x 148 x 16.9 (L x W x D)
External Dimensions 118 x 160 x 6.6 (L x W x D)
Rated Power <5W
Weight (kg) 0.34
Storage Temperature -30 - 80°C
Operating Humidity 10% - 90%RH
Rated input voltage 9-60V
NOTE: see full product specifications & further product info in the Description section on this page.
