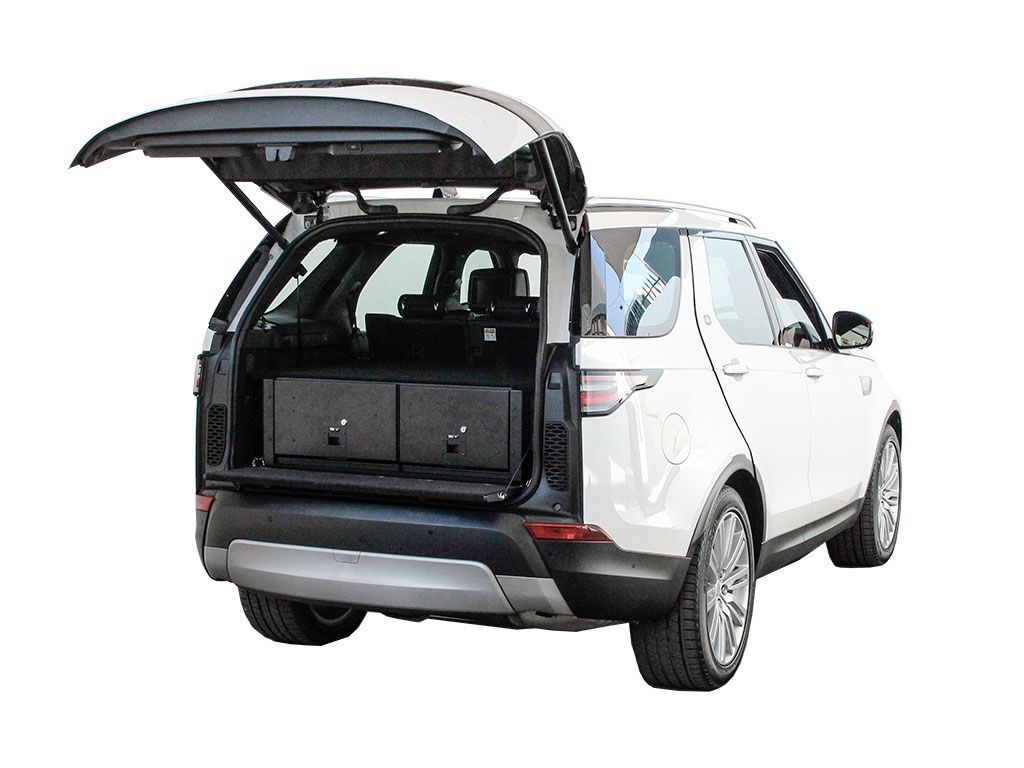

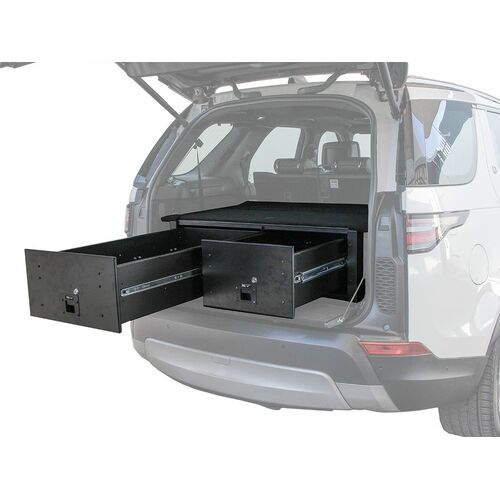

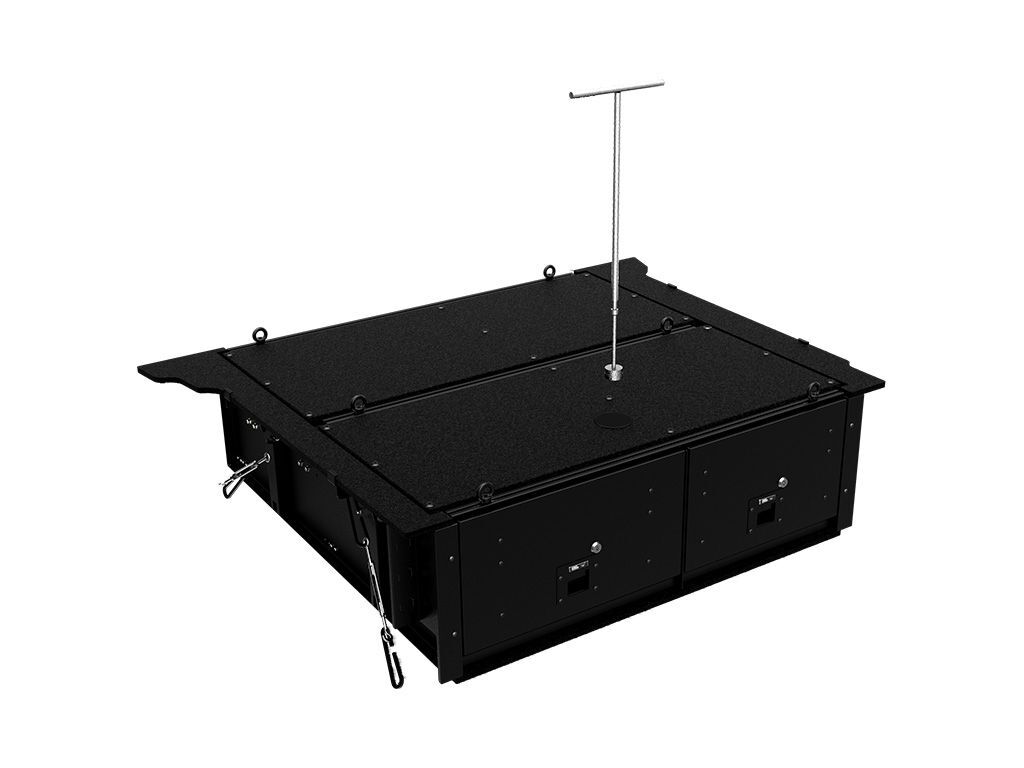

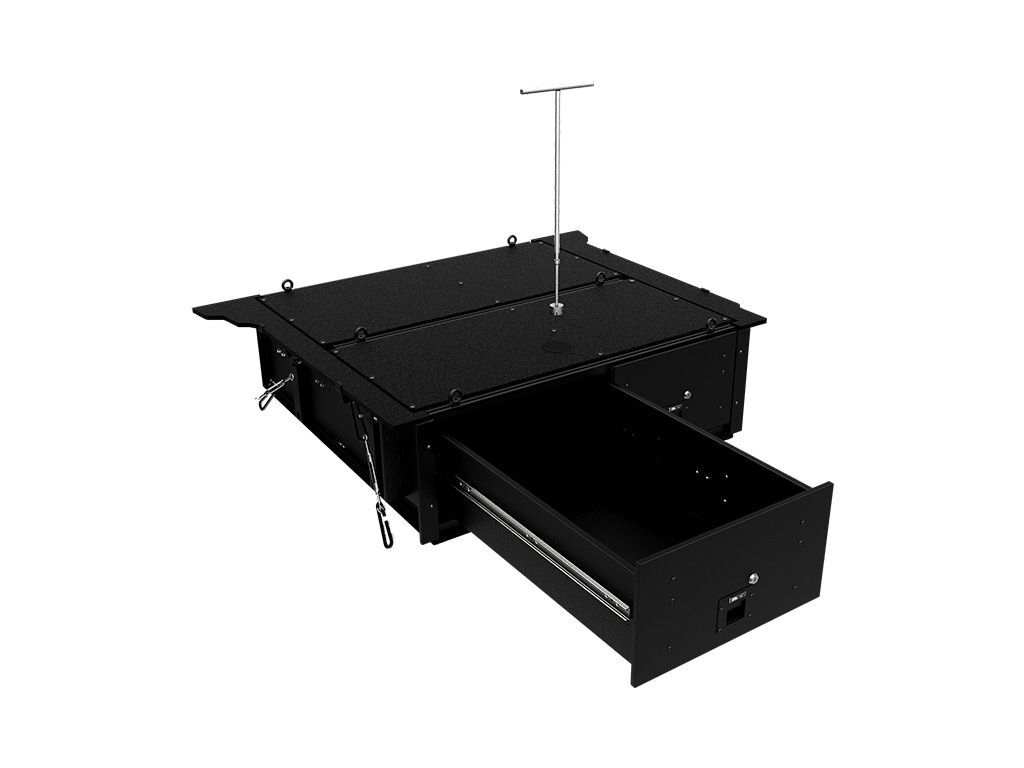

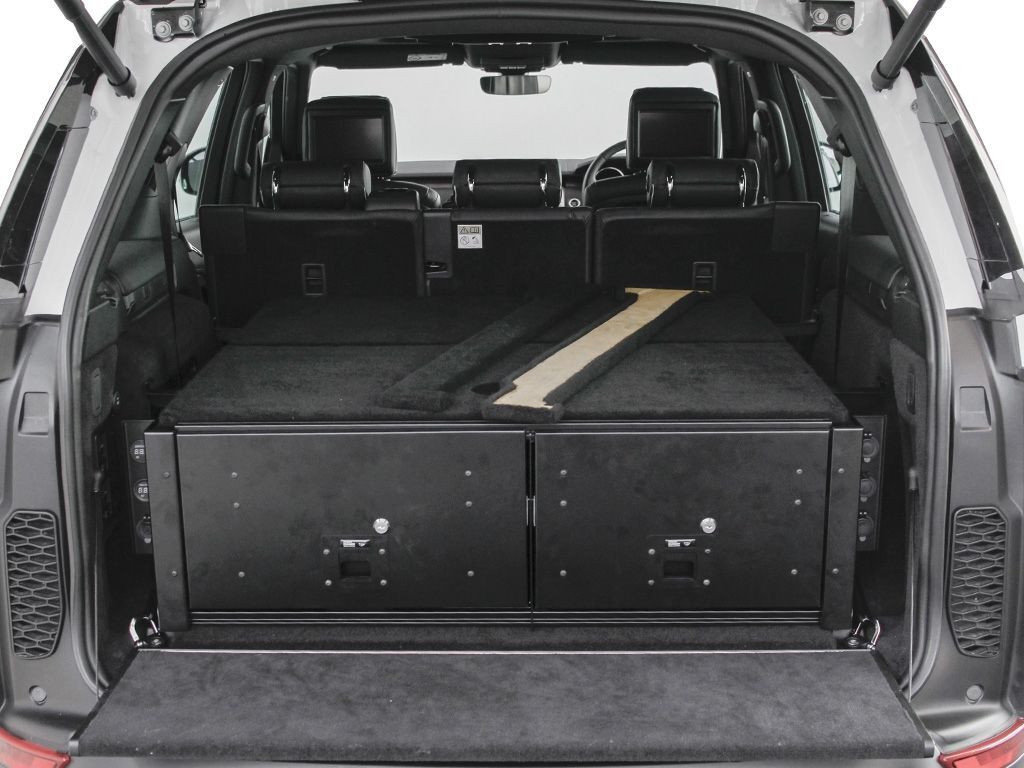

Land Rover All-New Discovery (2017-Current) Drawer Kit - by Front Runner

Stratchits - by Front Runner

Cinch down loads simply and effectively so you don't have to worry about gear rattling loose on bumpy roads.

• Adjustable from 22” (560mm) to 63” (1524mm) and with an additional 8” (203mm) when fully stretched.
• Won’t damage your expensive gear like surfboards through over tightening.
• Stratchits absorb tension like a stretchy ratchet strap.
• Quick and efficient. Simply secure the ends and hand tighten the strap.
• Fastens to, and around, just about anything.
• Perfect for Front Runner Racks and accessories, but work with all roof rack systems.
• Many uses! Secure: Wolf Pack, Cub Pack and other cases (Pelican, Zargas, Alu-box, etc.) to any roof rack.
• Secure: Surfboards, SUP, bicycles, firewood, chairs, etc.
• Keep your rack clean and organized with the cinching hook and loop strap that neatly stows away excess strap length.
• Sold in pairs.

HOW TO USE:
Hook to the Front Runner Roof Rack Tie Down Ring or loop around the slats or side profiles and fasten the Stratchit to itself.

You can even remove the carabiner and loop the Stratchit through itself - to fasten around any roof rack rail, railing, pole, bumper, tire carrier.... etc.

WARNINGS:

• Please read and follow all these warnings carefully -- failure to do so could result in cargo damage and could cause injury.
• Do not over tighten. Use only hand leverage.
• Never stand in the direct path of the Stratchit when tensioning to prevent the risk of injury should the strap become detached.
• Loads settle. Check Stratchit after first 10 miles of driving and each 50 miles thereafter.
• User to evaluate working load and requirements. DO NOT use to support human weight under any circumstance.
• Check the Stratchit regularly for signs of deterioration or damage.
• To ensure longevity, please remove the Stratchit from the sun and weather elements when not in use.
• Make sure that the points of attachment to the vehicle or trailer are of sufficient strength to withstand the maximum loading that will be produced during use.
• Take additional care if securing large objects that may be subject to aerodynamic lifting forces caused by bumps. Always use the appropriate number of straps and drive at reduced speeds to minimize the effects of these forces.

Specifications:

• Sold in PAIRS
• Adjustable from 22" (560mm) to 63" (1524mm) from the hook end of the carabiners. With up to an additional 8” of length when stretched.
• Working Load Rating 220 lbs (100kg)

Cub Pack - by Front Runner

• These plastic compact sized storage boxes are easy to arrange in a cargo bed and vertical-sided to avoid wasted space.
• The nesting lids design allows the Front Runner Cub Packs to stack securely to each other.
• Made from black, high strength plastic.
• More compact than the Wolf Pack.
• Integrated grips for easy carrying.
• Versatile.
• Suitable for exterior storage. For even greater protection on your vehicle, store in a Transit Bag / Large .
• Use in conjunction with Stratchits as well as Black Tie Down Rings / Eye Nuts for a safe and secure roof rack storage solution.
• Front Runner storage systems are configured around the Wolf Pack and Cub Pack sizes to allow a comprehensive and practical storage solution.

Specifications:

• Materials used: Black high density polyethelene (HDPE) plastic
• Product Dimensions: L 440mm (17.3") x W 315mm (12.4") x H 210mm (8.3")
• Internal Dimensions: L 385mm (15.2") x W 270mm (10.6") x H 185mm (7.3")
• Weight: 2.04kg (3.52lbs)

Stainless Steel Water Tank for Ute Drawer System / 52 Litre - by Front Runner

Water Tank:

A 52L stainless steel water tank that fits behind the Front Runner Ute drawer system.

• This water tank is placed below the drawer deck to utilize the space between the back of the drawer and the vehicle.

• All piping and fittings are provided to plumb the tanks contents to the front of the drawer system for ease of use.

• Knocked out holes in the drawer's side panel plate accommodates the fittings and ensures that all the pipe work is neatly hidden.

• Additionally a 12 volt electric pump is included to increase the outlet pressure and flow rate.

Water Pump:

Features:

• Built-in pressure switch automatically starts and stops pump instantaneously when discharge valve opens and closes.

• Compact design and plug-in port fittings make installation easy.

• Can run dry without damage and handle liquids up to 54° C

• No metal contact with liquid being pumped.

• Ball bearing drive throughout pump and motor assures longer pump life.

• Excellent self-priming capability. Pump may be located above the liquid level.

• Powerful, permanent magnet motor with low current draw and long life brushes.

Specifications:

• Consists of: 1 x Stainless Steel Water Tank | 1 x Shut-off Valve | 1 x 12V Water Pump | Pipe Kit | Installation Hardware
• Water Tank: Materials used - 304 Stainless Steel
• Product Dimensions: 1065mm W x 230mm L x 285mm H
• Weight: 14.2kg
• Water Pump: Pump Specifications: 12 Volts. 12.5 Liters per minute 35psi
• Product Dimensions: 360mm L x 135mm W x 110mm H
• Weight: 2.13kg
• Approximate Total Product Weight: 16.33kg

Drawer Dividers - by Front Runner

Create partitions to further organize gear, tools, supplies and food with these adjustable drawer dividers.

• Sold in sets of 2.
• Can extend to fit specific drawer widths. (See below for further details.)
• Each drawer can fit a total of 3 to 4 dividers depending on base drawer unit model. (See below for further details.)
• Each drawer is designed with fixed mounting points for the Drawer Dividers.
• Each Drawer Divider is secured with supplied hardware to the sides of the drawers at fixed intervals (divider positions vary depending on drawer unit)
• Made from the same grade steel as all Front Runner Drawer Systems.
• Black powder coated with the same durable finish as the Front Runner Drawer Systems.
• Installation hardware and fitment guide included.

DRAWER FITMENT DETAILS:

** Vehicle Specific Drawer kits are comprised of a base drawer unit and a vehicle specific fitment kit. You can find your specific base drawer unit model number in the SPECS tab of the vehicle specific drawer kit product page.

Drawer model: SSDR002 Max 4 dividers per drawer; 222mm / 8.7" apart.

Drawer model: SSDR003 Max 3 dividers per drawer; 222mm / 8.7" apart.

Drawer model: SSDR005 Max 4 dividers per drawer; 260mm / 10.2" apart.

Drawer model: SSDR010 Max 4 dividers per drawer; 220mm / 8.7" apart.

Consists of:

• 2 x Drawer Dividers
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used: Black powder coated steel
• Closed Dimensions: 30mm L x 340mm W x 196mm H
• Open Dimensions: 30mm L x 450mm  W x 196mm H
• Weight: 1.9kg

Tie Down Rings / Eye Nuts For Drawer System - by Front Runner

Safely transport gear on top of Front Runner Drawer Systems that feature accessory channels. These handy Tie Down Rings / Eye Nuts slide and secure at any desired point along the channels.

• 2 Black Tie Down Rings / Eye Nuts secures additional gear on top of Front Runner Drawers that contain built-in accessory channels.
• Stud plates insert into the accessory channel to fix the Tie Down Ring into the desired position.
• Use Stratchits or other style straps to fasten your cargo on the drawer deck.
• Power coated black to complement the styling of Front Runner Drawer Systems.

Consists of:

• 2x Drawer tie-down rings

Specifications:

• Materials used:
  • Galvanised steel
• Product dimensions: L 50mm x W 20mm  x H 50mm
• Weight: 0.1kg
