Blue Sea m-Series Mini Dual Circuit Battery Switch – Red
SKU: BS-6010B Learn More»![](/assets/thumbL/BS-6010B.jpg?20210309063940)
Description

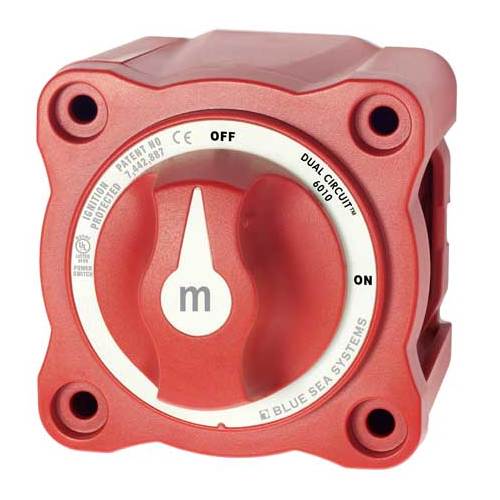

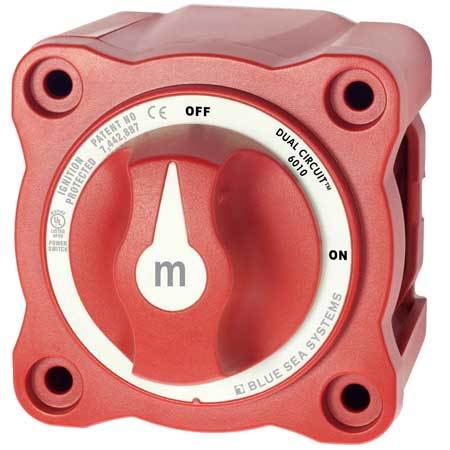

m-Series Mini Dual Circuit Battery Switch – Red
The Dual Circuit™ Battery Switch simplifies multi-bank battery switching with a single ON/OFF switch. It eliminates the confusion surrounding the traditional four-position selector battery switch. The Dual Circuit™ Battery Switch is available with a COMBINE BATTERIES position (Dual CircuitPlus™) and without (Dual Circuit™).
- Simultaneously switches two isolated battery banks.
Specifications
- Switch Type: Dual Circuit
- Color: Red
- Switch Positions: 2
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 32V DC
- Continuous Rating: 300A
- Intermittent Rating: 450A (5 min)
- Cranking Rating 10 Sec: 1000A
- Cranking Rating 1 min: 650A
- Battery Inputs: 2
- Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Mounting Holes: Accept #10 Screw
- Terminal Stud Size: 3/8″ – 16 (M12)
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
- Weight: 0.36 kg
Specifications
SKU BS-6010B
Brand Blue Sea
Product Category Electrical Accessories
NOTE: see full product specifications & further product info in the Description section on this page.
