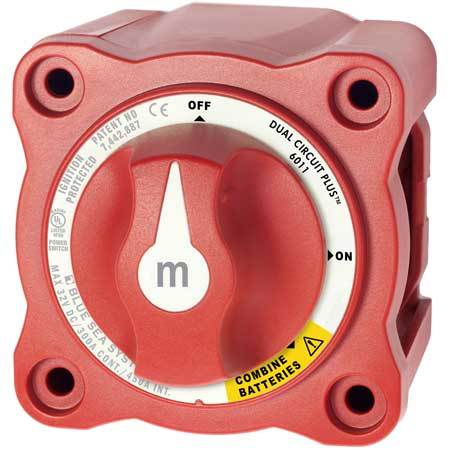

Blue Sea m-Series Mini Dual Circuit Plus™ Battery Switch – Red

SI-ACR automatically combines batteries during charging, isolates batteries when discharging and when starting engines. The Dual Circuit Plus™ Battery Switch simplifies the switching of two batteries to OFF or ON while still providing battery isolation between the engine and auxiliary battery. The Combine function can be used to parallel the batteries in the event of a low engine battery.

• Simultaneously switches two isolated battery banks or combines battery banks to all loads
• Make before break contact design allows switching between battery banks without power interruption

Specifications

• Switch Type: Dual Circuit Plus
• Color: Red
• Switch Positions: 3
• Battery Combine: Yes
• Alternator Field Disconnect: No
• Maximum Voltage: 32V DC
• Continuous Rating: 300A
• Intermittent Rating: 450A (5 min)
• Cranking Rating 10 Sec: 1000A
• Cranking Rating 1 min: 650A
• Battery Inputs: 2
• Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm²)
• Mounting Holes: Accept #10 Screw
• Terminal Stud Size: 3/8″ – 16 (M12)
• Terminal Stud Torque: 120 in-lb (13.56 Nm)
• Weight: 0.36 kg
