Blue Sea m-Series Mini On-Off Battery Switch with Key – Red
SKU: BS-6005B Learn More»
Description

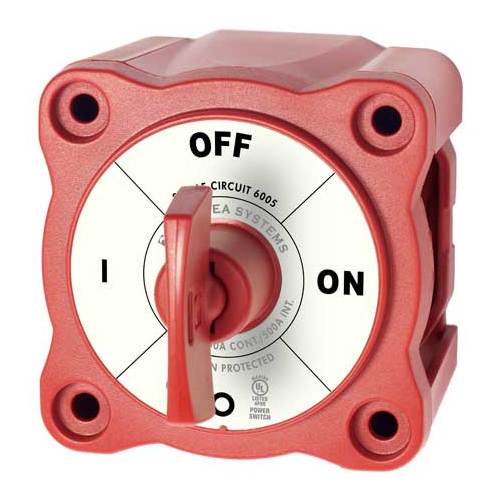

Blue Sea m-Series Mini On-Off Battery Switch with Key – Red
The mini battery switch that outperforms switches twice its size.
Blue Sea Systems' new m-Series Battery Switch, available in four practical models, is a great choice for most boaters. Its “mini” size, flexible mounting options, and current-carrying capacity make this battery switch a wise choice. The m-Series switch is versatile enough to meet just about any battery switch application for small and medium-size boats. It is very compact, measuring less than 3″ by 3″ (7.6cm X 7.6cm), making it ideal for installations where there are size and space constraints. In spite of its size, its current-carrying capacity exceeds many standard-size switches.
Switches a single battery to a single load group
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
Specifications
- Switch Type: Single Circuit ON-OFF
- Color: Red
- Switch Positions: 2
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 48V DC
- Continuous Rating: 300A
- Intermittent Rating: 500A (5 min)
- Cranking Rating 10 Sec: 1500A
- Cranking Rating 1 min: 775A
- Battery Inputs: 1
- Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Mounting Holes: Accept #10 Screw
- Terminal Stud Size: 3/8″ – 16 (M12)
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
- Weight: 0.28 kg
Specifications
SKU BS-6005B
Brand Blue Sea
GTIN 9342616009420
Product Category Electrical Accessories
NOTE: see full product specifications & further product info in the Description section on this page.
