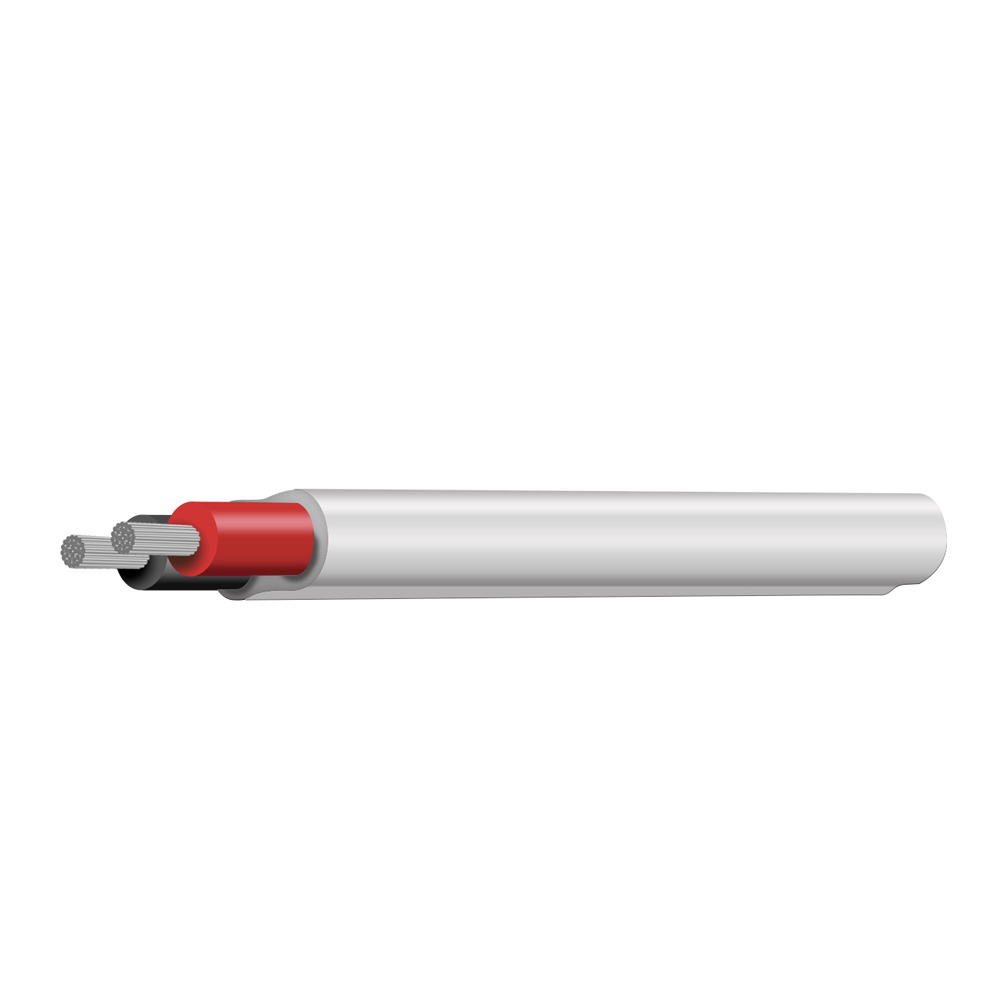

Marine DC Cable 100m Reel - Tinned 4mm White Twin Sheath 2-Core Flat MWS22603-WH-100
SKU: 500-08186 Learn More»
Description
Marine DC Cable 100m Reel - Tinned 4mm White Twin Sheath 2-Core Flat MWS22603-WH-100
Applications: Marine Trailer Wiring, General Purpose Marine Wiring, Lights, Instrumentation
Conductor: TINNED COPPER WIRE (TCW) TO AS/NZS 1125
Insulation: RoHS Compliant V90 P.V.C. to AS/NZS 3808
Colours: Red & Black
Sheath: RoHS Compliant 5V90 P.V.C. to AS/NZS 3808
Sheath Colours: White
Packs: 100 metres
|
**MM Industry Equivalent |
Nominal Area (mm²) |
CONDUCTOR NO/DIA (mm) |
Insulation Thickness (mm) |
Sheath Thickness (mm) |
*AMP Rating JASO D609 at 30°C |
Electrical Resistance at 20°C (ohm/km) |
Nominal O.D. (mm) |
Mass (kg/100m) |
|
4 |
1.84 |
23/0.32 |
0.4 |
0.6 |
22 |
10.2 |
3.8 x 6.3 |
6.1 |
Specifications
SKU 500-08186
Brand Coast to Coast
Product Category Electrical Accessories
NOTE: see full product specifications & further product info in the Description section on this page.
