Matson 12V 20A In-Vehicle DC-DC Battery Charger with Solar Input
SKU: MA21DCS Learn More»
Free Shipping
Description

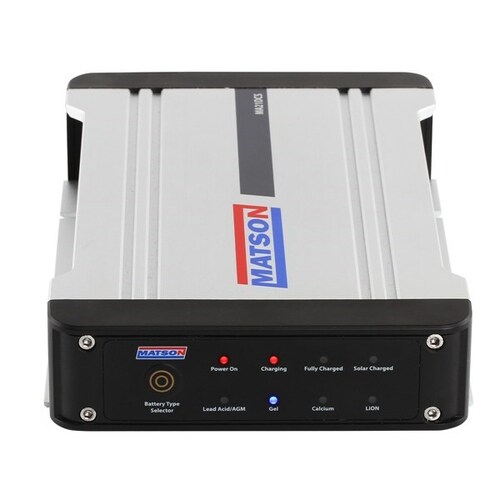

Matson 12V 20A In-Vehicle DC-DC Battery Charger with Solar Input
The MA21DCS is sophisticated multi-stage chargers, utilising microprocessor control and solid state technology to charge most 12V AGM/Lead Acid, Gel, Calcium and LiFePO batteries.
- Heavy duty aluminium case and mounting brackets
- Encapsulated and sealed to IP65 for under bonnet applications
- Microchip monitoring and control
- Fully automatic high frequency multi stage charging
- Pulse mode technology that reduces oxidation, evens electrolyte consistency and minimizes temperature equating to longer battery life
- Easy push button chemistry selection: Lead Acid/AGM (including VRLA and conventional flooded batteries), Gel, Calcium and LiON (LiFePO4)

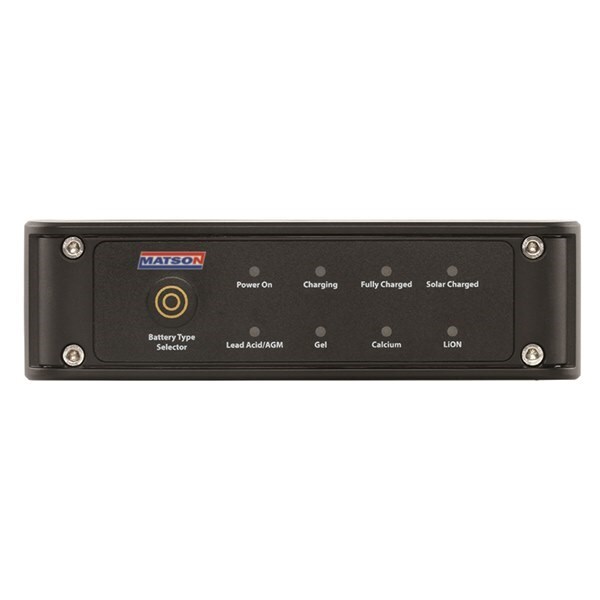

- LED indicators showing stage of charge
- Internal charger temperature monitoring and power output control
- Over charging, short circuit and over temperature protection
- Reverse polarity protection:
- 1. Input reverse polarity protection
- 2. Output reverse polarity protection
- Thermal overload protection
- Solar input overload protection
- Power cut memory function: once selected, the charger will remain on this battery type until it is changed
- MPPT solar charge control
Features:
- 20 Amp Charging
- Chemistry Selectable
- MPPT Charging Profile

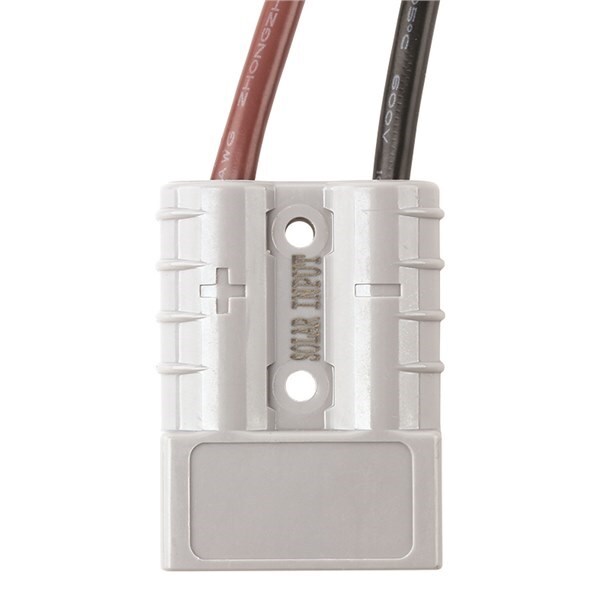

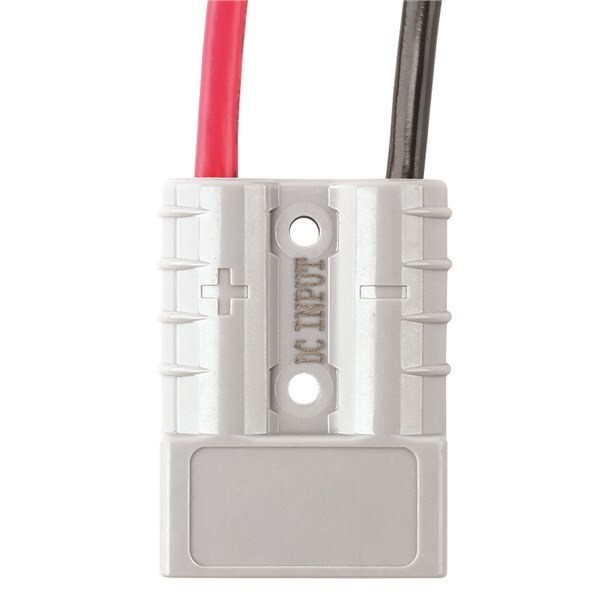

- Dual Input - Alternator/Solar
- IP65 Under-Bonnet Suitable
- Suits Smart and Conventional Alternators
Specifications:
- Case Construction: Aluminium
- Charging Current: 20 Amp
- Charging Lead Length: N/A
- Charging Stage: Multi
- Charging Voltage - AGM/Lead Acid: 14.7V
- Charging Voltage - Calcium: 15.3V
- Charging Voltage - Gel: 14.3V
- Charging Voltage - LiFePO: 14.4V
- Cut In Voltage (Standard Alternator): 13.0V
- Cut In Voltage (Variable Alternator): 11.5V
- Cut Out Voltage (Standard Alternator): 12.4V
- Cut Out Voltage (Variable Alternator): 10.8
- Dimensions: 207 x 135 x 37 (mm)
- Equalisation: Yes
- Fan Cooled: No
- Float Charge Current: 100 (mA)
- Float Charge Voltage: 13.5V
- Input Voltage - DC: 10.8V - 16.0V
- Input Voltage - Solar: 13.5V - 25.0V
- IP Rating: IP65
- Min Start Voltage: 2V
Show More
Specifications
SKU MA21DCS
Brand Matson
Product Category Battery Chargers
Output Current Rating (Amps) 20
Dimensions 207 x 135 x 37mm
Charger Voltage 12V
NOTE: see full product specifications & further product info in the Description section on this page.
