Morningstar EcoBoost MPPT 40 Amp Solar Controller
SKU: SR-EB-MPPT-4 Learn More»
Description

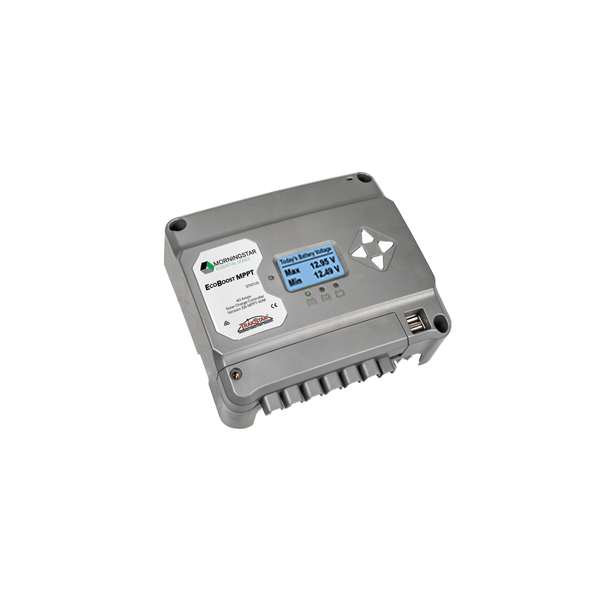

Morningstar EcoBoost MPPT 40 Amp Solar Controller
The NEW EcoBoost MPPT™ is a Maximum Power Point Tracking (MPPT) solar charge controller within Morningstar’s Essential Series™. This controller was developed for residential and leisure consumer applications where an MPPT controller is desired to provide additional power and accommodations for modules that are not supported by other types of controllers. Metered and non-metered versions of this product are available at 20, 30, and 40 amp charge ratings for 12 and 24 volt battery systems.
Specifications:
| Amps | 40.0 Amps |
|---|---|
| Efficiency | 98% (Peak) |
| Operating Temperature Range | -40C to +60C |
| Humidity | 100% Non - condensing |
| Dimensions (LxWxH mm) | 173 x 196 x 71 |
| Open Circuit Voltage Voc(V) | 120 Volts |
| Enclosure Class | IP20, Type 1 |
| Nominal Battery Voltage | 12 or 24 Volt - Automatic Sensing and Setting |
| Battery Voltage Range | 10 - 35V |
| Max. Battery Current | 40 Amps |
| Power | 560 W @ 40 C | 1120 W @ 40C |
| Weight (kg) | 1.4 |
| Manufacturers Warranty | 5 Years |
Features:
- Two USB-A ports for charging multiple mobile phones/tablets
- 3 Amps of USB charging capacity
- Metered and non-metered versions
- Four stage battery charging
- Dusk ‘til dawn lighting control
- Load control
- Electronic and environmental protections
- Wide operating temperature range
Specifications
SKU SR-EB-MPPT-4
Brand Morningstar
GTIN 9342616026458
Product Category Solar Charge Controllers
Voltage 12/24V
Operating temperature range -40°C -+60°C
Dimensions 173x196x71mm (LxWxD)
Weight (kg) 1.4
Charge Current (A) 40
NOTE: see full product specifications & further product info in the Description section on this page.
