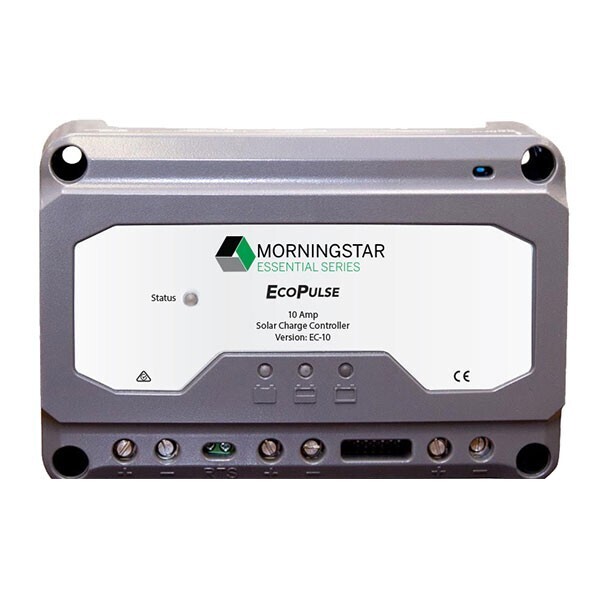

Morningstar EcoPulse 10 AMP Solar Charge Controller
SKU: SR-EC1 Learn More»![](/assets/thumbL/SR-EC10.jpg?20210309070304)
![](/assets/alt_1/SR-EC1.jpg?20210309061816)
SR-EC10
Description
Morningstar EcoPulse 10 AMP Solar Charge Controller
The EcoPulse is a pulse width modulation (PWM) solar charge controller within Morningstar’s Essential Series™ of products which provides essential off-grid battery regulation functions. This controller is easy to use, and designed for residential and leisure consumer applications.* Metered and non-metered versions of this product are available at 10, 20, and 30 amp charge ratings for 12 and 24 volt battery systems.
Specifications:
Amps | 10.0 Amps |
---|---|
Storage Range (temp) | -40°C to + 80°C |
Operating Range (temp) | -40°C to + 45°C |
Humidity | 100% Non-condensing |
Dimensions (LxWxH mm) | 105 x 153 x 55 |
Open Circuit Voltage Voc(V) | 60V |
Accuracy of voltage measurement | <= 0.1% +/- 50mV |
Enclosure Class | IP20, Type 1 |
Nominal Battery Voltage | 12V or 24V - auto-detect |
Battery Voltage Range | 10 - 35V |
Load Current Rating | 10A |
Max. Battery Current | 10A |
Weight (kg) | 0.4 |
Manufacturers Warranty | 5 Years |
Features:
- High Reliability – conformally coated circuit board and corrosion resistant terminals
- Robust Thermal Design – extruded aluminum heatsink dissipates heat quickly without using cooling fans
- Durable Casing – high strength polycarbonate case
- LED Fault Indications – alert when short circuit, over current, high voltage, and other error conditions take place
- Automatic Solar Based Lighting Control – field adjustable dusk ‘til dawn setting
- Adjustable Charge Settings – seven presets and a custom setting can be set via DIP Switches or by the meter display buttons
- Adjustable Load Control – load control can be adjusted via meter display
- Optional Meter – multi-lingual interface with scroll buttons to adjust the settings and display metrics
Specifications
SKU SR-EC1
Brand Morningstar
Product Category Solar Charge Controllers
Voltage 12/24V
Operating temperature range -40°C -+45°C
Weight (kg) 0.4
Charge Current (A) 10
Dimensions 105x153x55mm (LxWxD)
NOTE: see full product specifications & further product info in the Description section on this page.
