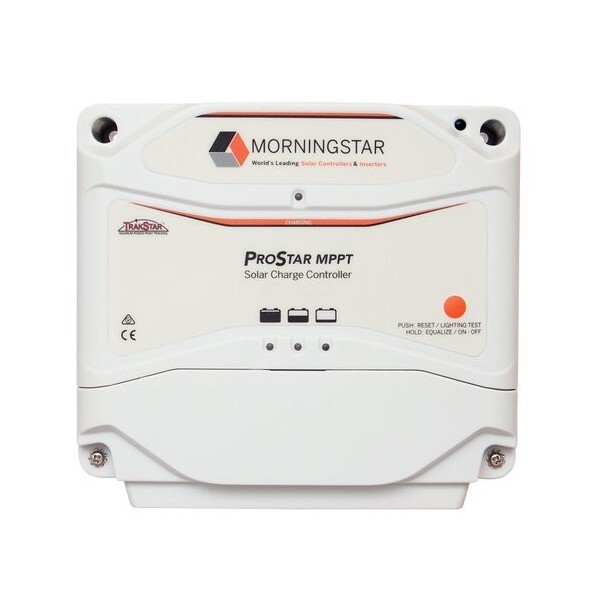

Morningstar ProStar MPPT-25 Amp Solar Controller
SKU: SR-PS-MPPT-2 Learn More»
SR-PS-MPPT-25
Description
Morningstar ProStar MPPT-25 Amp Solar Controller
The Prostar MPPT™ solar charge controller with TrakStar Technology™ is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 1100 watts. This controller allows multiple modules in series for 12V and 24V battery systems. Detailed battery programming options allow for advanced battery support for the latest Lithium, Nickel Cadmium, and Lead Acid battery types.
Specifications:
| Amps | 25.0 Amps |
|---|---|
| Storage Range (temp) | -40°C to + 80°C |
| Operating Range (temp) | -40°C to + 60°C |
| Humidity | 100% Non-condensing |
| Dimensions (LxWxH mm) | 200 x 170 x 70 |
| Accuracy of voltage measurement | <= 0.1% +/- 50mV |
| Enclosure Class | IP20, Type 1 |
| Nominal Battery Voltage | 12V or 24V |
| Battery Voltage Range | 10 - 35V |
| Load Current Rating | 25A |
| Max. Battery Current | 25A |
| Weight (kg) | 1.4 |
| Manufacturers Warranty | 5 Years |
Features:
- Load and automatic PV-based lighting control
- Charges all battery types including Lithium Ion
- Continuous charging and no damage from PV array oversizing
- Up to 256 days of data logging
- Built-in self diagnostics
- Highly durable polycarbonate case
- Low noise design
- MODBUS communications

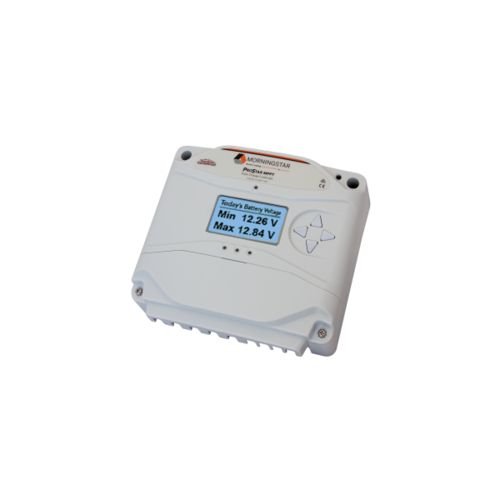

- Meter allows charging and temperature control adjustments without a computer
Specifications
SKU SR-PS-MPPT-2
Brand Morningstar
GTIN 9342616026625
Product Category Solar Charge Controllers
Voltage 12/24V
Operating temperature range -40°C -+60°C
Dimensions 200x170x70mm (LxWxD)
Weight (kg) 1.4
Charge Current (A) 25
NOTE: see full product specifications & further product info in the Description section on this page.
